| Brand | Bosch |
|---|
| Model Number | DXS5031 |
|---|
| SKU | 2610053431 |
|---|

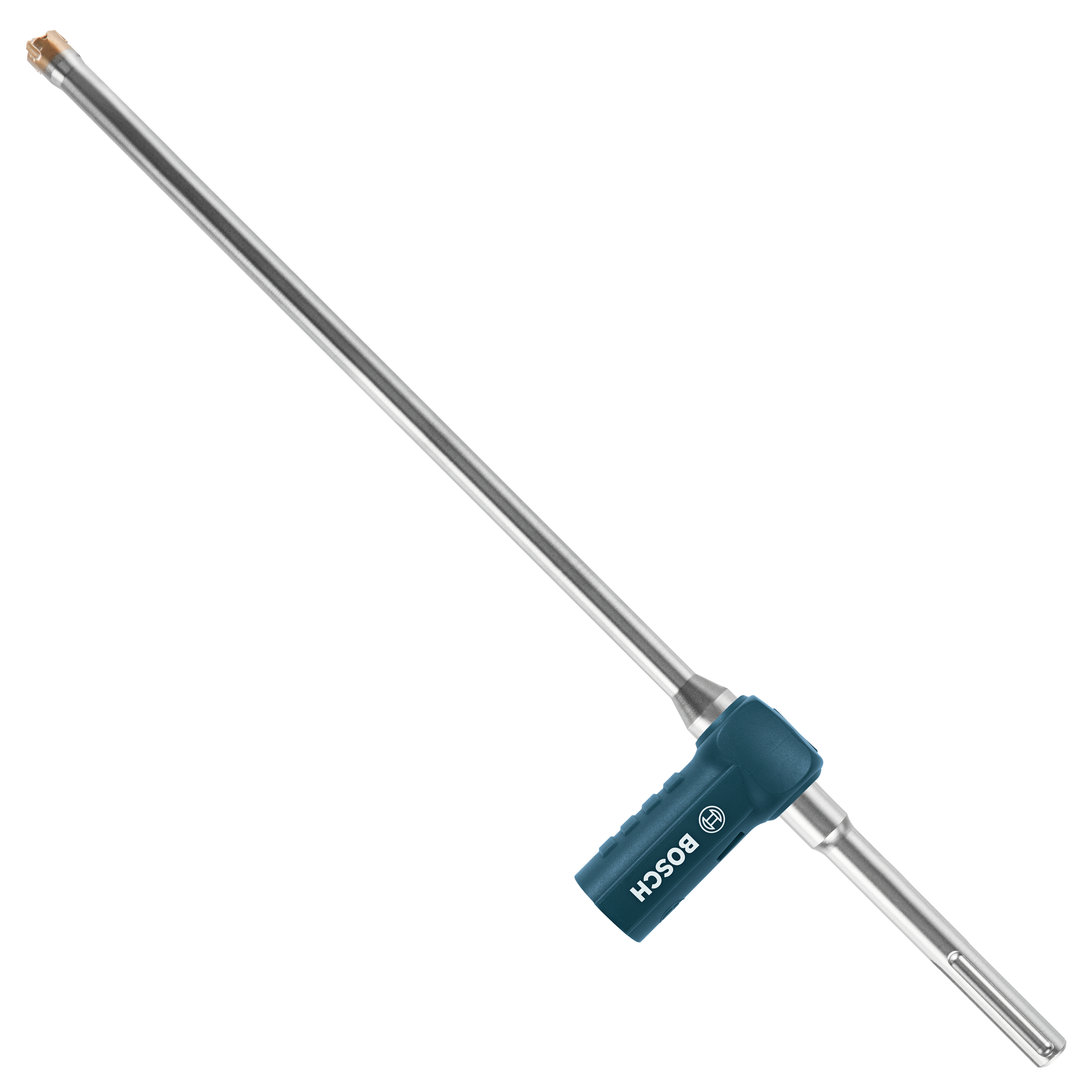

| Product Name | 3/4 In. x 24 In. SDS-max® Speed Clean™ Dust Extraction Bit |
|---|
| Short Description | Speed Clean™ Dust Extraction Bit |
|---|
| List Price - USD | 188.6 |
|---|
| MSRP - USD | 188.59 |
|---|
| UNSPSC | Masonry bit |
|---|
| UNSPSC - Code | 27111543 |
|---|
| Country of Origin | DE |
|---|
| Search Keywords | Speed Clean, dust extraction bits, SDS-plus, vacuum bits, hollow bits, dust collection, anchoring, OSHA, Simpson Strong Tie |
|---|
| Marketing Copy | Bosch Speed Clean™ drill bits are built using a solid piece of steel with a dust channel that’s milled to Bosch specifications to extract dust while drilling, creating 25 percent greater drilling speed. The dust extraction bit system saves time, saves money and produces 90% less dust than traditional drilling methods. The bit life is comparable to the life of Bosch SpeedX® SDS-max® bits. Solid carbide tips are embedded in a steel head with robust four-cutter geometry enhancing bit speed and life. The Speed Clean™ bit, connected to vacuum system, installs adhesive anchors up to 50% faster when compared with the standard hand-cleaning method. A proprietary Bosch design allows dust and debris to be removed through the milled center of the bit. The system is optimized for adhesive anchoring applications, working with Simpson Strong-Tie® Set-XP® high-strength anchoring adhesive, which requires higher clean-hole standards. Dust reduction also increases drilling speed by 25%. A rubber adapter is provided with every Bosch Speed Clean™ bit. The system also reduces airborne silica dust, a known contributor to respiratory illnesses. |
|---|
| Extended Marketing Copy | - Bosch Speed Clean Bits
- The Bosch Speed Clean bit is connected to a vacuum system to deliver up to 50% time savings versus the conventional drill-blow-brush-blow anchor installation method. These bits are code approved and meet OSHA standards for adhesive anchoring and they work in conjunction the Bosch PRO+GUARD dust system. This end-to-end system helps users move toward compliance with the OSHA Silica Dust Table 1 regulation. With solid carbide tips embedded in a steel head, these SDS-plus® or SDS-max® bits are comparable in life with SpeedX® and Bulldog™ bits.
- Premium Carbide Tip
- Solid carbide tips are embedded in a steel head with robust four-cutter geometry enhancing bit speed and life. The bit life is comparable to the life of Bosch Bulldog™ SDS-plus® bits. Bosch carbide ensures quality, long life and hole consistency.
- Dust Extraction Ports
- Internal channel milled to Bosch specifications offers engineered control of airborne silica dust. These bits are code approved and meet OSHA standards for adhesive anchoring. They work in conjunction the Bosch PRO+GUARD dust system to help users move toward compliance with the OSHA Silica Dust Table 1 regulation.
- Works with SDS-plus® and SDS-max® Hammers
- Bosch Speed Clean™ drill bits are built using a solid piece of steel with a dust channel milled to Bosch specifications. They extract dust while drilling, creating 25 percent greater drilling speed. The system saves time and money and reduces 90% of silica dust versus traditional drilling methods. These bits are made for either SDS-plus® and SDS-max® hammers. Each SDS plus® and SDS max® bit includes a pre-installed adapter.
|
|---|
| Feature - Benefit Bullet 1 | Hollow drill bit – connects to a vacuum system to deliver up to 50% time savings versus the conventional drill-blow-brush-blow anchor-installation method |
|---|
| Feature - Benefit Bullet 2 | Meets OSHA standards for adhesive anchoring – work in conjunction the PRO+GUARD dust system to help users move toward compliance with the OSHA Silica Dust Table 1 regulation |
|---|
| Feature - Benefit Bullet 3 | Faster drilling – provides up to 25% greater drilling speed thanks to less dust and reduced friction |
|---|
| Feature - Benefit Bullet 4 | Great durability – one-piece design offers comparable life to Bosch SpeedX® bits |
|---|
| Feature - Benefit Bullet 5 | Part of a dust-reduction engineered solution – included rubber adapter and bit works with a vacuum system to manage airborne silica dust |
|---|
| Feature - Benefit Bullet 6 | Optimized for adhesive anchoring – works with Simpson Strong-Tie® AT-XP® anchoring adhesive and Set-XP® high-strength anchoring adhesive |
|---|
| Global Trade Item Number (GTIN) | 00000346653144 |
|---|
| California Prop 65 Warning Required? | No |
|---|
| FAQs | Q: What shank type does this bit use?
A: This bit features an SDS-plus® shank for use with rotary hammers.
Q: Why use carbide-tipped bits?
A: Carbide tips provide longer life and faster drilling in tough materials like reinforced concrete. |
|---|
| UPC code NA | 000346653144 |
|---|
| Spec 1 | Bit Diameter: 3/4" |
|---|
| Spec 2 | Bit Material: High Carbon Steel |
|---|
| Spec 3 | Bit Type: Percussion |
|---|
| Spec 5 | Color Coded: No |
|---|
| Spec 6 | Etched / Stamped Size Identification: Yes |
|---|
| Spec 7 | Shank Style: SDS-Max |
|---|
