HCFC2267

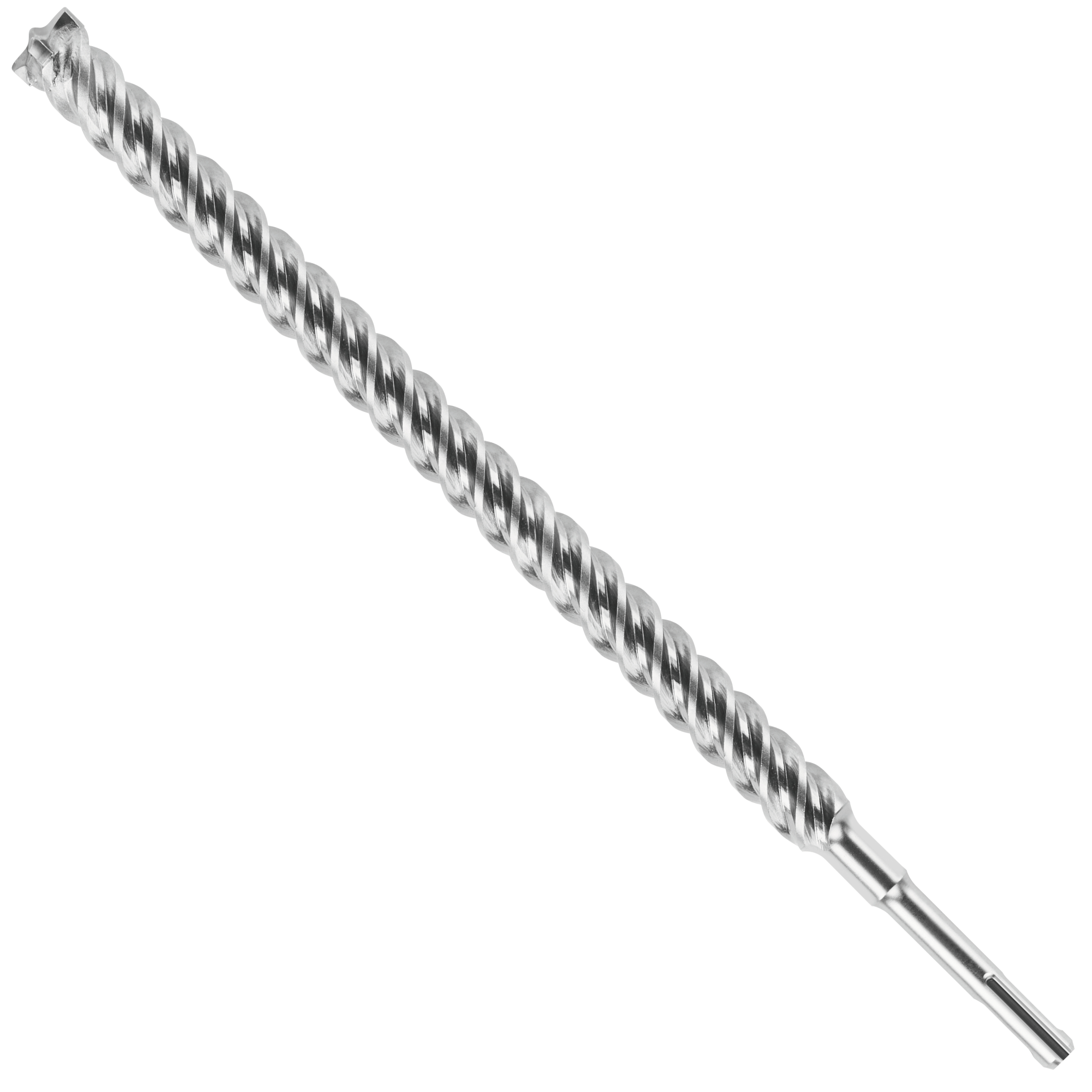

1 In. x 16 In. x 18 In. SDS-plus® Bulldog™ Xtreme Carbide Rotary Hammer Drill Bit

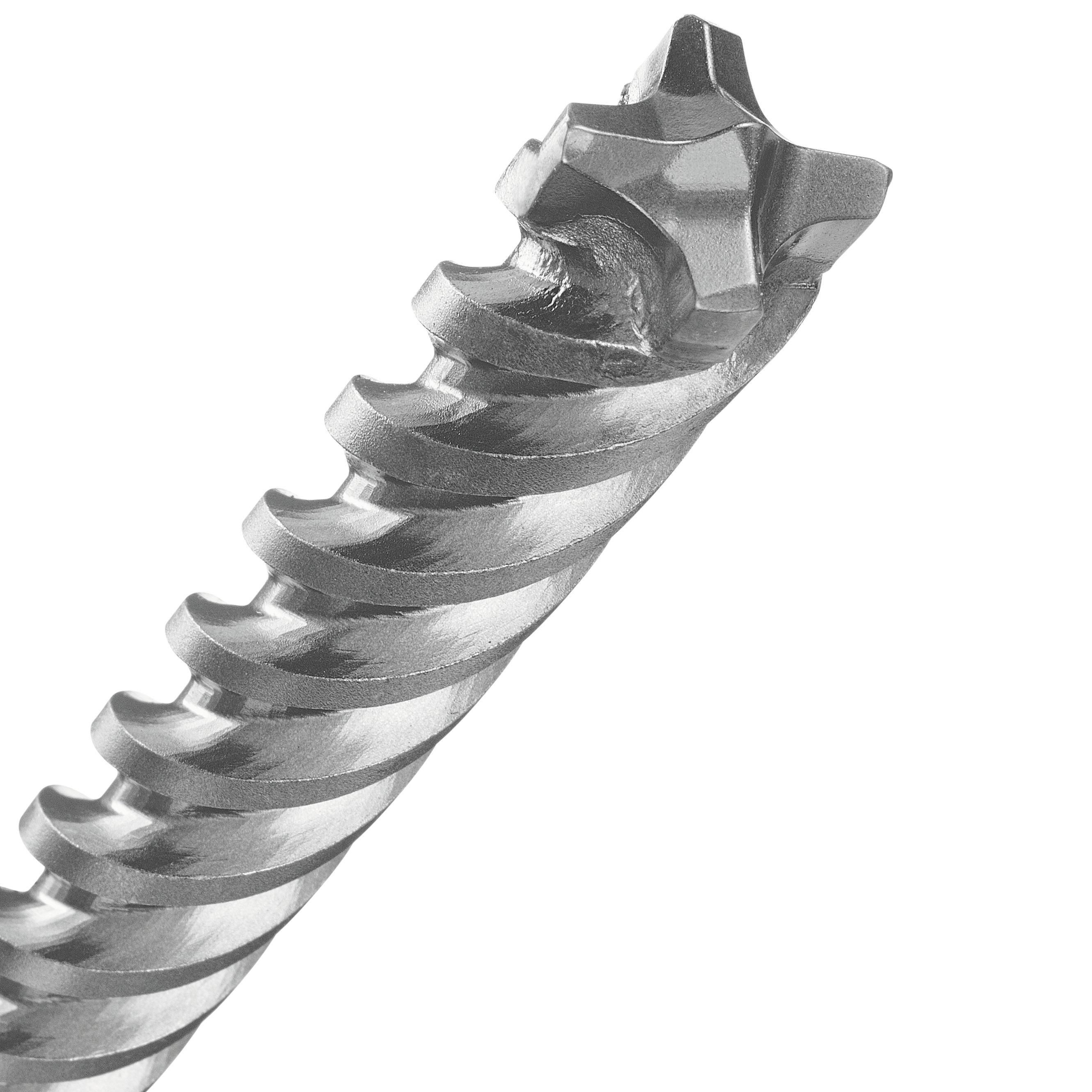

Four-cutter full head carbide design – delivers up to 4X life in concrete with rebar (vs Hawera® SDS-plus® two-cutter concrete drill bit)
Four-cutter head – provides four cutting edges to hit rebar, to help prevent the bit from getting stuck
Full head carbide – improves strength of the bit tip, reducing breakage upon hitting rebar
Centering tip – ideal for drilling anchoring holes to enhance the precision of hole placement
Integrated wear mark – indicates when the bit has been fully worn
Variable (4-2-2) flute design – aggressively pulls dust away from hole to reduce heat build up, providing more holes per battery charge (compared to standard four-flute design)
Bosch-made carbide – promotes quality material for increased durability
SDS-plus® bit design – for use with SDS-plus® rotary hammers

Application Images

Product Images

Product Feature Walk Around Image

Brand	Bosch
Model Number	HCFC2267
SKU	2610071955
Product Name	1 In. x 16 In. x 18 In. SDS-plus® Bulldog™ Xtreme Carbide Rotary Hammer Drill Bit
Short Description	Bulldog™ Xtreme Rotary Hammer Bit
List Price - USD	110.61
MSRP - USD	110.65
UNSPSC	Masonry bit
UNSPSC - Code	27111543
Country of Origin	DE
Search Keywords	Bosch, accessories, concrete drilling, SDS-plus, Bulldog Xtreme rotary hammer bits, Bulldog Extreme, Bulldog Xtreme, X5L
Marketing Copy	The Bosch SDS-plus® Bulldog™ Xtreme Rotary Hammer Bit is longer lasting, due to its proprietary carbide-bonding technology that provides a stronger bond of the four-cutter head to the bit. The bit provides 4X life in concrete with rebar. The centric conical tip guides the bit, resulting in rounder holes, which is important when setting anchors or fasteners. The four-cutter head design features less carbide wear than two-cutter bits, making the user more productive. A wear mark alerts the user when the bit has worn to a level where it’s no longer precise. With an optimized flute design for cooler operation, the bit delivers performance in reinforced concrete or harsh aggregate, plus lightweight and normal weight concrete.
Extended Marketing Copy	SDS-plus® Bulldog™ Xtreme Carbide Rotary Hammer Drill Bit The Bosch SDS-plus® Bulldog™ Xtreme Carbide Rotary Hammer Drill Bit is a long-lasting bit in concrete with rebar, due to its four-cutter tip design and proprietary carbide-bonding technology. The four-cutter tips help to provide 4X life in concrete with rebar. The centric conical tip guides the bit, resulting in rounder holes, while the four-cutter tip design features less carbide wear than two-cutter bits. Four-cutter tips These Bulldog™ Xtreme bits feature four-cutter tips, to deliver longer life. In fact, in internal tests, these bits delivered 4X life in concrete with rebar than a standard SDS-plus® bit. More precise holes Bulldog™ Xtreme bit tips are designed to guide the bit through the concrete. The centric conical tip results in rounder holes, which is important when setting anchors or fasteners. Wear mark The bit provides a wear mark that alerts the user when the bit has worn to a level where it’s no longer accurate. This helps to assure hole-diameter tolerance for precision anchoring applications. Longer life in rebar Bosch’s proprietary carbide-bonding technology helps the bit to provide 4X longer life in rebar vs. a standard SDS-plus® bit. It also has a four-cutter head, for less wear than a two cutter.
Feature - Benefit Bullet 1	Four-cutter full head carbide design – delivers up to 4X life in concrete with rebar (vs Hawera® SDS-plus® two-cutter concrete drill bit)
Feature - Benefit Bullet 2	Four-cutter head – provides four cutting edges to hit rebar, to help prevent the bit from getting stuck
Feature - Benefit Bullet 3	Full head carbide – improves strength of the bit tip, reducing breakage upon hitting rebar
Feature - Benefit Bullet 4	Centering tip – ideal for drilling anchoring holes to enhance the precision of hole placement
Feature - Benefit Bullet 5	Integrated wear mark – indicates when the bit has been fully worn
Feature - Benefit Bullet 6	Variable (4-2-2) flute design – aggressively pulls dust away from hole to reduce heat build up, providing more holes per battery charge (compared to standard four-flute design)
Global Trade Item Number (GTIN)	00000346280784
California Prop 65 Warning Required?	No
FAQs	Q: What shank type does this bit use? A: This bit features an SDS-plus® shank for use with rotary hammers. Q: Why use carbide-tipped bits? A: Carbide tips provide longer life and faster drilling in tough materials like reinforced concrete.
UPC code NA	000346280784
Spec 1	Bit Diameter: 1 In.
Spec 2	Bit Material: Carbide Tipped
Spec 3	Bit Type: Percussion
Spec 5	Color Coded: No
Spec 6	Etched / Stamped Size Identification: Yes
Spec 7	Shank Style: SDS-Plus
