JSH180B

18V Top-Handle Jig Saw (Bare Tool)

Light weight – up to 30% lighter than leading competitor
Compact – up to 10% smaller than leading competitor

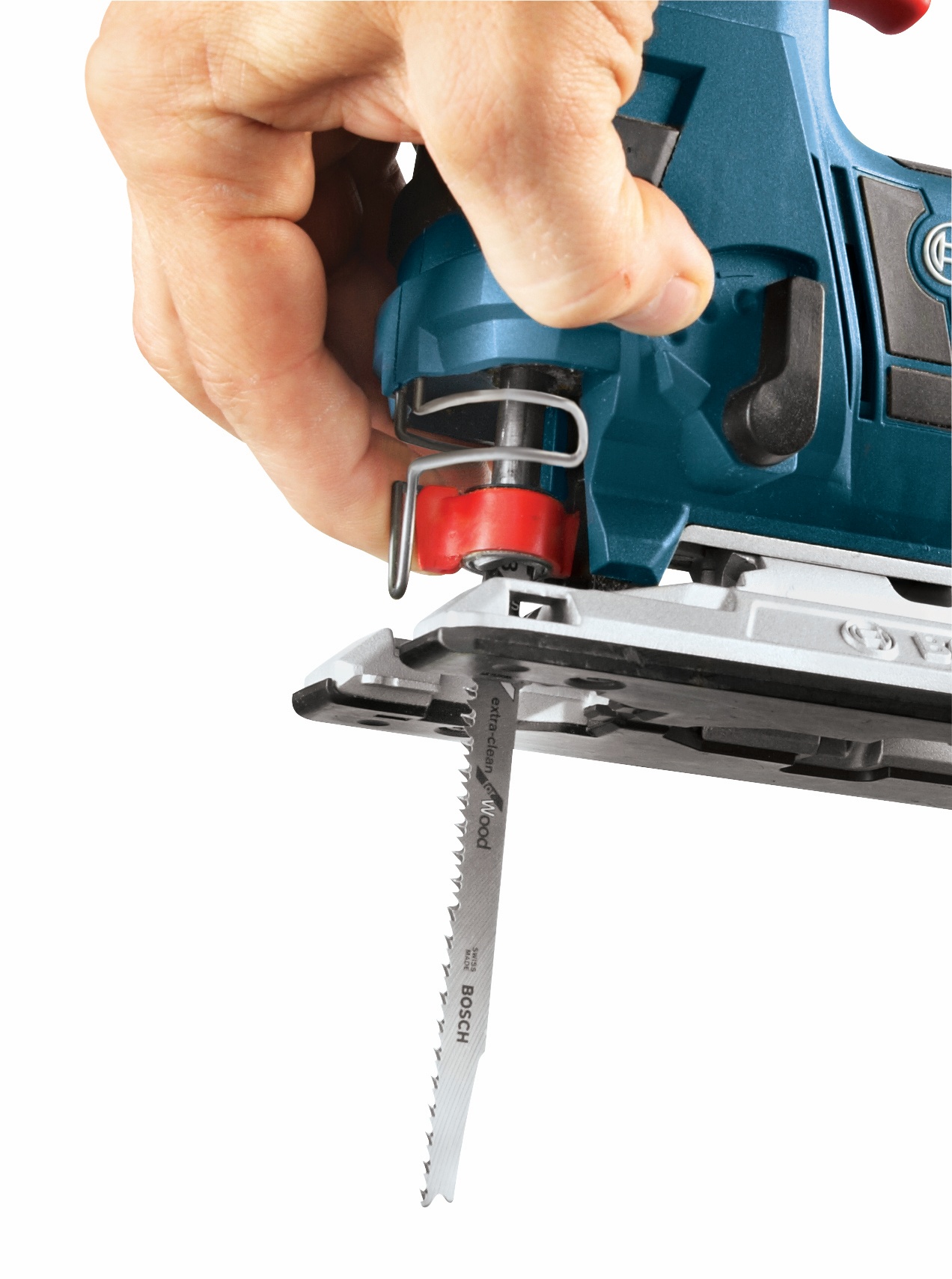

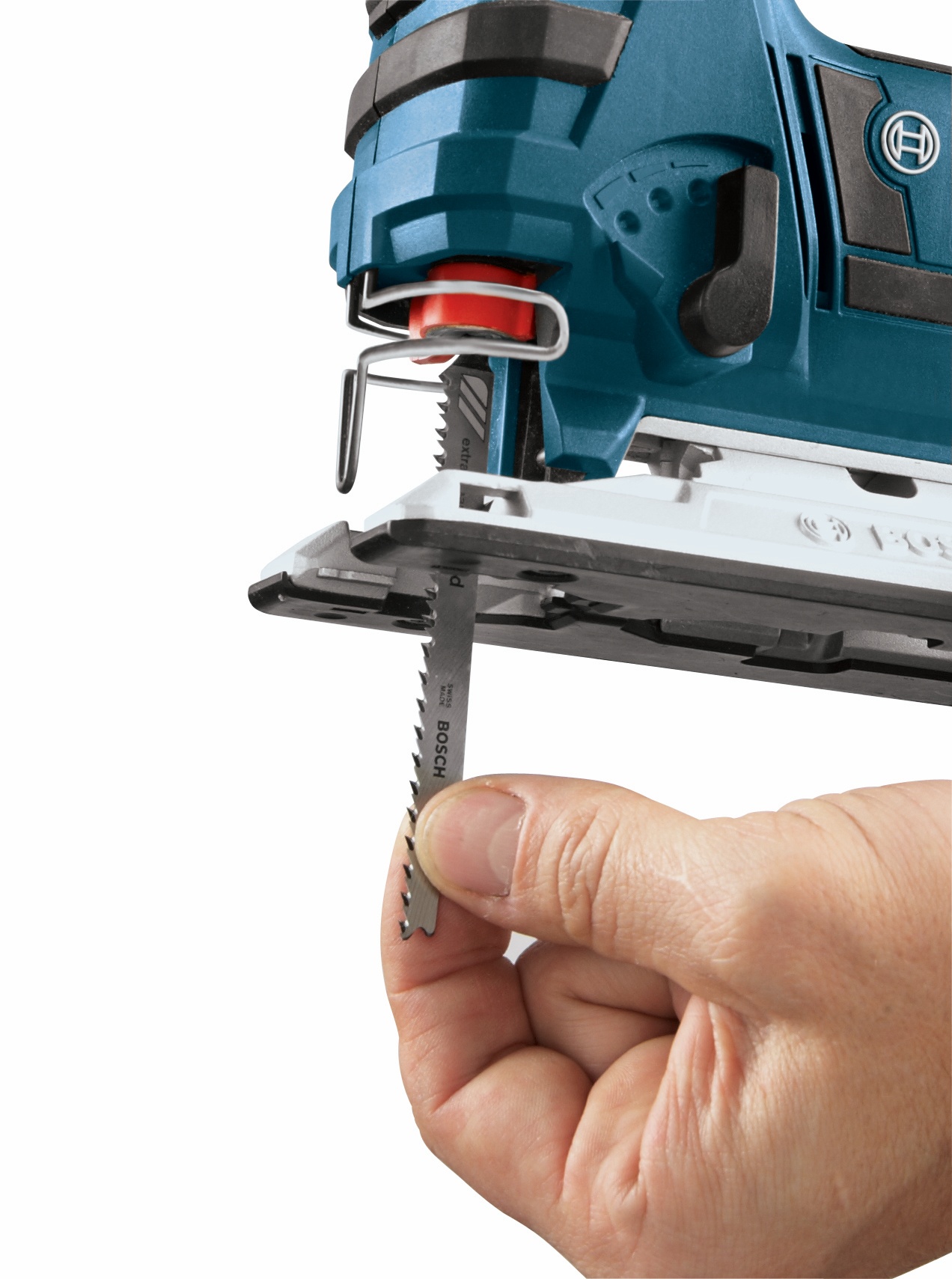

One-handed blade insertion and ejection for convenience and ease of use
Smallest grip diameter reduces user fatigue during extended-use applications
Always-on dust blower helps keep intended cut line visible
LED light for illuminating cut line
Adjustable footplate for bevel cuts of up to 45°
On-board bevel wrench storage for more convenience
Electronic Motor Protection (EMP) helps protect the motor against overload and ensures a long lifetime
AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99

Manuals

Manuals

Application Images

Application Images

Application Images

Application Images

Application Images

Battery Badge

Product Images

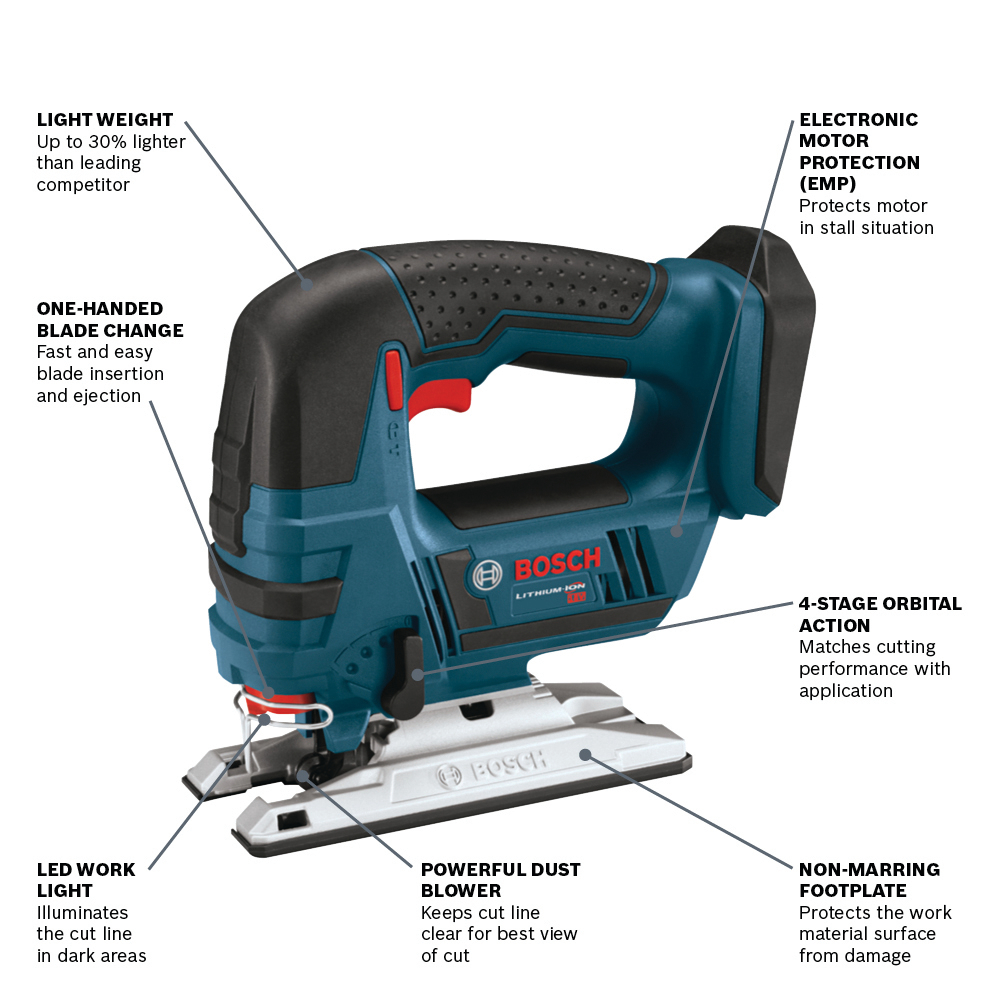

Product Feature Walk Around Image

Service One Pager

Brand	Bosch
Model Number	JSH180B
SKU	060158J31E
Product Name	18V Top-Handle Jig Saw (Bare Tool)
Short Description	18V Top-Handle Jig Saw
List Price - USD	325.44
MSRP - USD	179
UNSPSC	Jigsaw
UNSPSC - Code	27112734
Country of Origin	HU
Search Keywords	Bosch, Top-Handle, Jig Saw, top handle, jig saw, 18V jig saw, JS180, JS 180, JS, 180, jigsaw, JSH180BL, JSH180BN, JSH180B, JA1010, JA1011, 18V
Marketing Copy	The Bosch JSH180 Lithium-ion 18V jig saw is compact and lightweight. Its T-shank blade change system allows the user to insert the blade just without the need for any tools, and when it’s time for a blade change, a turn of knob ejects the blade, so there is no need to touch a hot blade. This jig saw also features an always-on blower and integrated LED light for enhanced visibility in the cutting area. The sophisticated electronics package includes Electronic Motor Protection (EMP), which protects the motor against overload and ensures a long lifetime and the Electronic Cell Protection (ECP) protects the battery (sold separately) against overload, overheating and deep discharge. Bosch 18V Lithium-ion batteries feature the CoolPack design with a special heat-conductive housing and ribbing that cools them by drawing out heat out, providing battery life of up to 100% over Lithium-ion batteries without the CoolPack design.
Extended Marketing Copy	The Bosch JSH180B 18V Jig Saw provides fast cutting and long runtime, making it ideal for cutting out unique shapes in multiple materials. Its compact size and light weight make it a go-to tool for finish carpenters, cabinet makers or kitchen and bath installers. With a four-stage orbital action, it provides a 1 In. stroke length that powers through wood, aluminum and steel. It has the shortest trigger-to-blade distance and smallest grip circumference in its class. Precision in Multiple Materials The jig saw provides an outstanding cutting experience for precise shapes in multiple materials. Featuring a compact size at just 10.24 In. and 4.1 Lbs. without battery, this tool is manageable in all work situations, including overhead and inverted positions. It has short side and front offsets as well, for greater use in awkward or limited spaces. Power and Performance The Bosch JSH180B furnishes a four-stage orbital action to match cutting performance with application. It has a 1 In. stroke length and 45° bevel angle range, and this jig saw can cut through wood, aluminum and a variety of other materials. It has a 3/8 In. maximum capacity in steel and 3-1/2 In. capacity in wood. Outstanding Cutting Experience The jig saw lead the way with an excellent cutting experience for the user. It has the shortest trigger-to-blade distance in its class. With the smallest grip circumference, the outstanding ergonomics of this tool helps to reduce user fatigue during extended-use application. It has an adjustable footplate for bevel cuts. Ease of Operation The Bosch JSH180B 18V Jig Saw is convenient to operate, with single-handed blade change capability. The JSH180 allows for fast and easy blade insertion and ejection thanks to an innovative design. The toolless T-Shank blade makes for fast and effortless blade installation and removal. The tool has an integrated LED light for offering clearer cutting views. What's in the Box The Bosch JSH180B 18V Jig Saw is a bare tool kit; the battery and charger are sold separately. Features Include Optimized performance - fast cutting and long runtime Compact - just 10.24 In. and 4.1 Lbs. without battery Can cut through wood, aluminum and steel Four-stage orbital action matches operation to application Short side and front offsets promotes use in limited spaces 1 In. stroke length and 45° bevel angle range Shortest trigger-to-blade distance in its class Smallest grip circumference to reduce user fatigue Adjustable footplate for bevel cuts Single-handed blade changes Toolless T-Shank blade for fast blade installation Integrated LED light AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
Feature - Benefit Bullet 1	Light weight – up to 30% lighter than leading competitor
Feature - Benefit Bullet 2	Compact – up to 10% smaller than leading competitor
Feature - Benefit Bullet 3	One-handed blade insertion and ejection for convenience and ease of use
Feature - Benefit Bullet 4	Smallest grip diameter reduces user fatigue during extended-use applications
Feature - Benefit Bullet 5	Always-on dust blower helps keep intended cut line visible
Feature - Benefit Bullet 6	LED light for illuminating cut line
Global Trade Item Number (GTIN)	00000346423273
California Prop 65 Warning Required?	No
FAQs	Q: What is the primary use for the 18V Top-Handle Jig Saw (Bare Tool)? A: 18V Top-Handle Jig Saw (Bare Tool) The Bosch JSH180B 18V Jig Saw provides fast cutting and long runtime, making it ideal for cutting out unique shapes in multiple materials. Its compact size and light...
Average Rating	4.5
Reviews	This is a good jigsaw except I'm not too fond of the blade clamp. It's a nice idea but needs improvement. Cutting wood works well but cutting metal not so well. The tools itself is fine cutting metal, but the blade and blade clamp pops out. This has happened several times to me already. Been a lifelong Bosch customer so pains me to not be able to recommend this product. \| I bought this cordless jig saw two years ago when my corded jig saw, the 1587VS was stolen. I'd never used a cordless jig saw prior to this purchase, so I did know what to expect. I was pleasantly surprised to see how well it compared to the corded version. I've used it to cut wood and thick sheet metal and it does a beautiful job. It has enough power to get any job done and is very easy to control. I'm almost glad my old jig saw was stolen because I would never have thought to purchase this cordless tool. \| Perfectly balanced and blade tracks straight,no wandering \| It's sooooo nice product, saler, thank you very much love it
UPC code NA	000346423273
Spec 1	Battery Voltage (V): 18
Spec 2	Charger Included: No
Spec 3	Main Handle Type: Ergonomic Top Handle
Spec 5	Orbital Action: Yes
Spec 6	Variable Speed: Yes
Spec 7	Saw Design: Top / D-Handle
Spec 8	Stroke Length (in): 1
Spec 9	Scrolling Action: No
Spec 10	Product Storage Included: No Case Included
