| Brand | Bosch |
|---|
| Model Number | RH328VC |
|---|
| SKU | 061123A012 |
|---|

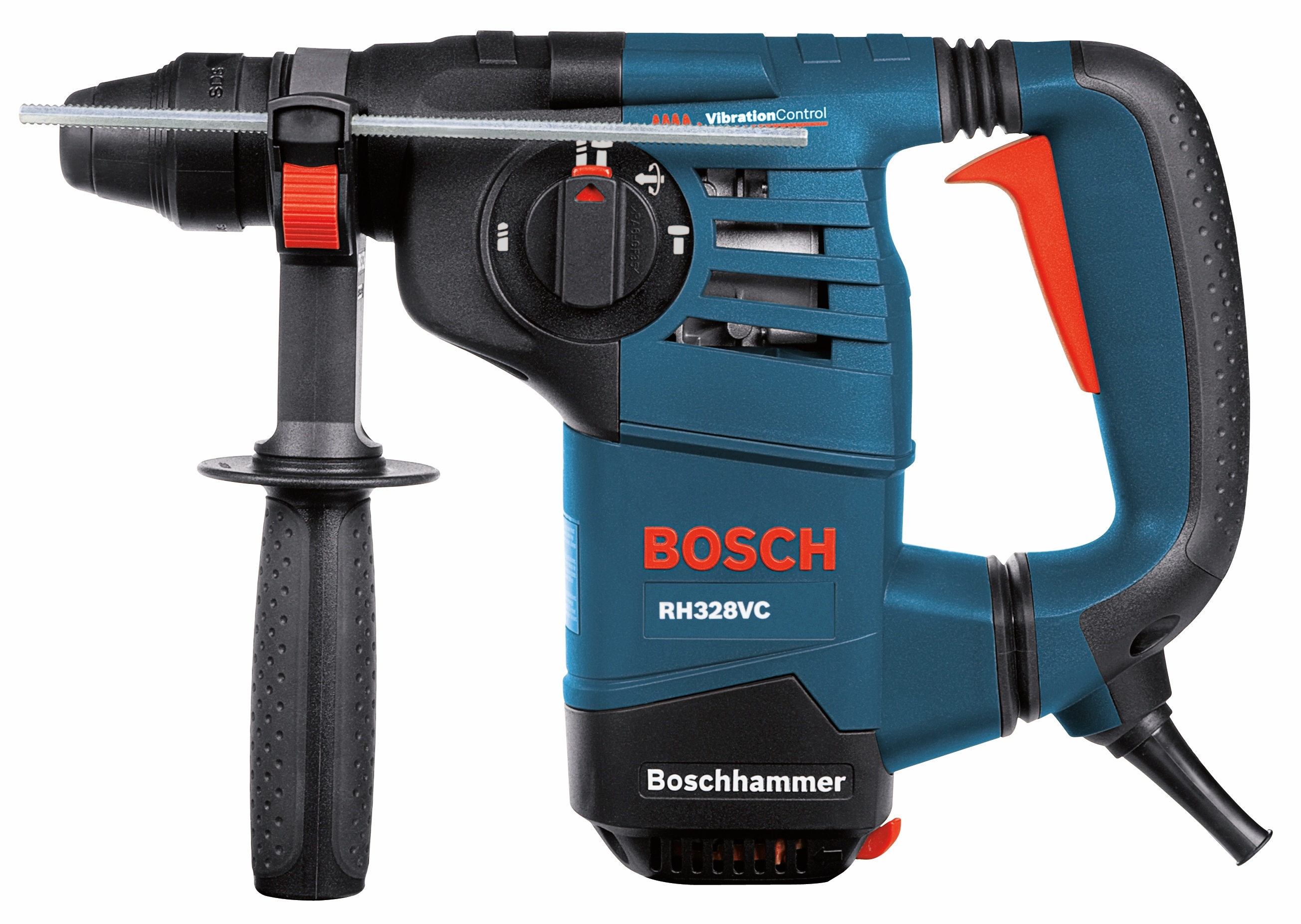

| Product Name | SDS-plus® 1-1/8 In. Rotary Hammer |
|---|
| Short Description | SDS-plus® 1-1/8 In. Rotary Hammer |
|---|
| List Price - USD | 639.58 |
|---|
| MSRP - USD | 355 |
|---|
| UNSPSC | Rotary drills |
|---|
| UNSPSC - Code | 20111611 |
|---|
| Country of Origin | HU |
|---|
| Search Keywords | Bosch, RH328VC, 1-1/8" SDS-plus Rotary Hammer, 1-1/8", SDS-plus, Rotary, Hammer, rotary hammer, concrete hammer, concrete |
|---|

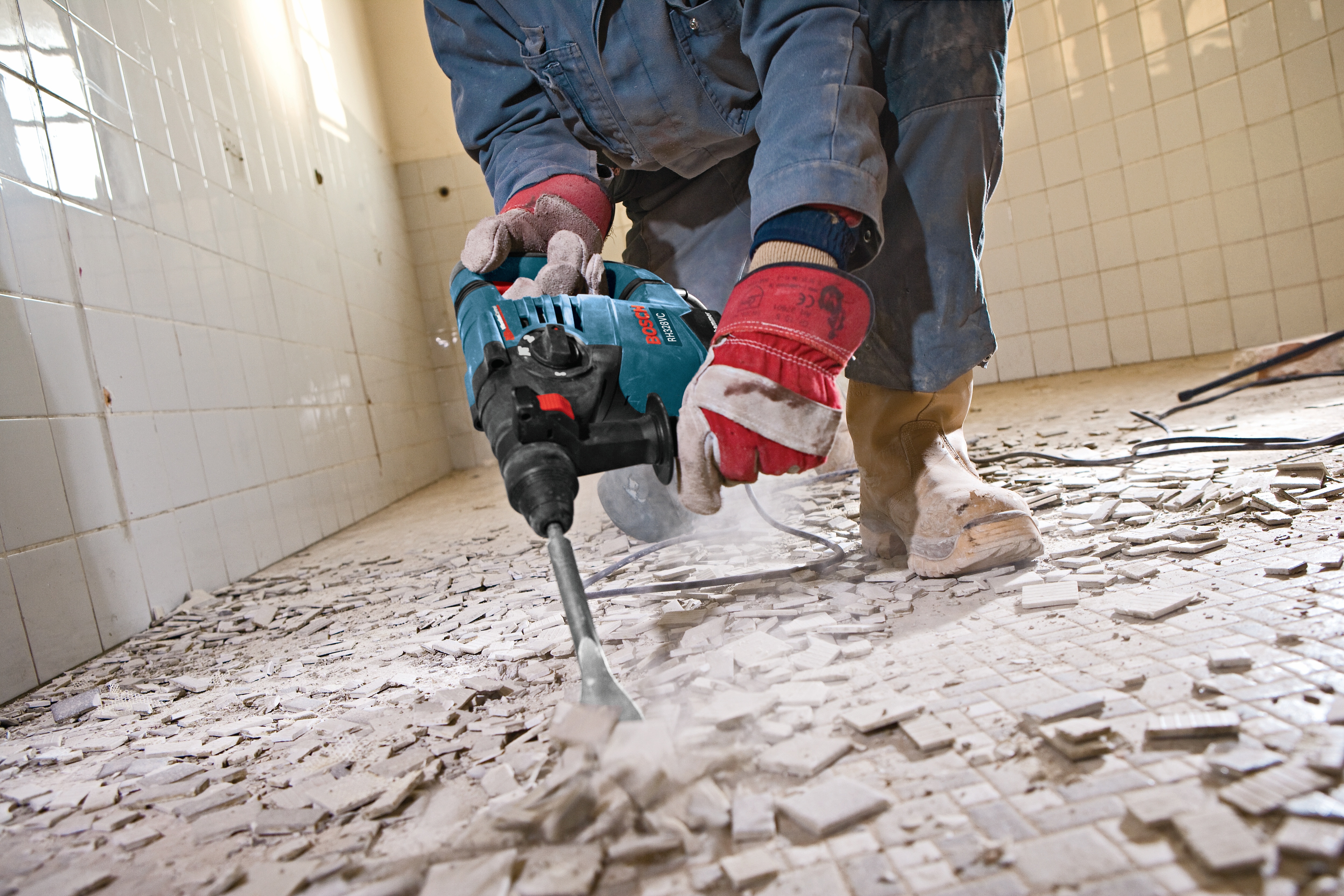

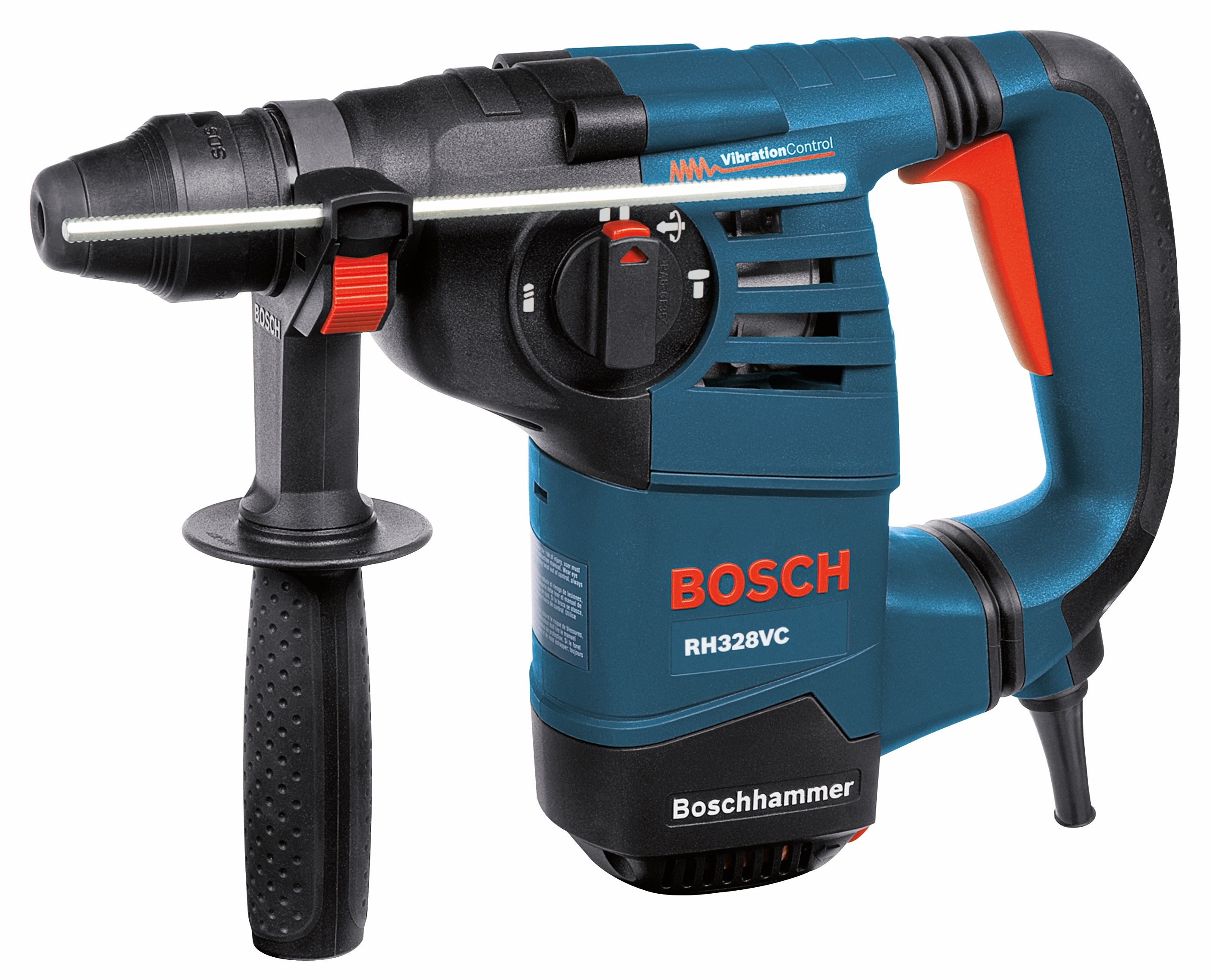

| Marketing Copy | The Bosch RH328VC SDS-plus® 1-1/8 In. Rotary Hammer can deliver 2.4 Ft.-Lbs. of impact energy, but this tool weighs only 7.7 Lbs. and is a compact length of 12.5 In., for an outstanding power-to-size ratio. The 8.0-amp motor generates up to 4,000 blows per minute, making it an ideal choice for construction or demolition. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. It has Vibration Control in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch that discontinues power transmission for bind situations, and it has Vario-Lock to set the chisel into one of 12 positions for better leverage. |
|---|
| Extended Marketing Copy | - Bosch RH328VC SDS-plus® 1-1/8 In. Rotary Hammer
- The Bosch RH328VC SDS-plus® 1-1/8 In. Rotary Hammer can deliver 2.4 Ft.-Lbs. of impact energy, but this tool weighs only 7.7 Lbs. and is a compact length of 12.5 In., for an outstanding power-to-size ratio. The 8.0-amp motor generates up to 4,000 blows per minute, making it an ideal choice for construction or demolition. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. It has Vibration Control in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch that discontinues power transmission for bind situations, and it has Vario-Lock to set the chisel into one of 12 positions for better leverage.
- Three Hammer Modes
- The Bosch RH328VC has a multifunction selector that lets operators select the tool settings based on the application and material they're tackling – rotary hammer, rotation only or hammer only – for the use of masonry bits, chisels and drill bits. It delivers a no-load rpm rate of 0-900 and a no-load bpm rate of 0-4,000. With a Vario-Lock system, the user can rotate and lock the chisel in one of 12 different positions.
- Vibration Reduction

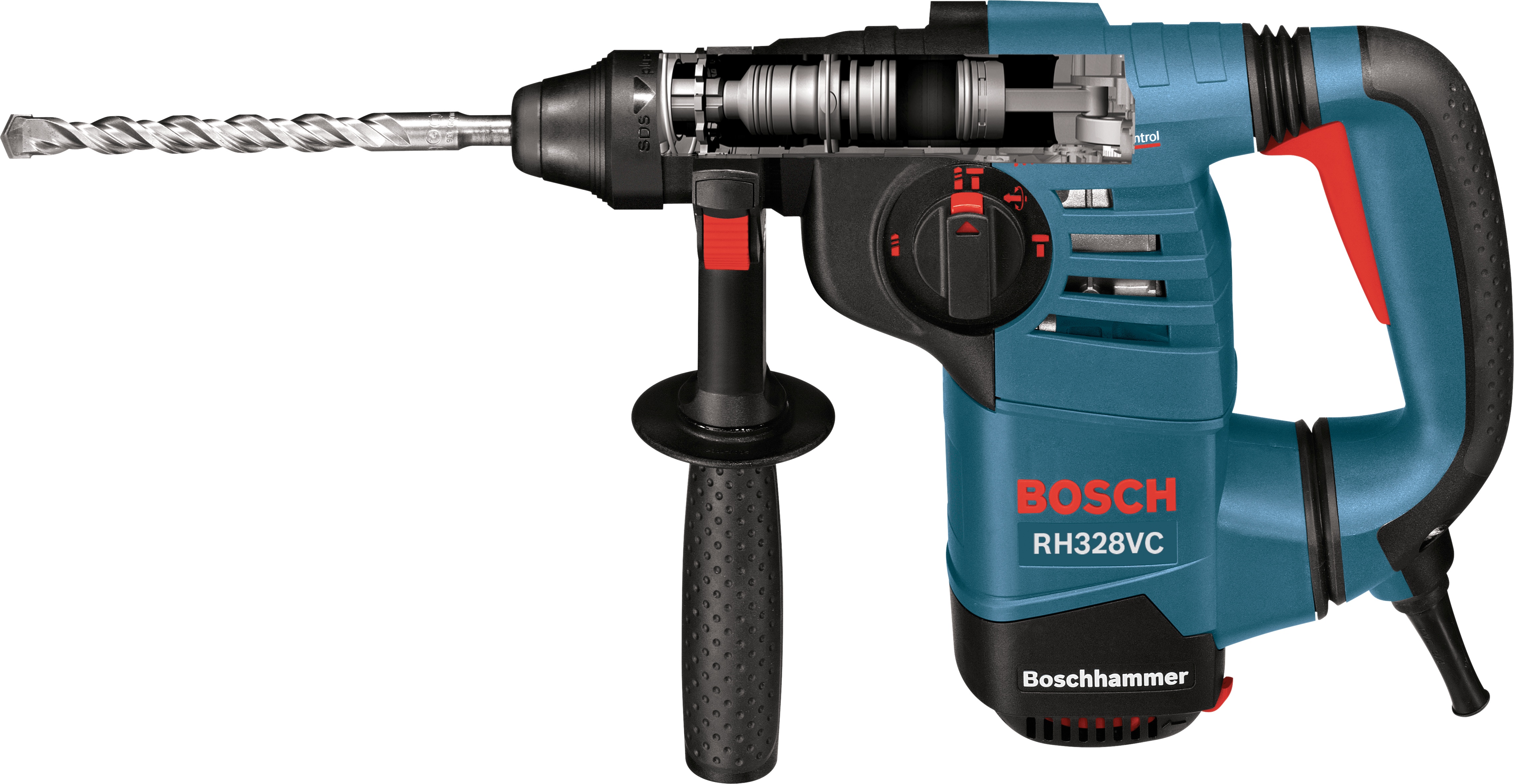

- It has a Vibration Control system in the hammer mechanism and grip area. The two-step process starts from the impact mechanism and progresses to the handle, which features rubber dampening elements on the top and bottom. Padding in the grip area and the 360° rotation of the auxiliary handle (included) help provide maximum user control and comfort for extended periods of work.
- Power-Weight Ratio
- The Bosch RH328VC Rotary Hammer features an 8.0-amp hammer that delivers 2.4 Ft.-Lbs. of impact energy, for great productivity in all-day masonry jobs. Bosch's impact system maximizes impact force and minimizes vibration. At 7.7 Lbs., the rotary hammer delivers an outstanding power-to-weight ratio, and it has a compact length of 12.5 In.
- Integral Clutch
- The integral slip clutch and the hammer mechanism in the hammer combine to increase power and reduce vibration. The integral clutch disengages torque transmission if the bit gets into a bind situation. The RH328VC features an SDS-plus® chuck system. The tool has a variable-speed trigger with reversing for more accurate bit starting or for removing bound bits.
- What's in the Box

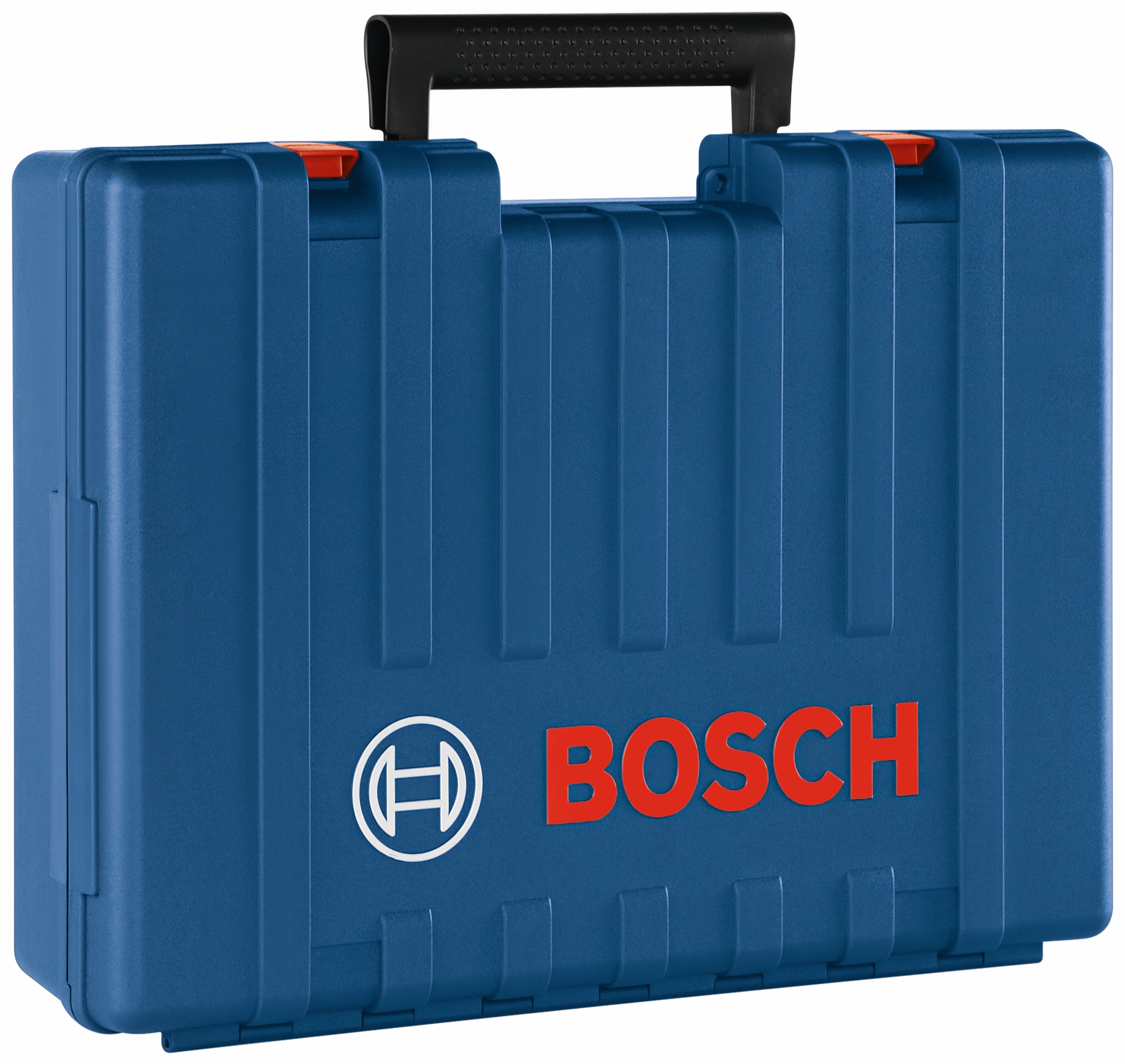

- The Bosch RH328VC includes an auxiliary handle, a depth gauge and a carrying case.
- Features Include

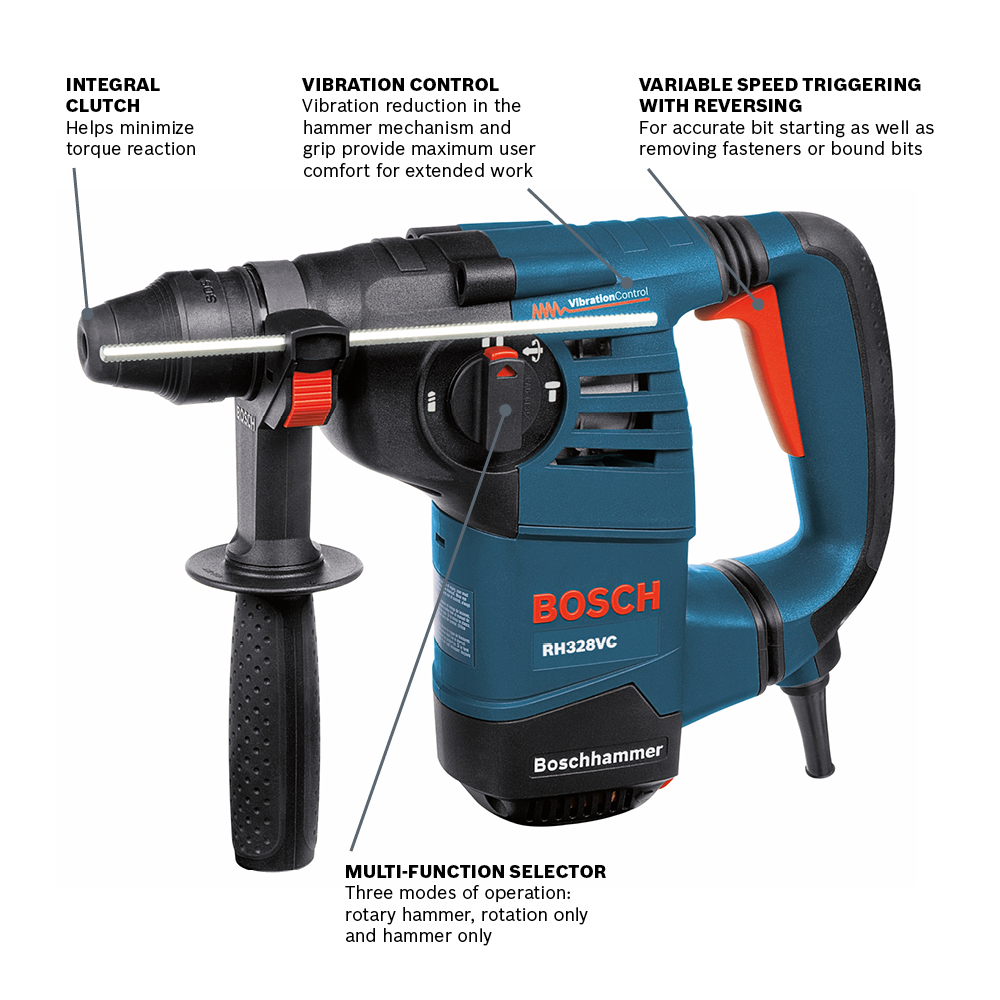

- Powerful 8.0-amp motor – drives 2.4 Ft.-Lbs. of impact energy for professional results
Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter
Multifunction selector — rotary hammer, rotation-only and hammer-only mode
Vario-Lock system with reversing — for accurate bit starting as well as removing fasteners or bound bits
Integral clutch — disengages torque transmission if the bit gets into a bind situation
Variable-speed trigger – for better operator control and accurate bit starting
Bosch impact system – maximizes impact force and minimizes vibration
360° rotation auxiliary handle – for convenient operator control
First-rate power-to-size ratio – hammer weighs only 7.7 Lbs.
|
|---|
| Feature - Benefit Bullet 1 | Powerful 8.0-amp motor – drives 2.4 Ft.-Lbs. of impact energy for professional results |
|---|
| Feature - Benefit Bullet 2 | Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work |
|---|
| Feature - Benefit Bullet 3 | SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter |
|---|
| Feature - Benefit Bullet 4 | Multifunction selector — rotary hammer, rotation-only and hammer-only mode |
|---|
| Feature - Benefit Bullet 5 | Vario-Lock system with reversing — for accurate bit starting as well as removing fasteners or bound bits |
|---|
| Feature - Benefit Bullet 6 | Integral clutch — disengages torque transmission if the bit gets into a bind situation |
|---|
| Global Trade Item Number (GTIN) | 00000346398472 |
|---|
| California Prop 65 Warning Required? | No |
|---|
| FAQs | Q: What shank type does this bit use?
A: This bit features an SDS-plus® shank for use with rotary hammers. |
|---|
| Average Rating | 5 |
|---|
| Reviews | I just got this hammer drill and it’s a good tool for the price and a workhorse drill. Definitely would recommend it. | Perfect for the seismic retrofit I did on my 1920s craftsman house in San Diego - light enough to be held with one hand and strong enough to bore a 4 inch deep and 1/2 inch wide hole in concrete in under 30 seconds. The vibration dampening handle was literally a relief. Worth the price. |
|---|
| UPC code NA | 000346398472 |
|---|
| Spec 1 | Blasts Per Minute - Maximum (BPM): 4000 |
|---|
| Spec 2 | Chuck Capacity: SDS-Plus |
|---|
| Spec 3 | Chuck Design: Keyless |
|---|
| Spec 5 | Thin Wall Core Bit Capacity: Yes |
|---|
