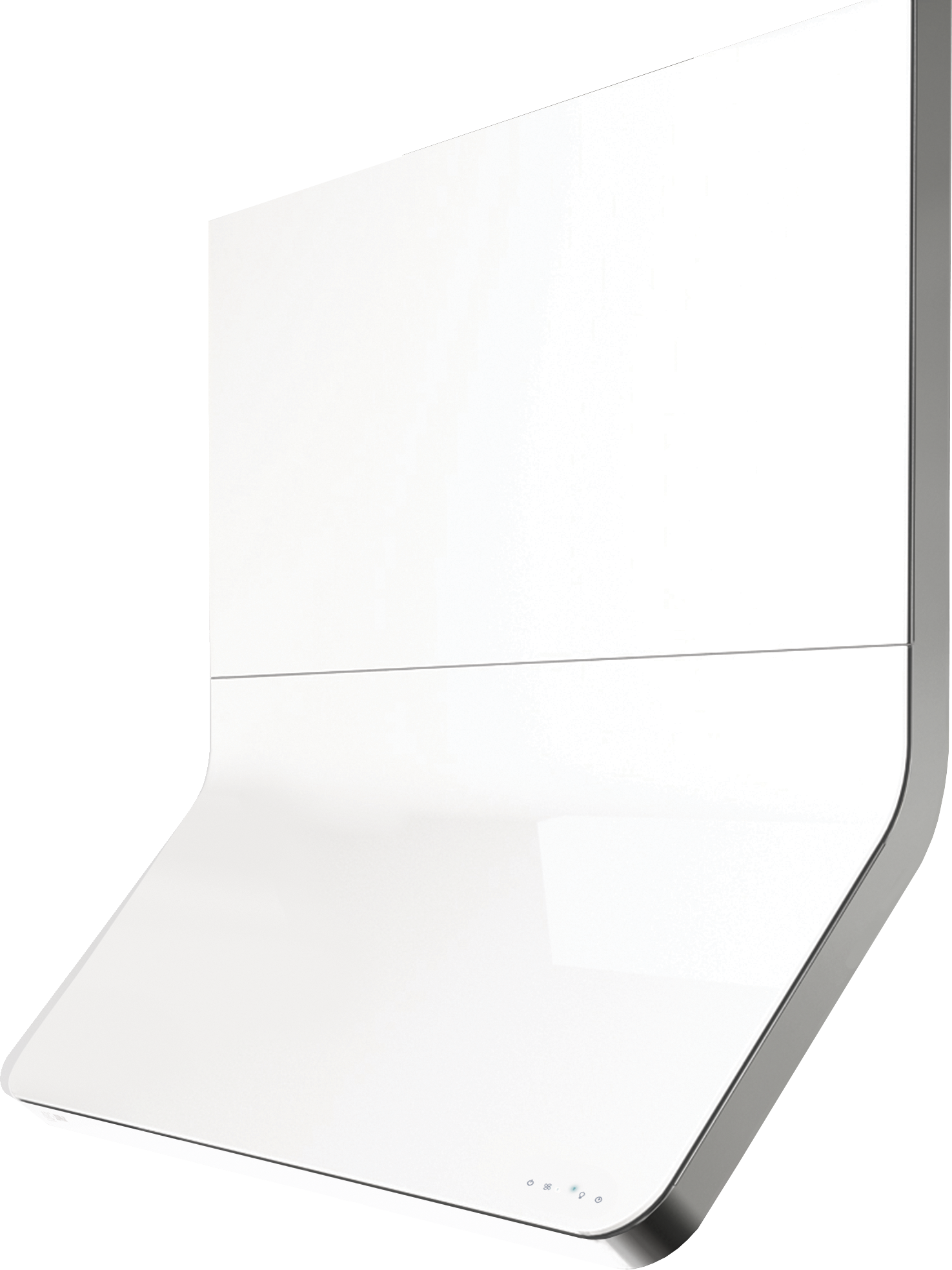

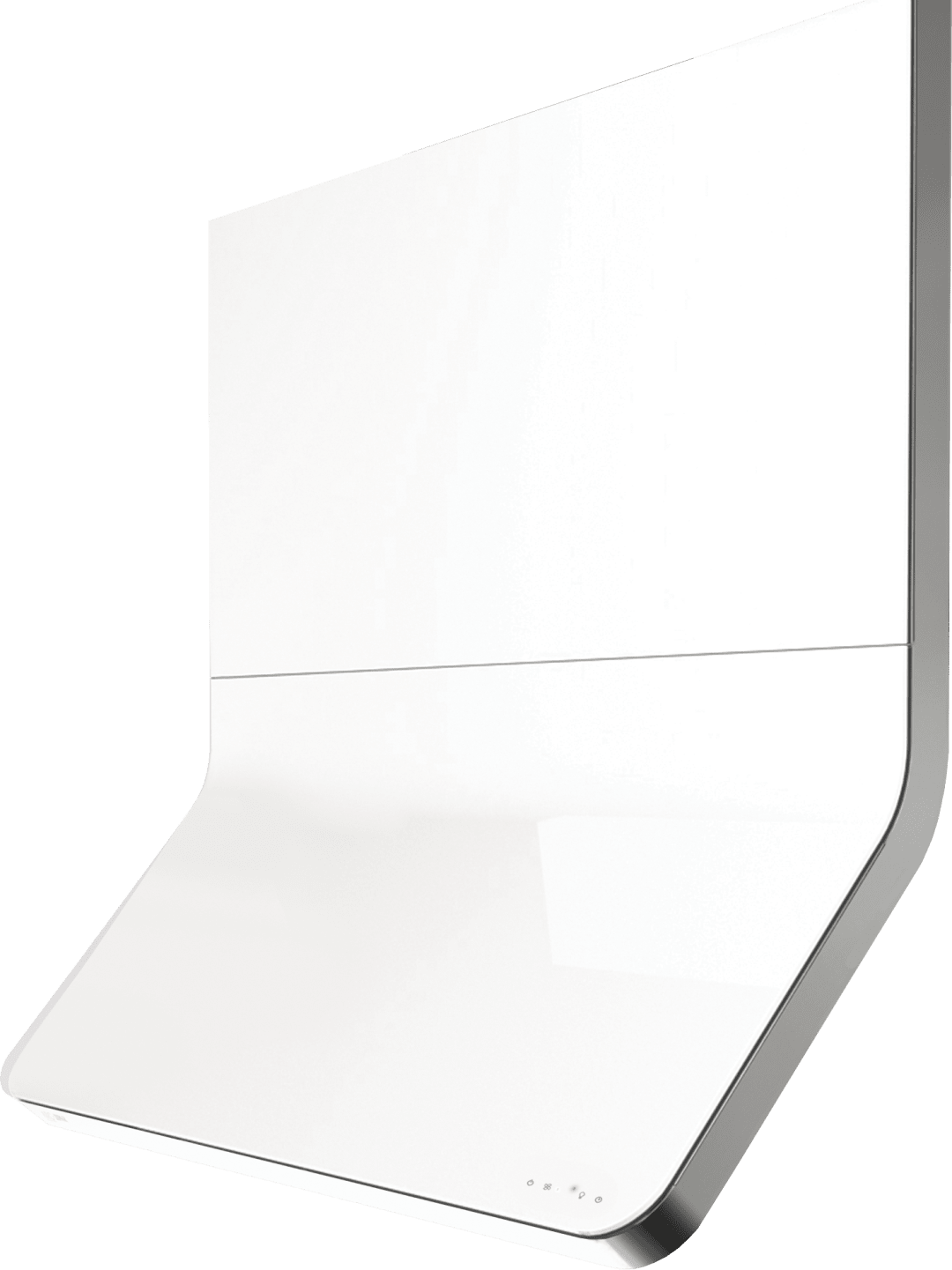

AHZ-M90AWX
Head On IsoDownload

Range Hood

AHZ-M90AWX

Horizon Wall

  • A dramatic, low-profile freefall just inches from the kitchen wall sweeps upward in a thirty-degree lift. Available in striking red, white or black glass on stainless steel — this stunning hood is customizable with unique options including beautiful etched glass designs. The removable front panel doubles as easy blower access for cleaning or service with no heavy lifting.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #AHZ-M90AWX
    Short DescriptionHorizon, Wall, 90cm, SS/White Glass, BODY ONLY
    CollectionDesigner Collection
    UPC646328000089
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage6.5
    ColorStainless Steel + White
    Lights Levels3
    Compatible ModelsZRC-00HZ, Z1C-00HZ, Z1C-01HZ, AHG-00WH, MUA006A, MUA008A
    Country of OriginItaly
    CEC Title 20 CompliantYes
    ADA CompliantYes
    Automatic Delay-OffYes
  • Required Accessory: Blower 1CBI-290A
    Required Accessory: Blower 2CBI-600A
    Required Accessory: Blower 3CBE-1000
    Required Accessory: Blower 4PBN-1000A
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50200032
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6, 8
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN22 - 34
    Remote IncludedYes
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6, 8
  • Net Height; IN32.875
    Net Width; IN35.375
    Nominal Width; IN36
    Net Depth; IN20.125
    Weight; LBS77.2
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Capacitive touch controls
    Feature 2CleanAir Function
    Feature 2 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 3Includes Wireless Remote Control
    Feature 3 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 4Optional Ductless Recirculating Kit
    Feature 4 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 5Optional extension duct cover kit
    Feature 6Multiple blower options
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM290
    Internal Blower 1 Max Sones3.2
    Internal Blower 2 CFM600
    Internal Blower 2 Max Sones6
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor1 / 1
  • Shipping Height; IN23.4
    Shipping Length; IN37
    Shipping Width; IN37.6
    Shipping Weight; LBS99.2
  • Optional Accessory 1ZRC-00HZ
    Optional Accessory 2Z1C-00HZ
    Optional Accessory 3Z1C-01HZ
    Optional Accessory 4AHG-00WH
    Optional Accessory 5MUA006A
    Optional Accessory 6MUA008A
