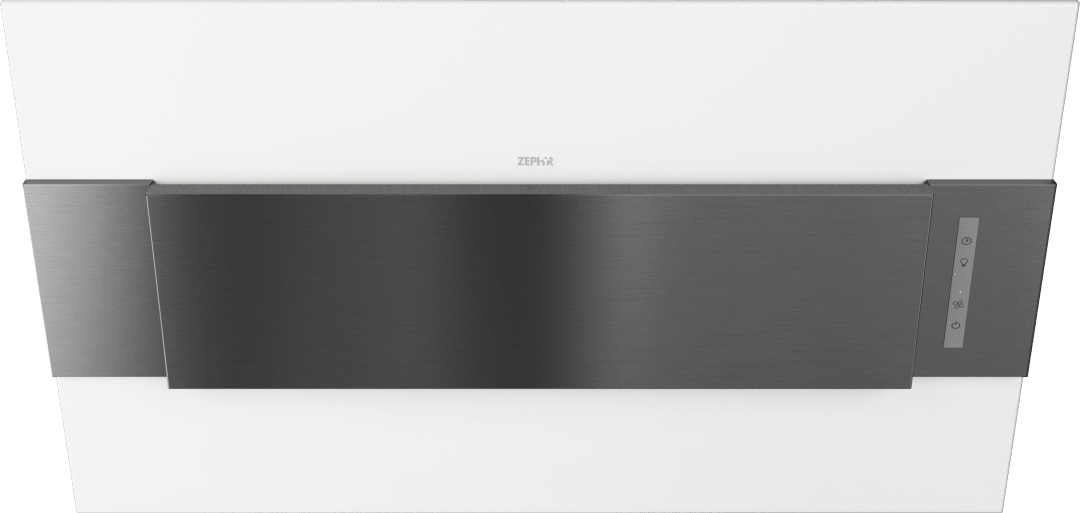

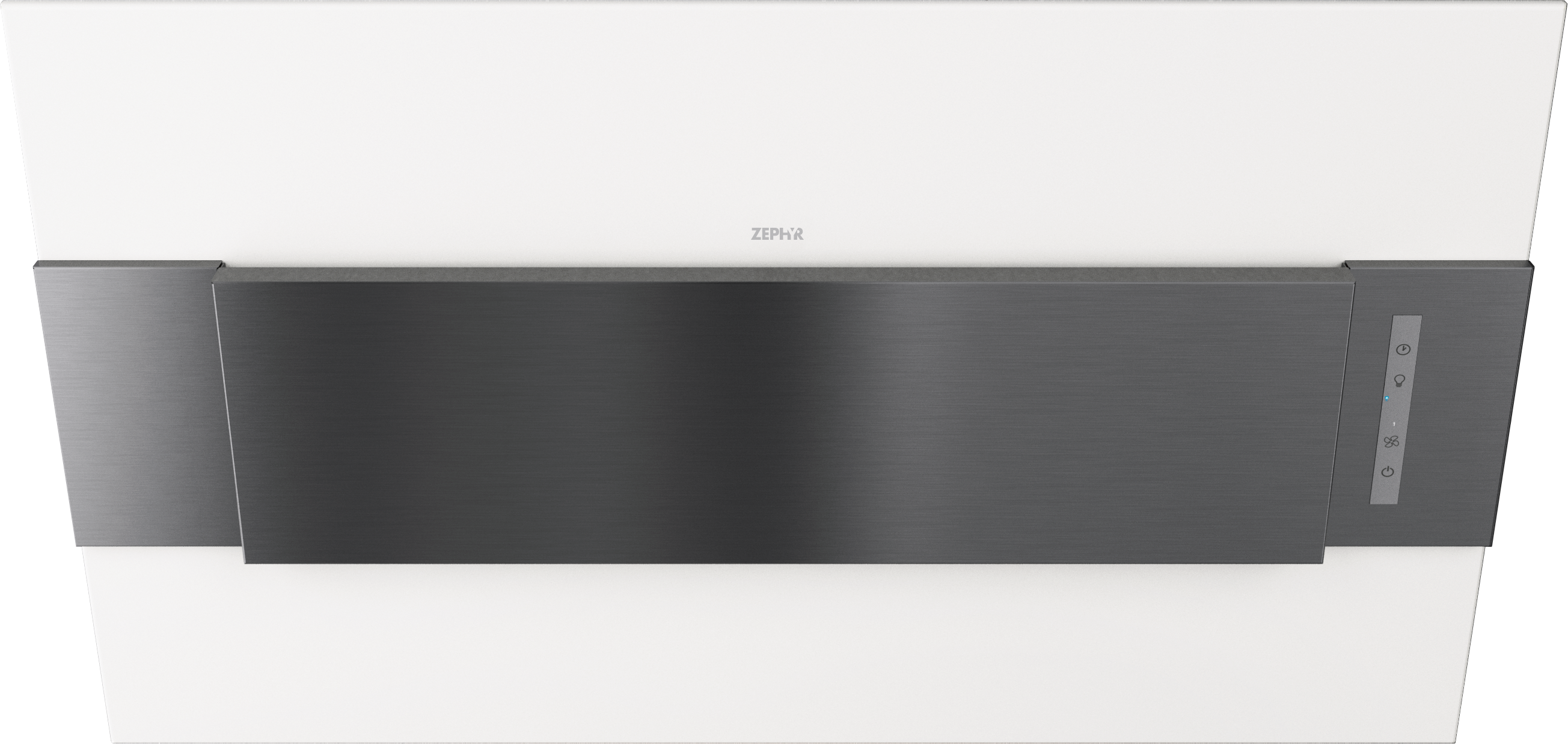

AIN-M80AWX
Head On IsoDownload

Range Hood

AIN-M80AWX

Incline Wall

  • Vertical style ventilation at its finest. The Incline wall hood brings clean lines and a touch of chic to your transitional, minimal or modern kitchen. Cook away while the Incline cleans the air, and enjoy the tri-level LED light strip and the wireless remote control. Perimeter Aspiration coupled with dual filtration keeps your kitchen smoke and debris-free, and proves the Incline is more than just a pretty face.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #AIN-M80AWX
    MSRP ($)$1149
    Short DescriptionIncline, Wall, 80cm, W, BODY ONLY
    CollectionDesigner Collection
    UPC646328004230
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeLED
    Lights Quantity1
    Voltage120
    Maximum Amperage6.5
    ColorWhite
    Blower Speeds3
    Watts Per Bulb8.5
    Lights Levels3
    Mounting Height Above Cooktop; IN22 - 32
    Compatible ModelsZRC-00IN, Z1C-00IN, MUA006A, MUA008A, Z0F-02AC
    Country of OriginItaly
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200056
    CEC Title 20 CompliantYes
    ADA CompliantYes
  • Required Accessory: Blower 1CBI-290A
    Required Accessory: Blower 2CBI-600A
    Required Accessory: Blower 3CBE-1000
    Required Accessory: Blower 4PBN-1000A
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6, 8
    Duct Size; Vertical; IN6, 8
  • Net Height; IN14.9375
    Net Width; IN31.5
    Nominal Width; IN31.5
    Net Depth; IN16.3125
    Weight; LBS34
  • Feature 1Capacitive touch controls
    Feature 2CleanAir Function
    Feature 2 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 3Includes Wireless Remote Control
    Feature 3 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 4LED light strip
    Feature 4 DefinitionThis multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
    Feature 5Dual filtration
    Feature 5 DefinitionCooking contaminates are pulled in and filtered through two entry points to improve capture performance.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones3
    Internal Blower 2 CFM600
    Internal Blower 2 Max Sones6
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor1 / 1
  • Shipping Height; IN21.65
    Shipping Length; IN22.83
    Shipping Width; IN37
    Shipping Weight; LBS39.2
  • Optional Accessory 1ZRC-00IN
    Optional Accessory 2Z1C-00IN
    Optional Accessory 3MUA006A
    Optional Accessory 4MUA008A
    Optional Accessory 5Z0F-02AC
