AK1100BB
Head On IsoDownload

Range Hood

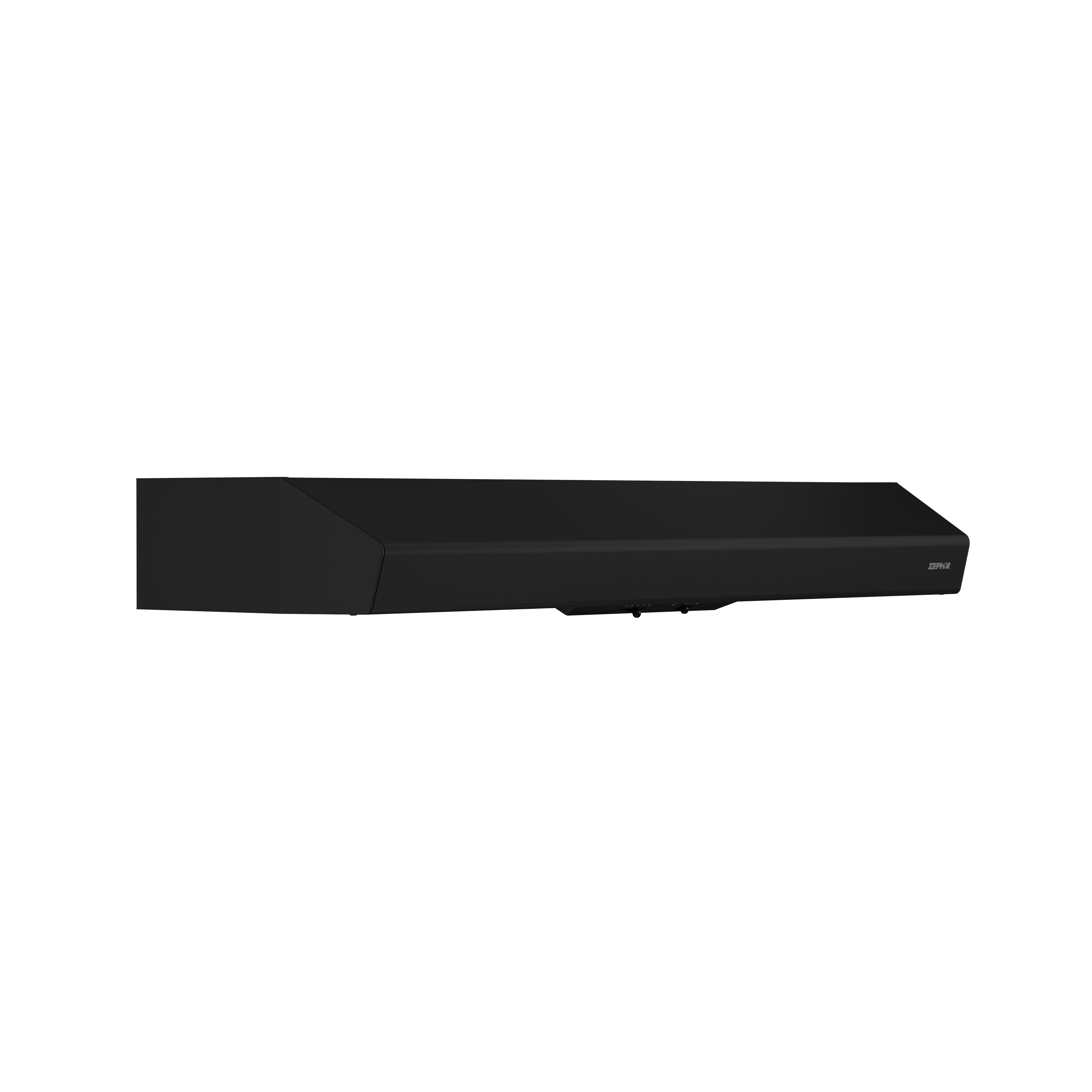

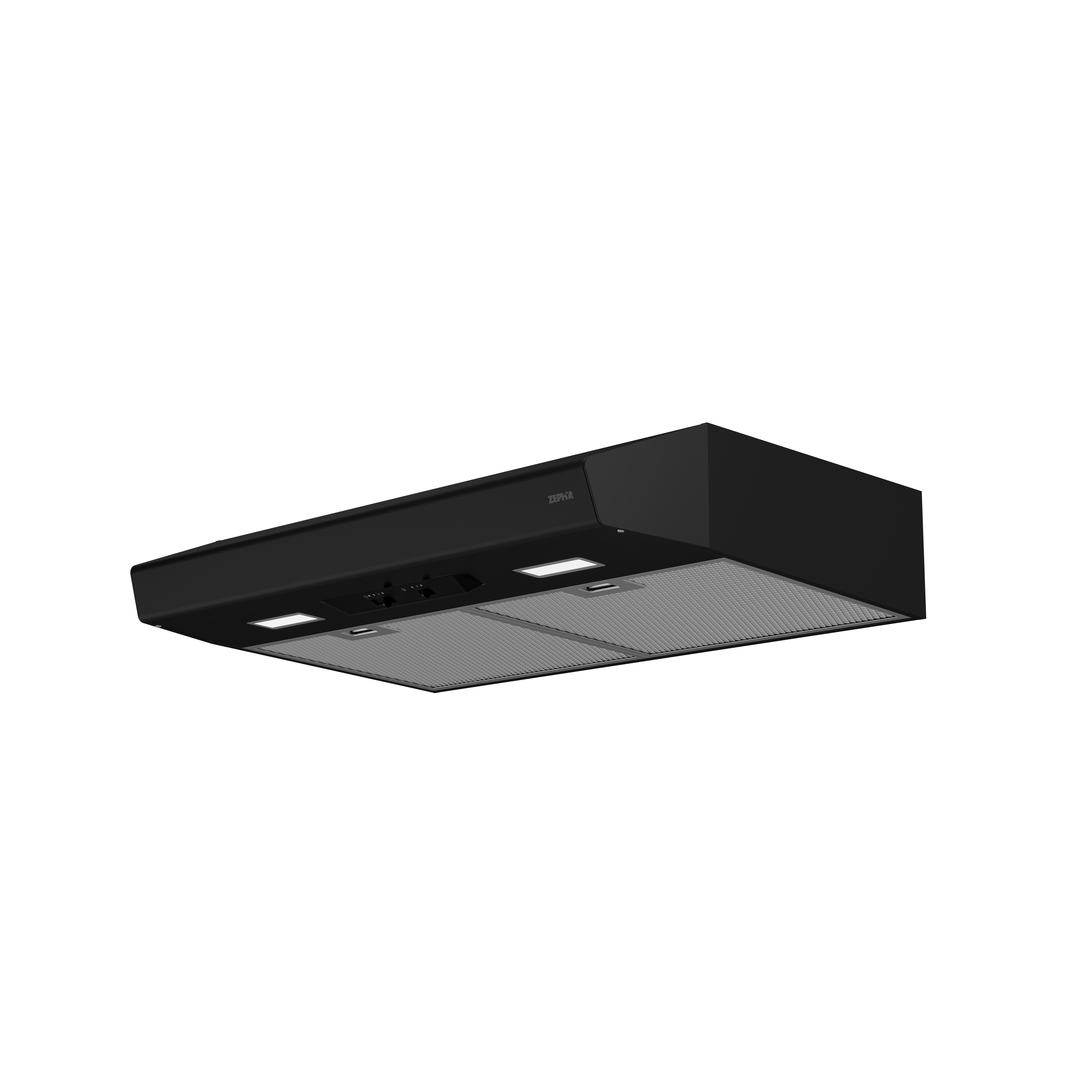

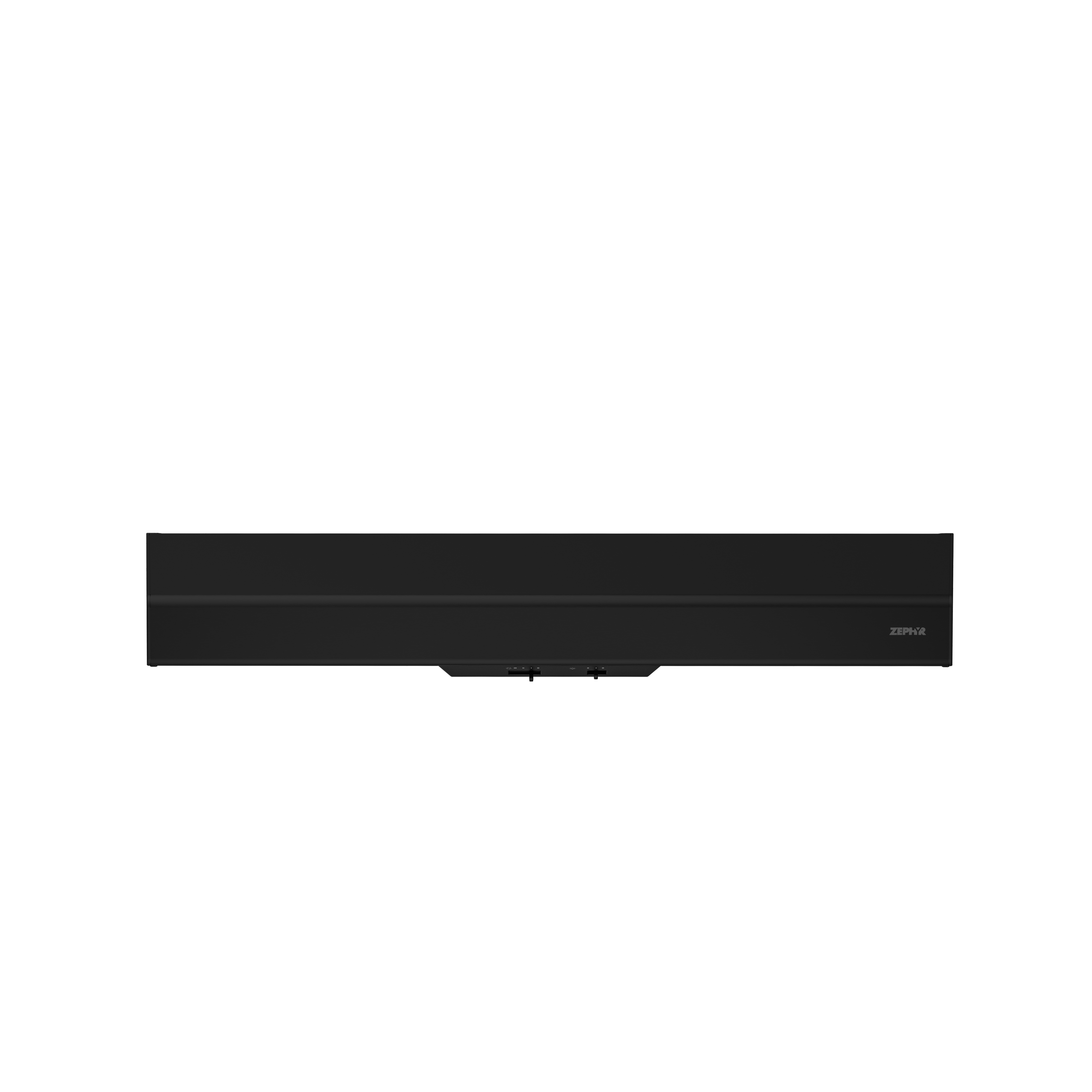

AK1100BB

Breeze I Under-Cabinet

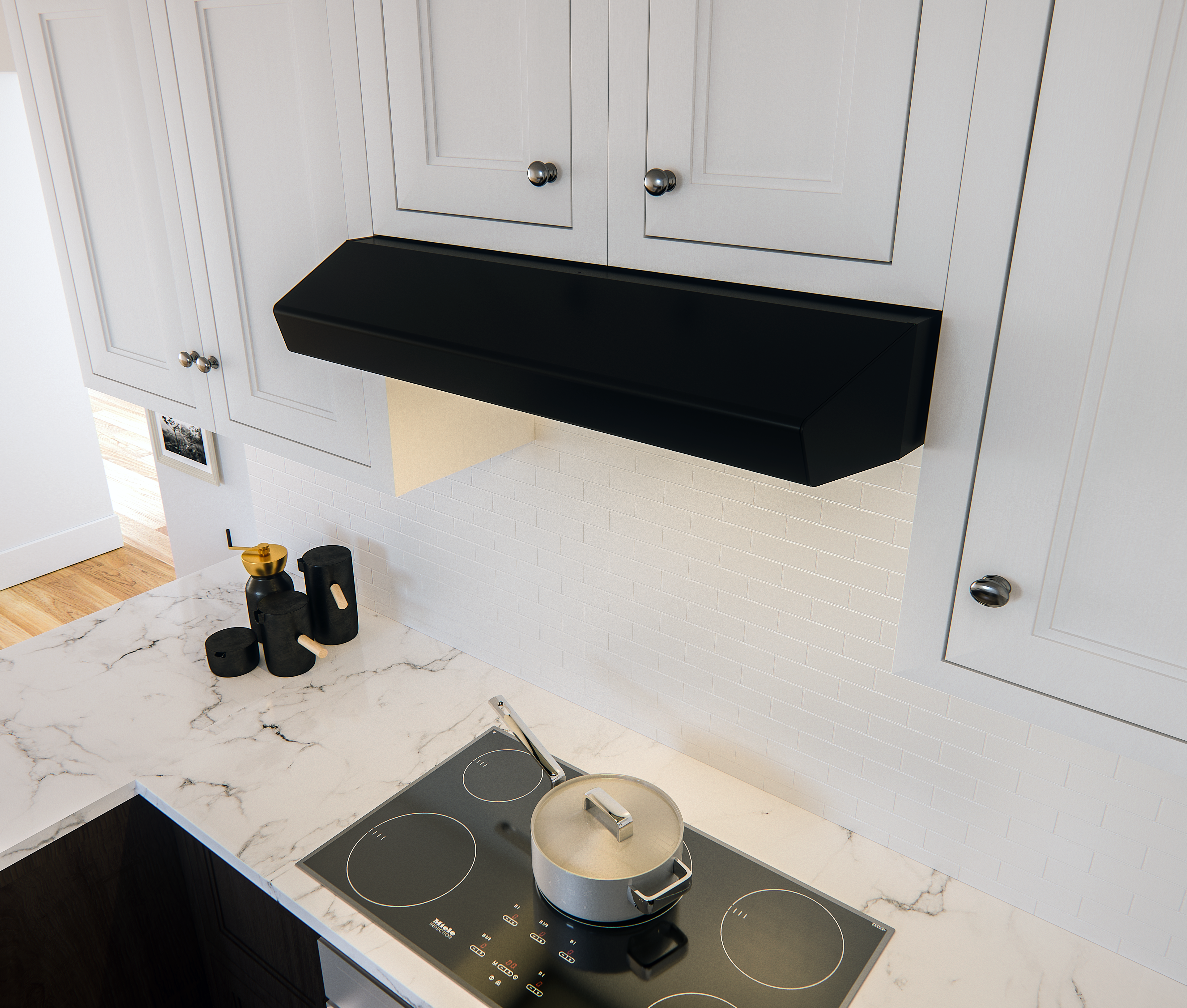

  • Breeze I sets the industry value standard with its sophisticated features and performance. Its three-speed, 250-CFM blower quietly clears the air while convenient dishwasher-safe aluminum filters efficiently remove airborne residues. Sleek, integrated controls simplify cleanup, and the dual-level LumiLight LED’s let you set a low-key mood when the time is right. Available in stainless steel, black and white finishes.
  • Product StatusActive
    BrandZephyr
    Model #AK1100BB
    MSRP ($)$329
    Short DescriptionBreeze I, UC, 30in, Blk, LED
    CollectionCore Collection
    UPC646328008528
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage2
    ColorBlack
    Lights Levels2
    Compatible Models0AK11-21001, 0AK11-20001, AK1710
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional wall switch
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part NumberZ0F-B002
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN20 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN3.25 x 10
  • Net Height; IN5.5
    Net Width; IN29.9
    Nominal Width; IN30
    Net Depth; IN20.125
    Weight; LBS19.5
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 2Value Driven
    Feature 3Low-profile body
    Feature 3 DefinitionLow-profile body for a minimalist appearance.
    Feature 4Extra-wide mesh filters
    Feature 4 DefinitionHigh quality mesh filters with an increased width for improved capture and performance.
    Feature 5Vertical or horizontal ducting
    Feature 5 DefinitionThis hood has the ability to vent either out the top or out the back.

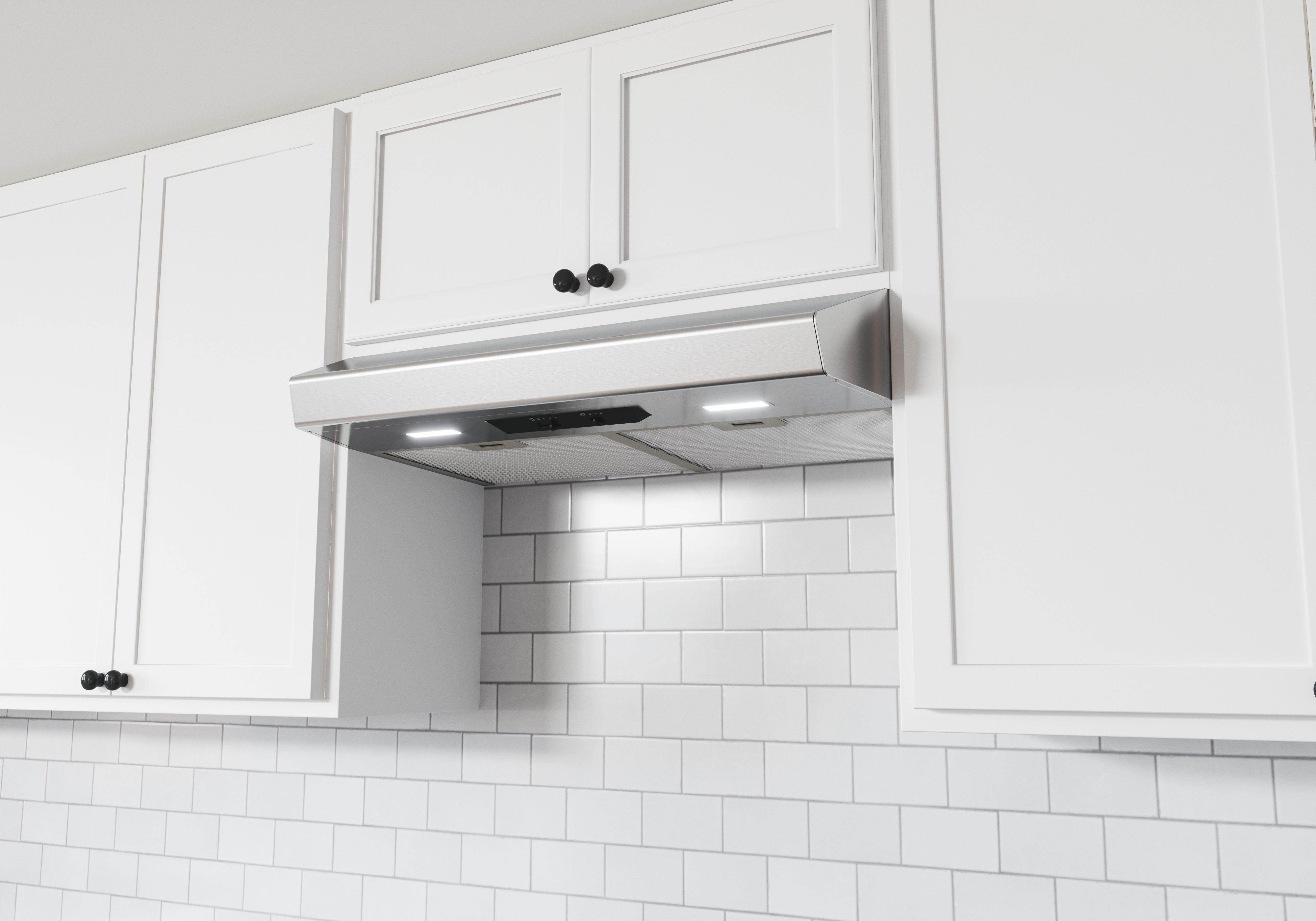

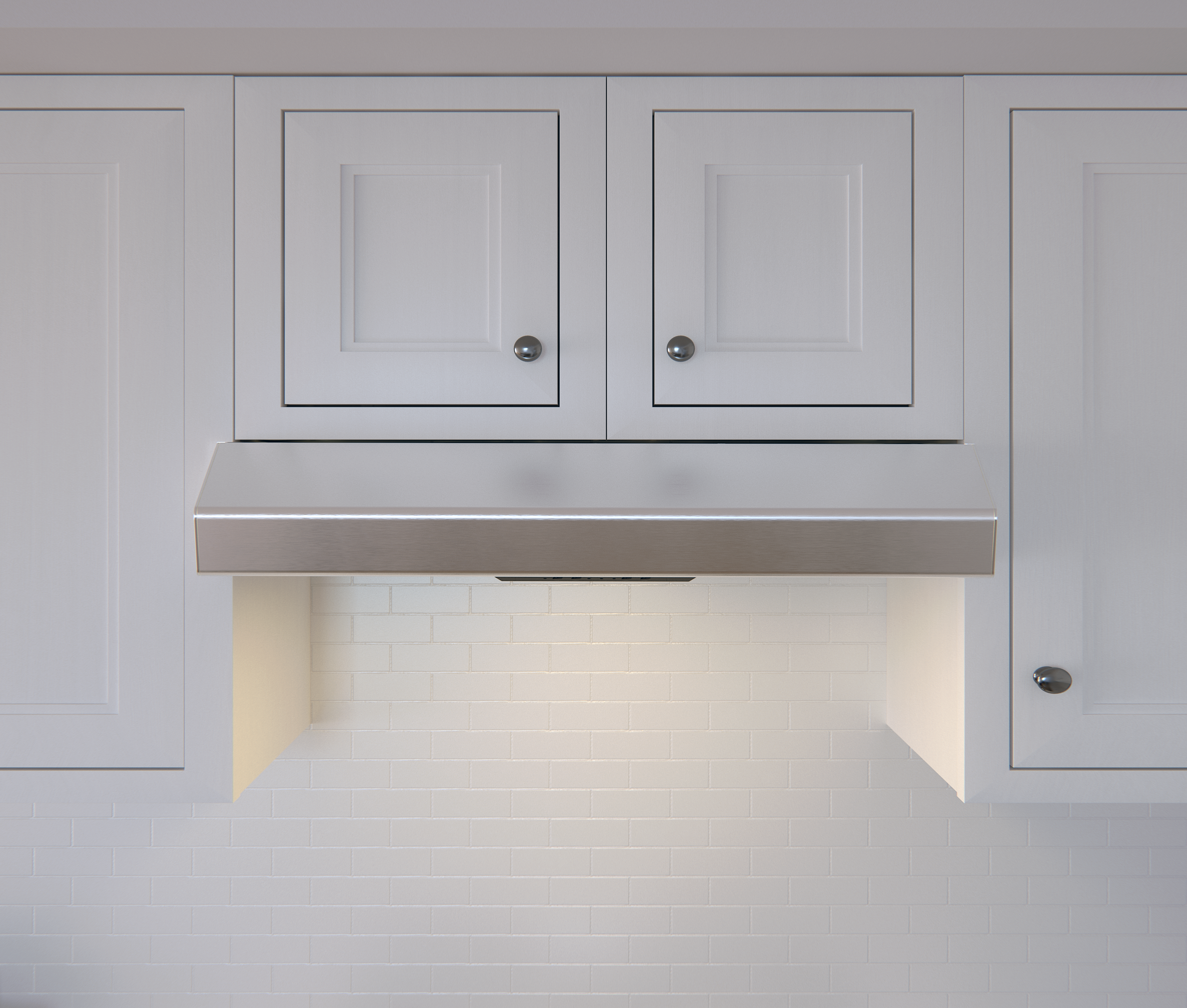

    Feature 6Multiple color options
    Feature 6 DefinitionMultiple colors available to match your kitchen decor.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM250
    Internal Blower 1 Min. Sones1.8
    Internal Blower 1 Max Sones3.5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25
    Shipping Length; IN34
    Shipping Width; IN9
    Shipping Weight; LBS23
  • Optional Accessory 10AK11-21001
    Optional Accessory 20AK11-20001
    Optional Accessory 3AK1710
