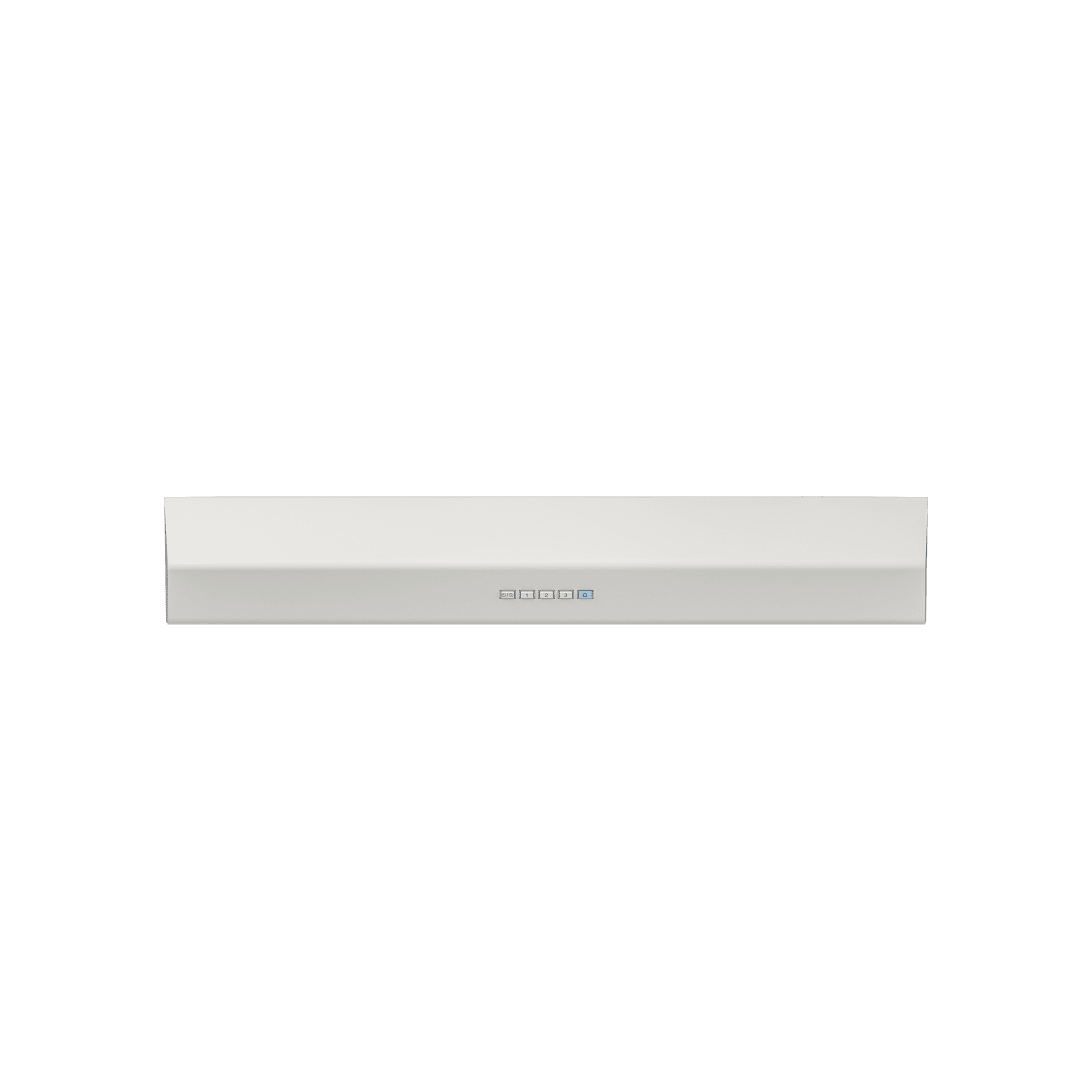

AK1200CW
Head On IsoDownload

Range Hood

AK1200CW

Breeze II Under-Cabinet

  • Updated with dual-level LumiLight LED Lighting, the Breeze II’s modern, clean lines provide a perfect complement to any interior. Equipped with 3-speed electronic controls, 400-CFM blower, convenient dishwasher-safe aluminum filters and an auto delay-off feature that clears the air and powers down after 5 minutes. Available in black, white, stainless steel and black stainless finishes.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #AK1200CW
    MSRP ($)$579
    Short DescriptionBreeze II, Under Cabinet, 30", White, LED
    CollectionCore Collection
    UPC646328009815
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage2
    ColorWhite
    Lights Levels2
    Compatible ModelsZRC-0012, 0AK11-20001, AK1710
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200012
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN5.5
    Net Width; IN29.875
    Nominal Width; IN30
    Net Depth; IN20
    Weight; LBS21.5
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 2Electronic Touch Controls
    Feature 2 DefinitionElectronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
    Feature 3Low-profile body
    Feature 3 DefinitionLow-profile body for a minimalist appearance.
    Feature 4Extra-wide mesh filters
    Feature 4 DefinitionHigh quality mesh filters with an increased width for improved capture and performance.
    Feature 5Vertical or horizontal ducting
    Feature 5 DefinitionThis hood has the ability to vent either out the top or out the back.
    Feature 6Multiple color options
    Feature 6 DefinitionMultiple colors available to match your kitchen decor.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones2
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25
    Shipping Length; IN34
    Shipping Width; IN9
    Shipping Weight; LBS31
  • Optional Accessory 1ZRC-0012
    Optional Accessory 20AK11-20001
    Optional Accessory 3AK1710
