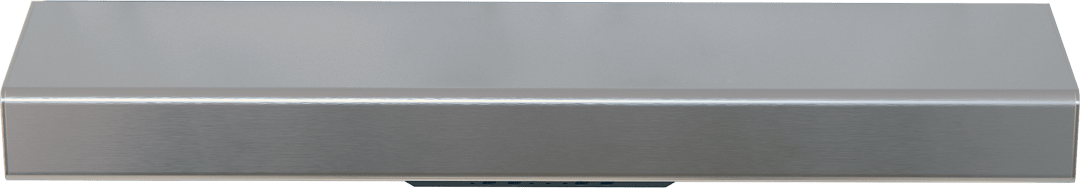

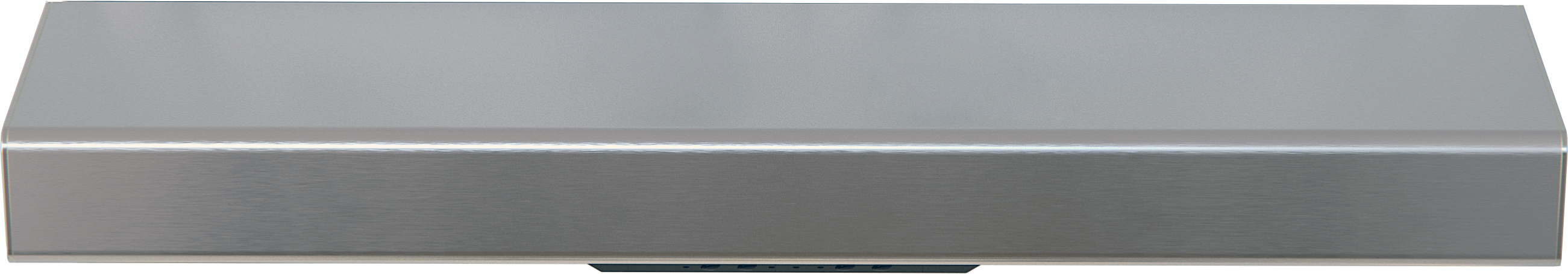

AK1236S
Head On IsoDownload

Range Hood

AK1236S

Breeze II Under-Cabinet

  • For superior value in a quiet, high-performance package, Breeze II comes equipped with upgraded three-speed, 400-CFM blowers, convenient dishwasher-safe aluminum filters and a timed delay-off feature to automatically clear the air and power down after five minutes. Sleek, integrated controls simplify cleanup, and the two-level halogen bulbs let you set a low-key mood when the time is right. Available in black, white, and stainless steel finishes.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK1236BS
    Model #AK1236S
    Short DescriptionBreeze II, UC, 36", SS, 400 CFM
    CollectionCore Collection
    UPC646328123634
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity2
    Voltage120
    Maximum Amperage1.4
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb35
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 32
    Compatible Models0AK11-21001, 0AK11-20001
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200012
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Replacement ModelAK1236CS
    AK1236BS
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN3.25 x 10
  • Net Height; IN5.5
    Net Width; IN35.9375
    Nominal Width; IN36
    Net Depth; IN20.25
    Weight; LBS21.3
  • Feature 1Value driven
    Feature 2Low-profile body
    Feature 2 DefinitionLow-profile body for a minimalist appearance.
    Feature 3Extra-wide mesh filters
    Feature 3 DefinitionHigh quality mesh filters with an increased width for improved capture and performance.
    Feature 4Optional Ductless Recirculating Kit
    Feature 4 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 5Multiple color options
    Feature 5 DefinitionMultiple colors available to match your kitchen decor.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones1.9
    Internal Blower 1 Max Sones4.5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN24.61
    Shipping Length; IN9.37
    Shipping Width; IN39.57
    Shipping Weight; LBS27.4
  • Optional Accessory 10AK11-21001
    Optional Accessory 20AK11-20001
  • 0AK11-21001
