AK2136BS
Head On IsoDownload

Range Hood

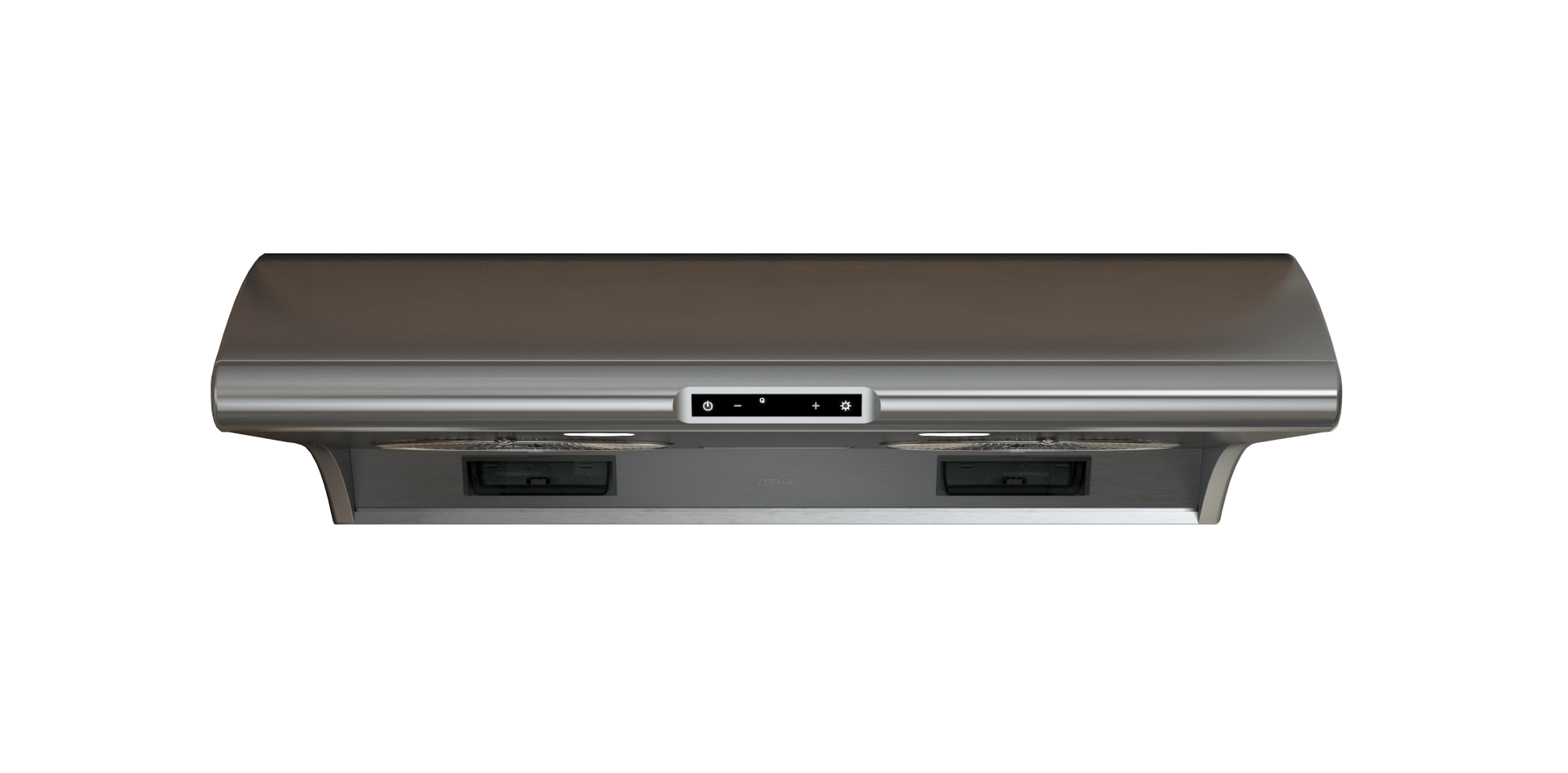

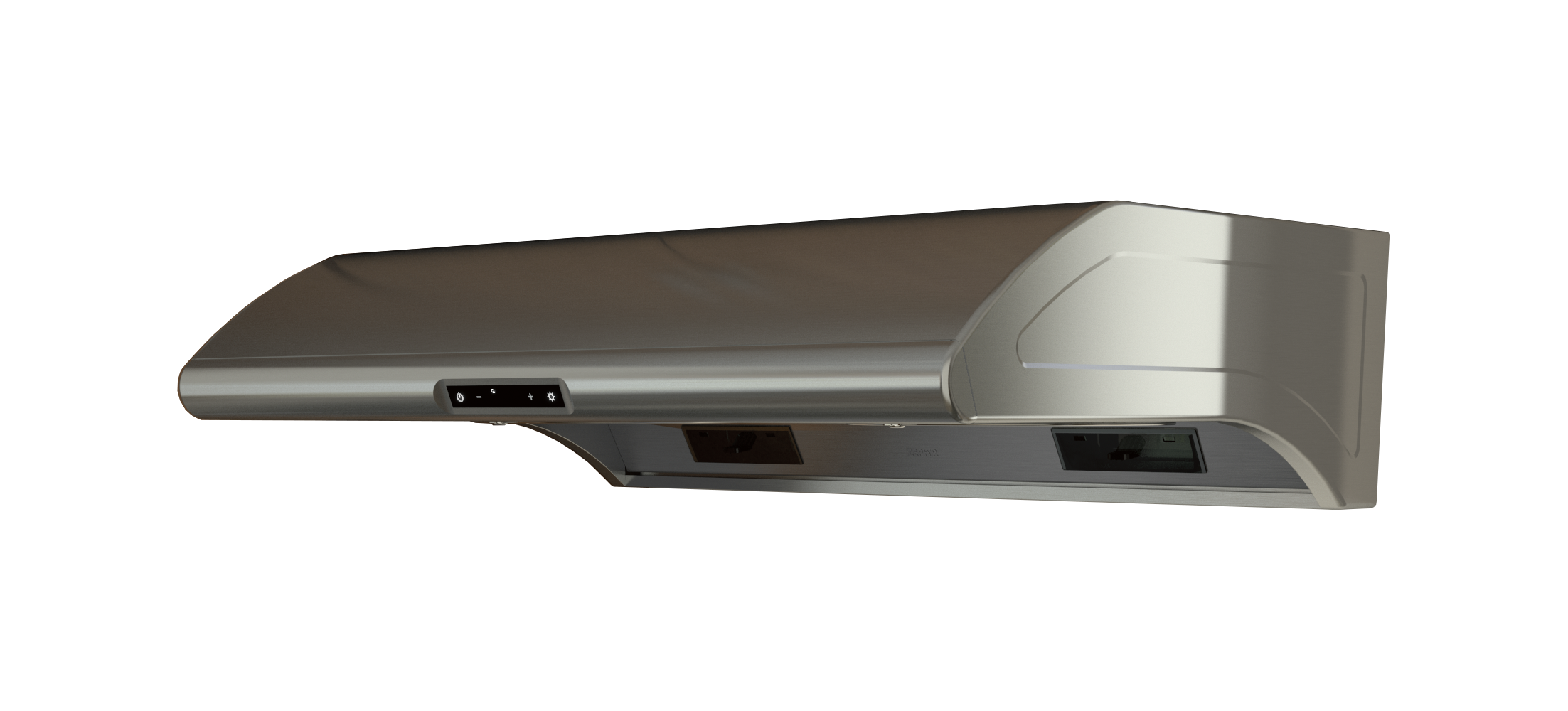

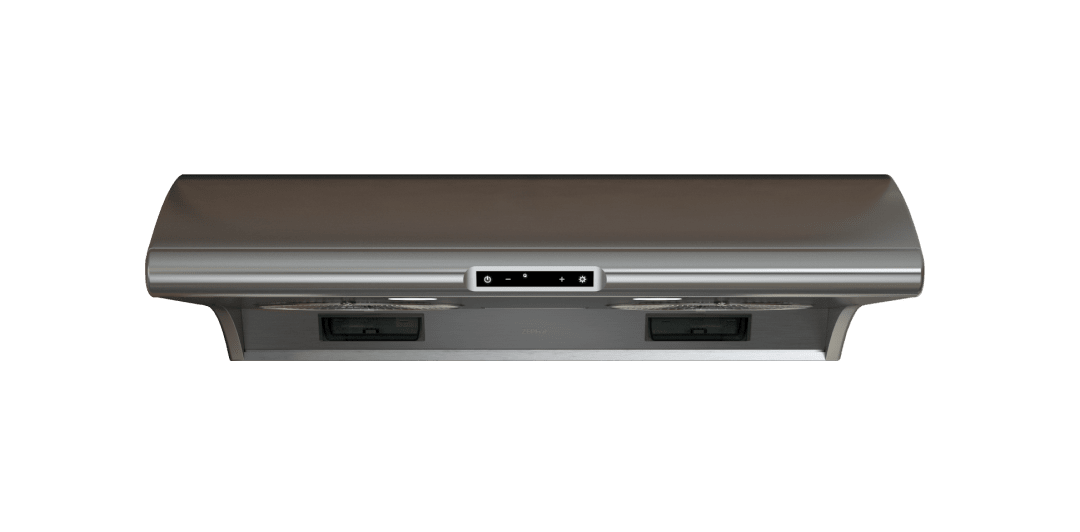

AK2136BS

Typhoon Under-Cabinet

  • One of our founding models, now with an updated look, we crafted a smooth curvature then upped the volume with powerful, virtually noise-free 850- CFM blowers. A convenient self-cleaning system along with dimmable halogen lights invite you and your guests to a warm respite from the everyday. Available in black, white and stainless steel. Now with Quiet Speed Setting (QSS) and ACT™ technology.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK2136CS
    Model #AK2136BS
    MSRP ($)$759
    Short DescriptionTyphoon, UC, 36", SS, 850 CFM, ACT
    CollectionCore Collection
    UPC646328004742
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeHalogen
    Lights Quantity2
    Voltage120
    Maximum Amperage3
    ColorStainless Steel
    Blower Speeds6
    Watts Per Bulb35
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 32
    Compatible ModelsMUA008A, Z0B0040
    Country of OriginTaiwan
    Grease Filter TypeFilter-less
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7.875
    Net Width; IN35.75
    Nominal Width; IN36
    Net Depth; IN20.75
    Weight; LBS36.9
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Capacitive touch controls
    Feature 3Ultra-Quiet Performance
    Feature 3 DefinitionOur range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
    Feature 4Longer warranty than competitors
    Feature 4 DefinitionWe back our products with an unparalleled level of service and a generous multi-year warranty.
    Feature 5Filter-less self-cleaning system
    Feature 5 DefinitionDesigned to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
    Feature 6Vertical or horizontal ducting
    Feature 6 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM850
    Internal Blower 1 Min. Sones0.9
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor10 / 1
  • Shipping Height; IN25.59
    Shipping Length; IN11.42
    Shipping Width; IN41.34
    Shipping Weight; LBS45.4
  • Optional Accessory 1MUA008A
    Optional Accessory 2Z0B0040
