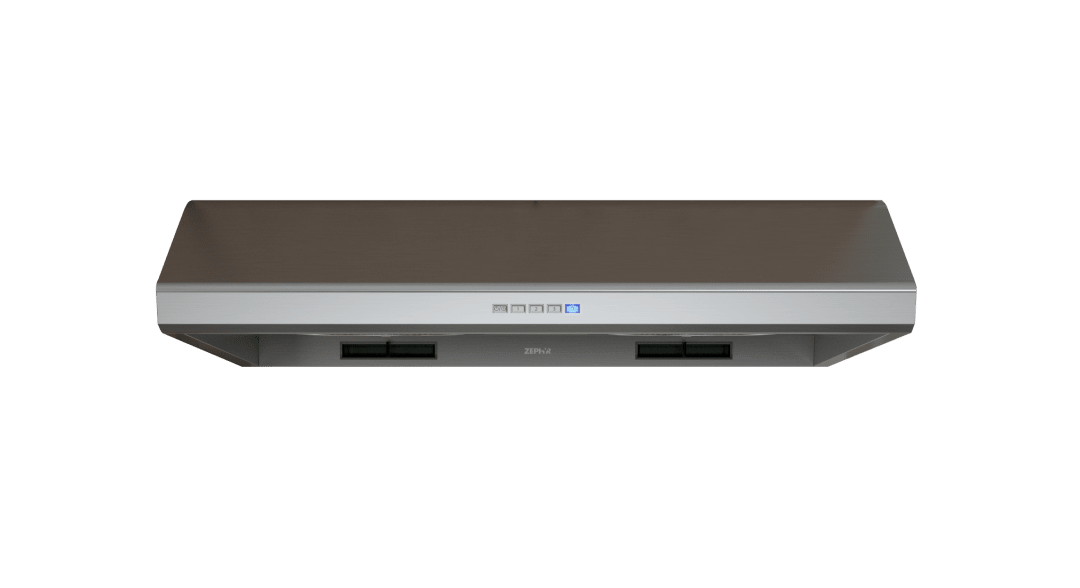

AK2500BS
Head On IsoDownload

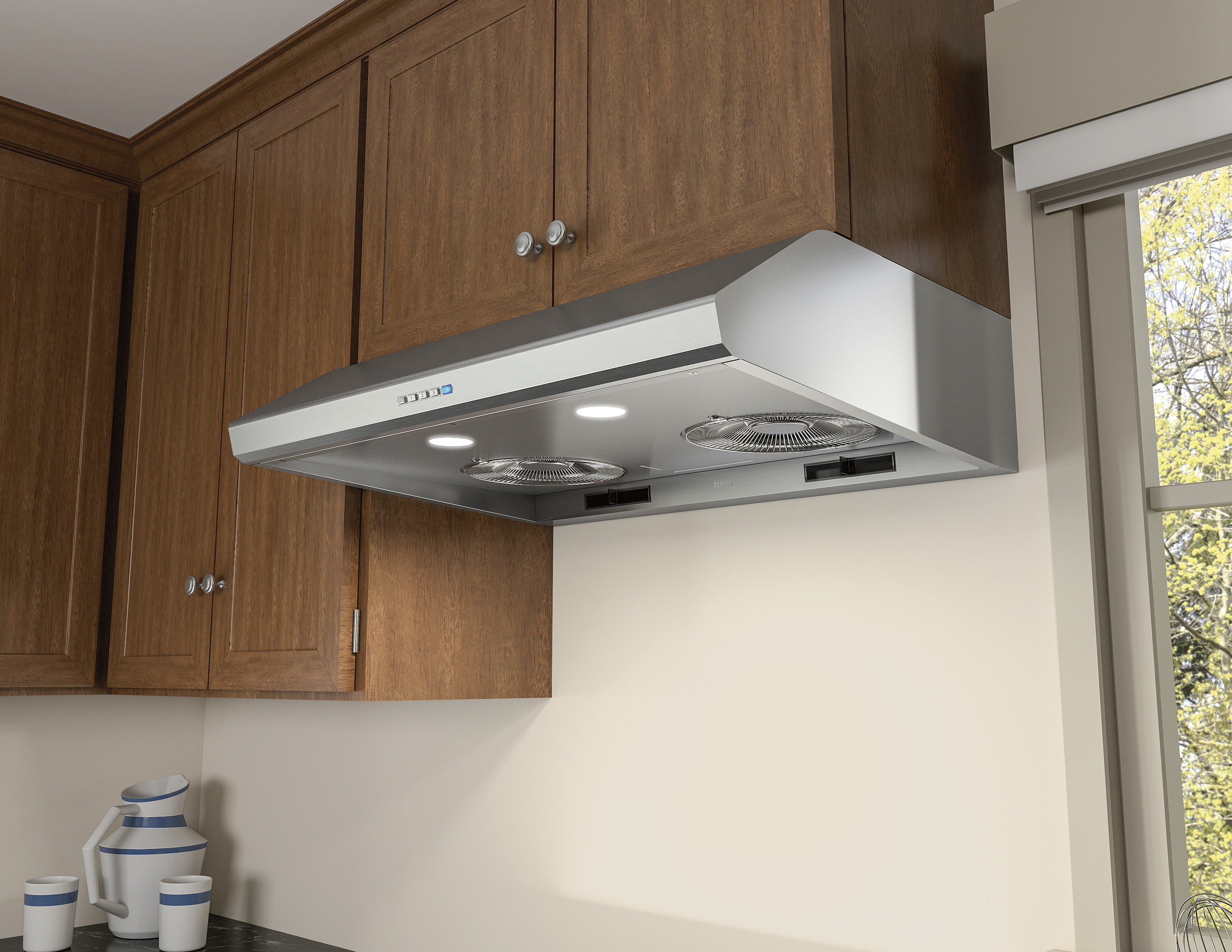

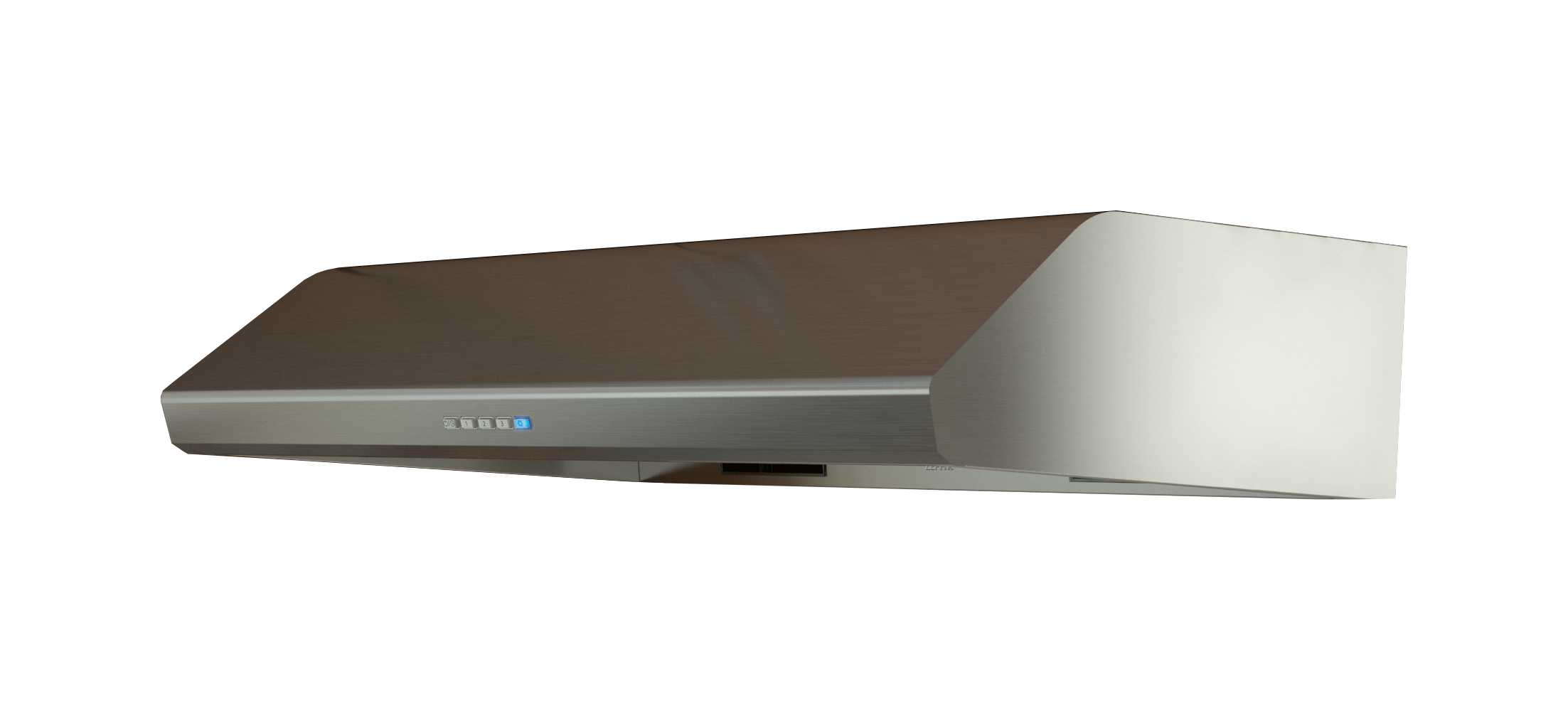

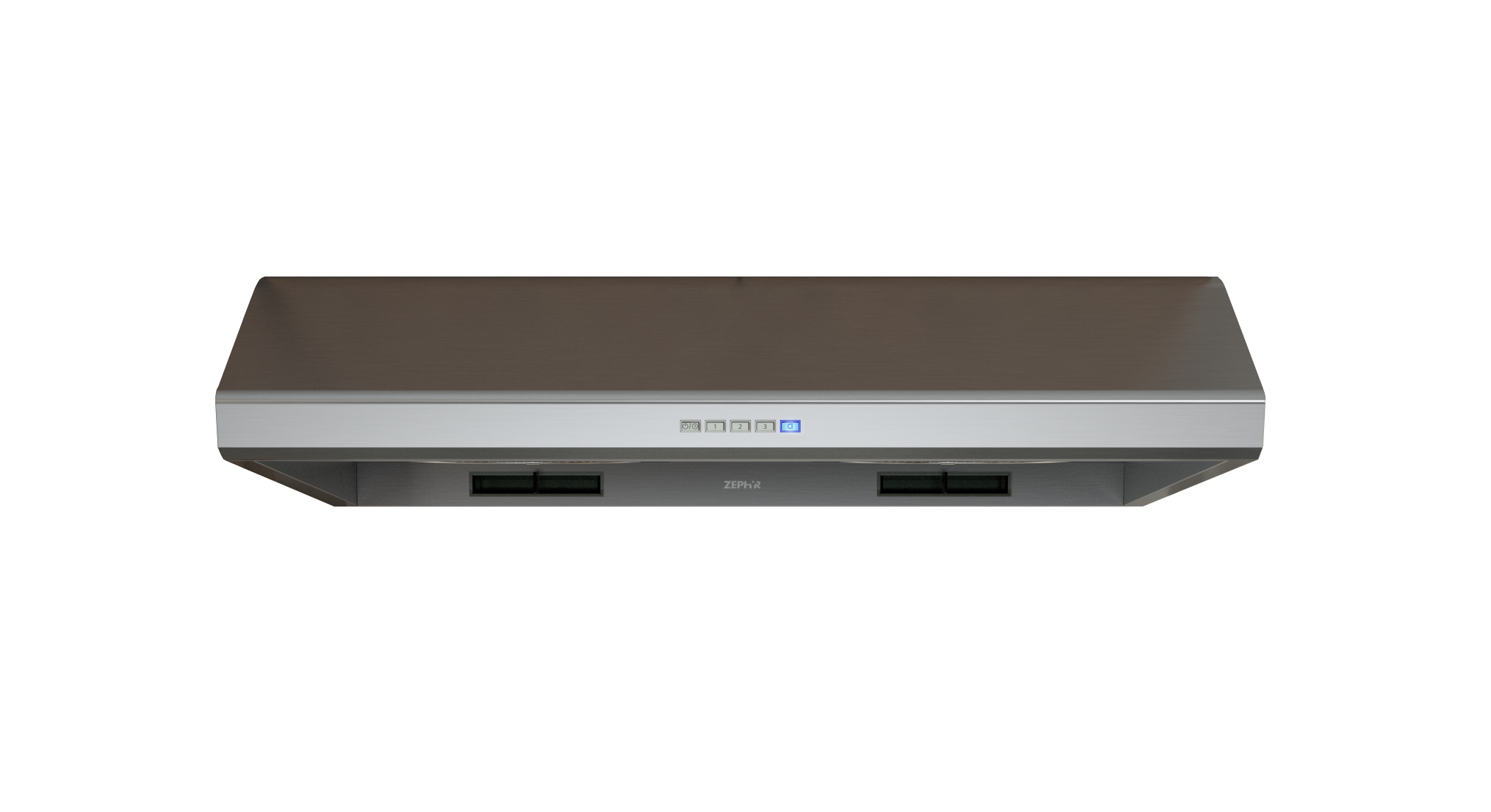

Range Hood

AK2500BS

Hurricane Under-Cabinet

  • High tech meets high style with an updated look and feel. Electronic touch controls take charge of the 3-speed, 695-CFM blower and dual-level halogen lights-all designed to make your life easier. Available in black, white and stainless steel. Now with ACT™ technology.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK2500CS
    Model #AK2500BS
    MSRP ($)$539
    Short DescriptionHurricane, UC, 30", SS, 695 CFM, ACT
    CollectionCore Collection
    UPC646328004650
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage2.4
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsMUA008A, Z0B0040
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7
    Net Width; IN29.75
    Nominal Width; IN30
    Net Depth; IN22.125
    Weight; LBS29.5
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Filter-less self-cleaning system
    Feature 2 DefinitionDesigned to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
    Feature 3Longer warranty than competitors
    Feature 3 DefinitionWe back our products with an unparalleled level of service and a generous multi-year warranty.
    Feature 4Low-profile body
    Feature 4 DefinitionLow-profile body for a minimalist appearance.
    Feature 5Multiple color options
    Feature 5 DefinitionMultiple colors available to match your kitchen decor.
    Feature 6Vertical or horizontal ducting
    Feature 6 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM695
    Internal Blower 1 Min. Sones1.5
    Internal Blower 1 Max Sones5.5
  • Warranty Parts / Labor10 / 1
  • Shipping Height; IN26.97
    Shipping Length; IN9.76
    Shipping Width; IN32.68
    Shipping Weight; LBS36.3
  • Optional Accessory 1MUA008A
    Optional Accessory 2Z0B0040
