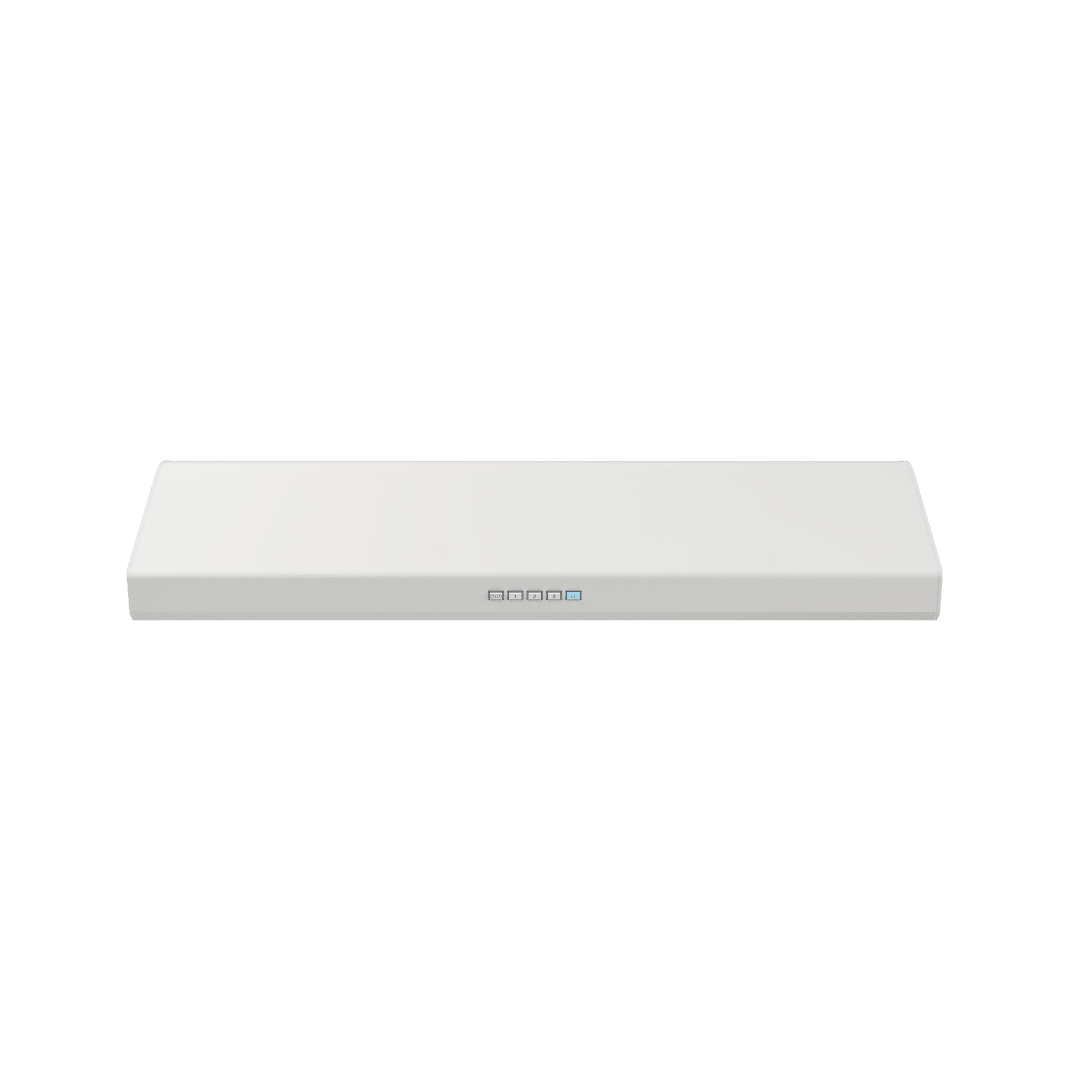

AK2536CW
Head On IsoDownload

Range Hood

AK2536CW

Huricane Under-Cabinet

  • High tech meets high style with the Hurricane under-cabinet. Electronic touch controls take charge of the 3-speed, 695-CFM blowers and dual-level LumiLight LED Lighting ­— all designed to make your life easier. Available with Airflow Control Technology™ (ACT™) and in black, white and stainless steel finishes.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #AK2536CW
    MSRP ($)$649
    Short DescriptionHurricane, Under Cabinet, 36", White, 695 CFM
    CollectionCore Collection
    UPC646328009426
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage2
    ColorWhite
    Lights Levels2
    Compatible ModelsMUA008A, AK00067, AK1716
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeDucted
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN20.125
    Weight; LBS33
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Electronic Touch Controls
    Feature 2 DefinitionElectronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
    Feature 33 Speed Levels
    Feature 3 DefinitionQuiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
    Feature 4LumiLight LED Lighting
    Feature 4 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 5Dual-Level Lighting
    Feature 5 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 62 Removable Safety Grilles
    Feature 6 DefinitionHigh-quality safety grilles designed to enhanced protection during use and improve the overall aesthetic.
    Feature 7Filter-less self-cleaning system
    Feature 7 DefinitionDesigned to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM695
    Internal Blower 1 Min. Sones1.5
    Internal Blower 1 Max Sones5.5
  • Warranty Parts / Labor10 / 1
  • Shipping Height; IN26.5
    Shipping Length; IN39.4
    Shipping Width; IN9.4
    Shipping Weight; LBS38.2
  • Optional Accessory 1MUA008A
    Optional Accessory 2AK00067
    Optional Accessory 3AK1716
