AK6536BBS
Head On IsoDownload

Range Hood

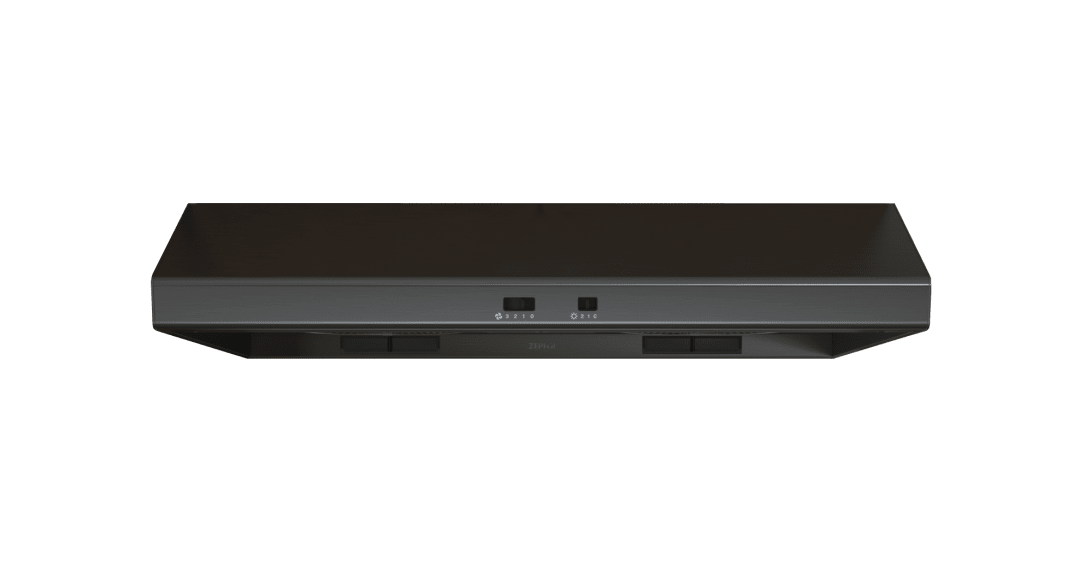

AK6536BBS

Cyclone Under-Cabinet

  • The modern, clean lines of the Cyclone under-cabinet provide the perfect complement to any interior. Cyclone’s centrifugal blowers liquefy cooking residue without using complex filters — making cleanup a snap. Featuring dual-level halogen lighting, and available in black, white, stainless steel and black stainless finishes.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK6536CBS
    Model #AK6536BBS
    MSRP ($)$529
    Short DescriptionCyclone, UC, 36", Blk SS, 600 CFM
    CollectionCore Collection
    UPC646328006234
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage2.4
    ColorBlack Stainless Steel
    Lights Levels2
    Compatible ModelsMUA006A, Z0B0040
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • AK6536CBS
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN6, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN6, 3.25 x 10
  • Net Height; IN6.375
    Net Width; IN35.75
    Nominal Width; IN36
    Net Depth; IN22.25
    Weight; LBS31.7
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Filter-less self-cleaning system
    Feature 1 DefinitionDesigned to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.
    Feature 2Low-profile body
    Feature 2 DefinitionLow-profile body for a minimalist appearance.
    Feature 3Longer warranty than competitors
    Feature 3 DefinitionWe back our products with an unparalleled level of service and a generous multi-year warranty.
    Feature 4Multiple color options
    Feature 4 DefinitionMultiple colors available to match your kitchen decor.
    Feature 5Vertical or horizontal ducting
    Feature 5 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1.5
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor10 / 1
  • Shipping Height; IN27.17
    Shipping Length; IN9.65
    Shipping Width; IN38.39
    Shipping Weight; LBS39.2
  • Optional Accessory 1MUA006A
    Optional Accessory 2Z0B0040
