Head On Iso
Range Hood
AK6536CB

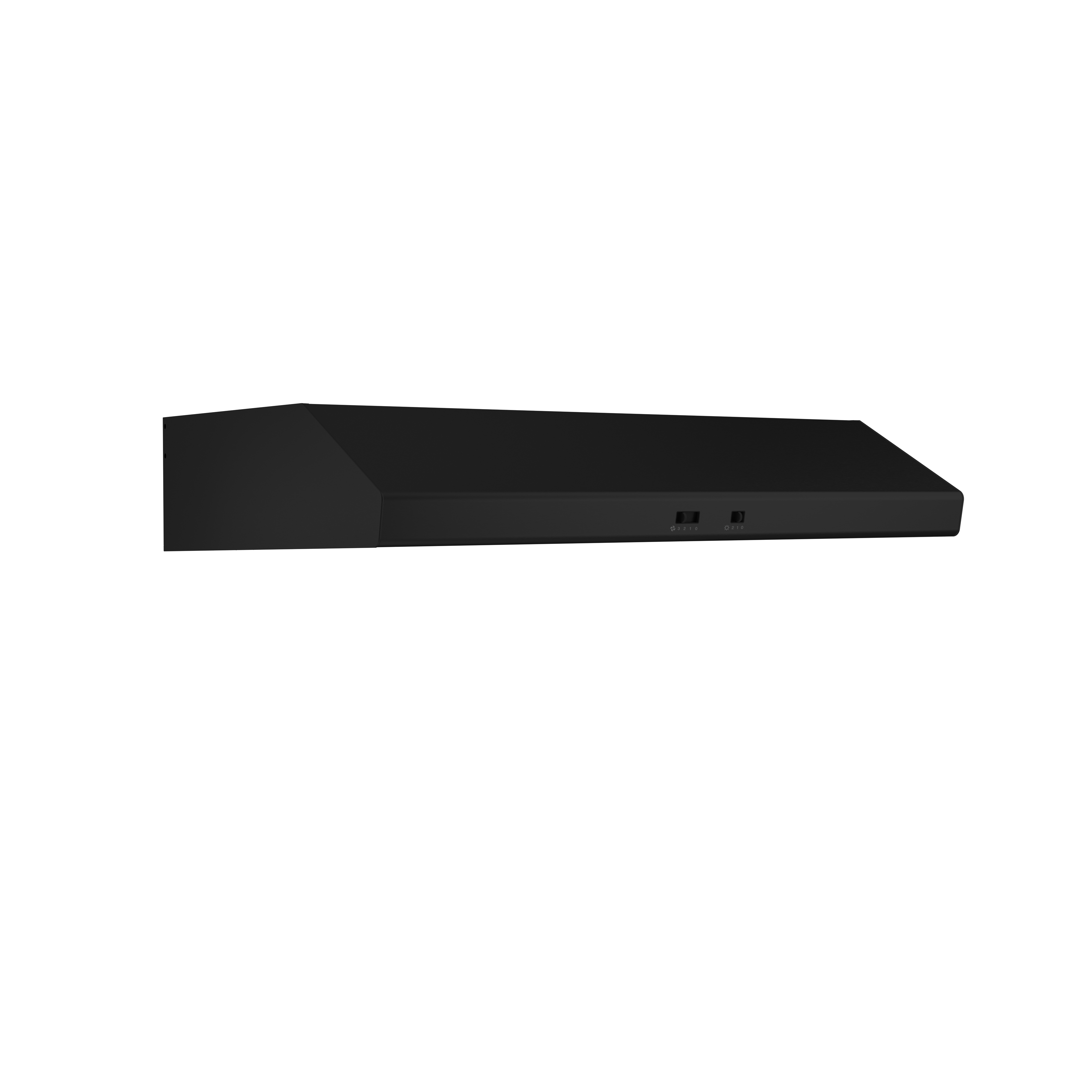

Cyclone Under-Cabinet
- The modern, clean lines of the Cyclone under-cabinet provide the perfect complement to any interior. Cyclone’s centrifugal blowers liquefy cooking residue without using complex filters — making cleanup a snap. Featuring LumiLight LED Lighting, and available in black, white, stainless steel and black stainless finishes
Product Status Active Brand Zephyr Model # AK6536CB MSRP ($) $649 Short Description Cyclone, Under Cabinet, 36", Black, 600 CFM Collection Core Collection UPC 646328009495 Category Range Hood Installation Type Under Cabinet For Outdoor Use No Controls Type Mechanical Slide Lighting Type LED Lights Quantity 2 Voltage 120 Maximum Amperage 2 Color Black Blower Speeds 3 Watts Per Bulb 6 Lights Levels 2 Mounting Height Above Cooktop; IN 24 - 32 Compatible Models MUA006A, AK00066, AK1716 Country of Origin Taiwan Grease Filter Type Filter-less Compatible Mesh or Baffle Filter Part Number Z0F-B002 CEC Title 20 Compliant Yes CEC Title 24 Compliant Yes ADA Compliant Yes, with optional wall switch Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 3.25 x 10 Duct Size; Vertical; IN 6, 3.25 x 10 Net Height; IN 6.375 Net Width; IN 35.75 Nominal Width; IN 36 Net Depth; IN 22.25 Weight; LBS 33 Feature 1 Mechanical Slide Controls Feature 1 Definition 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting. Feature 2 3 Speed Levels Feature 2 Definition Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs. Feature 3 LumiLight LED Lighting Feature 3 Definition LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. Feature 4 Dual-Level Lighting Feature 4 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 5 2 Removable Safety Grilles Feature 5 Definition High-quality safety grilles designed to enhanced protection during use and improve the overall aesthetic. Feature 6 Filter-less self-cleaning system Feature 6 Definition Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use. Feature 7 Multiple color options Feature 7 Definition Multiple colors available to match your kitchen decor. Energy Star Certified No Blower Included Yes Internal Blower 1 CFM 600 Internal Blower 1 Min. Sones 1.5 Internal Blower 1 Max Sones 5 Warranty Parts / Labor 10 / 1 Shipping Height; IN 27.4 Shipping Length; IN 38.5 Shipping Width; IN 9.9 Shipping Weight; LBS 38 Optional Accessory 1 MUA006A Optional Accessory 2 AK00066 Optional Accessory 3 AK1716
