AK7036BS
Head On IsoDownload

Range Hood

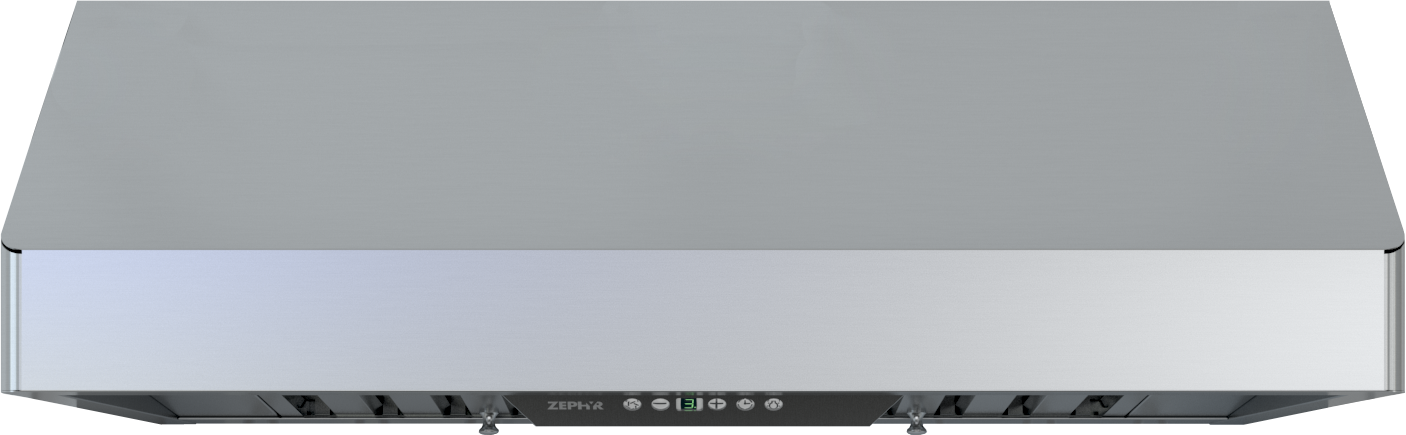

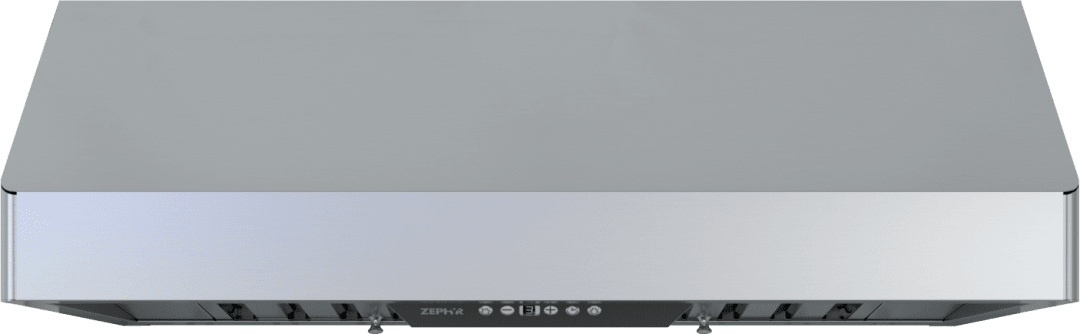

AK7036BS

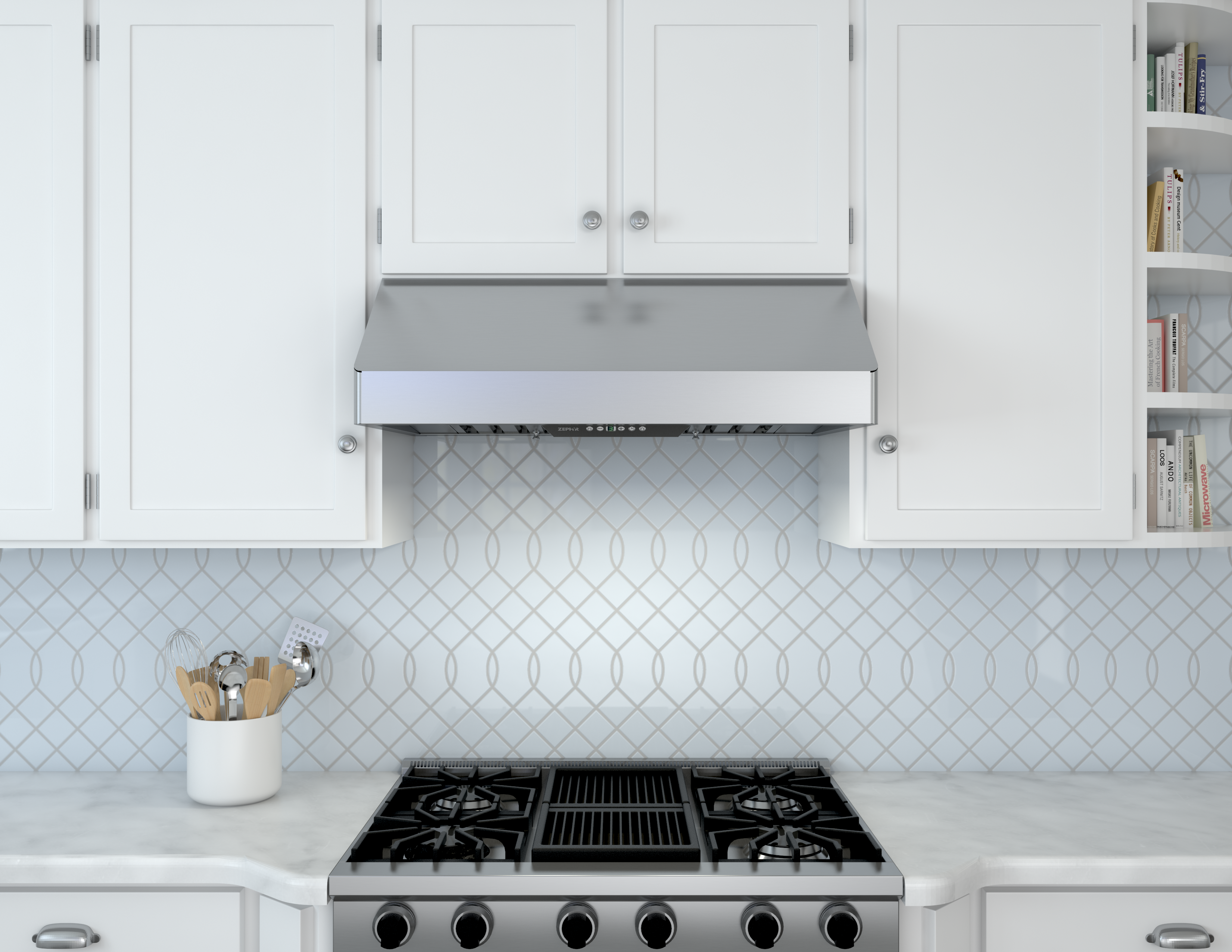

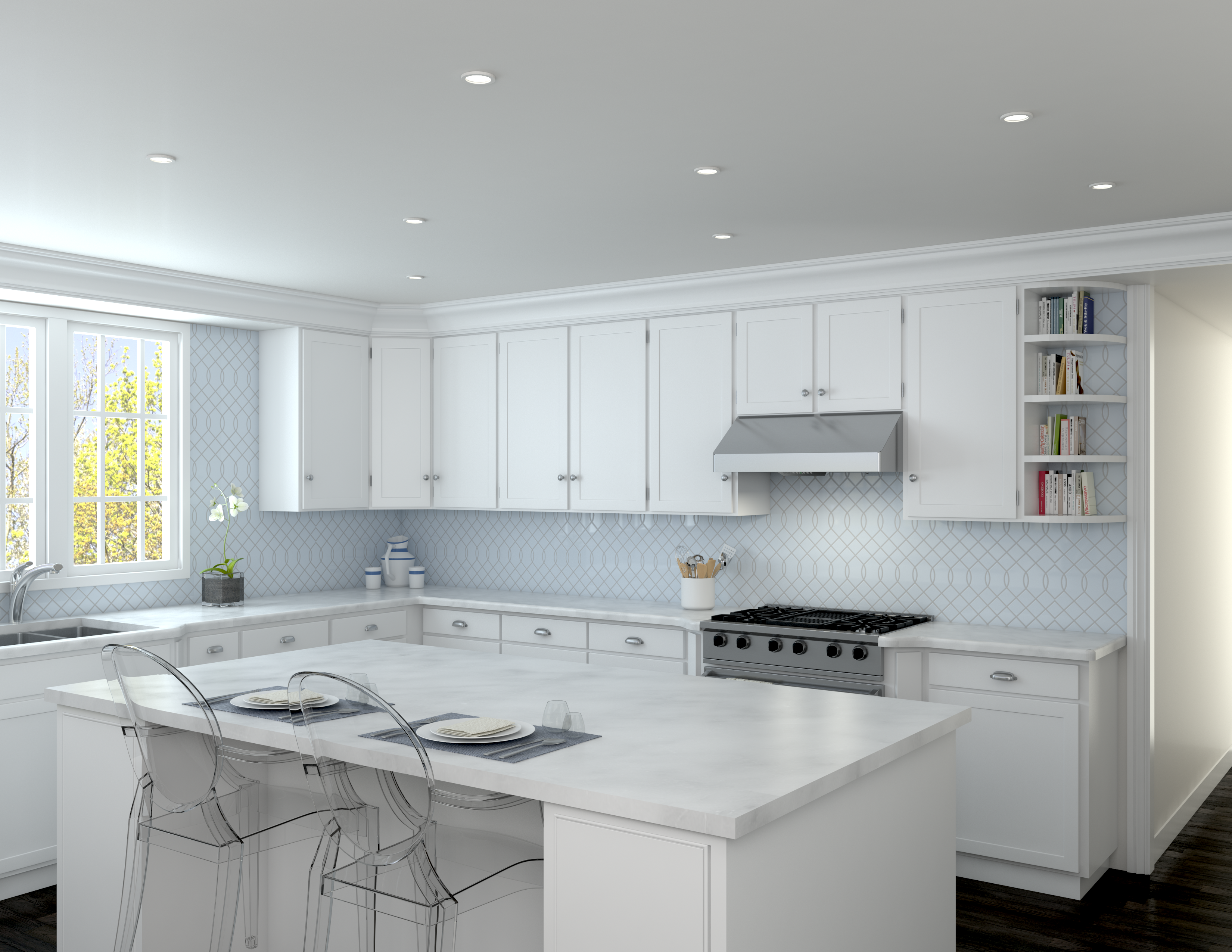

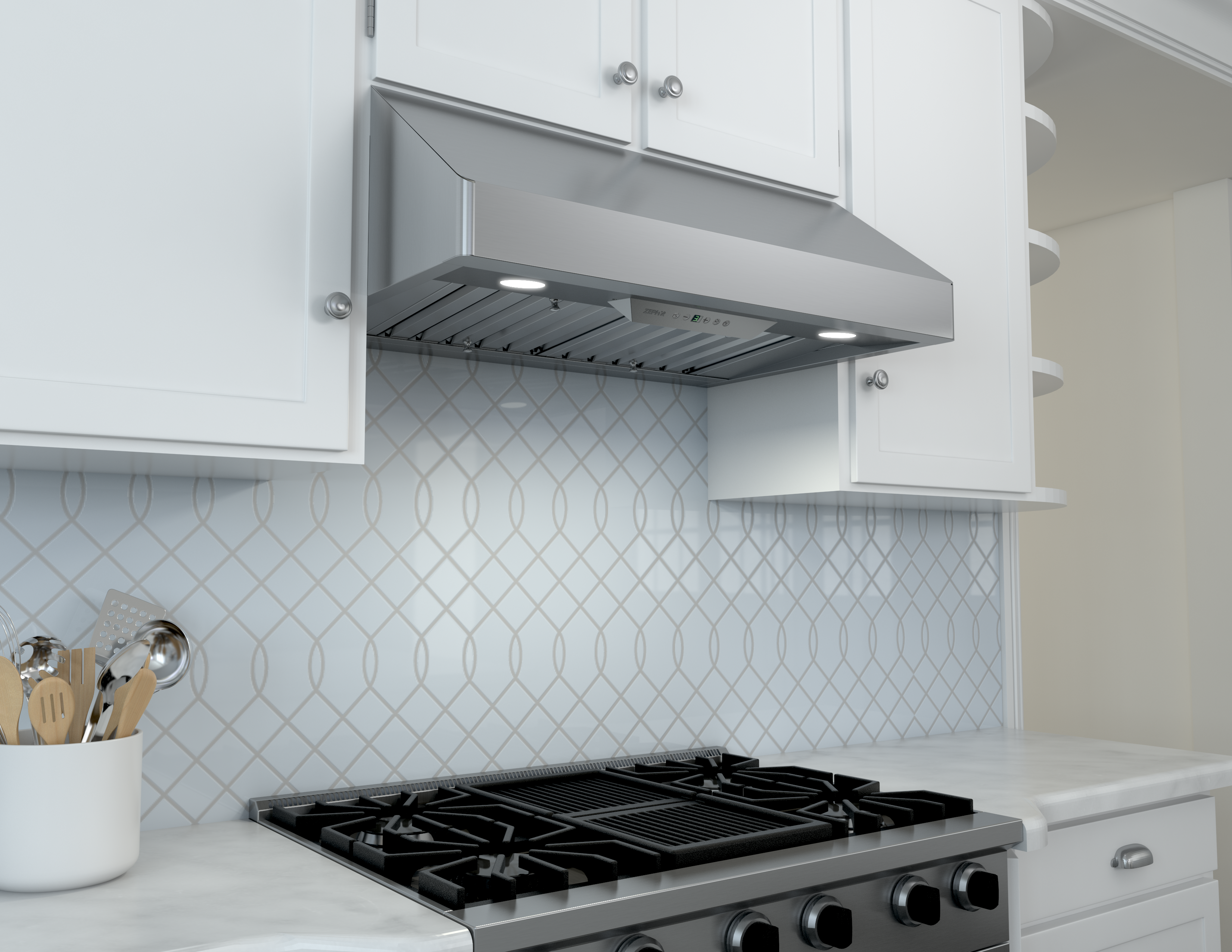

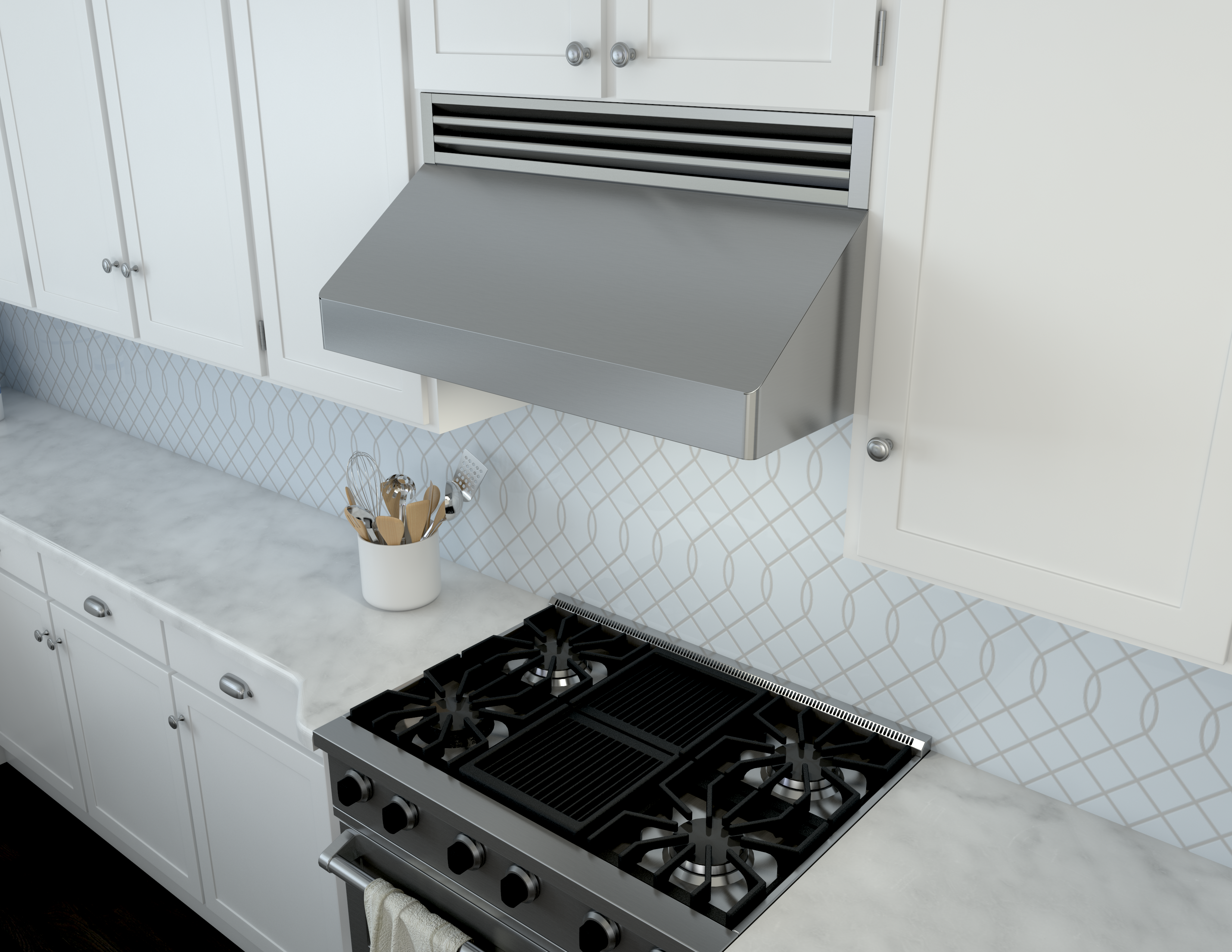

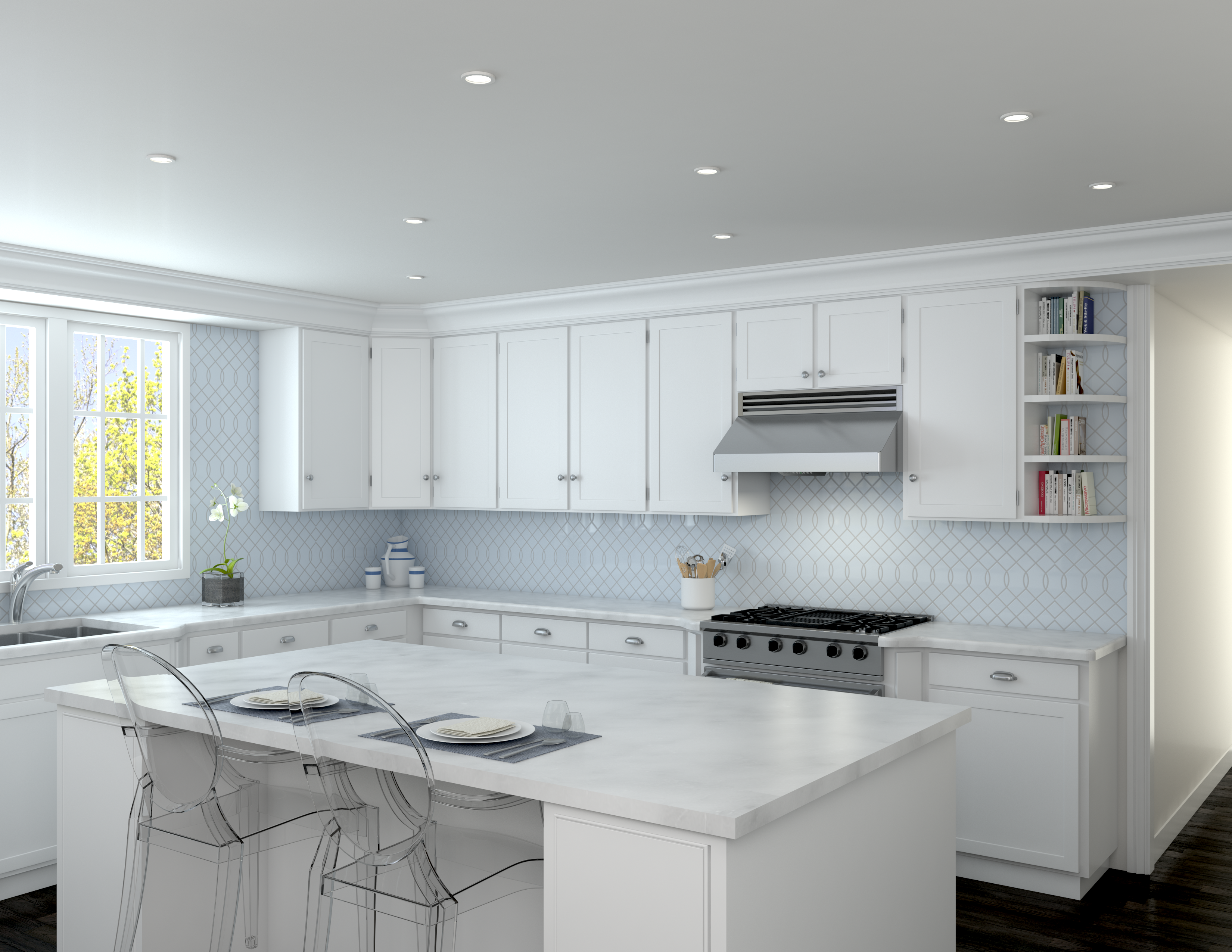

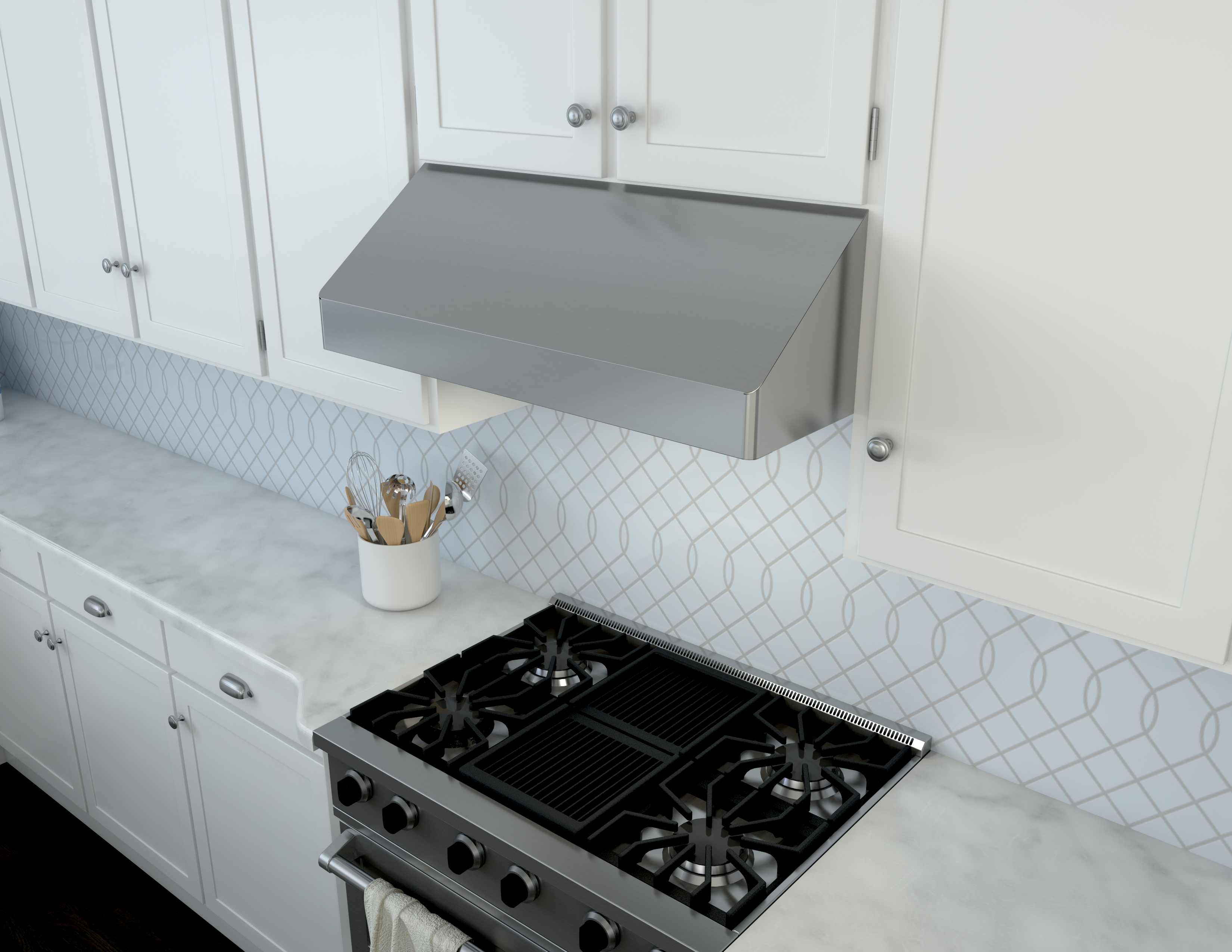

Tempest I Under-Cabinet

  • A streamlined under-cabinet pro-style range hood, Tempest I combines power, efficiency and flexibility. 650-CFM or optional 1,200-CFM blower options and high-airflow pro baffle filters (that are dishwasher-safe) ensure a lifetime of exceptional performance. Additional options like a wireless remote control and recirculation kits for kitchens that require ductless venting ensure all you have to think about is cooking.
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK7036CS
    Model #AK7036BS
    MSRP ($)$1049
    Short DescriptionTempest I, 11in Pro, 36", SS, 650 CFM, ACT
    CollectionPro Collection
    UPC646328003097
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsPBD-1200A, ZRC-7036B, AK0726, 14000005, AK0716, Z0B0040, MUA008A, Z0F-C002
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelAK7036DS
    AK7036CS
  • Blower Speeds6
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210020
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8, 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8, 10
  • Net Height; IN11
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN22.5
    Weight; LBS50.6
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Welded and polished body
    Feature 3 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 4CleanAir Function
    Feature 4 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 5Optional wireless remote control
    Feature 5 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM650
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
    Internal Blower 2 CFM1200
    Internal Blower 2 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN30
    Shipping Length; IN16.54
    Shipping Width; IN40.94
    Shipping Weight; LBS62
  • Optional Accessory 1PBD-1200A
    Optional Accessory 2ZRC-7036B
    Optional Accessory 3AK0726
    Optional Accessory 414000005
    Optional Accessory 5AK0716
    Optional Accessory 6Z0B0040
    Optional Accessory 7MUA008A
    Optional Accessory 8Z0F-C002
