Range Hood

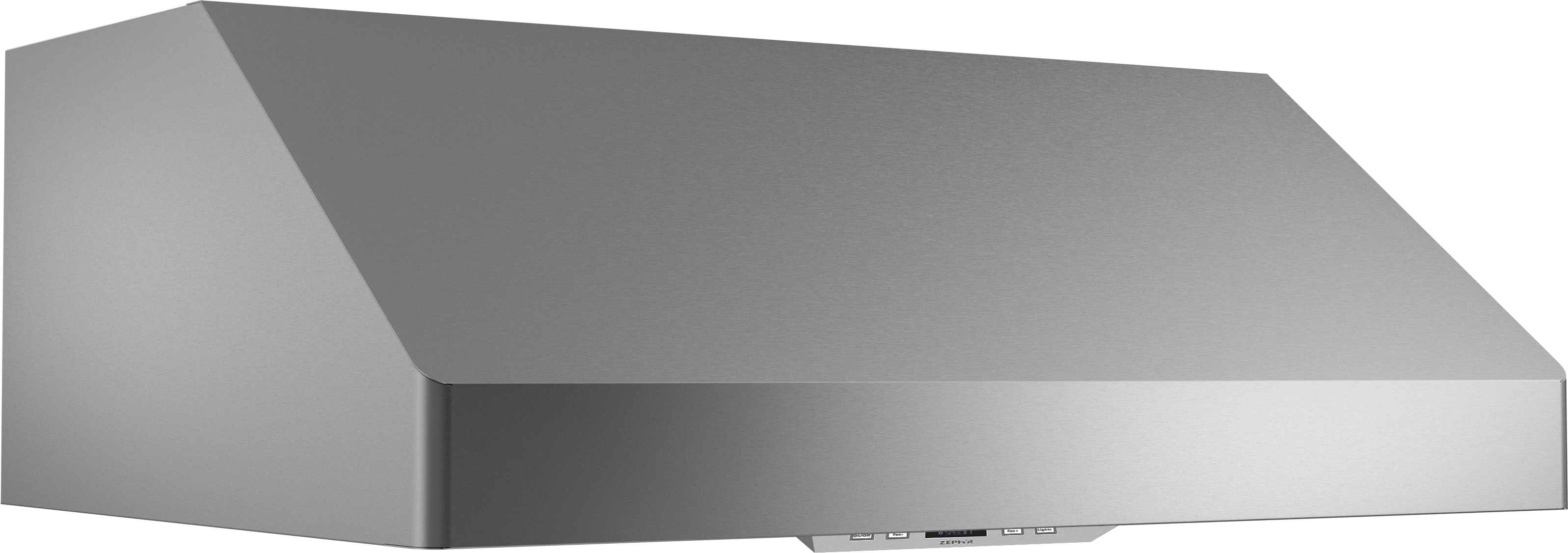

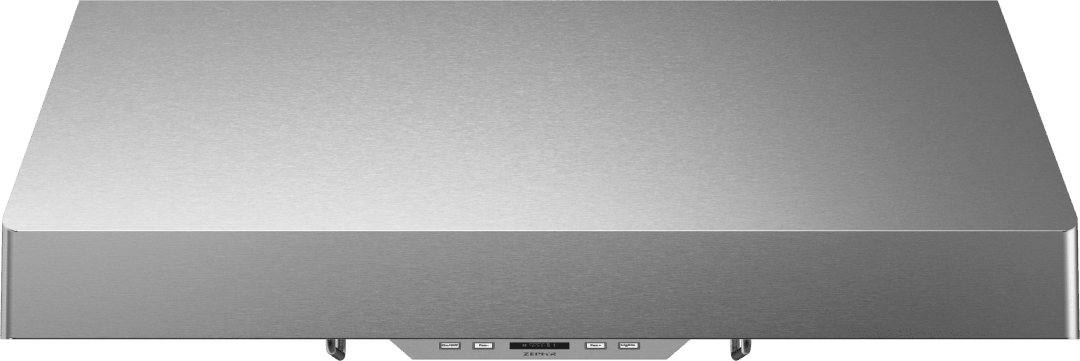

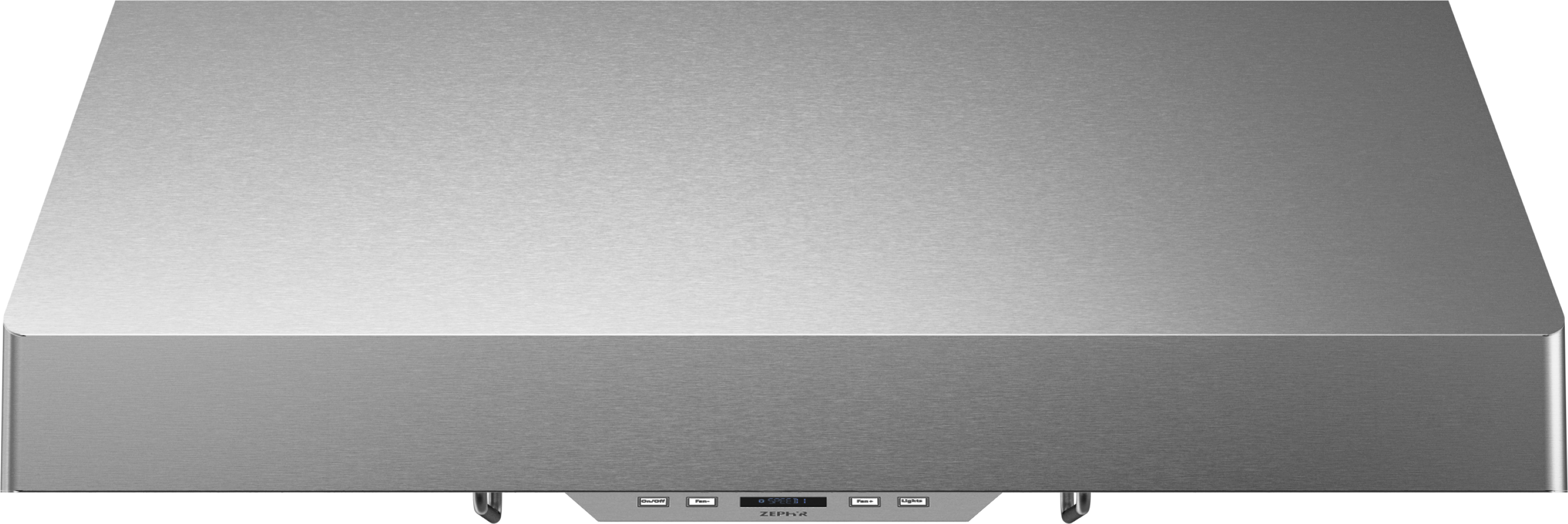

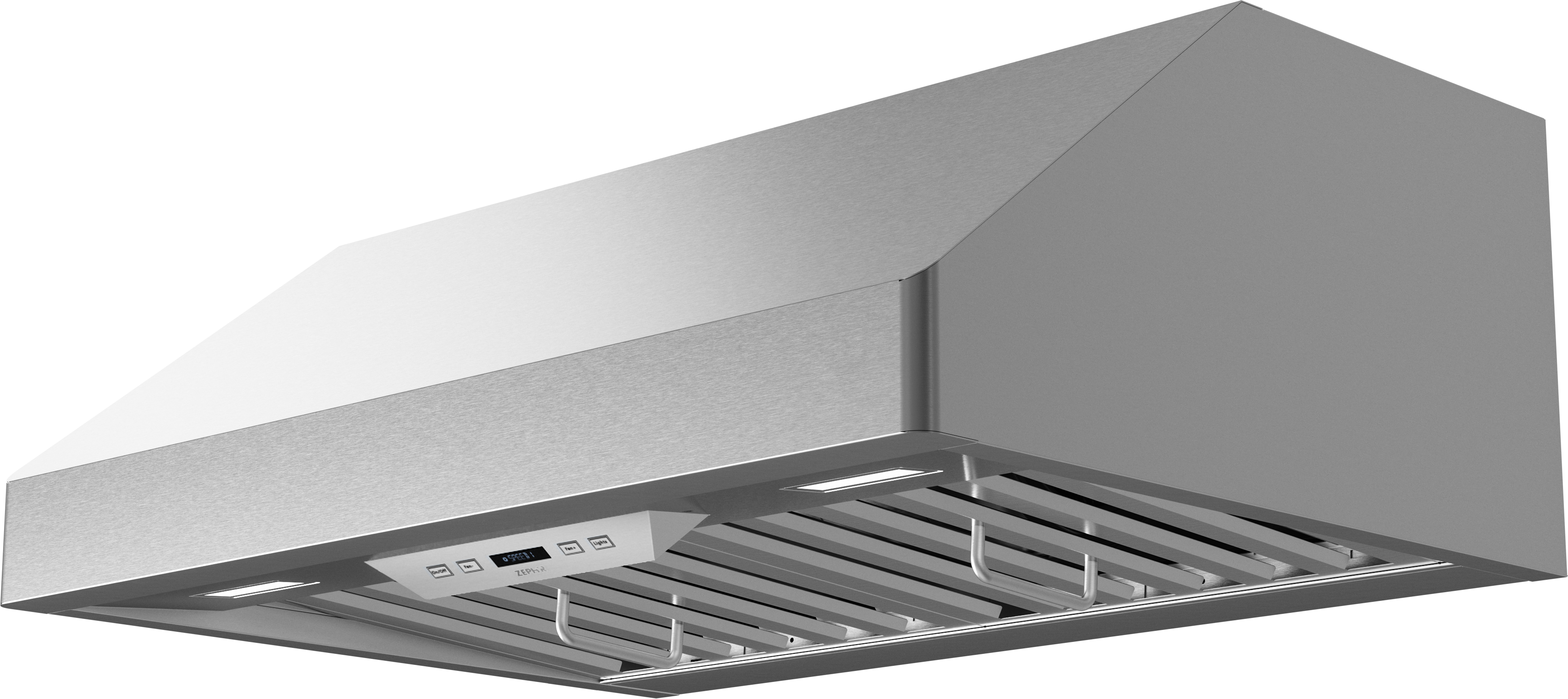

AK7036DS

Tempest I Under-Cabinet

  • A streamlined under-cabinet pro-style range hood, Tempest I combines power, efficiency and flexibility. 650-CFM or optional 1,200-CFM blower options and high-airflow, dishwasher-safe pro baffle filters ensure a lifetime of exceptional performance. Dual-level LumiLight LED lighting with TruHue™ technology matches your hood lights to your primary lighting. Additional options like a wireless remote control and recirculating kit for kitchens that require ductless venting ensure all you have to think about is cooking.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #AK7036DS
    MSRP ($)$1599
    Short DescriptionTempest I, 11in UC, 36in, SS, TruHue
    CollectionPro Collection
    UPC646328013638
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity2
    Voltage120
    Maximum Amperage5
    ColorStainless Steel
    Blower Speeds5
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN26 - 36
    Compatible ModelsAK0726, AK1726, RC-0002, PBD-1200B, ZRC-7036C, AK1716, MUA008A, Z0F-C002, MUA010A
    Country of OriginTaiwan
    Grease Filter TypePro baffle
    Compatible Mesh or Baffle Filter Part Number50210039
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional remote
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
  • Net Height; IN11
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN22.5
    Weight; LBS46.5
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Welded and polished body
    Feature 3 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 4CleanAir Function
    Feature 4 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 5LumiLight LED Lighting with TruHue™
    Feature 5 DefinitionA bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Wireless Remote Control (RC-0002)
    Feature 7 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM650
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones7
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN29
    Shipping Length; IN40.8
    Shipping Width; IN16.1
    Shipping Weight; LBS56.7
  • Optional Accessory 1AK0726
    Optional Accessory 2AK1726
    Optional Accessory 3RC-0002
    Optional Accessory 4PBD-1200B
    Optional Accessory 5ZRC-7036C
    Optional Accessory 6AK1716
    Optional Accessory 7MUA008A
    Optional Accessory 8Z0F-C002
    Optional Accessory 9MUA010A
