AK7136AS
Head On IsoDownload

Range Hood

AK7136AS

Gust Under-Cabinet

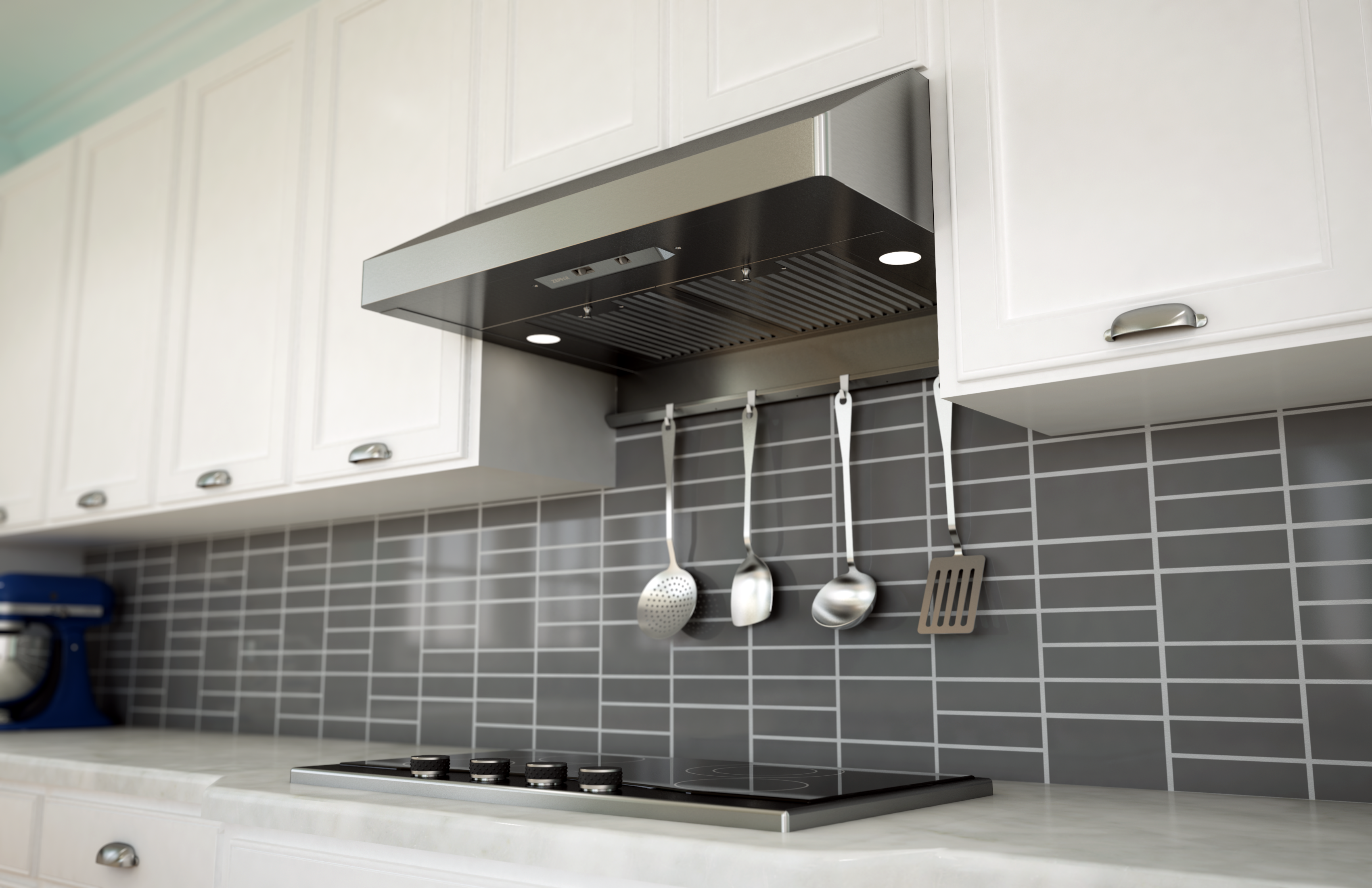

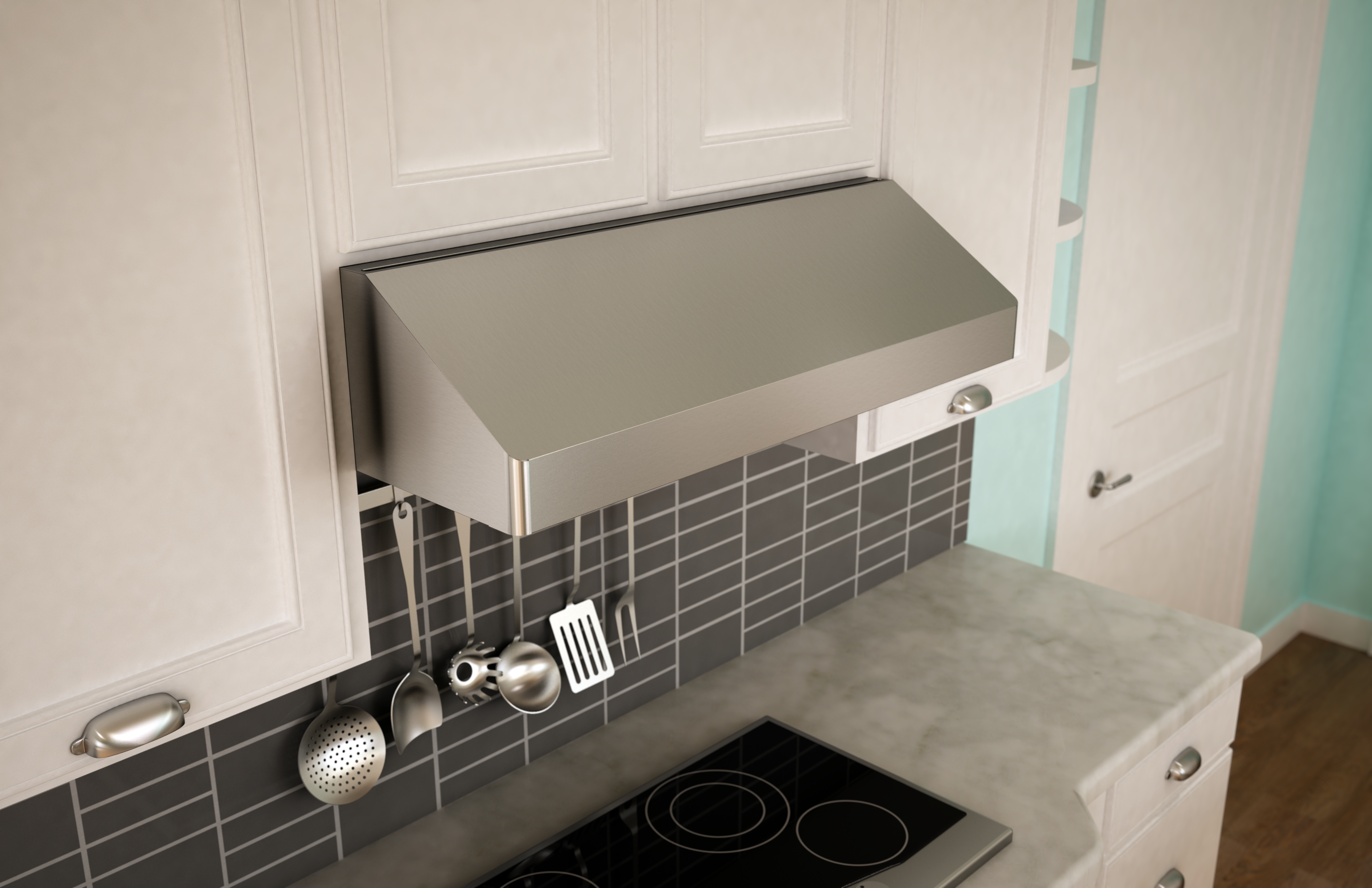

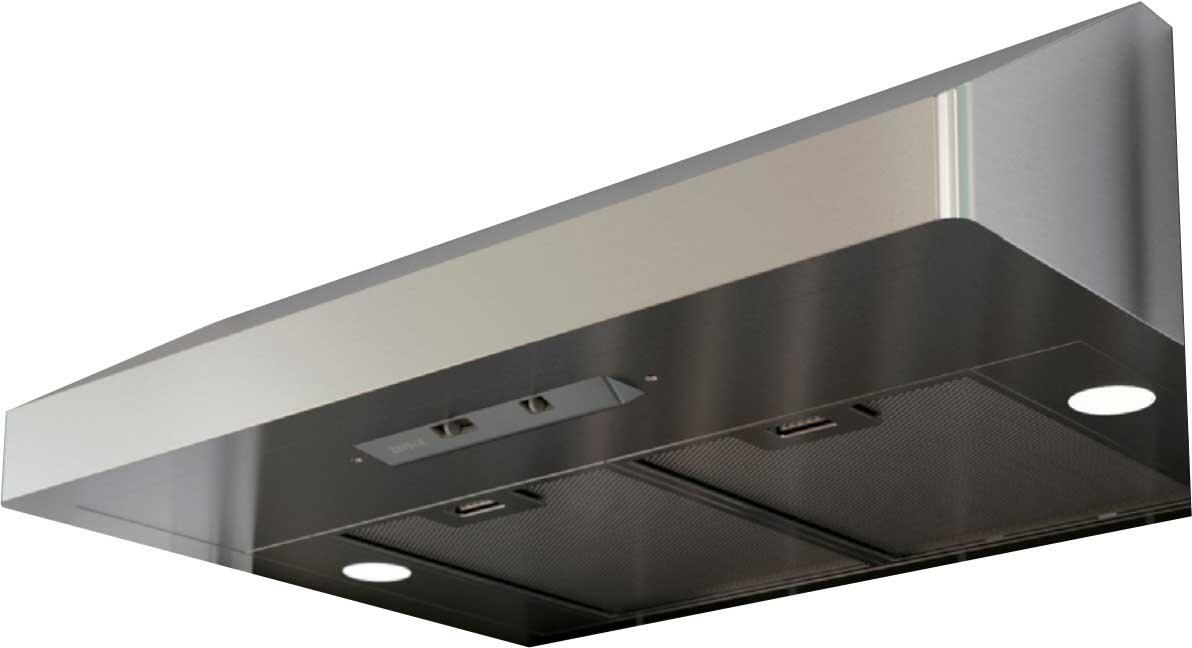

  • A discreet, European-style, professional-looking range hood, Gust adds fashion to under-cabinet installations. With its mechanical controls neatly tucked away below the canopy, Gust provides the subtlety its owners require. Its perfectly curved corners and understated top-mounted return-air louver offer further evidence that Gust spares nothing when it comes to quality construction. Available with optional recirculating kit and baffle filters.
  • Product StatusDiscontinued
    BrandZephyr
    Model #AK7136AS
    MSRP ($)$589
    Short DescriptionGust, UC, 36", SS, 400 CFM
    CollectionCore Collection
    UPC646328001734
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage1.7
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-0200, MUA006A, Z0B0040, Z0F-C002
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210012
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7.375
    Net Width; IN35.9375
    Nominal Width; IN36
    Net Depth; IN21
    Weight; LBS32.7
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Welded and polished body
    Feature 1 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 2Optional Ductless Recirculating Kit
    Feature 2 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.

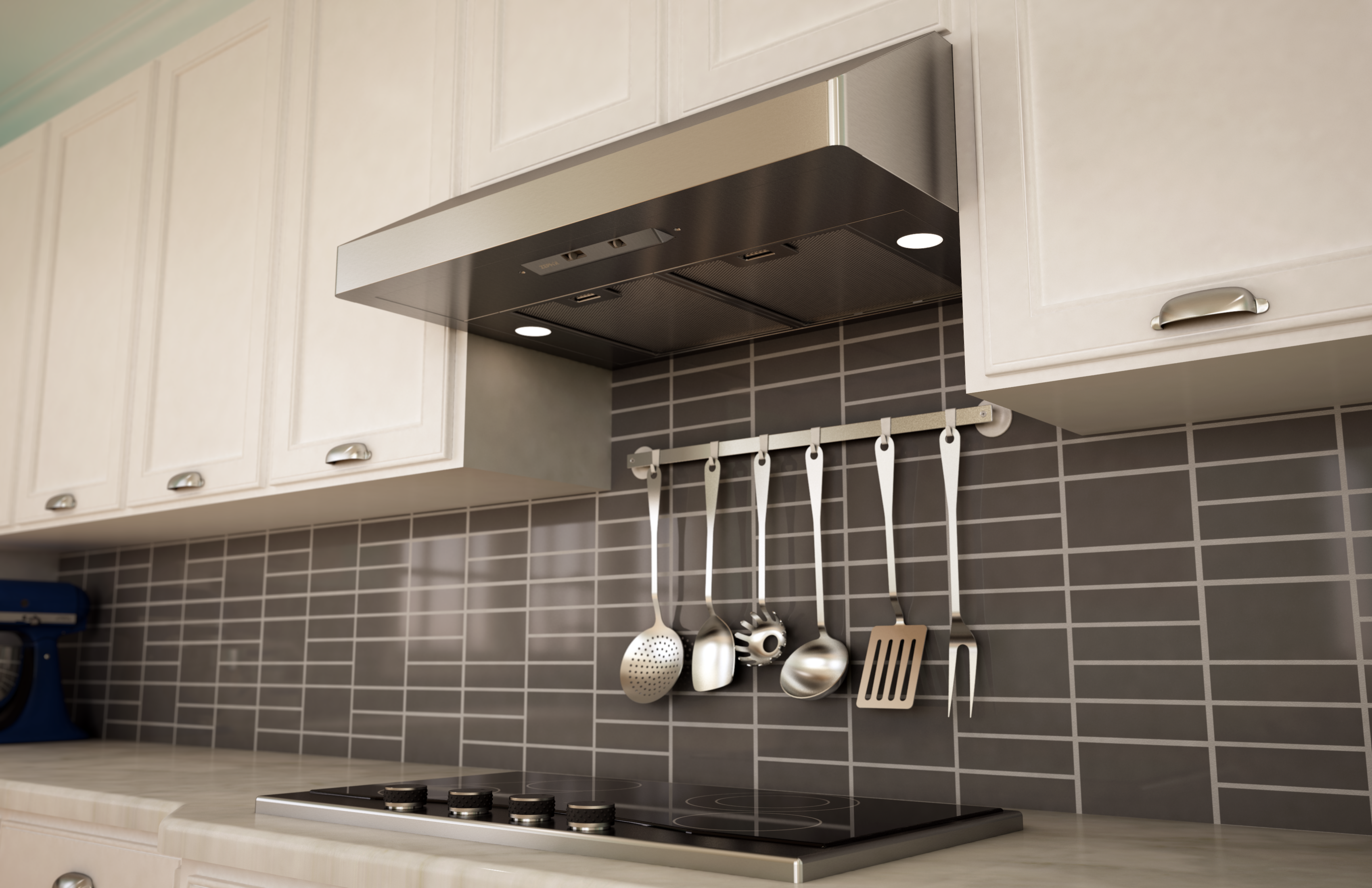

    Feature 3Adjustable utensil bar
    Feature 3 DefinitionThis utensil bar can be installed at multiple heights to accommodate hanging utensils.
    Feature 4Vertical or horizontal ducting
    Feature 4 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones2
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.24
    Shipping Length; IN10.63
    Shipping Width; IN38.82
    Shipping Weight; LBS39.9
  • Optional Accessory 1ZRC-0200
    Optional Accessory 2MUA006A
    Optional Accessory 3Z0B0040
    Optional Accessory 4Z0F-C002
