AK7300AS
Head On IsoDownload

Range Hood

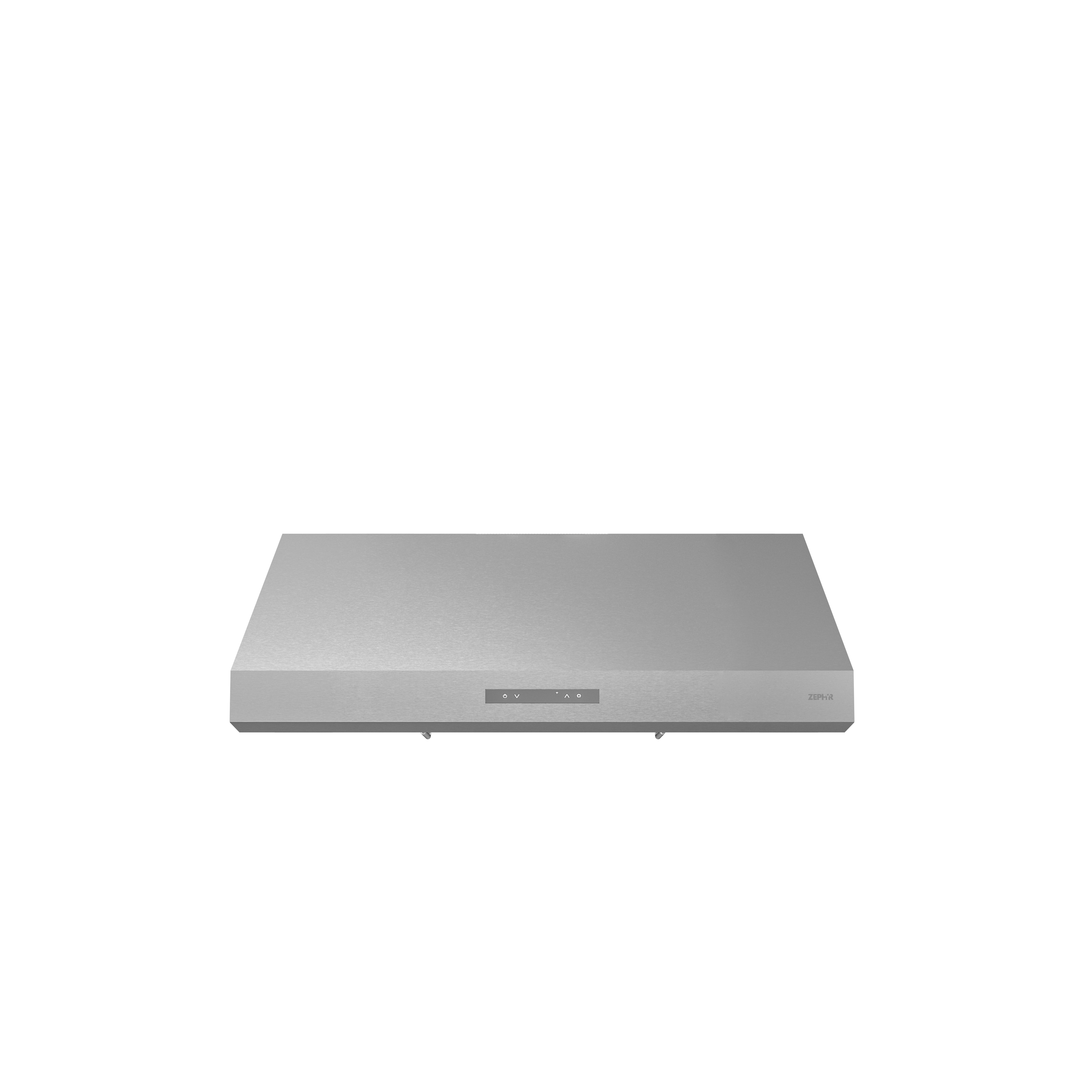

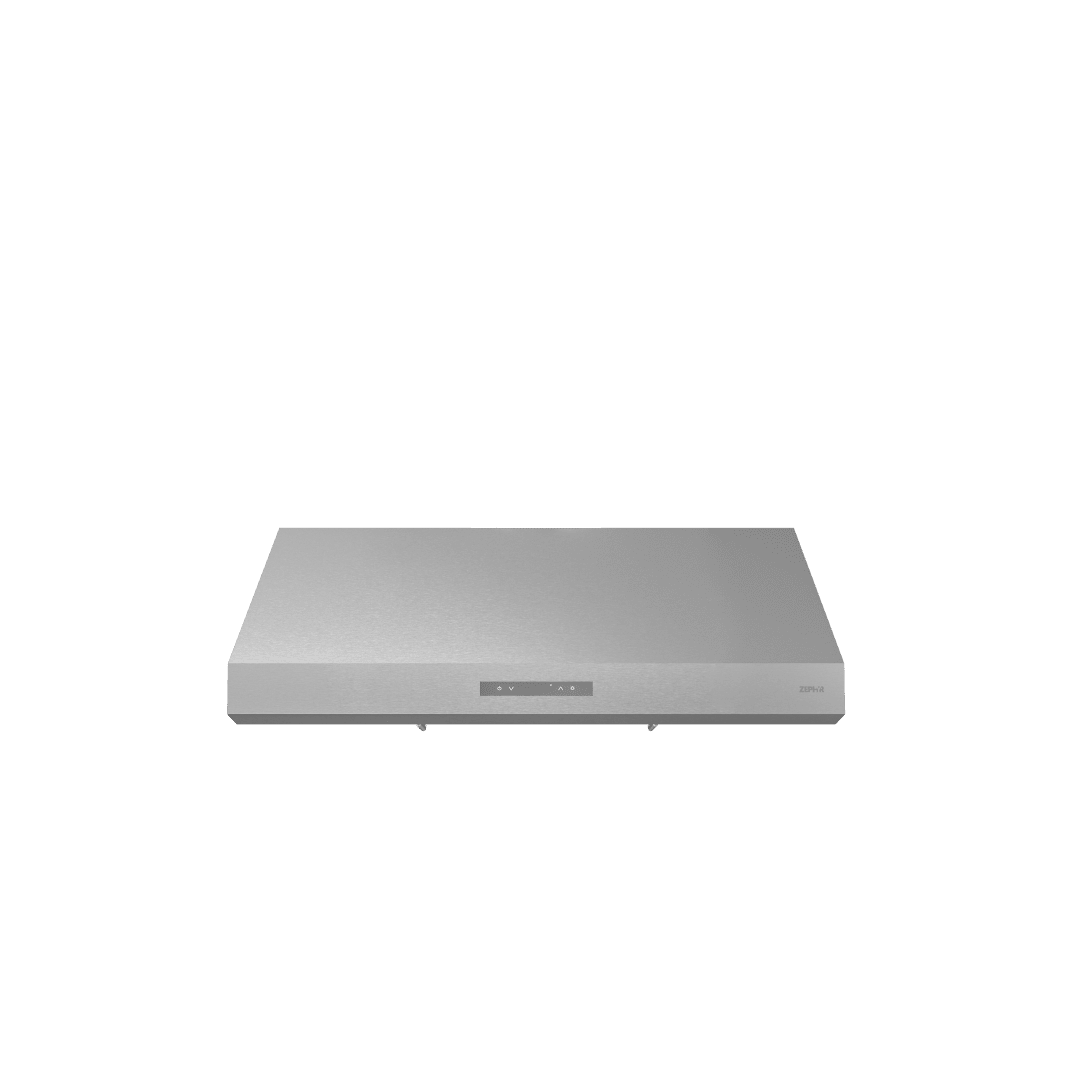

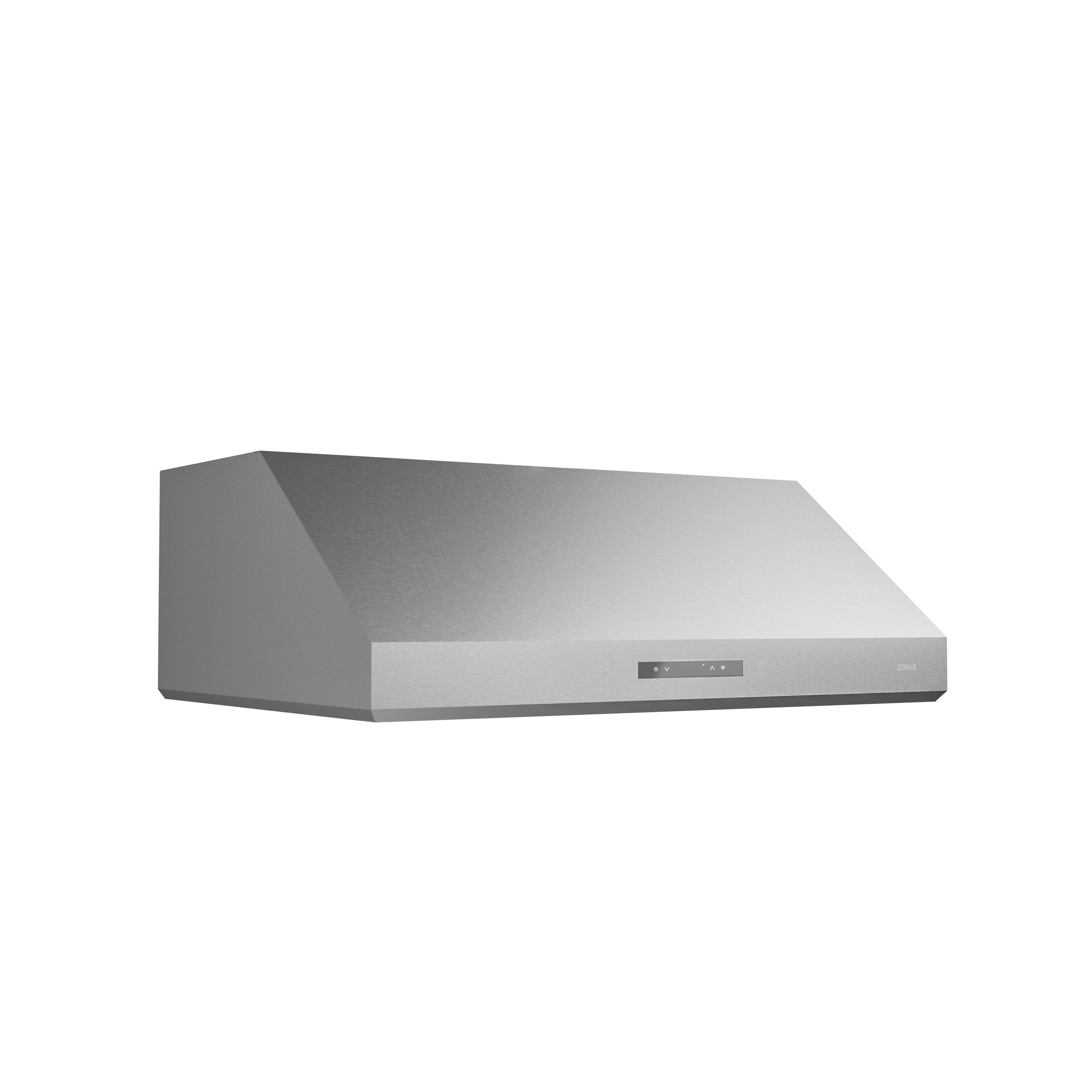

AK7300AS

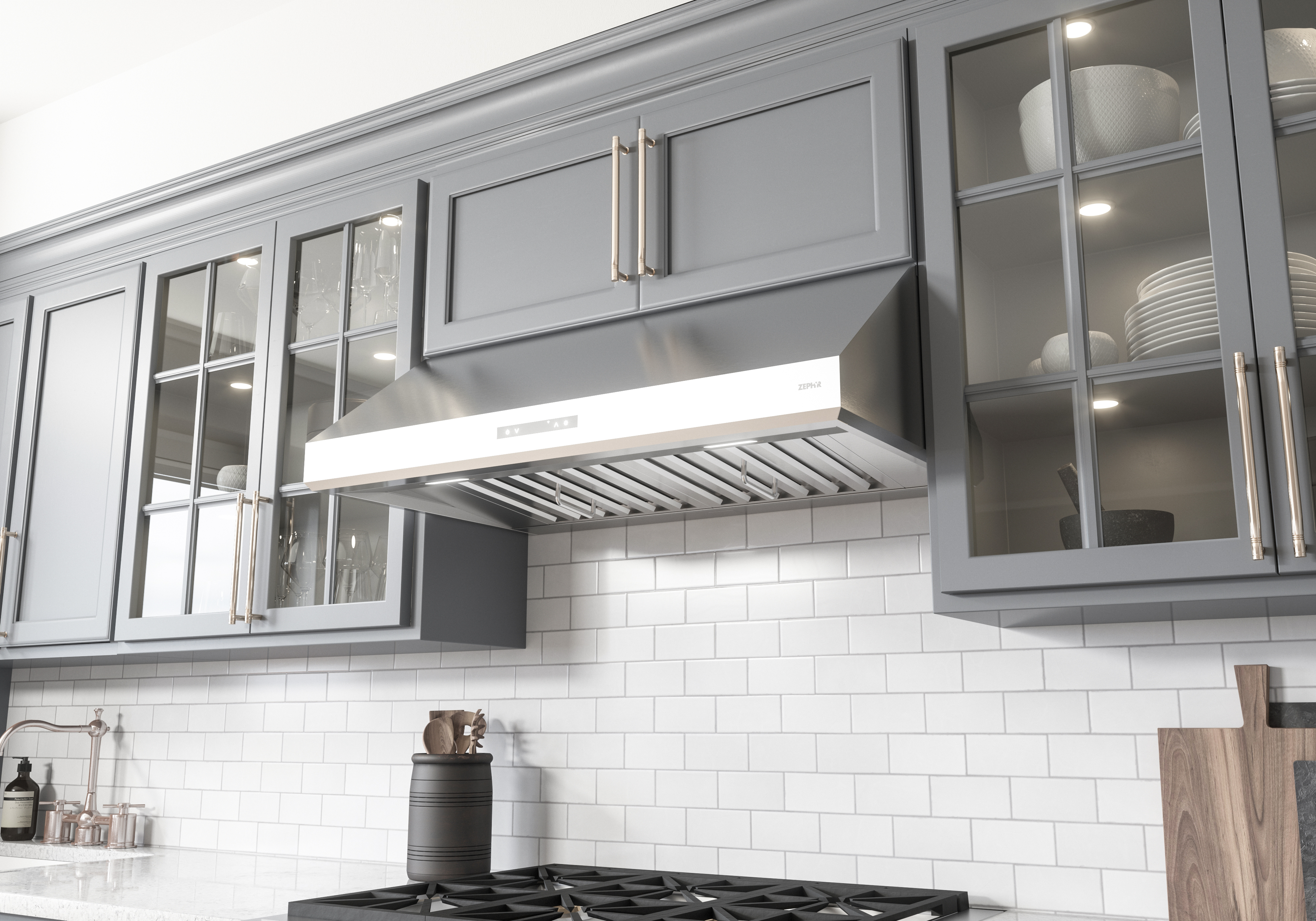

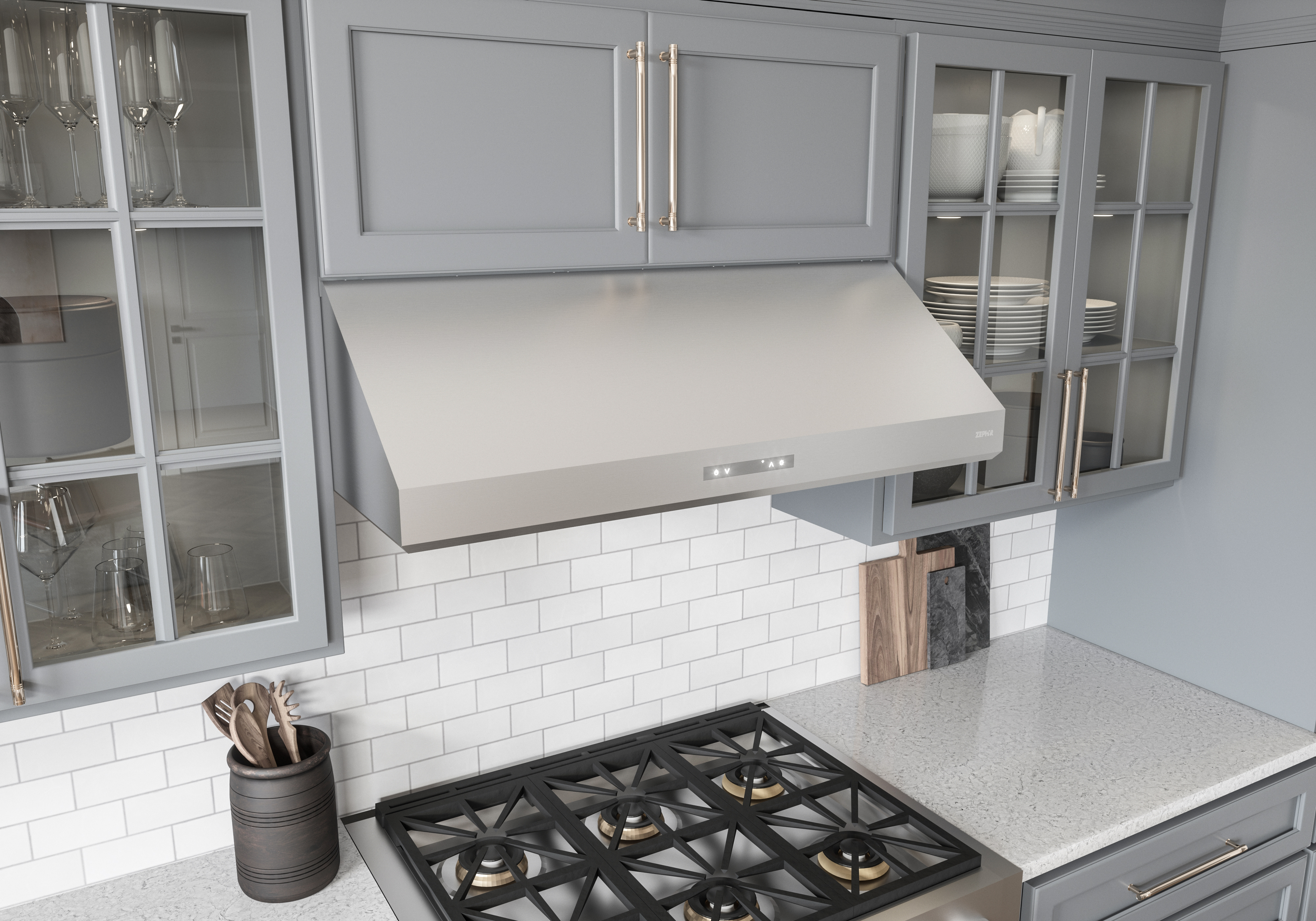

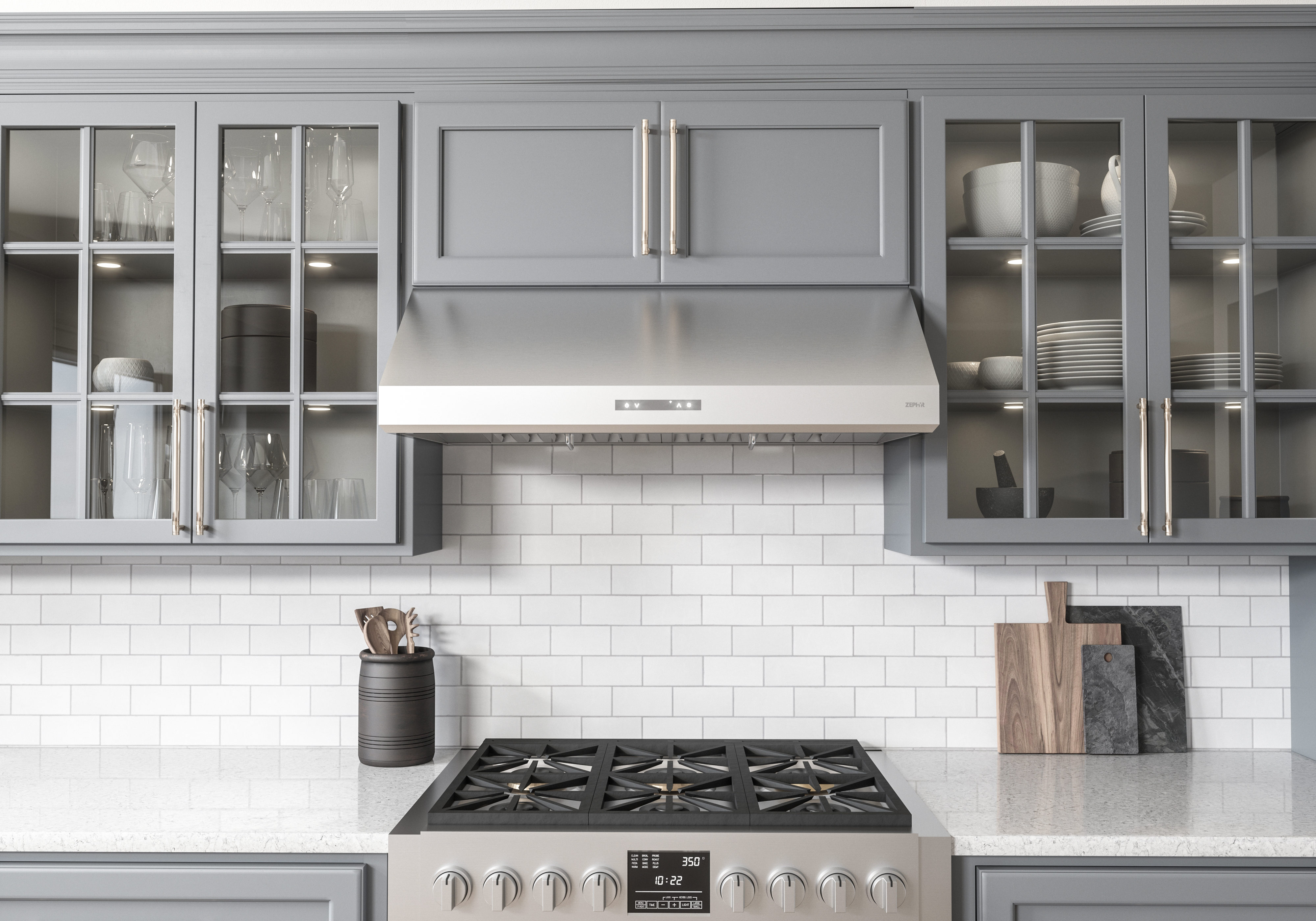

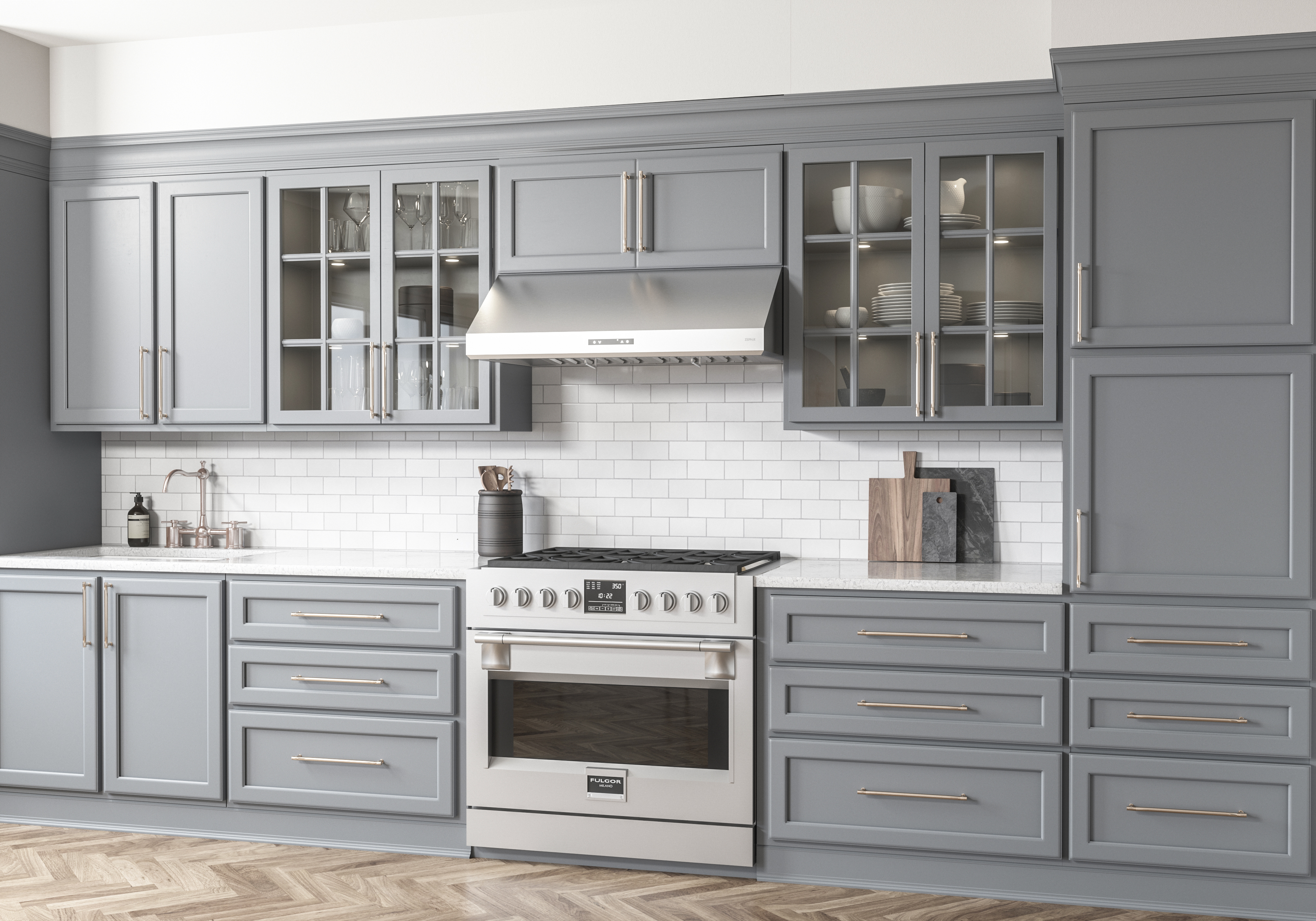

Tidal I Under-Cabinet

  • Tidal I under-cabinet, pro-style hood is the next wave of the future with its optional dual 1300-CFM PowerWave™ blowers and Zephyr Connect capabilities. Featuring professional baffle filters, LumiLight LED Lighting and 6-Speed Proximity Touch Controls, Tidal I is the ultimate in power and efficiency. Dual blowers available on the 36” model.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #AK7300AS
    MSRP ($)$1799
    Short DescriptionTidal I Connect 11in UC, 30in, SS, LED, ACT
    CollectionPro Collection
    UPC646328009198
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeProximity Touch
    Lighting TypeLED
    Lights Quantity2
    Voltage120
    Maximum Amperage5
    ColorStainless Steel
    Blower Speeds6
    Watts Per Bulb6
    Lights Levels3
    Mounting Height Above Cooktop; IN24 - 36
    Compatible Models14000005, ZRC-7000C, AK0720, AK1720, MUA008A, Z0F-C002, AK1710
    Country of OriginTaiwan
    Grease Filter TypePro baffle
    Compatible Mesh or Baffle Filter Part Number50210039
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional remote
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
  • Net Height; IN11
    Net Width; IN29.875
    Nominal Width; IN30
    Net Depth; IN22.5
    Weight; LBS45.000
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Compatible with Zephyr Connect App
    Feature 3 DefinitionThe Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.

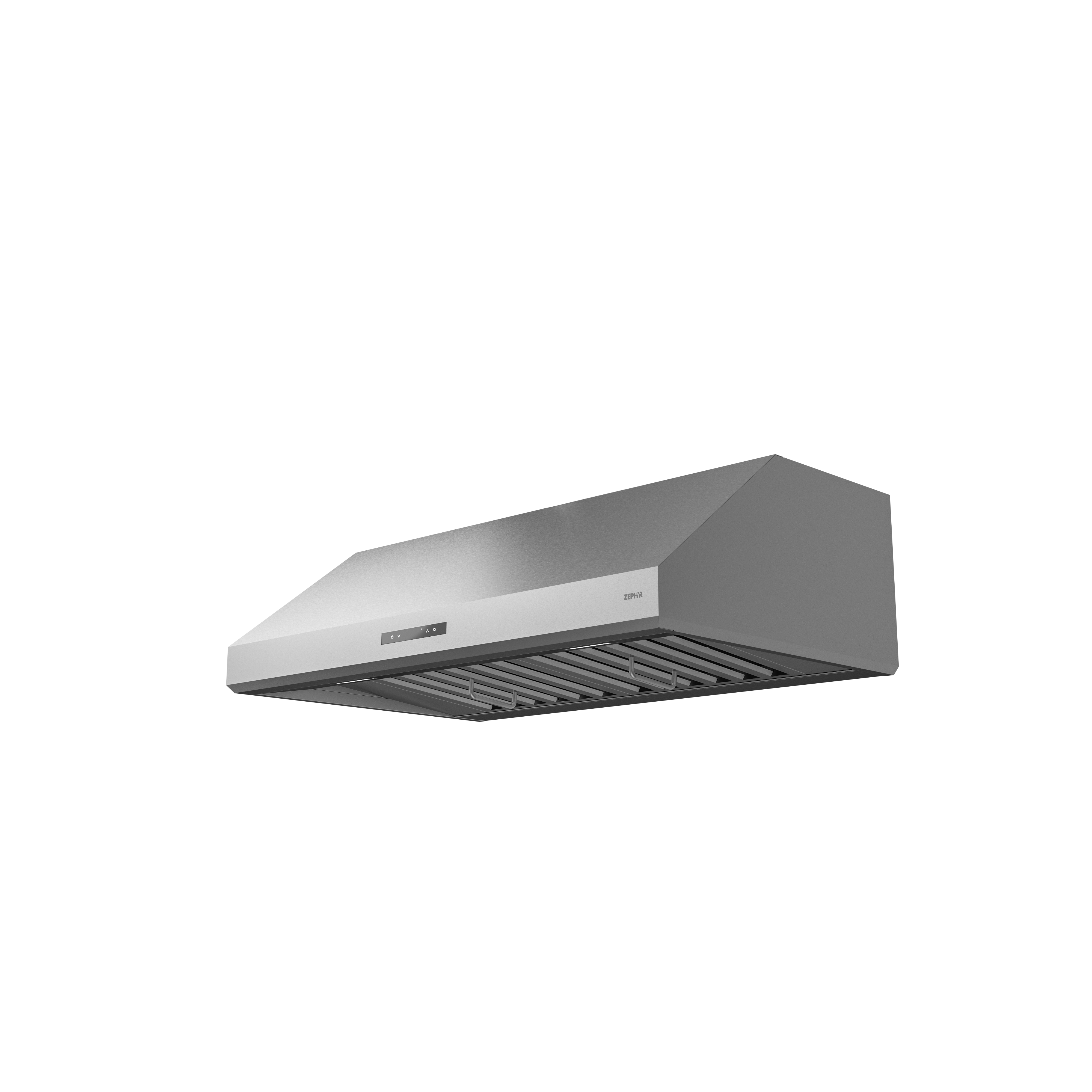

    Feature 4Professional Baffle Filters
    Feature 4 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 5CleanAir Function
    Feature 5 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 6Vertical or horizontal ducting
    Feature 6 DefinitionThis hood has the ability to vent either out the top or out the back.

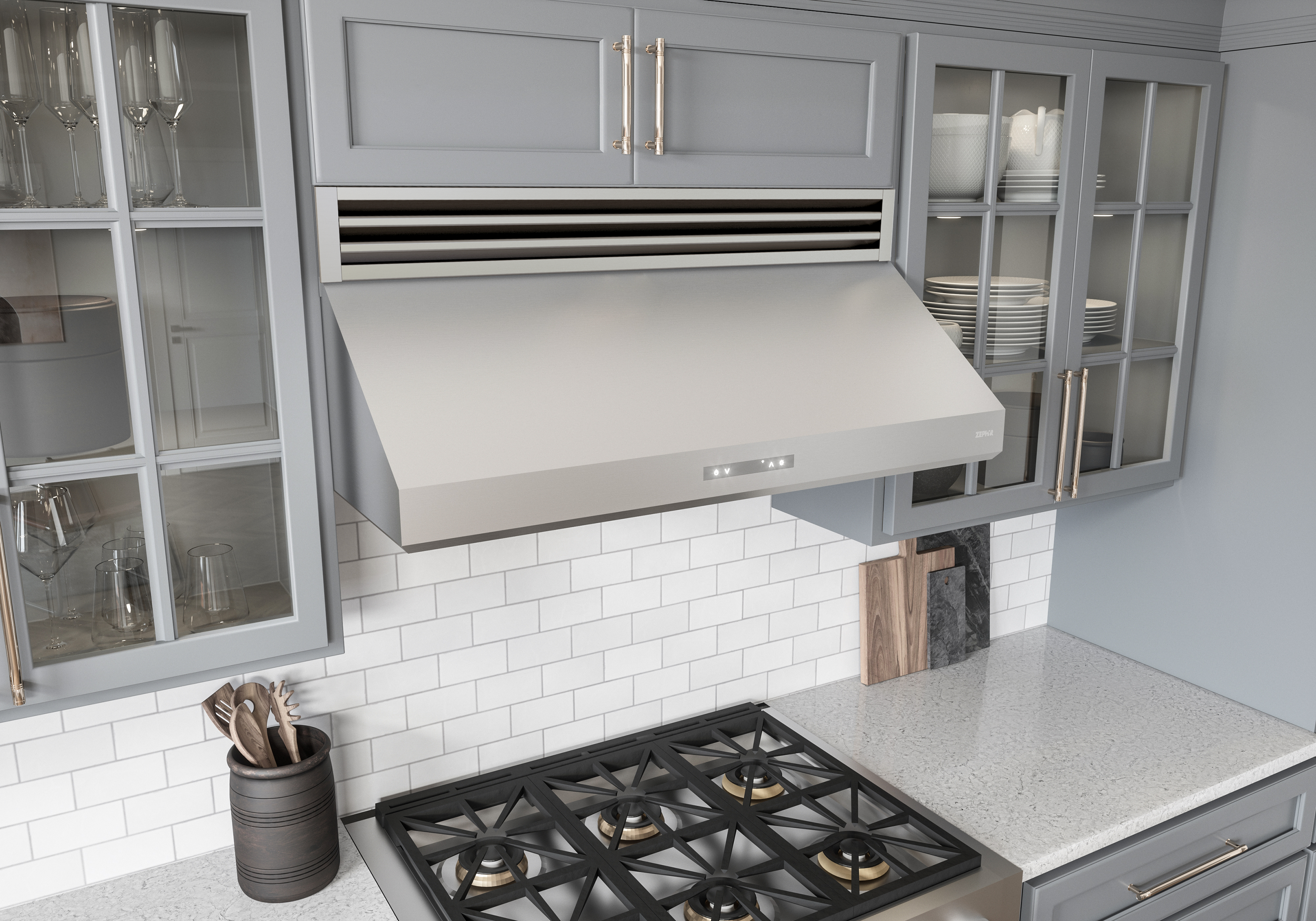

    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT590, 390, 290
    Internal Blower 1 CFM700
    Internal Blower 1 Min. Sones0.8
    Internal Blower 1 Max Sones6
    Internal Blower 2 CFM1300
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN30
    Shipping Length; IN41
    Shipping Width; IN17
    Shipping Weight; LBS53
  • Optional Accessory 114000005
    Optional Accessory 2ZRC-7000C
    Optional Accessory 3AK0720
    Optional Accessory 4AK1720
    Optional Accessory 5MUA008A
    Optional Accessory 6Z0F-C002
    Optional Accessory 7AK1710
