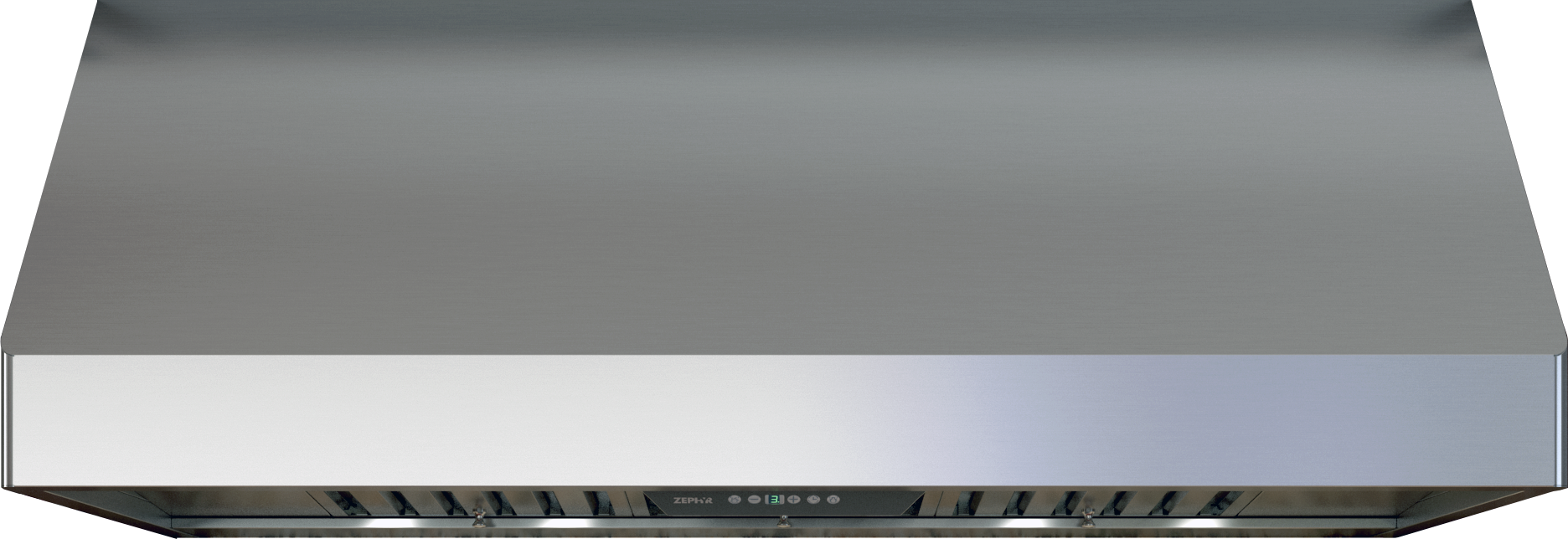

AK7554BS
Head On IsoDownload

Range Hood

AK7554BS

Tempest II Wall

  • Designed with professional-grade performance and seamless contours, the wall-mount Tempest II gives you serious cooking power, with 650-CFM or 1,200-CFM blower options. Equipped with dishwasher-safe, high-airflow pro baffle filters, an optional wireless remote control, 6 speeds, and dual-level halogen lighting, it’s everything the demanding cook could ask for. Optional 12" duct cover accessory also available.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK7554CS
    Model #AK7554BS
    MSRP ($)$1699
    Short DescriptionTempest II, 18in Pro, 54", SS, 650 CFM, ACT
    CollectionPro Collection
    UPC646328005398
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity4
    Maximum Amperage5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsPBD-1200A, AK0724, 14000005, AK0714, MUA008A, MUA010A, Z0B0040
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelAK7554DS
    AK7554CS
  • Blower Speeds6
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210021
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 10, 3.25 x 10
    Duct Size; Vertical; IN8, 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 10, 3.25 x 10
    Duct Size; Vertical; IN8, 10
  • Net Height; IN18
    Net Width; IN53.875
    Nominal Width; IN54
    Net Depth; IN24
    Weight; LBS84
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Welded and polished body
    Feature 3 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 4CleanAir Function
    Feature 4 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 5Optional wireless remote control
    Feature 5 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM650
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
    Internal Blower 2 CFM1200
    Internal Blower 2 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN28.31
    Shipping Length; IN23.15
    Shipping Width; IN62.2
    Shipping Weight; LBS102.5
  • Optional Accessory 1PBD-1200A
    Optional Accessory 2AK0724
    Optional Accessory 314000005
    Optional Accessory 4AK0714
    Optional Accessory 5MUA008A
    Optional Accessory 6MUA010A
    Optional Accessory 7Z0B0040
