AK7554DS
Head On IsoDownload

Range Hood

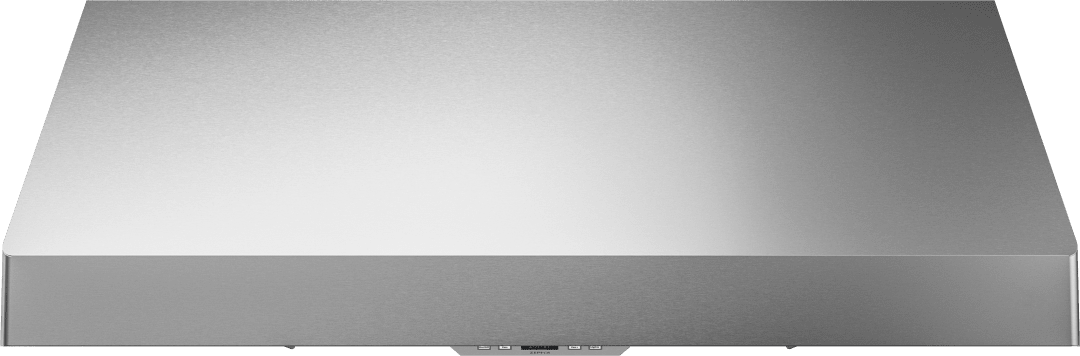

AK7554DS

Tempest II Wall

  • Designed with professional-grade performance and seamless contours, the wall-mount Tempest II gives you serious cooking power, with 650-CFM or 1,200-CFM blower options. Updated with 5-speed electronic LCD controls and dual-level LumiLight LED lighting with TruHue™, which lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch. Equipped with dishwasher-safe, high-airflow pro baffle filters, and an optional wireless remote control, it’s everything the demanding cook could ask for.
  • Product StatusActive
    BrandZephyr
    Model #AK7554DS
    MSRP ($)$2449
    Short DescriptionTempest II, 18in Wall, 54in, SS, TruHue
    CollectionPro Collection
    UPC646328013706
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsAK0724, AK1724, RC-0002, MUA008A, MUA010A, AK1714, PBD-1200B
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210039
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
  • Net Height; IN18
    Net Width; IN53.875
    Nominal Width; IN54
    Net Depth; IN24
    Weight; LBS69.9
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2LumiLight LED Lighting with TruHue™
    Feature 2 DefinitionA bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
    Feature 3Professional Baffle Filters
    Feature 3 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 4Welded and polished body
    Feature 4 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 5CleanAir Function
    Feature 5 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 6Dual-Level Lighting
    Feature 6 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 7Optional Wireless Remote Control (RC-0002)
    Feature 7 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM650
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones7
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN27.3
    Shipping Length; IN57.2
    Shipping Width; IN22.5
    Shipping Weight; LBS90.4
  • Optional Accessory 1AK0724
    Optional Accessory 2AK1724
    Optional Accessory 3RC-0002
    Optional Accessory 4MUA008A
    Optional Accessory 5MUA010A
    Optional Accessory 6AK1714
    Optional Accessory 7PBD-1200B
