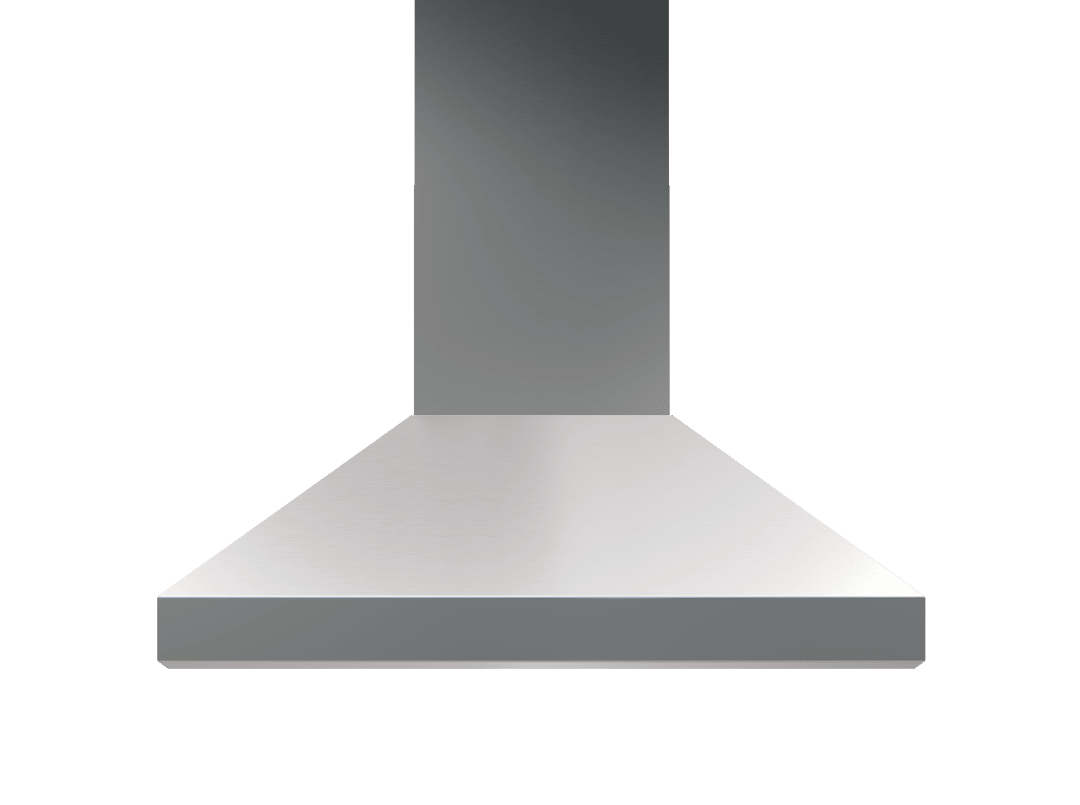

AK7748AS
Head On IsoDownload

Range Hood

AK7748AS

Titan Island

  • Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s new PowerWave™ blower technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. Titan features pro baffle filters, Airflow Control Technology™ (ACT™), and Bloom™ GU10 LED lighting.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK7748BS
    Model #AK7748AS
    MSRP ($)$4199
    Short DescriptionTitan Island, 48in, SS, PowerWave
    CollectionPro Collection
    UPC646328007767
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeElectronic LCD
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage4.2
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsPBD-1300A, Z1C-0177, 14000005, MUA008A, MUA010A
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelAK7748CS
    AK7748BS
  • Blower Speeds6
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210036
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8
  • Net Height; IN33 - 50
    Net Width; IN47.9375
    Nominal Width; IN48
    Net Depth; IN31.625
    Weight; LBS140.6
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Directional Lighting
    Feature 4CleanAir Function
    Feature 4 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 5Multiple Blower Options
    Feature 5 DefinitionMultiple blower options are available to fit your application.
    Feature 6Optional wireless remote control
    Feature 6 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT590, 390, 290
    Internal Blower 1 CFM750
    Internal Blower 1 Min. Sones0.5
    Internal Blower 1 Max Sones7
    Internal Blower 2 CFM1300
    Internal Blower 2 Max Sones8
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN36.42
    Shipping Length; IN52.76
    Shipping Width; IN37.2
    Shipping Weight; LBS150.6
  • Optional Accessory 1PBD-1300A
    Optional Accessory 2Z1C-0177
    Optional Accessory 314000005
    Optional Accessory 4MUA008A
    Optional Accessory 5MUA010A
