AK7748BS
Head On IsoDownload

Range Hood

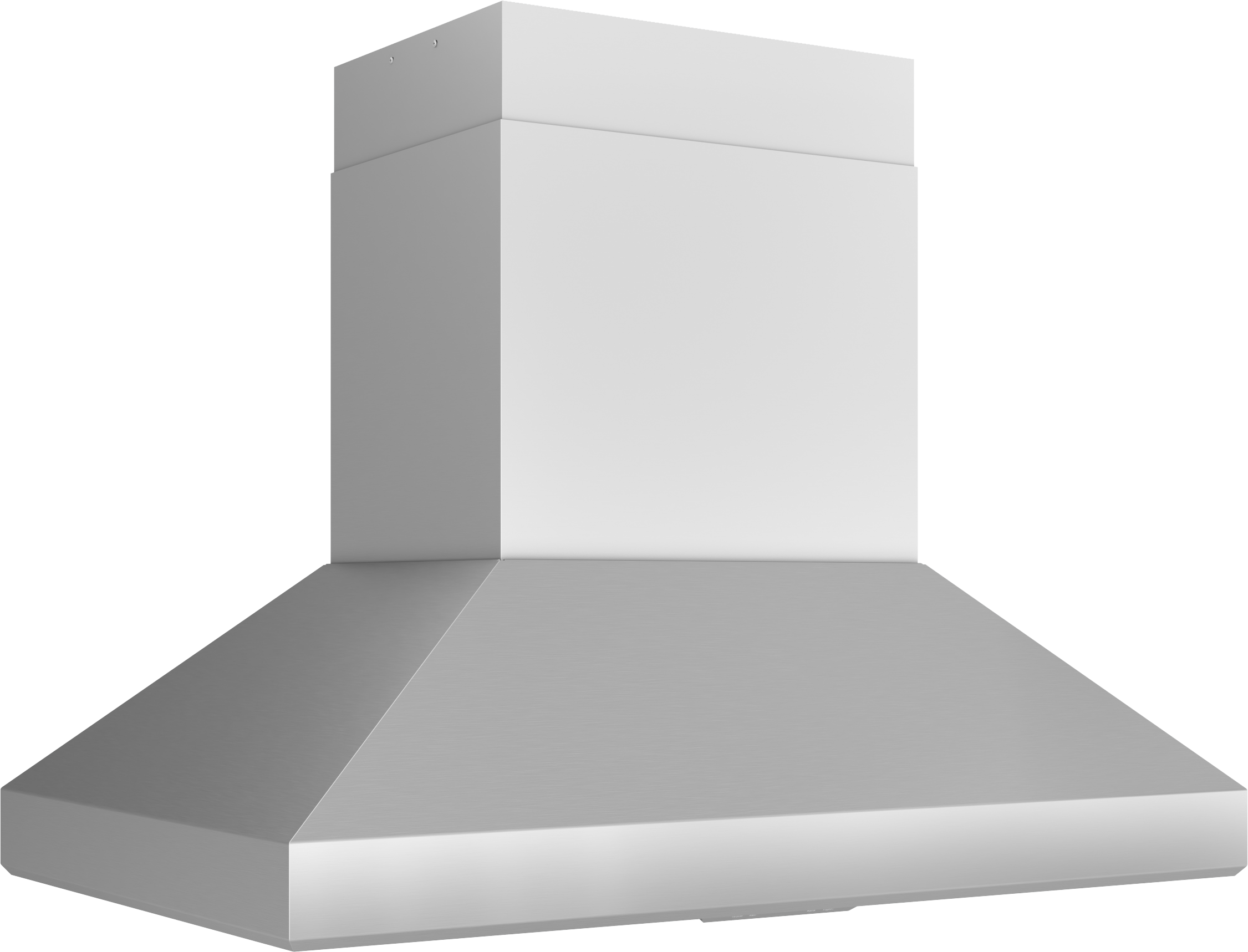

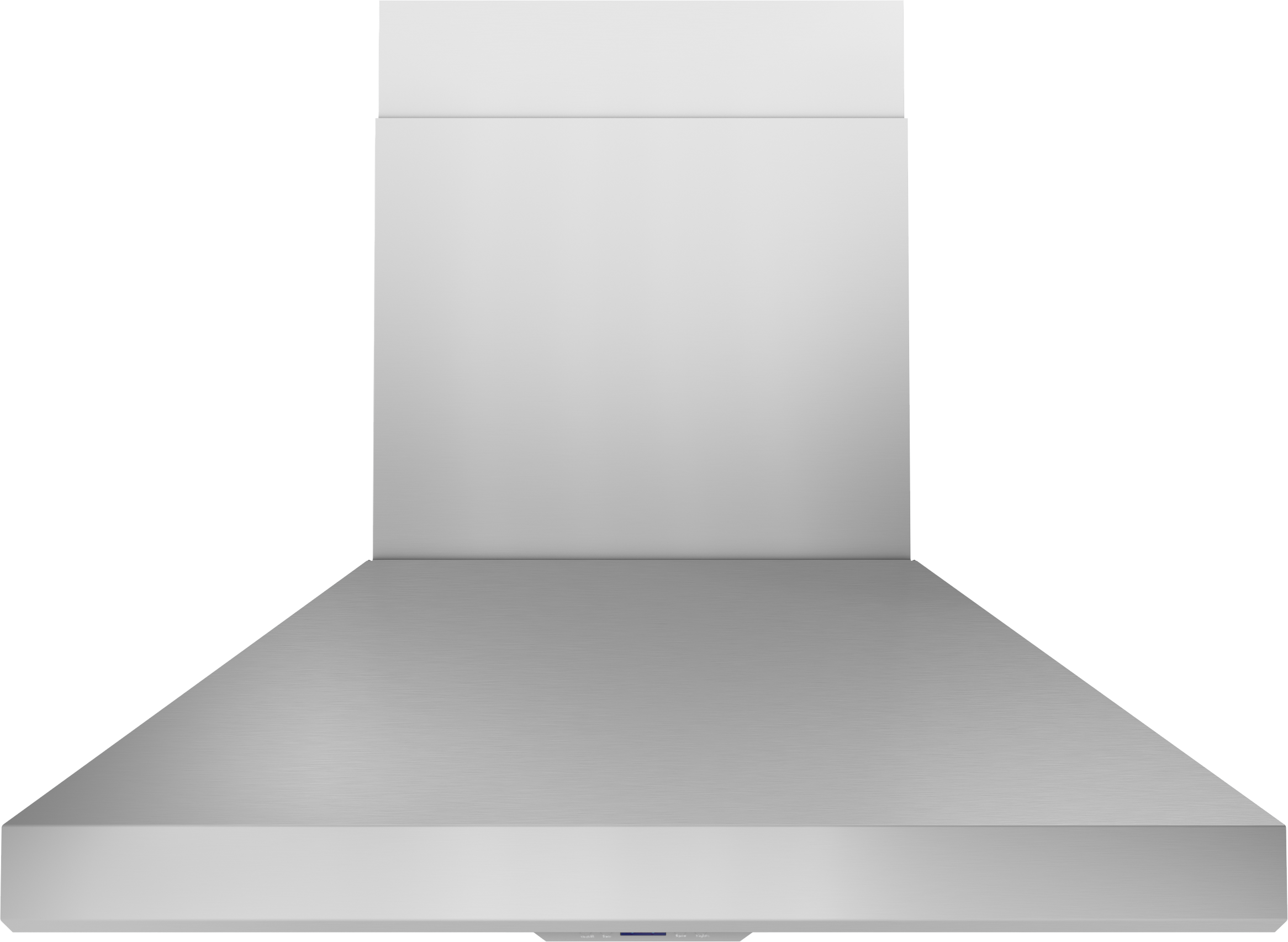

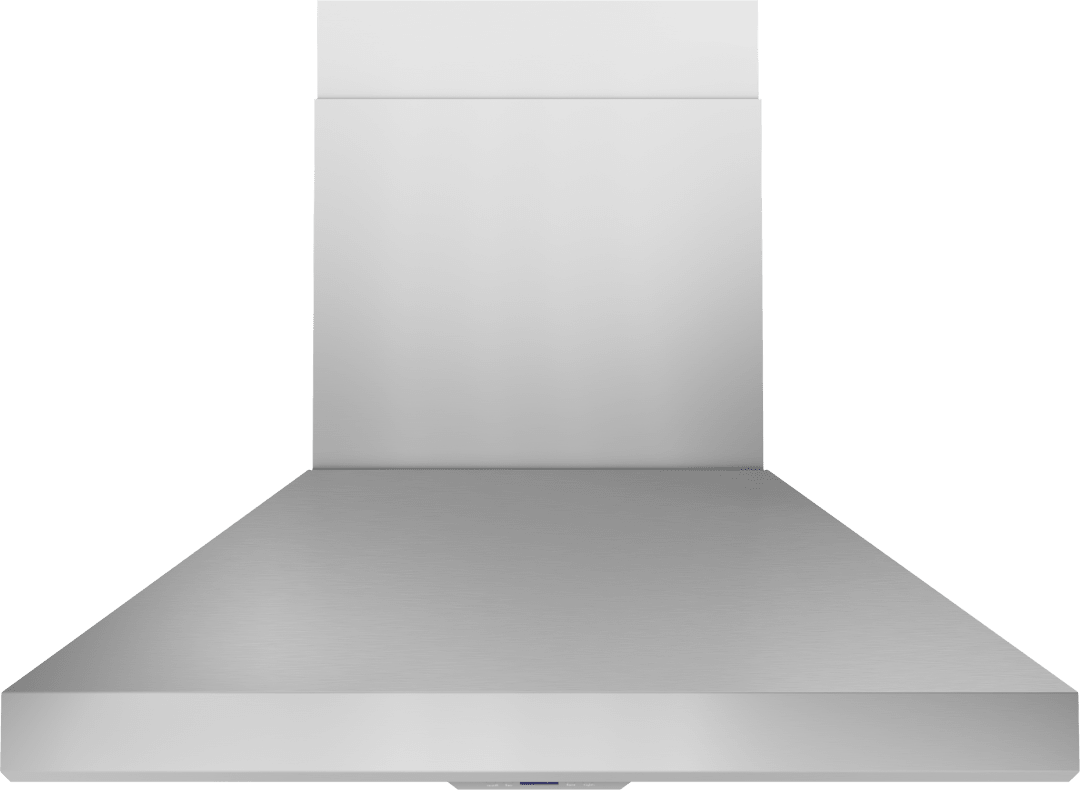

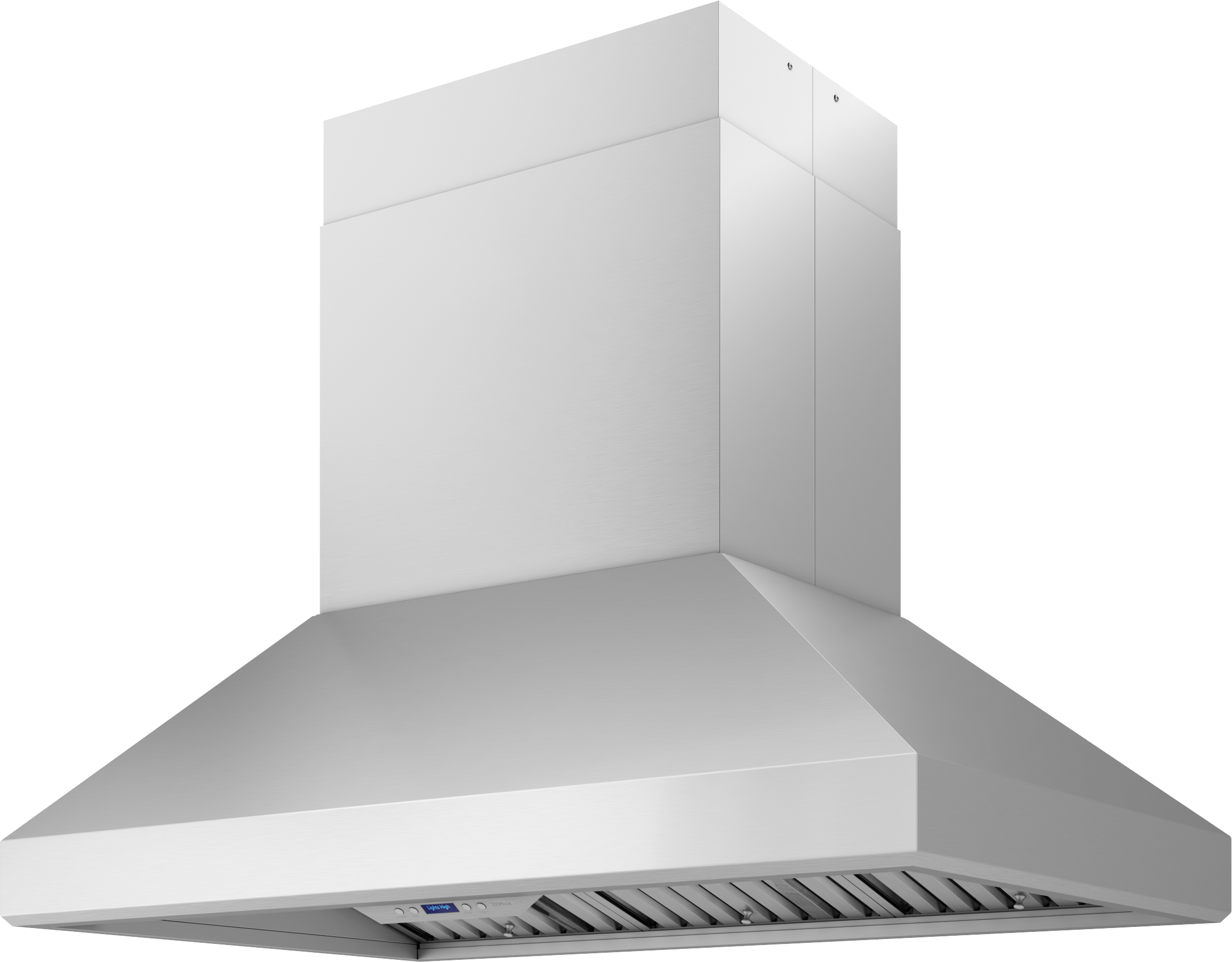

AK7748BS

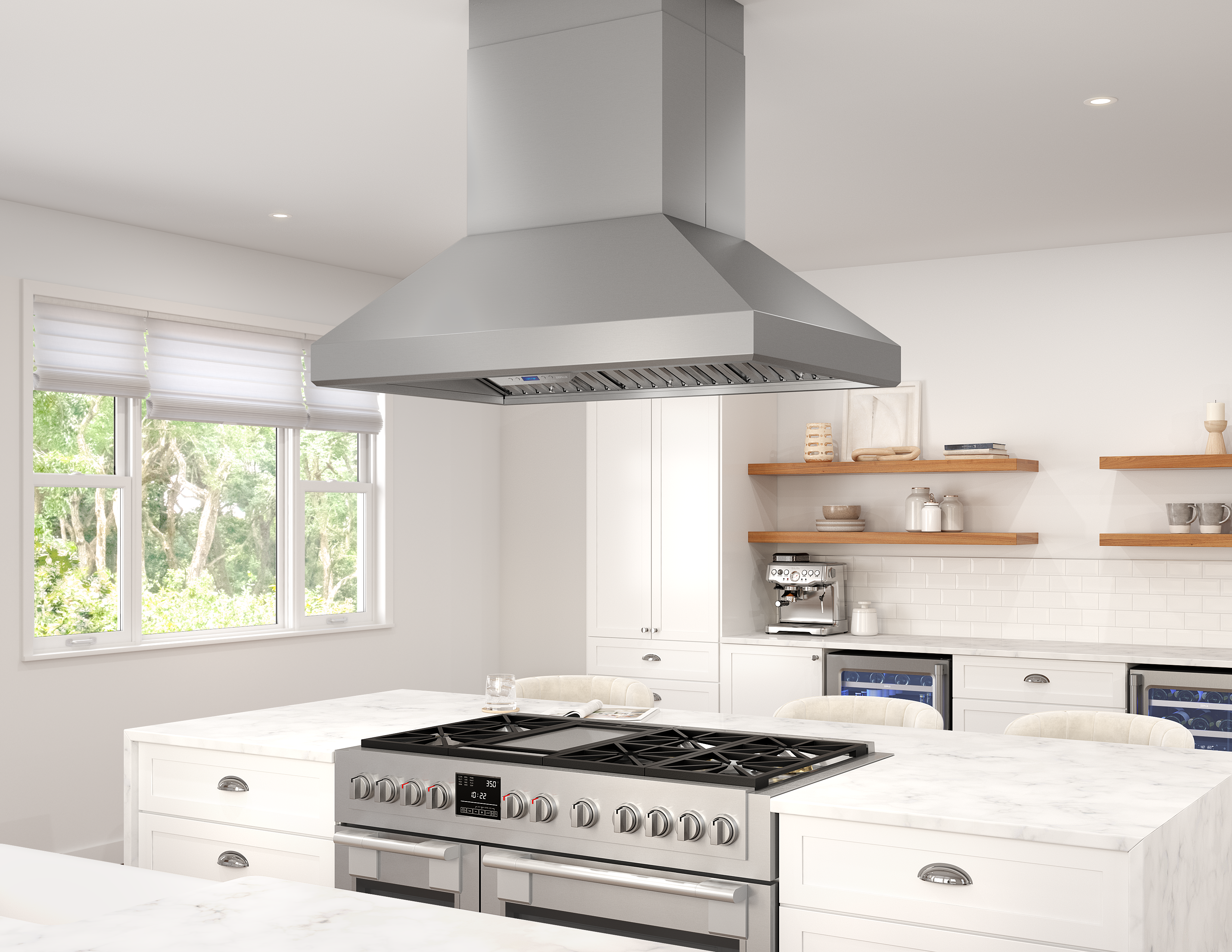

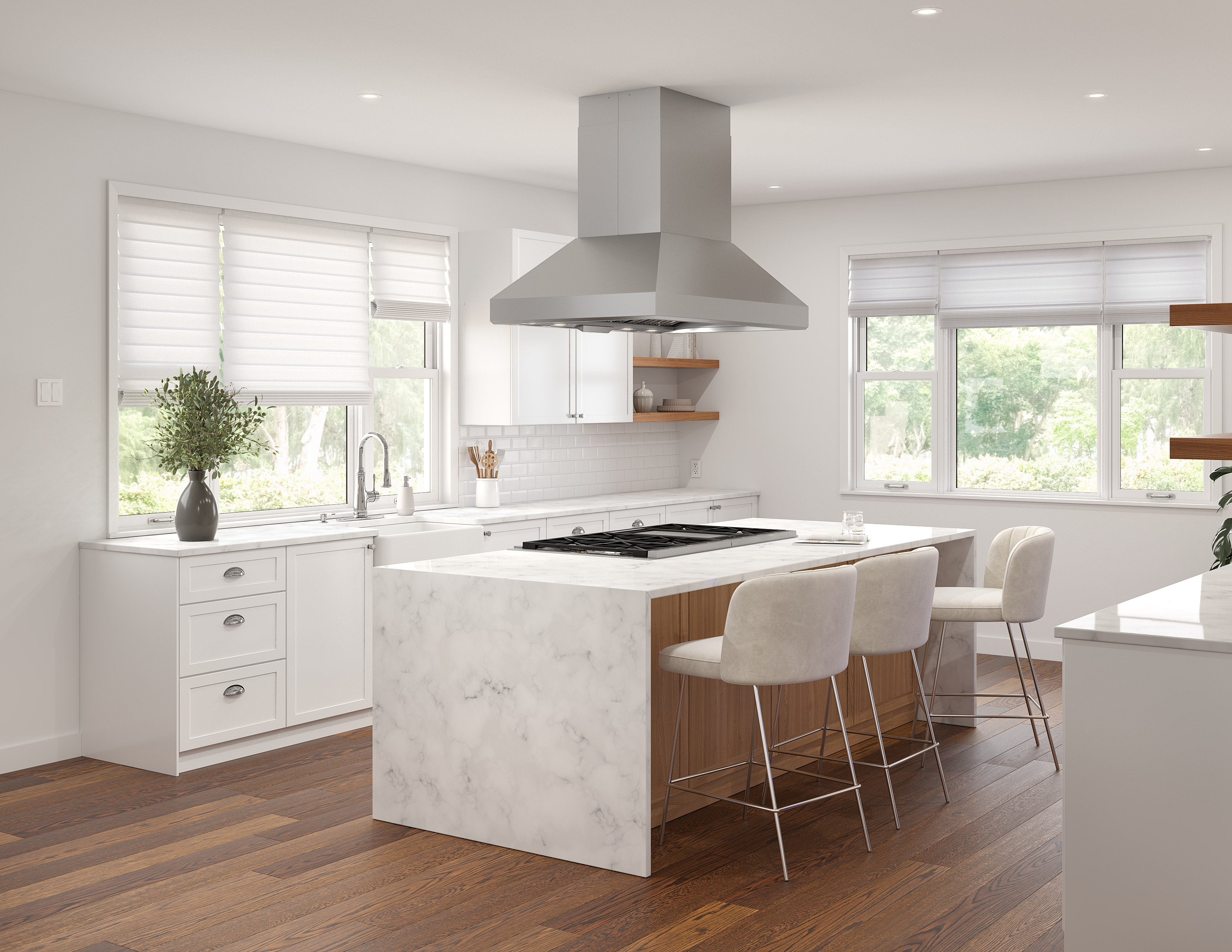

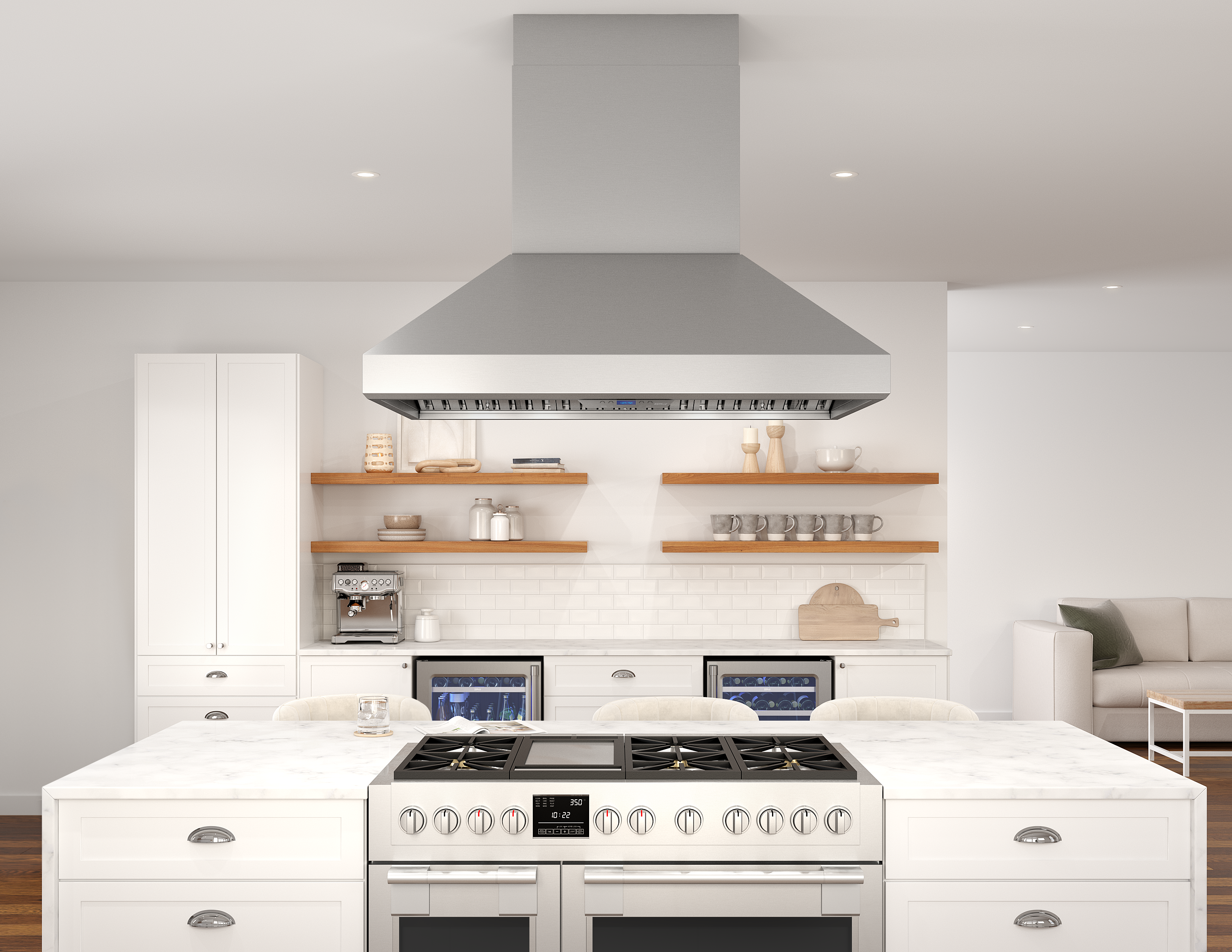

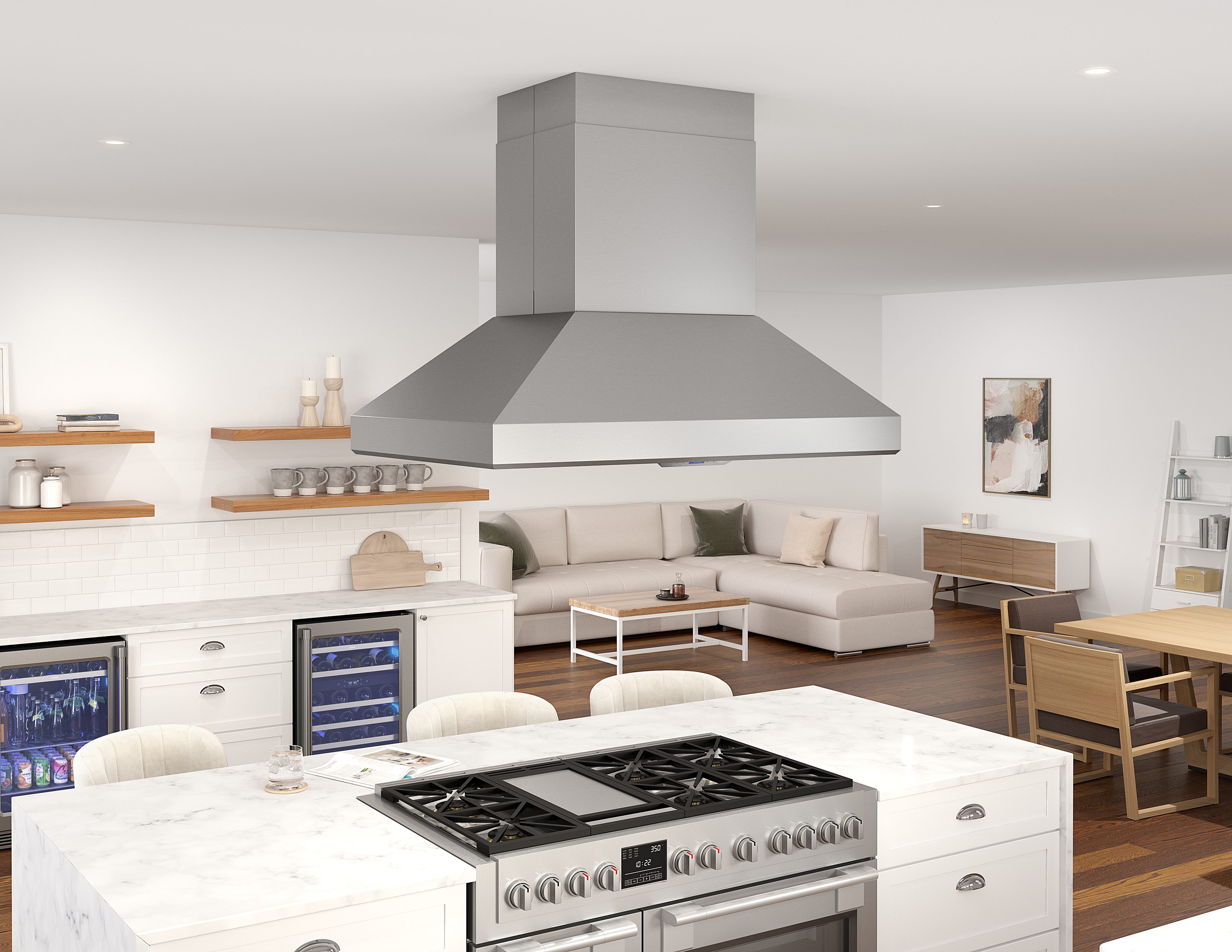

Titan Island

  • Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s PowerWave™ blower technology, Titan includes a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. Titan also includes pro baffle filters, Airflow Control Technology™ (ACT™), and LumiLight LED lighting.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK7748CS
    Model #AK7748BS
    MSRP ($)$4399
    Short DescriptionTitan Island, 48in, SS, PowerWave, 750 CFM w/ACT
    CollectionPro Collection
    UPC646328010576
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeElectronic LCD
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage8
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsPBD-1300B, Z1C-0077, 14000005, MUA008A, MUA010A
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds6
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210036
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8, 10
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8, 10
  • Net Height; IN33 - 50
    Net Width; IN47.9375
    Nominal Width; IN48
    Net Depth; IN31.625
    Weight; LBS121.7
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Tri-Level Lighting
    Feature 3 DefinitionThe tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 4Welded and polished body
    Feature 4 DefinitionA welded and polished body ensures a high quality, seamless appearance.
    Feature 5CleanAir Function
    Feature 5 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 6Optional Wireless Remote Control (14000005)
    Feature 6 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT590, 390, 290
    Internal Blower 1 CFM750
    Internal Blower 1 Min. Sones0.5
    Internal Blower 1 Max Sones7
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN42
    Shipping Length; IN58
    Shipping Width; IN45
    Shipping Weight; LBS199
  • Optional Accessory 1Z1C-0077
    Optional Accessory 214000005
    Optional Accessory 3MUA008A
    Optional Accessory 4MUA010A
    Optional Accessory 5PBD-1300B
