AK8000CS
Head On IsoDownload

Range Hood

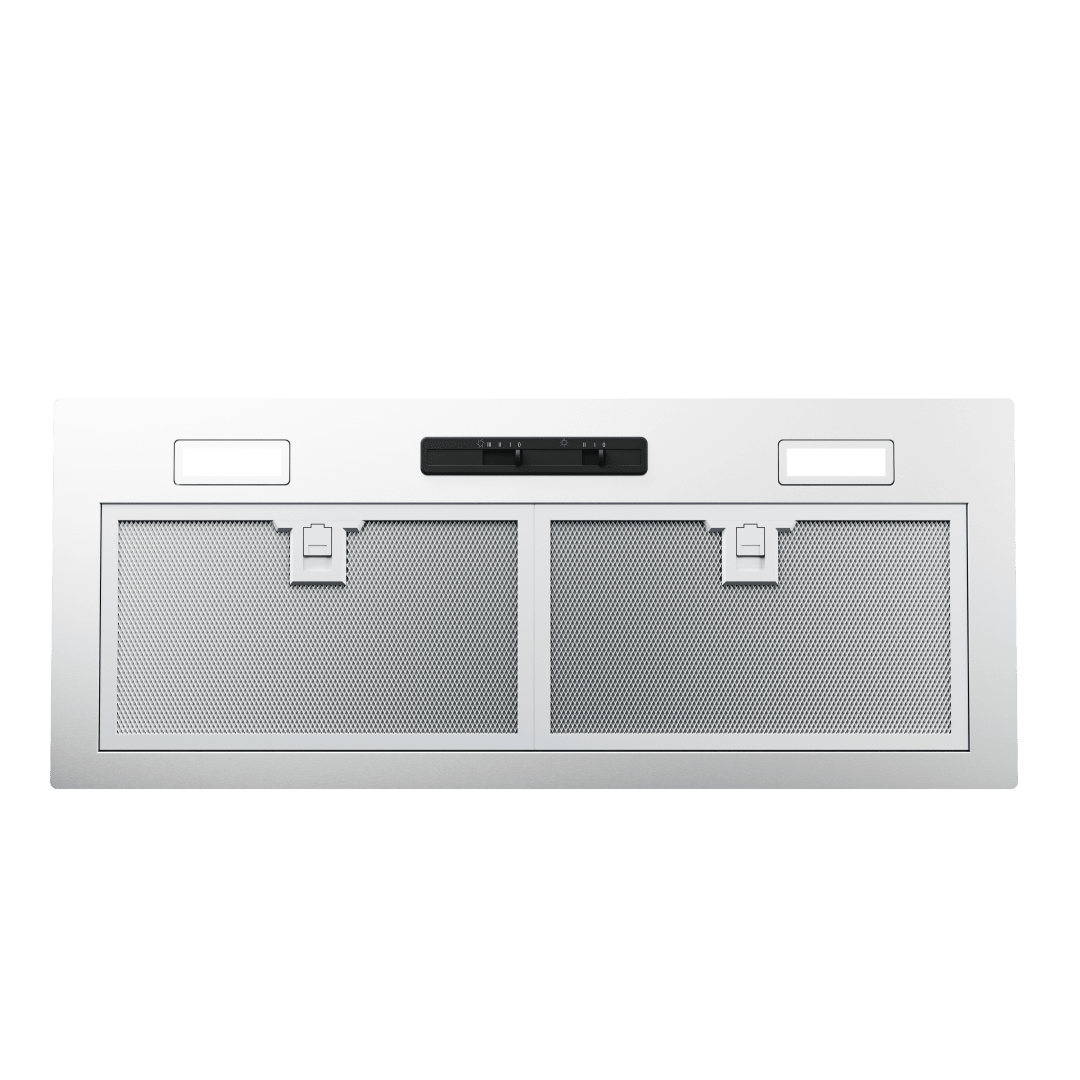

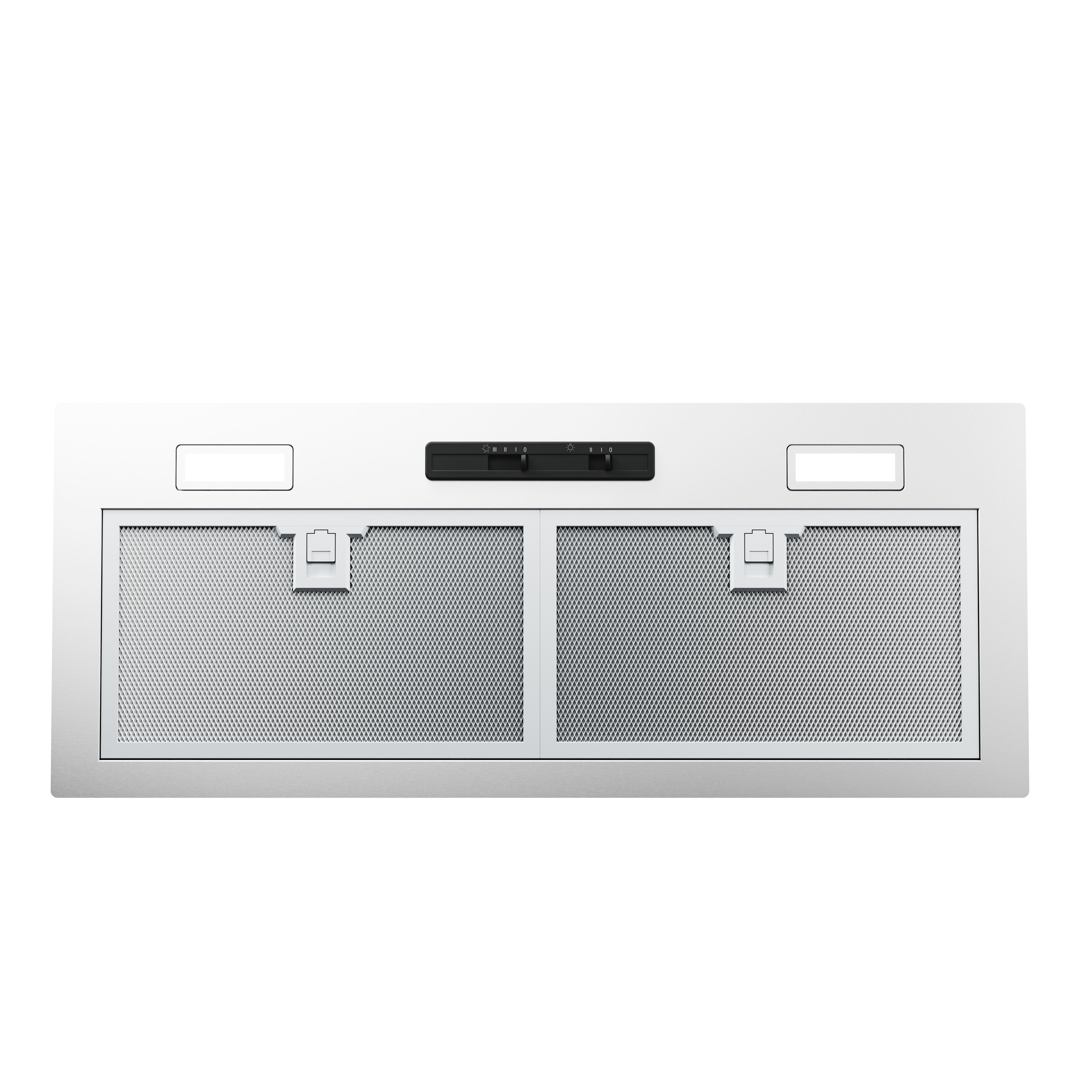

AK8000CS

Twister Insert

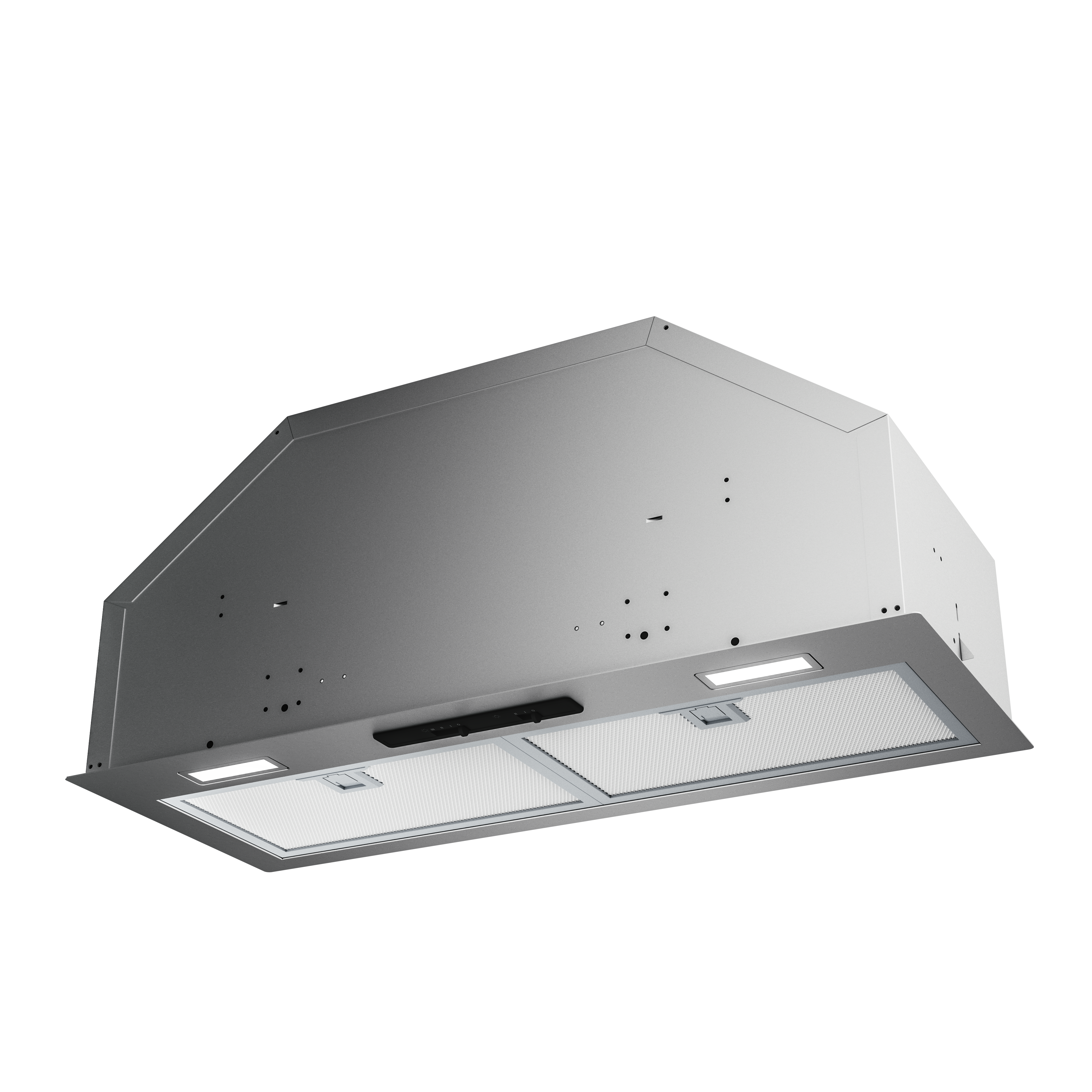

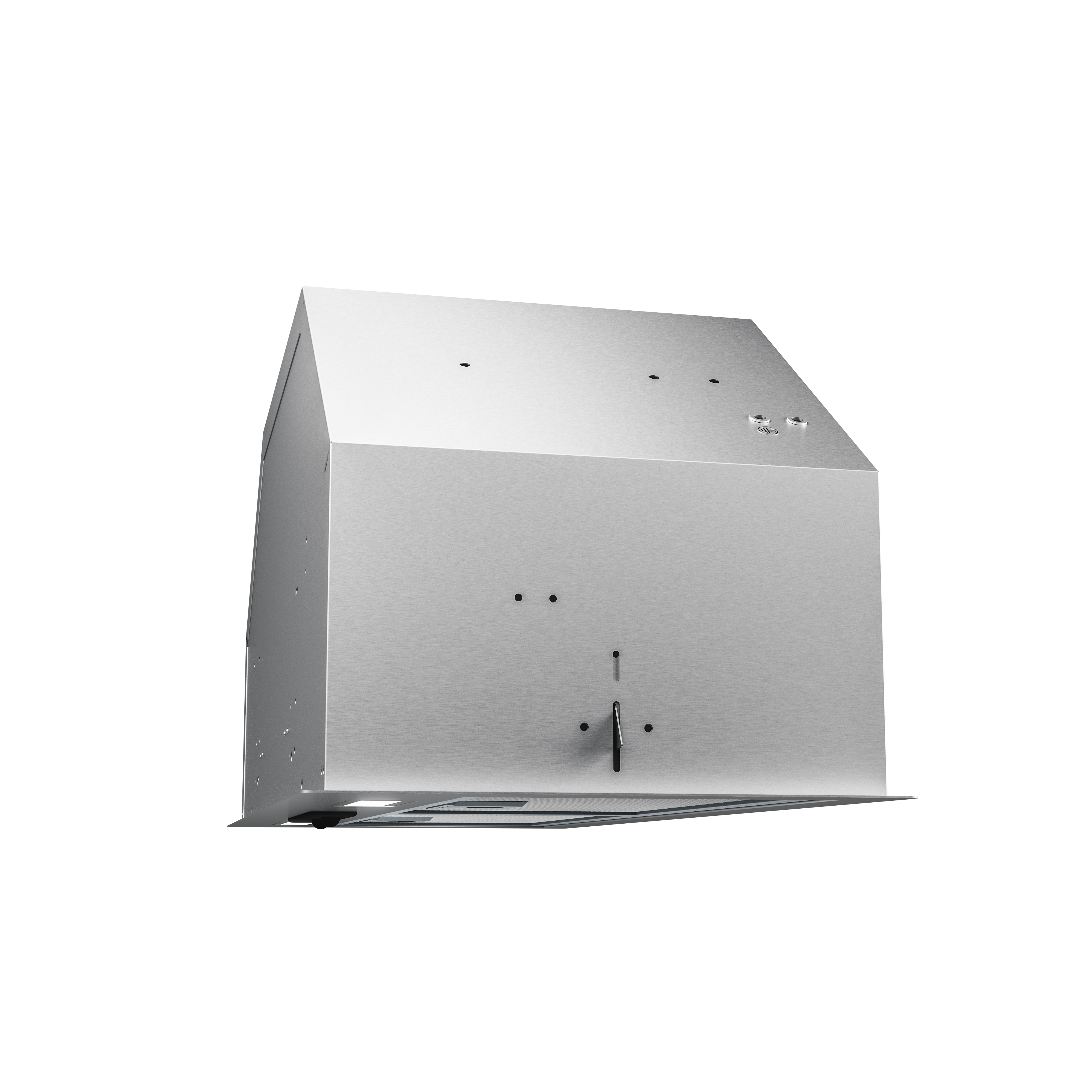

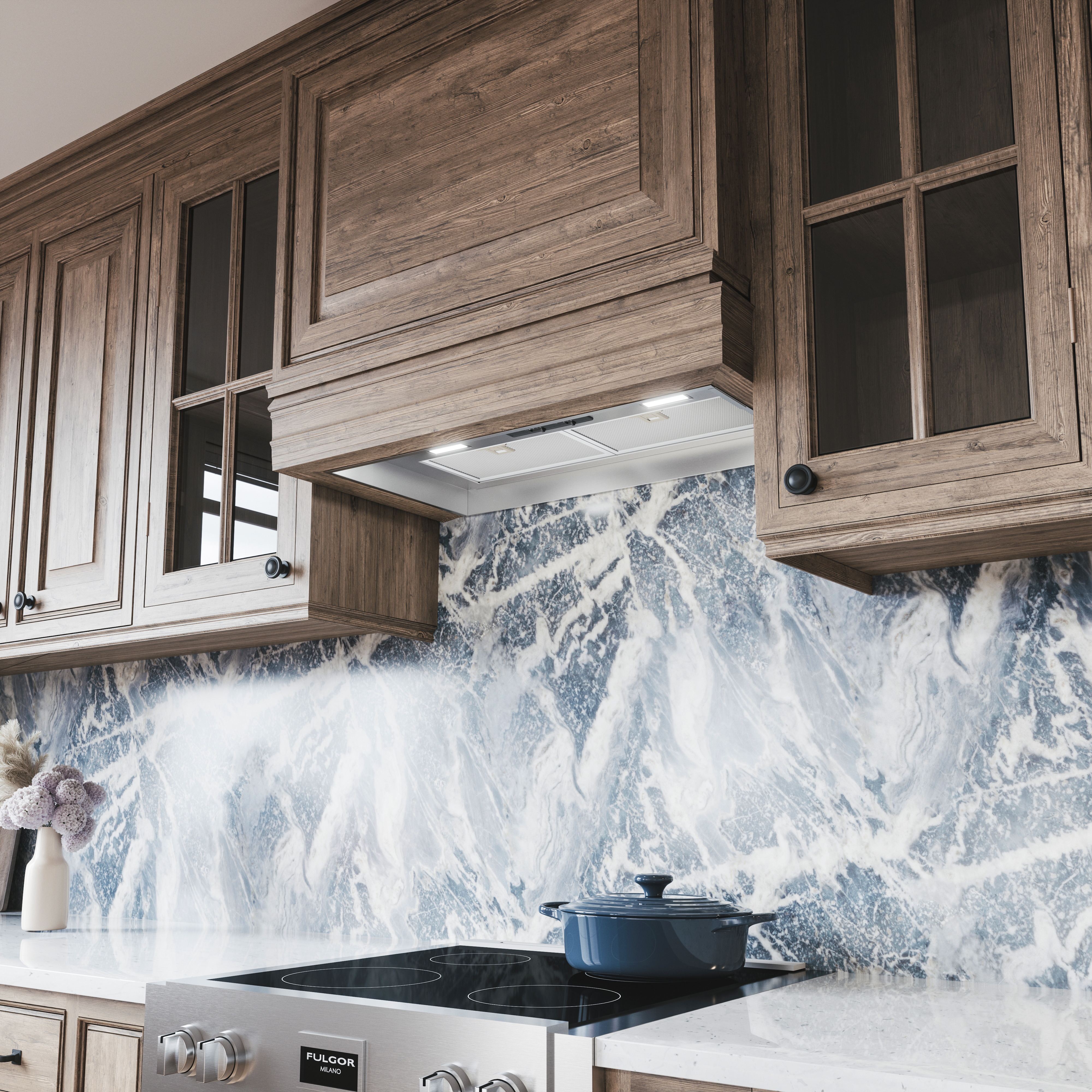

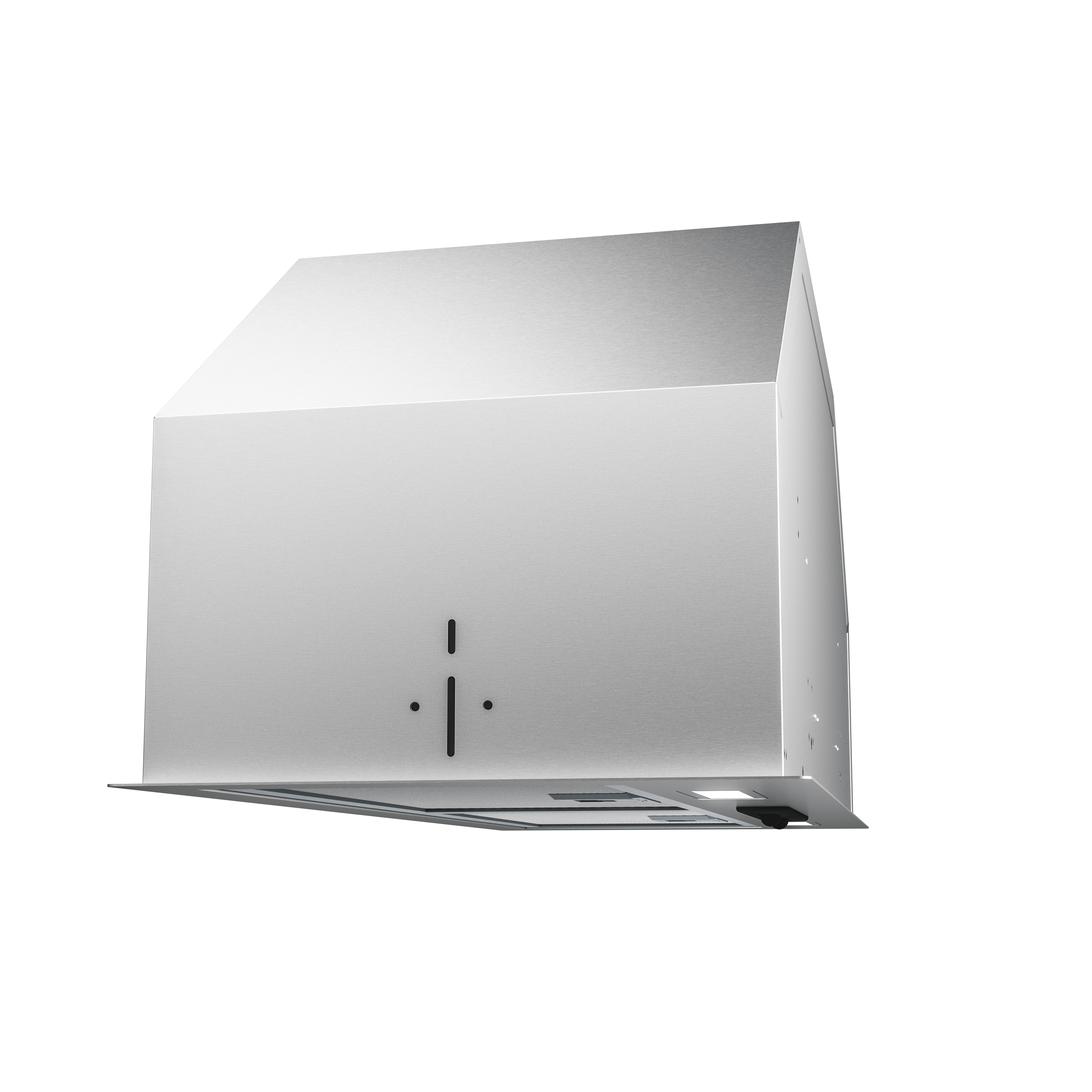

  • The 400-CFM Twister tucks away neatly beneath your custom hood enclosure. Upgraded with two aluminum mesh filters for increased capture, dual-level LumiLight LED lighting and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
  • Product StatusActive
    BrandZephyr
    Model #AK8000CS
    MSRP ($)$549
    Short DescriptionTwister, Power Pack, 27-9/16", SS, 400 CFM
    CollectionCore Collection
    UPC646328009877
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage3
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-0080, Z0F-C008, AK0800AS, AK0836AS
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional wall switch
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part NumberZ0F-B002
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN20 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6
  • Net Height; IN10.5
    Net Width; IN27.5625
    Nominal Width; IN28
    Net Depth; IN11.1875
    Weight; LBS21.6
    Cutout Depth in.10.625
    Cutout Width in.26.875
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 2Ultra-Quiet Performance
    Feature 2 DefinitionOur range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
    Feature 3Longer warranty than competitors
    Feature 3 DefinitionWe back our products with an unparalleled level of service and a generous multi-year warranty.
    Feature 4Dishwasher Safe Aluminum Mesh Filters
    Feature 4 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 5Powerful 400-CFM Blower
    Feature 5 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 6Mechanical Slide Controls
    Feature 6 Definition3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor10 / 1
  • Shipping Height; IN17
    Shipping Length; IN31
    Shipping Width; IN15
    Shipping Weight; LBS25
  • Optional Accessory 1ZRC-0080
    Optional Accessory 2AK0800AS
    Optional Accessory 3AK0836AS
    Optional Accessory 4Z0F-C008
