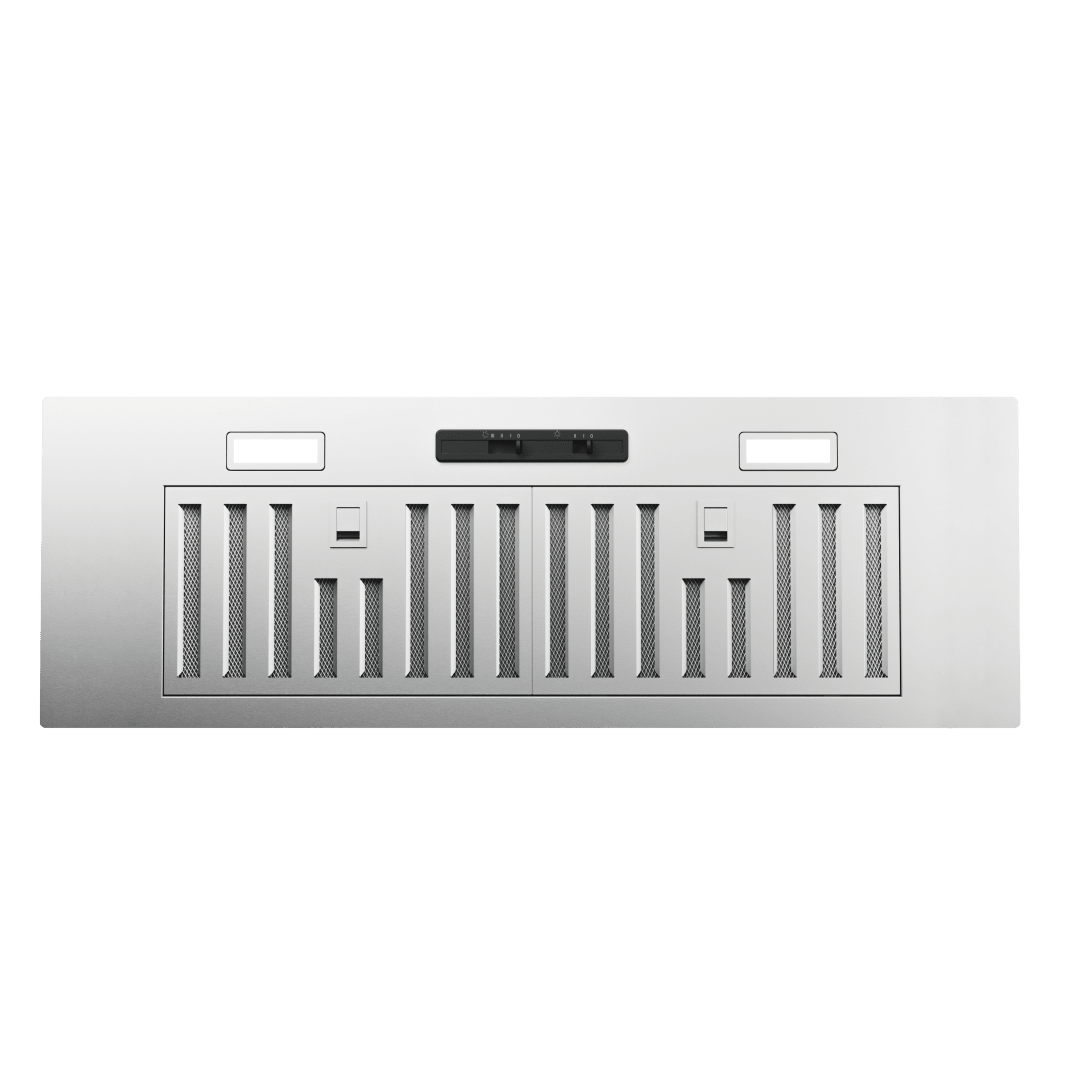

AK8134BS
Head On IsoDownload

Range Hood

AK8134BS

Tornado I Insert

  • The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #AK8134BS
    MSRP ($)$949
    Short DescriptionTornado I, 34in, SS, LED, Hybrid Baffle
    CollectionCore Collection
    UPC646328011269
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage3
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-0080, Z0F-C008, AK0836AS, MUA006A
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional wall switch
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part NumberZ0F-B002
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN20 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6
  • Net Height; IN10.5
    Net Width; IN33.5625
    Nominal Width; IN34
    Net Depth; IN11.1875
    Weight; LBS22.5
    Cutout Depth in.10.625
    Cutout Width in.26.875
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 2Powerful 600-CFM Blower
    Feature 2 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 3Hybrid Baffle Filters
    Feature 3 DefinitionHybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
    Feature 4Mechanical Slide Controls
    Feature 4 Definition3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
    Feature 5Dual-Level Lighting
    Feature 5 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 6Optional Liner Accessories Available
    Feature 6 DefinitionAn optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN16.2
    Shipping Length; IN36.3
    Shipping Width; IN15.2
    Shipping Weight; LBS27.1
  • Optional Accessory 1ZRC-0080
    Optional Accessory 2Z0F-C008
    Optional Accessory 3AK0836AS
    Optional Accessory 4MUA006A
