AK8400AS
Head On IsoDownload

Range Hood

AK8400AS

Tornado Mini

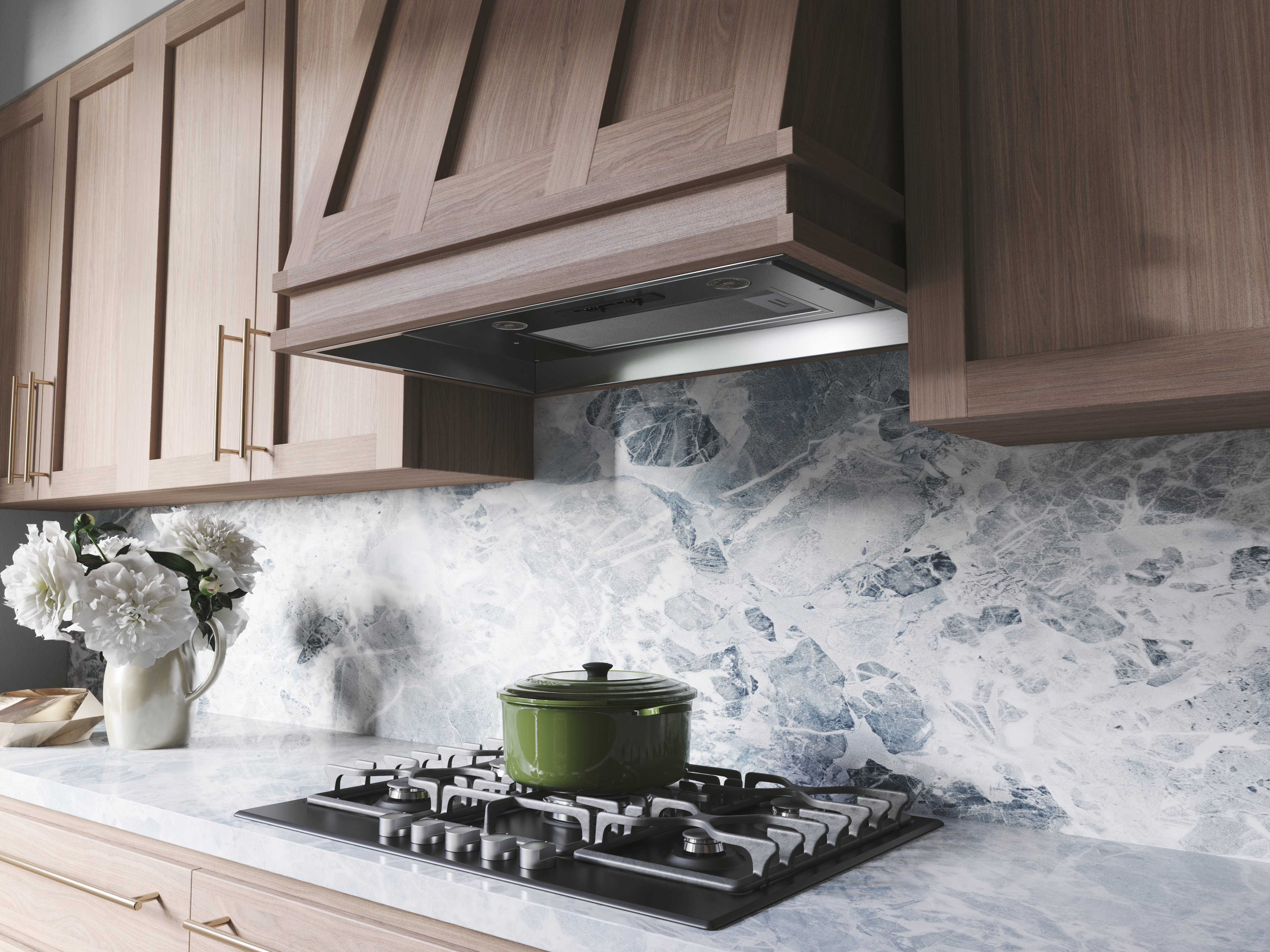

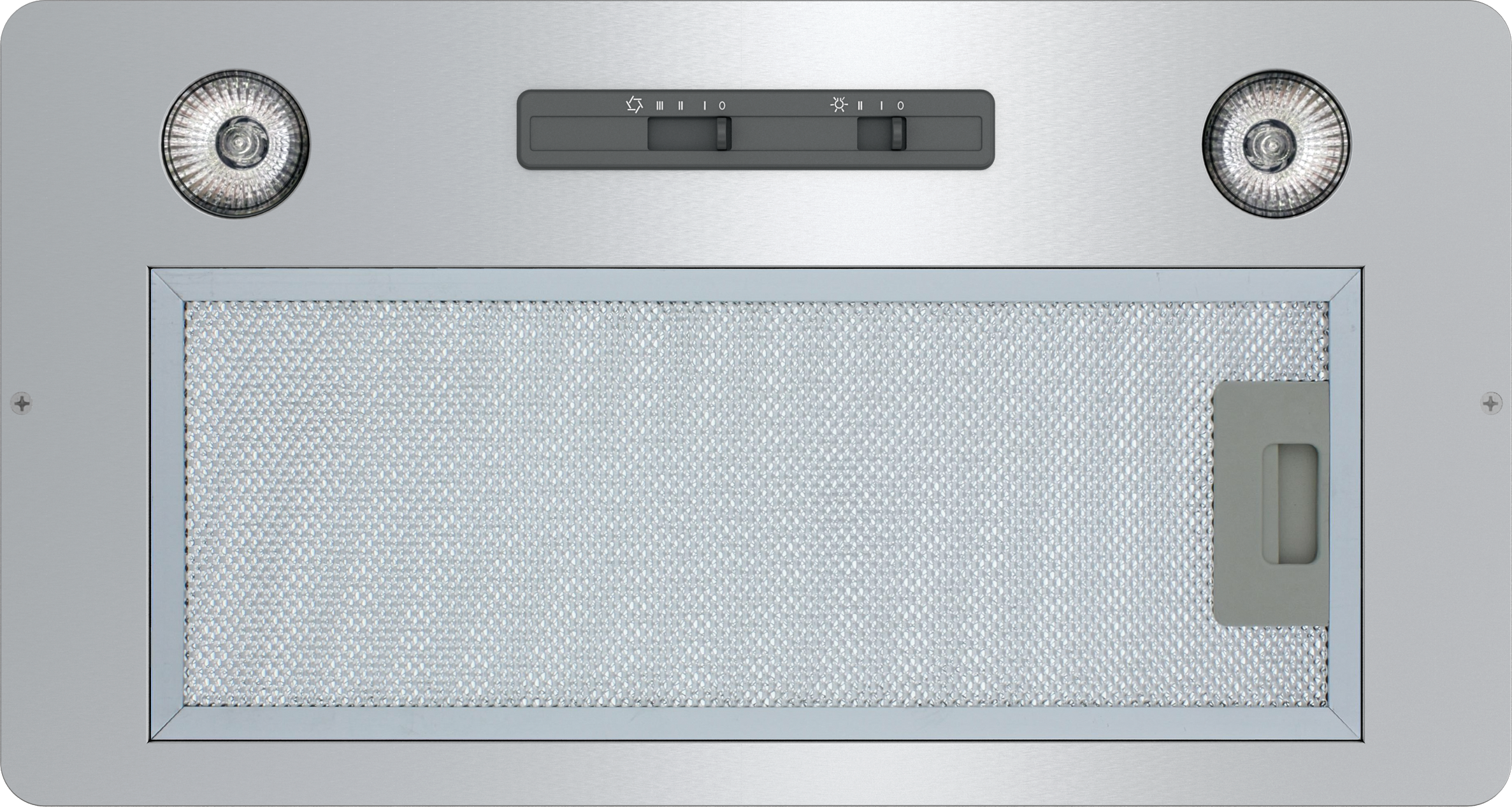

  • The Tornado Mini power pack was designed with cost efficiency and versatility in mind. Tornado Mini’s small footprint fits under a standard 12” depth cabinet or choose one of our optional adjustable-depth stainless steel liners to accommodate custom hood enclosures from 17-1/2” to 20- 1/2” deep. Features include dual level halogen lights, an ultra-quiet blower and a recirculating option for ductless installations.
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK8400BS
    Model #AK8400AS
    MSRP ($)$299
    Short DescriptionTornado Mini, Power Pack, 20-9/16", SS, 290 CFM
    CollectionCore Collection
    UPC646328003462
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage1.2
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-8400A, AK0840AS, AK0846AS, Z0B0040, Z0F-C084
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200055
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 36
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN9.6875
    Net Width; IN20.5625
    Nominal Width; IN21
    Net Depth; IN11
    Weight; LBS13.6
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Value driven
    Feature 2Ultra-Quiet Performance
    Feature 3Optional Ductless Recirculating Kit
    Feature 3 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.3
    Internal Blower 1 Max Sones3.2
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN15.04
    Shipping Length; IN13.27
    Shipping Width; IN24.8
    Shipping Weight; LBS17.4
  • Optional Accessory 1ZRC-8400A
    Optional Accessory 2AK0840AS
    Optional Accessory 3AK0846AS
    Optional Accessory 4Z0B0040
    Optional Accessory 5Z0F-C084
