AK9028AS-ES
Head On IsoDownload

Range Hood

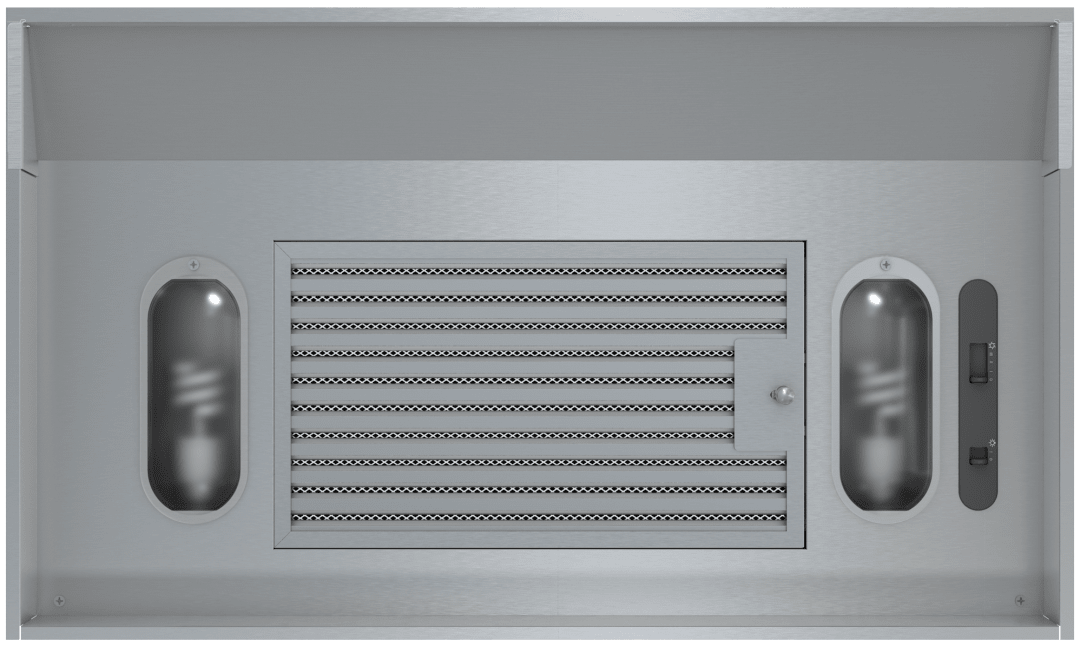

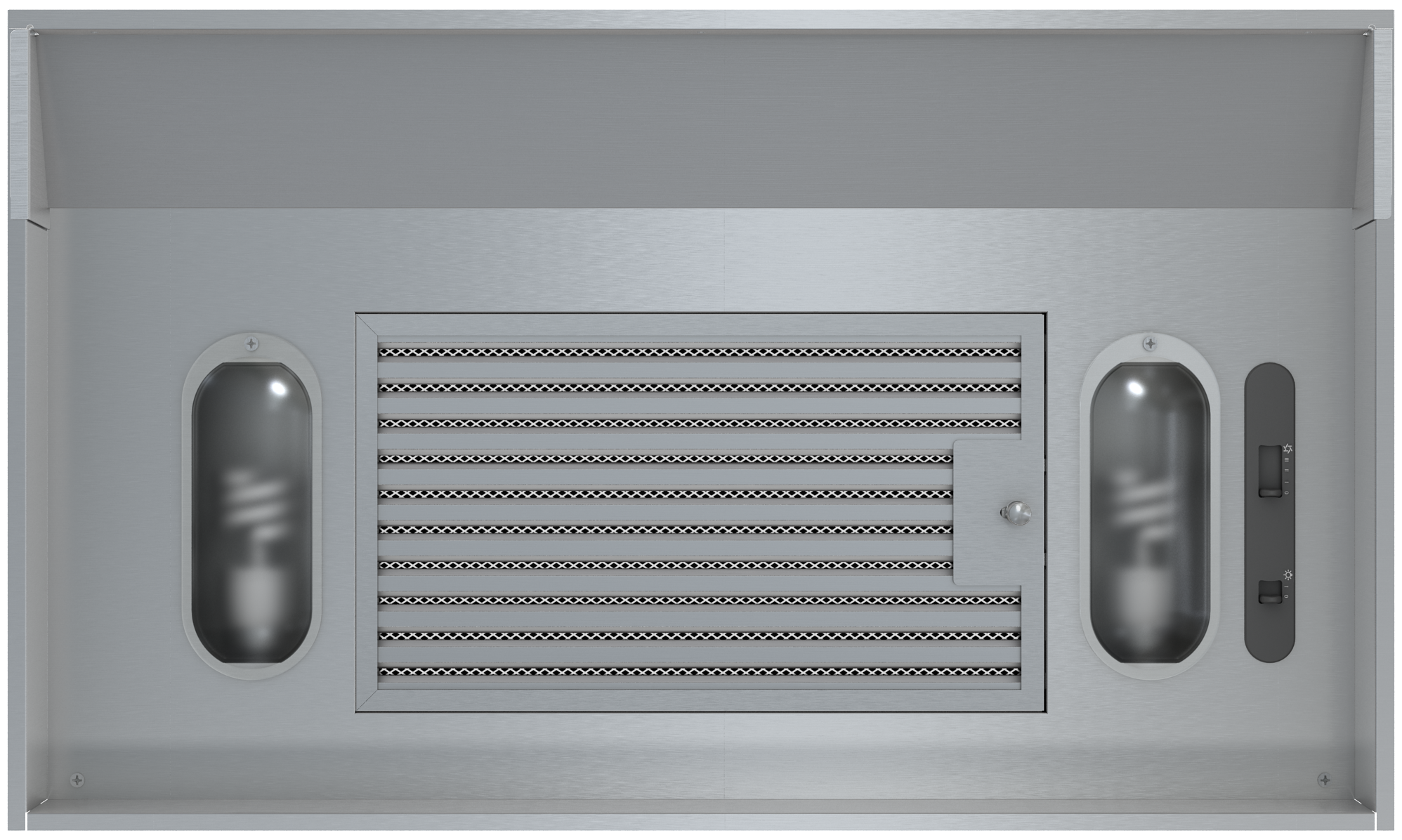

AK9028AS-ES

Vortex Insert ENERGY STAR®

  • The Vortex ES, certified ENERGY STAR® one-piece liner leads the way with the industry’s only adjustable-depth installation. Vortex ES is designed to extend up to 3 inches towards the front of the custom hood canopy so you can install it in spaces up to 20-1/2” deep. Features also include 3-speed mechanical slide controls, hybrid baffle filters and fluorescent lighting.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #AK9028AS-ES
    MSRP ($)$569
    Short DescriptionVortex ENERGY STAR, One-Piece Liner, 28-3/8", SS, 290 CFM
    CollectionCore Collection
    UPC646328003578
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeFluorescent
    Lights Quantity2
    Voltage120
    Maximum Amperage1.2
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb13
    Lights Levels1
    Mounting Height Above Cooktop; IN26 - 36
    Country of OriginTaiwan
    Grease Filter TypeHybrid Baffle
    Compatible Mesh or Baffle Filter Part Number50210016
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN12.3125
    Net Width; IN28.375
    Nominal Width; IN30
    Net Depth; IN17.5 - 20.5
    Weight; LBS22.8
  • Feature 1ENERGY STAR® certified
    Feature 1 DefinitionENERGY STAR models are certified for superior efficiency using 20%-30% less energy than traditional models.
    Feature 2Hybrid baffle filters
    Energy Star CertifiedYes
  • Blower IncludedYes
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.3
    Internal Blower 1 Max Sones3.5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN19.06
    Shipping Length; IN22.64
    Shipping Width; IN35.91
    Shipping Weight; LBS35.2
