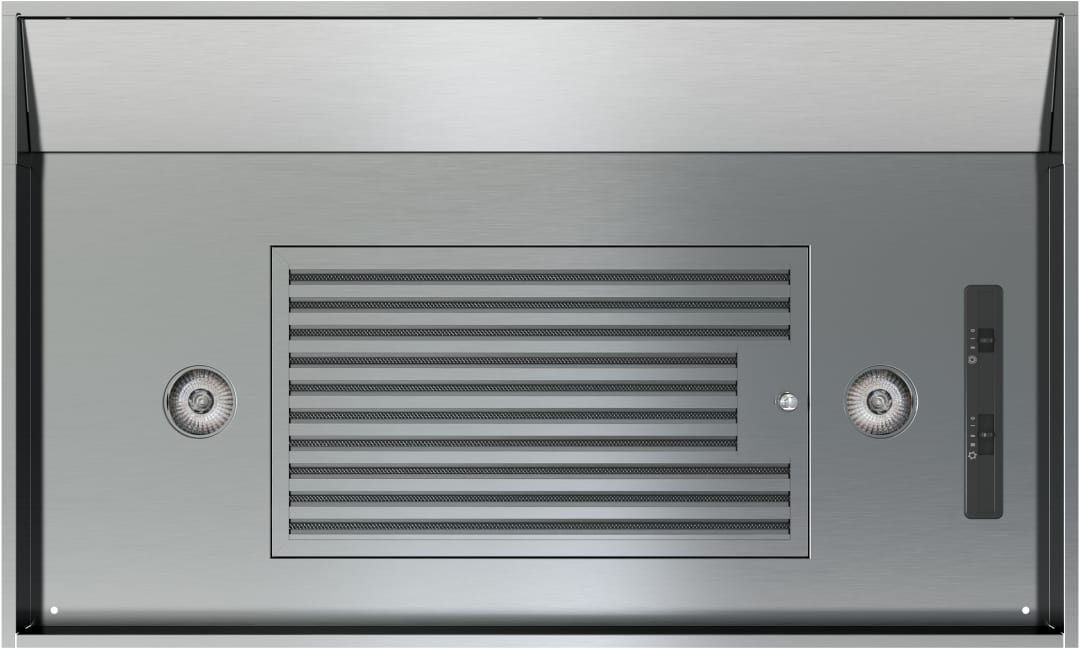

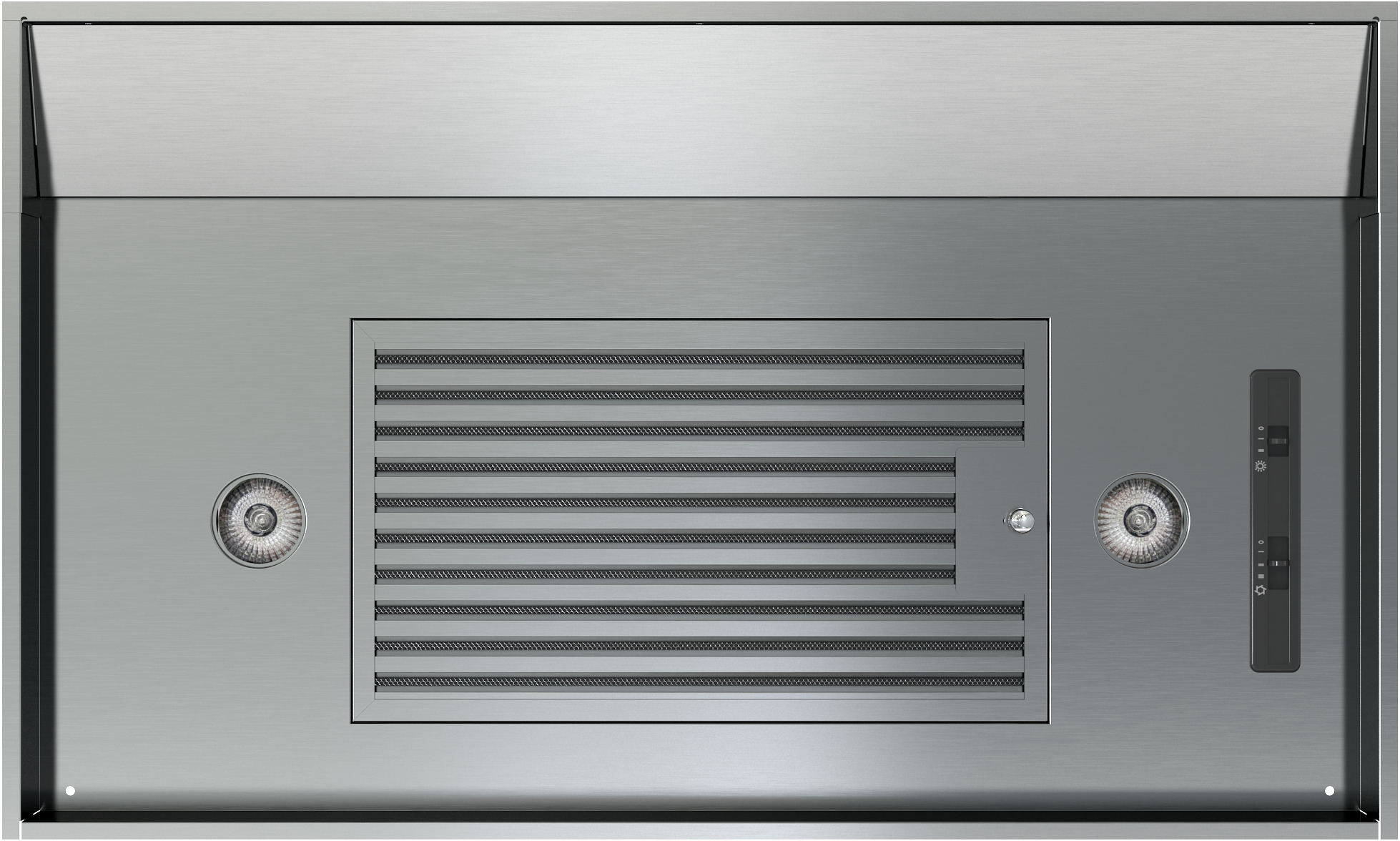

AK9028AS290
Head On IsoDownload

Range Hood

AK9028AS290

Vortex Insert

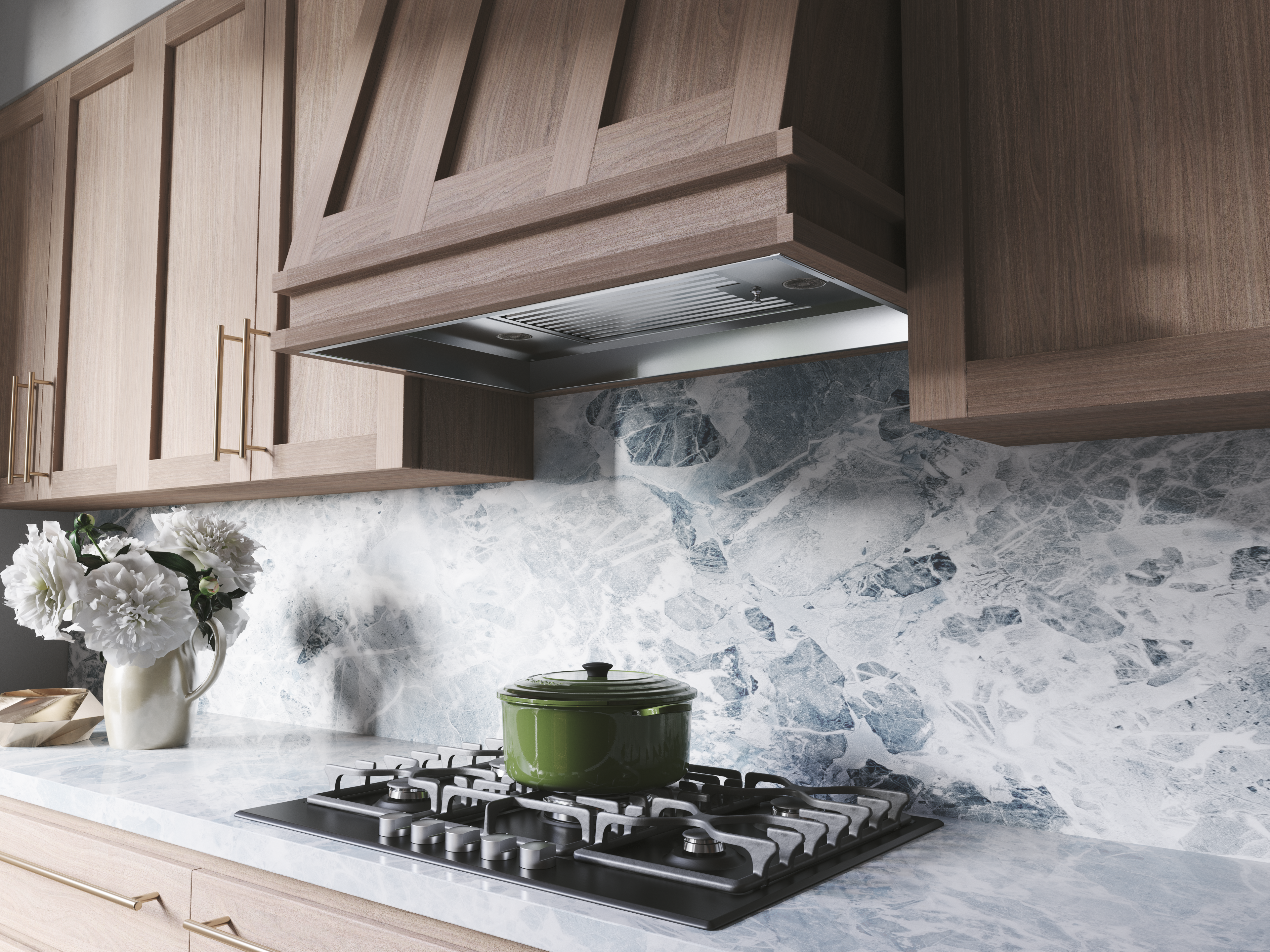

  • The Vortex one-piece liner leads the way with the industry's only adjustable-depth installation. Vortex is designed to extend up to 3-inches towards the front of the custom hood canopy so you can install it in spaces up to 20-1/2″ deep. Add to this its category-leading 390 CFM, optional recirculation kit and its 36-inch mounting height maximum; Vortex stands tall among the rest.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #AK9028AS290
    MSRP ($)$529
    Short DescriptionVortex, One-Piece Liner, 28-3/8", SS, 290 CFM
    CollectionCore Collection
    UPC646328002700
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage1.5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-9000, Z0B0040, Z0F-C090
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210016
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN12.3125
    Net Width; IN28.375
    Nominal Width; IN30
    Net Depth; IN17.5 - 20.5
    Weight; LBS22.8
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Hybrid baffle filters
    Feature 2Optional Ductless Recirculating Kit
    Feature 2 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.3
    Internal Blower 1 Max Sones3.2
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN19.06
    Shipping Length; IN22.64
    Shipping Width; IN35.91
    Shipping Weight; LBS35.2
  • Optional Accessory 1ZRC-9000
    Optional Accessory 2Z0B0040
    Optional Accessory 3Z0F-C090
