Head On Iso
Range Hood

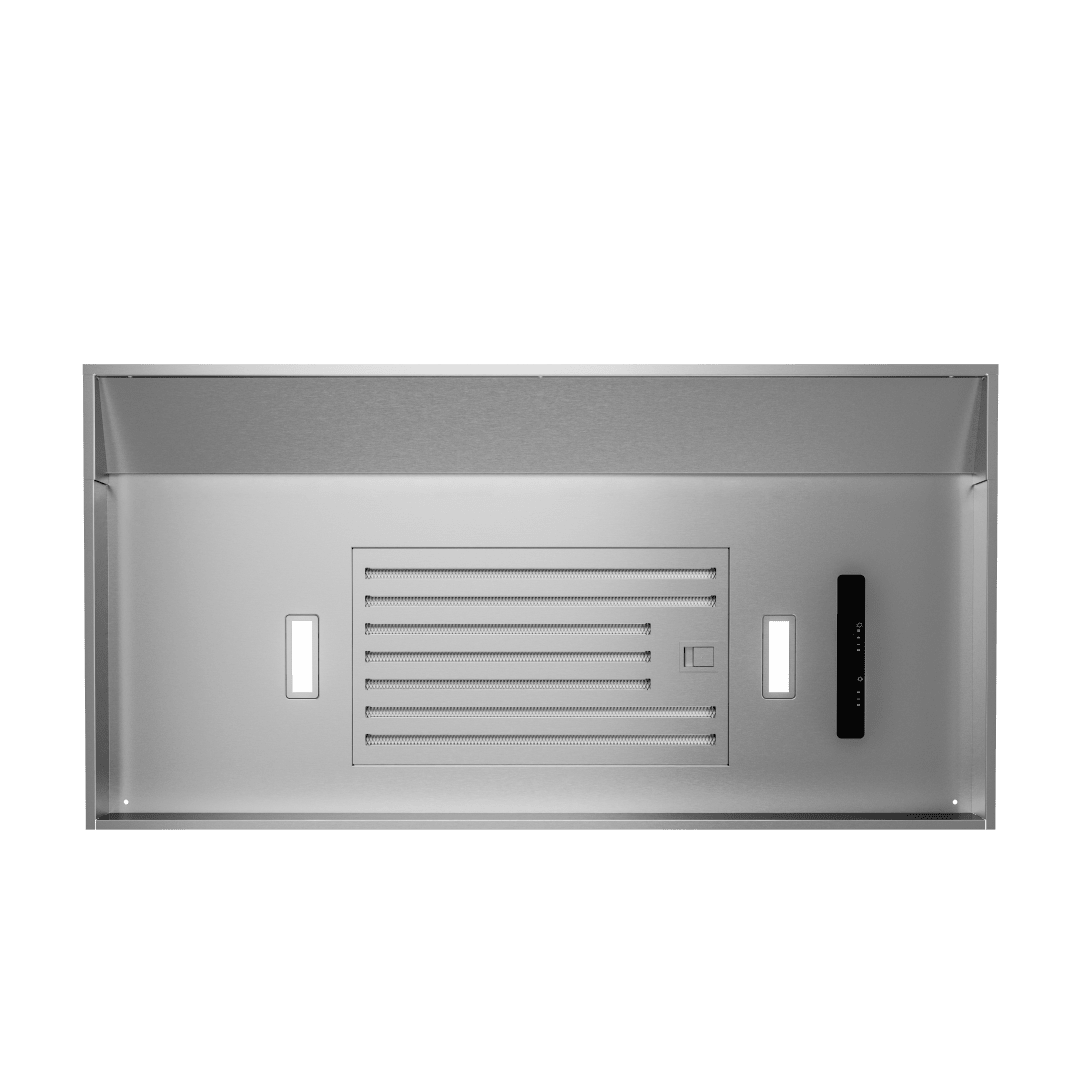

AK9034BS

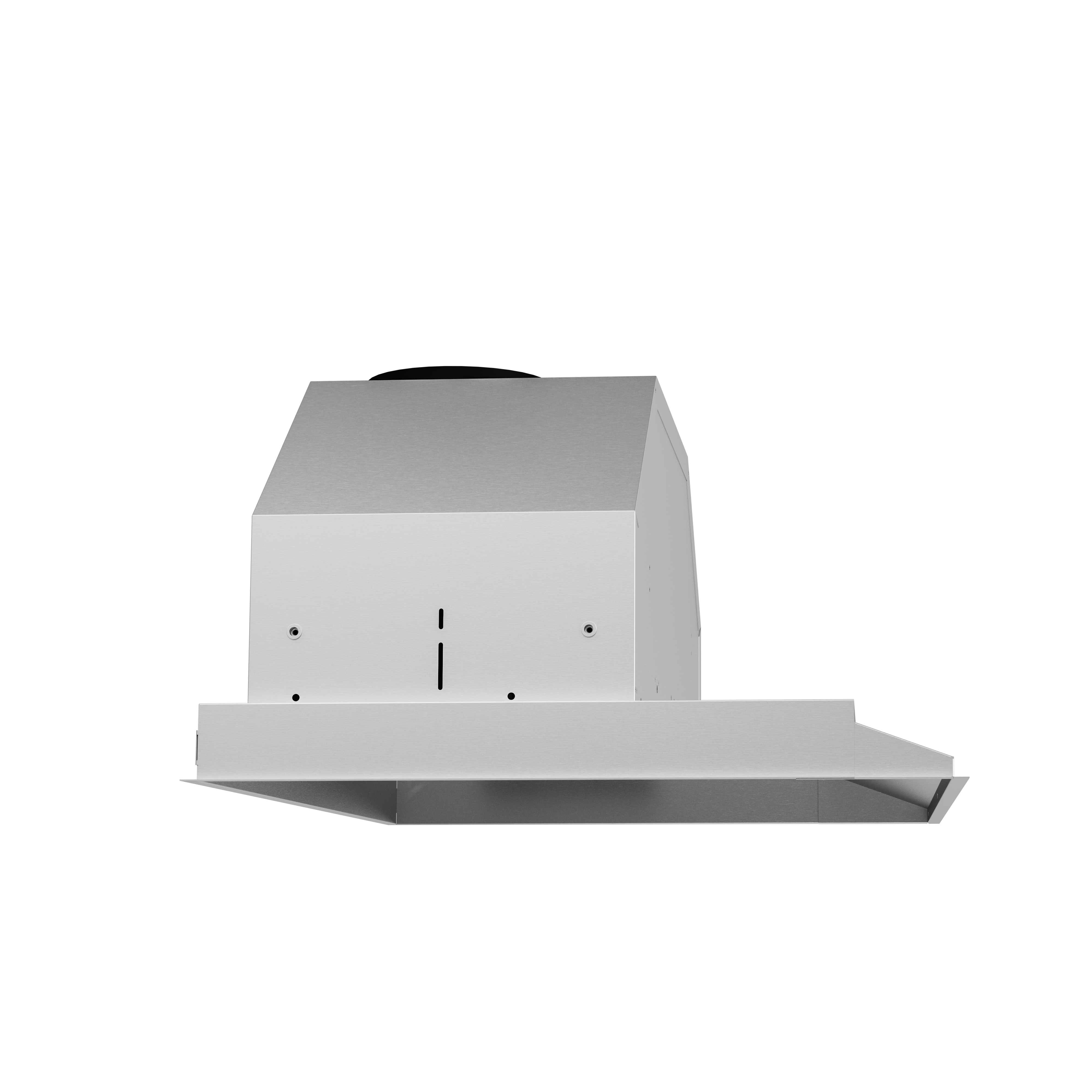

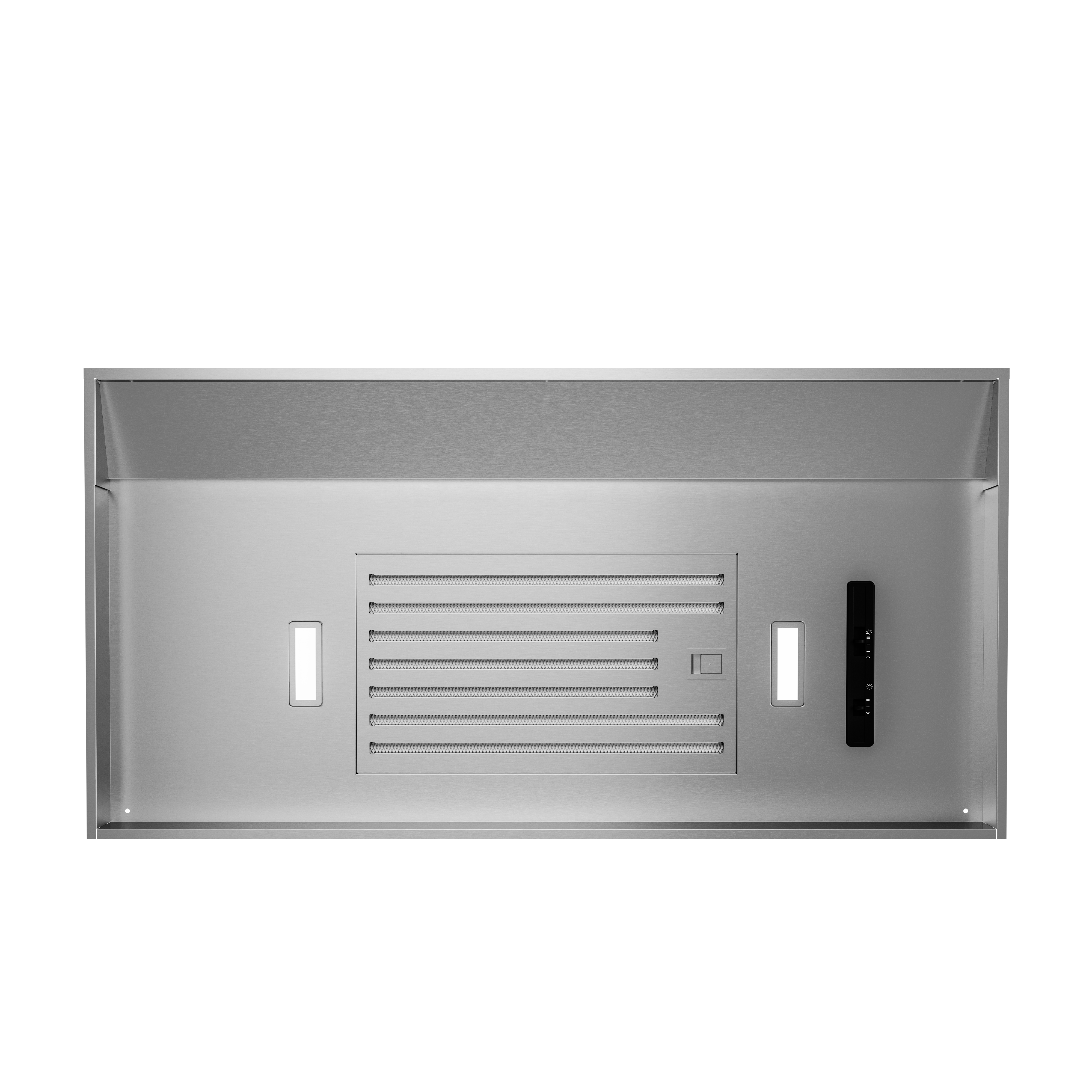

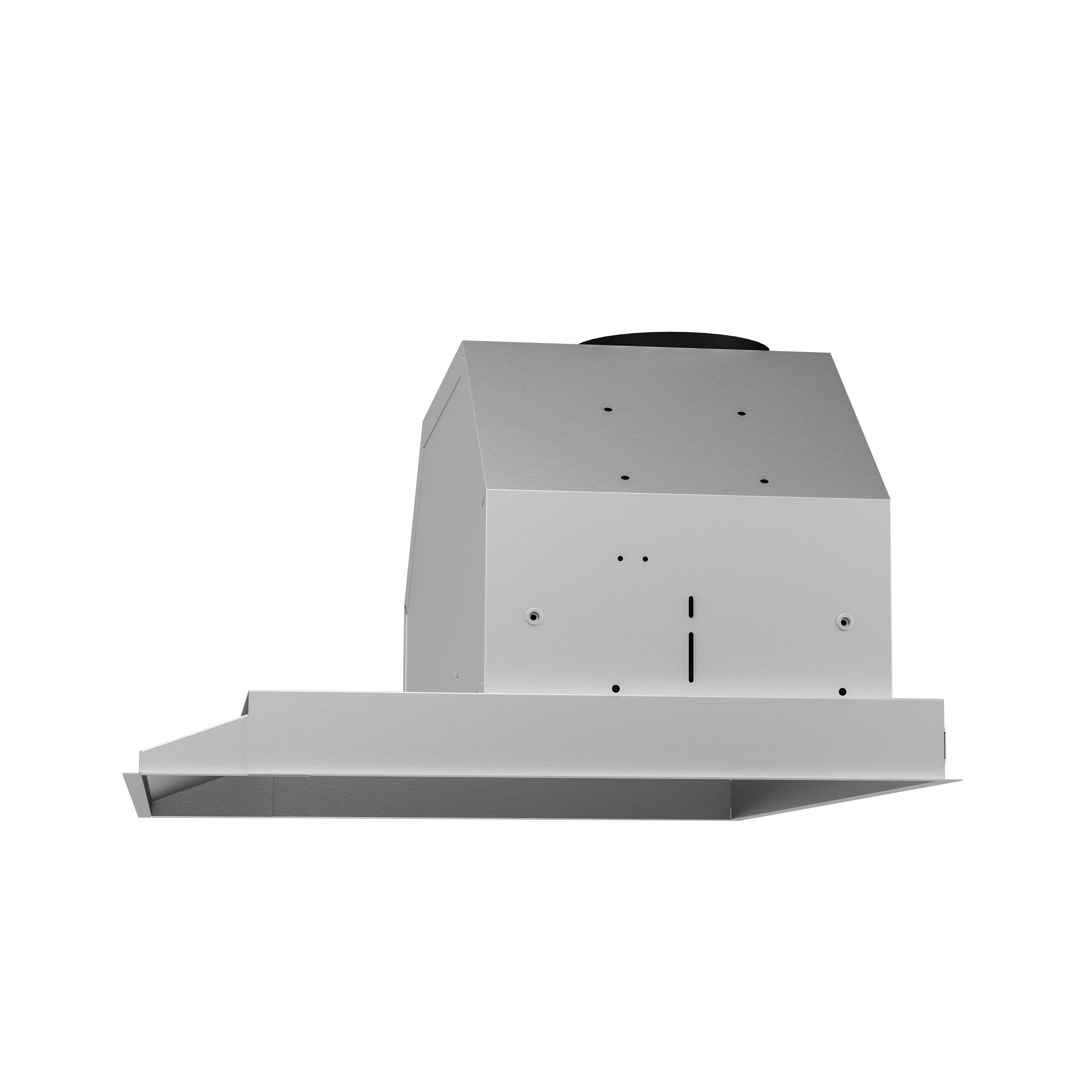

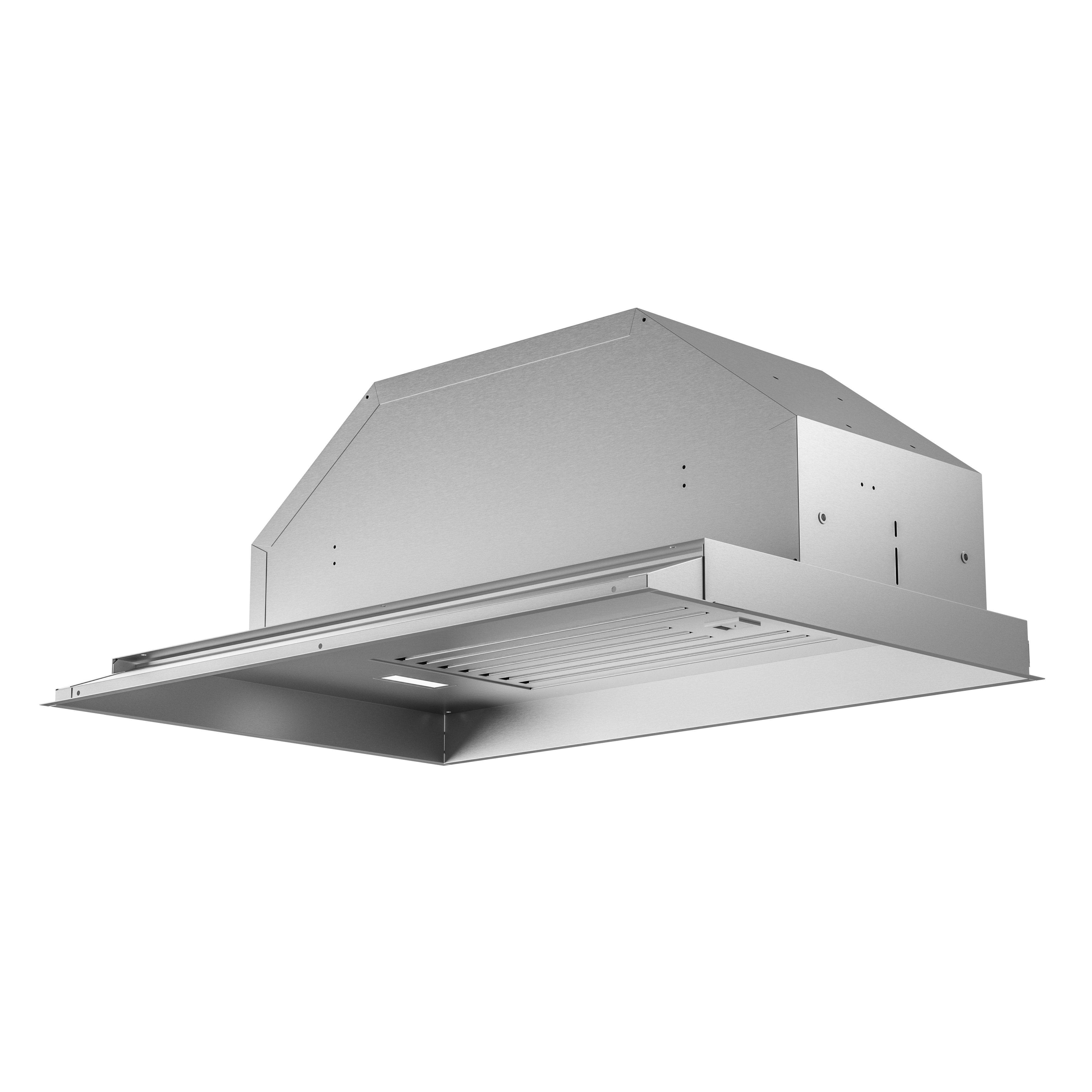

Vortex Insert
- The Vortex insert leads the way as the industry’s first adjustable-depth insert. Vortex is designed to extend 3 inches to accommodate custom hood depths from 17-1/2 to 20-1/2 inches. Add to this its quiet, 390-CFM blower, dual-level LumiLight LED lighting, and optional recirculating kit — Vortex stands tall among the rest.
Product Status Active Brand Zephyr Model # AK9034BS MSRP ($) $849 Short Description Vortex, 36 in. SS, LED Collection Core Collection UPC 646328009556 Category Range Hood Installation Type Insert For Outdoor Use No Controls Type Mechanical Slide Lighting Type LED Lights Quantity 2 Voltage 120 Maximum Amperage 4 Color Stainless Steel Blower Speeds 3 Watts Per Bulb 6 Lights Levels 2 Mounting Height Above Cooktop; IN 24 - 34 Compatible Models ZRC-9000, Z0F-C090 Country of Origin Taiwan Grease Filter Type Hybrid Baffle Compatible Mesh or Baffle Filter Part Number Z0F-B002 CEC Title 20 Compliant Yes CEC Title 24 Compliant Yes ADA Compliant Yes, with optional wall switch Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 6 Duct Size; Vertical; IN 6 Net Height; IN 12.3125 Net Width; IN 34.375 Nominal Width; IN 36 Net Depth; IN 17.5 Weight; LBS 34.6 Cutout Depth in. 10.5 Cutout Width in. 26.625 Feature 1 LumiLight LED Lighting Feature 1 Definition LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. Feature 2 Hybrid Baffle Filters Feature 2 Definition Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration. Feature 3 Powerful 390-CFM Blower Feature 3 Definition The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute. Feature 4 Mechanical Slide Controls Feature 4 Definition 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting. Feature 5 Adjustable Depth Feature 5 Definition An adjustable-depth insert is designed to extend 3 inches to accommodate custom hood depths from 17-1/2 to 20-1/2 inches. Feature 6 Dual-Level Lighting Feature 6 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 7 Optional Ductless Recirculating Kit Feature 7 Definition Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. Energy Star Certified No Blower Included Yes Internal Blower 1 CFM 390 Internal Blower 1 Min. Sones 1.4 Internal Blower 1 Max Sones 5 Warranty Parts / Labor 3 / 1 Shipping Height; IN 19.09 Shipping Length; IN 39.37 Shipping Width; IN 22.64 Shipping Weight; LBS 39.5 Optional Accessory 1 ZRC-9000 Optional Accessory 2 Z0F-C090
