Head On Iso
Range Hood
AK9228BS

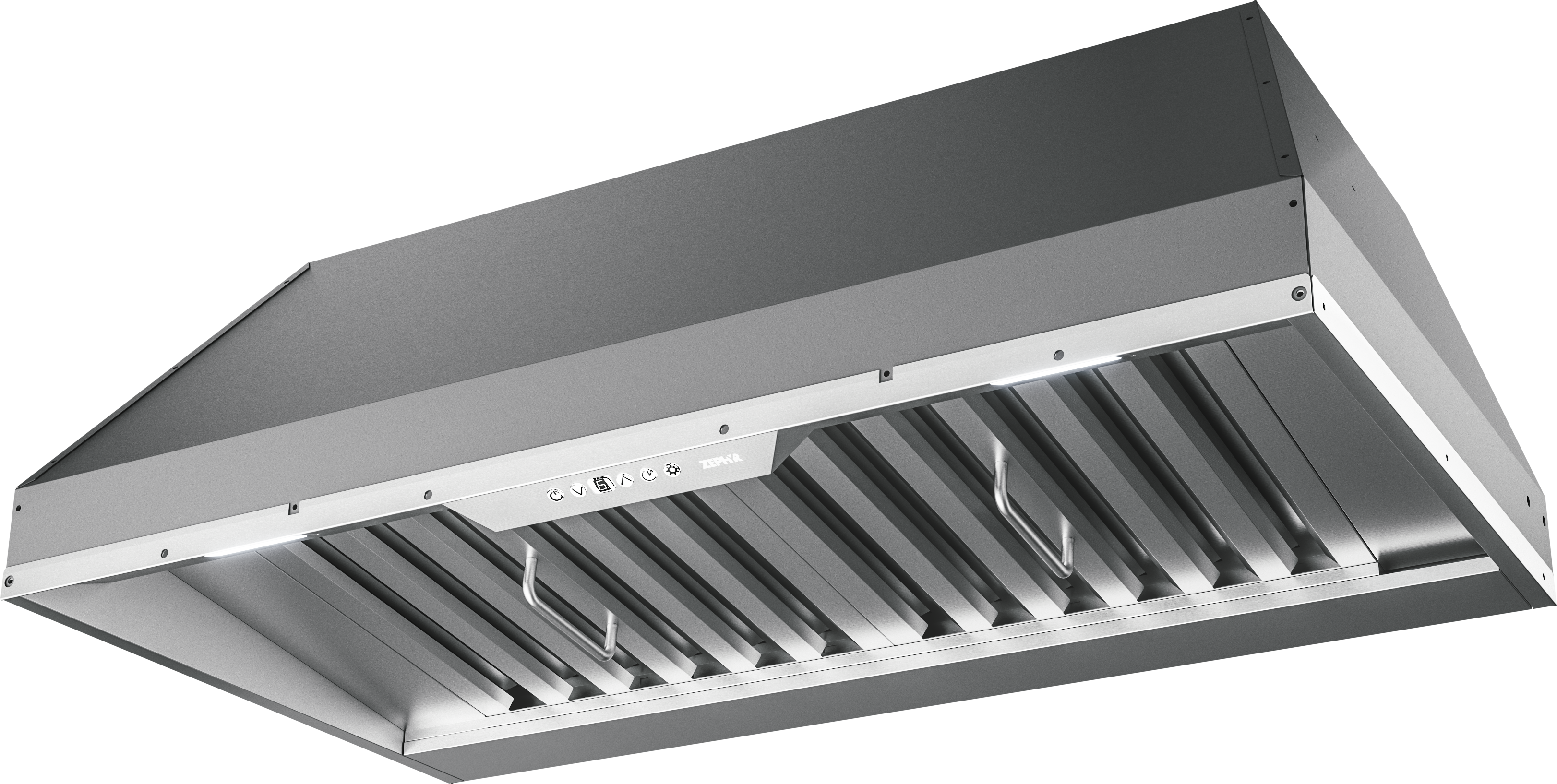

Monsoon I Insert
- Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LED’s and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT™ technology and either a powerful 600-CFM blower (30” and 36” models) or 1,200-CFM blower (42” and 48” models).
Product Status Discontinued Brand Zephyr Replacement Model AK9228CS Model # AK9228BS MSRP ($) $1299 Short Description Monsoon I, Insert, 28-3/8in, SS, LED, ACT Collection Core Collection UPC 646328008276 Category Range Hood Installation Type Insert For Outdoor Use No Controls Type Electronic Lighting Type LED Lights Quantity 2 Voltage 120 Maximum Amperage 5 Color Stainless Steel Blower Speeds 6 Watts Per Bulb 6 Lights Levels 2 Mounting Height Above Cooktop; IN 24 - 36 Compatible Models MUA010A, 14000005 Country of Origin Taiwan Grease Filter Type Pro baffle Compatible Mesh or Baffle Filter Part Number 50210039 CEC Title 20 Compliant Yes CEC Title 24 Compliant Yes ADA Compliant Yes Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 8 Duct Size; Vertical; IN 8 Net Height; IN 12 Net Width; IN 28.375 Nominal Width; IN 30 Net Depth; IN 19.25 Weight; LBS 40.500 Cutout Depth in. 22.625 Cutout Width in. 28.625 Feature 1 Airflow Control Technology™ (ACT™) Feature 1 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 2 LumiLight LED Lighting Feature 2 Definition LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. Feature 3 CleanAir Function Feature 3 Definition The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area. Feature 4 Electronic Touch Controls Feature 4 Definition Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function. Feature 5 Professional Baffle Filters Feature 5 Definition High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. Feature 6 Vertical or horizontal ducting Feature 6 Definition This hood has the ability to vent either out the top or out the back. Feature 7 Dual-Level Lighting Feature 7 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 390, 290 Internal Blower 1 CFM 600 Internal Blower 1 Min. Sones 1 Internal Blower 1 Max Sones 6 Warranty Parts / Labor 3 / 1 Shipping Height; IN 25 Shipping Length; IN 32 Shipping Width; IN 17 Shipping Weight; LBS 47 Optional Accessory 1 MUA006A
