AK9246AS
Head On IsoDownload

Range Hood

AK9246AS

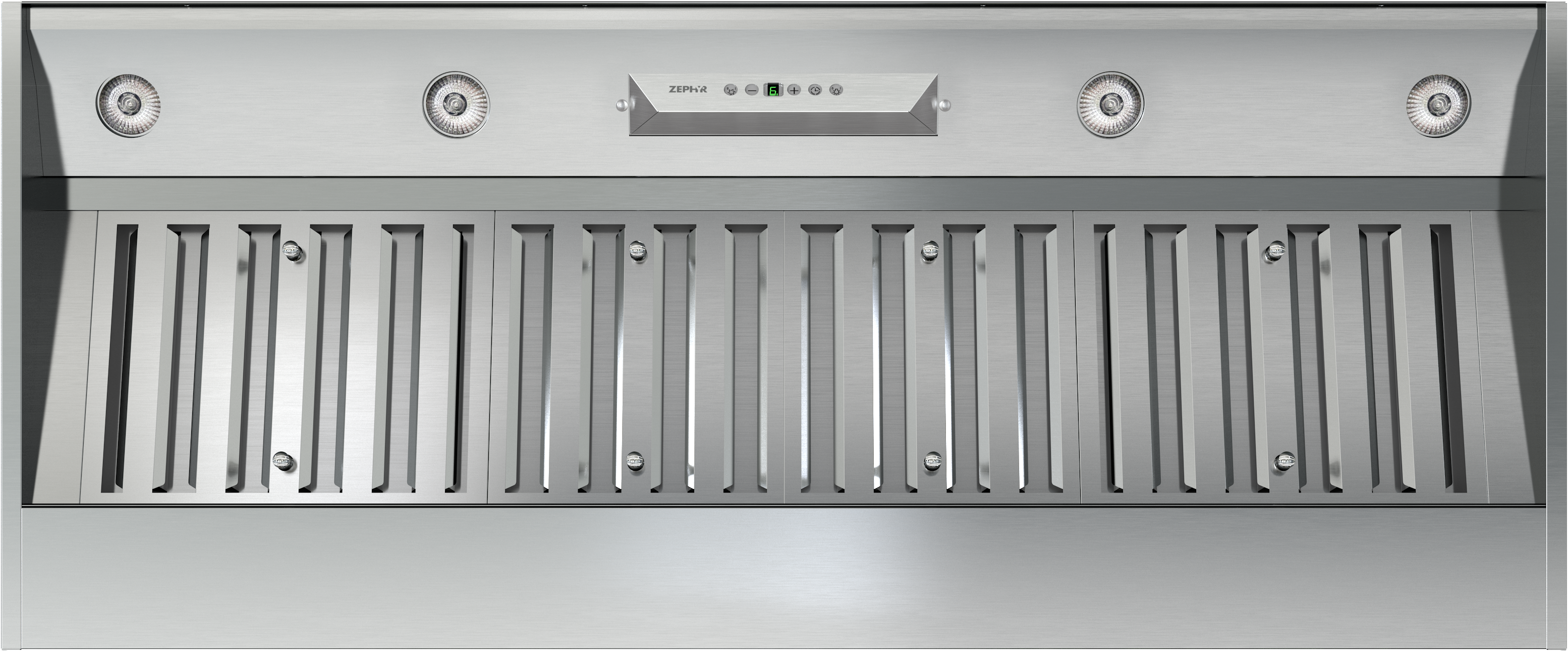

Monsoon I Insert

  • Monsoon I has taken the one-piece liner to the next level. Including dual-level halogen lights and an ADA-compliant RF remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT™ technology and either a powerful 600 CFM blower (30” and 36” models) or 1,200 CFM blower (42” and 48” models).
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK9246BS
    Model #AK9246AS
    MSRP ($)$1649
    Short DescriptionMonsoon I, One-Piece Liner 46-3/8", SS, 1200 CFM
    CollectionCore Collection
    UPC646328005114
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity4
    Maximum Amperage7
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsMUA010A, Z0B0040, 14000005
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelAK9246CS
    AK9246BS
  • Blower Speeds6
    Blower IncludedYes
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210013
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedYes
    Remote OptionalNo
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
  • Net Height; IN12
    Net Width; IN46.375
    Nominal Width; IN48
    Net Depth; IN19.25
    Weight; LBS63.4
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Includes Wireless Remote Control
    Feature 1 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3CleanAir Function
    Feature 3 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM1200
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN26.85
    Shipping Length; IN17.24
    Shipping Width; IN50
    Shipping Weight; LBS79.6
  • Optional Accessory 1MUA010A
    Optional Accessory 2Z0B0040
