AK9352BS
Head On IsoDownload

Range Hood

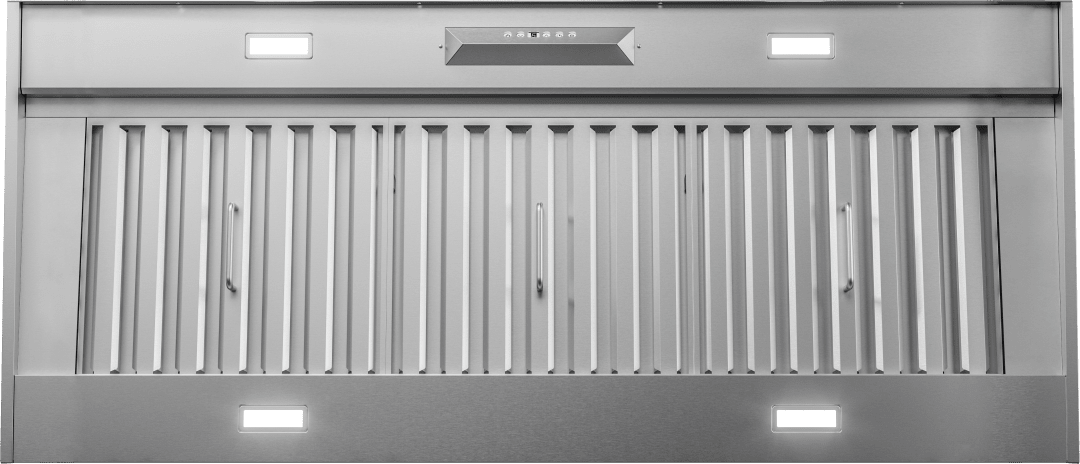

AK9352BS

Monsoon II Insert

  • Now available with LumiLight LED lighting and our exclusive ACT™ technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK9352CS
    Model #AK9352BS
    MSRP ($)$2299
    Short DescriptionMonsoon II, Insert, 52-3/8in, SS, LED, ACT
    CollectionPro Collection
    UPC646328008344
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity4
    Voltage120
    Maximum Amperage7
    ColorStainless Steel
    Blower Speeds6
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN26 - 36
    Compatible ModelsMUA010A, Z0B0040, 14000005
    Country of OriginTaiwan
    Grease Filter TypePro baffle
    Compatible Mesh or Baffle Filter Part Number50210033
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes
  • Duct DischargeVertical
    Duct Size; Vertical; IN10
  • Net Height; IN12
    Net Width; IN52.375
    Nominal Width; IN54
    Net Depth; IN22.5
    Weight; LBS65.7
    Cutout Depth in.22.75
    Cutout Width in.52.625
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Includes Wireless Remote Control
    Feature 3 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 4Professional Baffle Filters
    Feature 4 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 5Electronic Touch Controls
    Feature 5 DefinitionElectronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
    Feature 6Powerful 1200-CFM Blowers
    Feature 6 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 7CleanAir Function
    Feature 7 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT590, 390
    Internal Blower 1 CFM1200
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN27.8
    Shipping Length; IN16.7
    Shipping Width; IN55.9
    Shipping Weight; LBS83.5
  • Optional Accessory 1MUA010A
