Head On Iso
Range Hood
AK9428AS

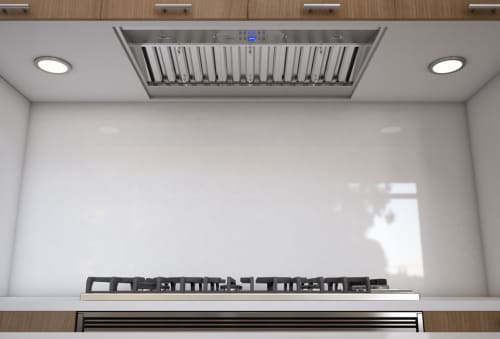

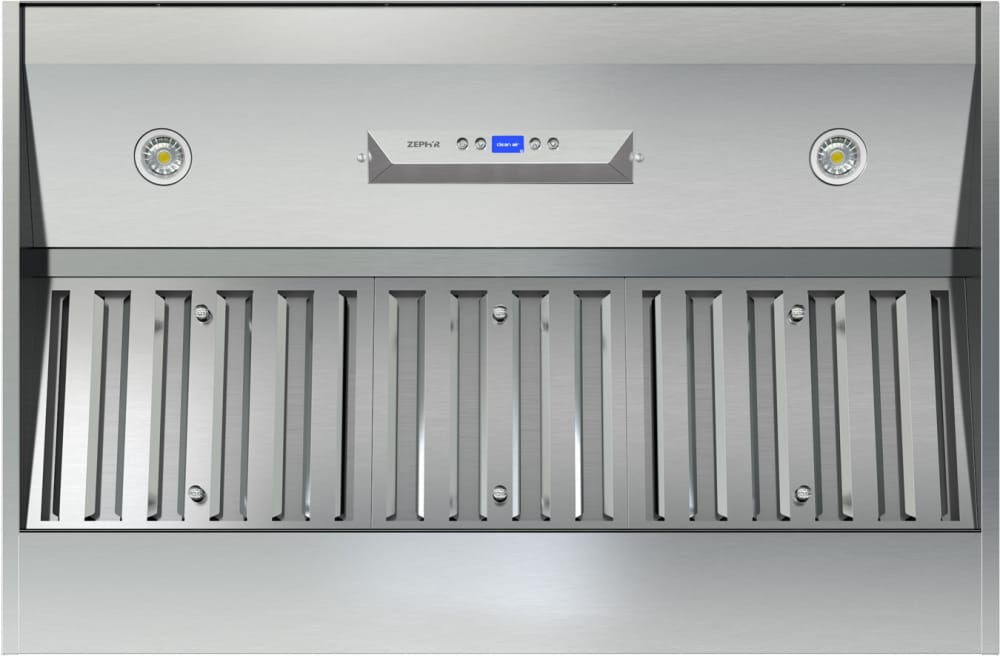

Monsoon DCBL Insert
- Monsoon DCBL is unique in the marketplace. We started with a 715-CFM DC motor and added stainless steel baffle filters with a removable grease tray for easy cleaning. Then we introduced vertical and horizontal ducting along with a wireless remote control, and finally, we added the proprietary DCBL Suppression System® that makes Monsoon DCBL the most quiet and energy efficient one-piece liner available today.
Product Status Discontinued Brand Zephyr Replacement Model AK9428BS Model # AK9428AS MSRP ($) $1449 Short Description Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT Collection Core Collection UPC 646328002809 Category Range Hood Installation Type Insert For Outdoor Use No Controls Type Electronic LCD Lighting Type LED Lights Quantity 2 Maximum Amperage 4 Color Stainless Steel Lights Levels 2 Compatible Models MUA008A Country of Origin Taiwan CEC Title 20 Compliant Yes ADA Compliant Yes Wi-Fi Connected No Bluetooth Connected No Automatic Delay-Off Yes Blower Speeds 6 Blower Included Yes Clean Air Function Yes Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 8, 3.25 x 10 Duct Size; Vertical; IN 8 Duct Type - Vertical
- Horizontal
Mounting Height Above Cooktop; IN 26 - 36 Remote Included Yes Remote Optional No Vent Type Ducted Lighting Type LED Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 8, 3.25 x 10 Duct Size; Vertical; IN 8 Net Height; IN 12 Net Width; IN 28.375 Nominal Width; IN 30 Net Depth; IN 22.5 Weight; LBS 40 Ceiling Height Maximum 12 ft. Ceiling Height Minimum 8 ft. Feature 1 DCBL Suppression System® Feature 1 Definition Zephyrs DCBL Suppression System delivers the most silent, energy efficient and performance-driven range hoods available today. DCBL consists of a Direct Current Brushless Motor technology that uses energy more efficiently and generates less friction resulting in less wear and tear on the hoods motor. Increased torque also allows the blower to move more air at lower RPMs resulting in quieter operation. Feature 2 Bloom™ HD LED light bulbs Feature 2 Definition With a lifetime of 25,000 hours and warm white light, Bloom HD LED light bulbs are an industry breakthrough and are unmatched in performance, light emission and value. These dimmable LEDs also have a patented lens that evenly distributes warm white light over the cooking surface. Feature 3 Airflow Control Technology™ (ACT™) Feature 3 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 4 Ultra-Quiet Performance Feature 4 Definition Our range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby. Feature 5 Includes Wireless Remote Control Feature 5 Definition Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. Feature 6 Professional Baffle Filters Feature 6 Definition High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 590, 390, 290 Internal Blower 1 CFM 715 Internal Blower 1 Min. Sones 0.8 Internal Blower 1 Max Sones 5.8 Warranty Parts / Labor 3 / 1 Shipping Height; IN 28.54 Shipping Length; IN 17.48 Shipping Width; IN 31.89 Shipping Weight; LBS 50.2 Optional Accessory 1 MUA008A
