AK9846AS
Head On IsoDownload

Range Hood

AK9846AS

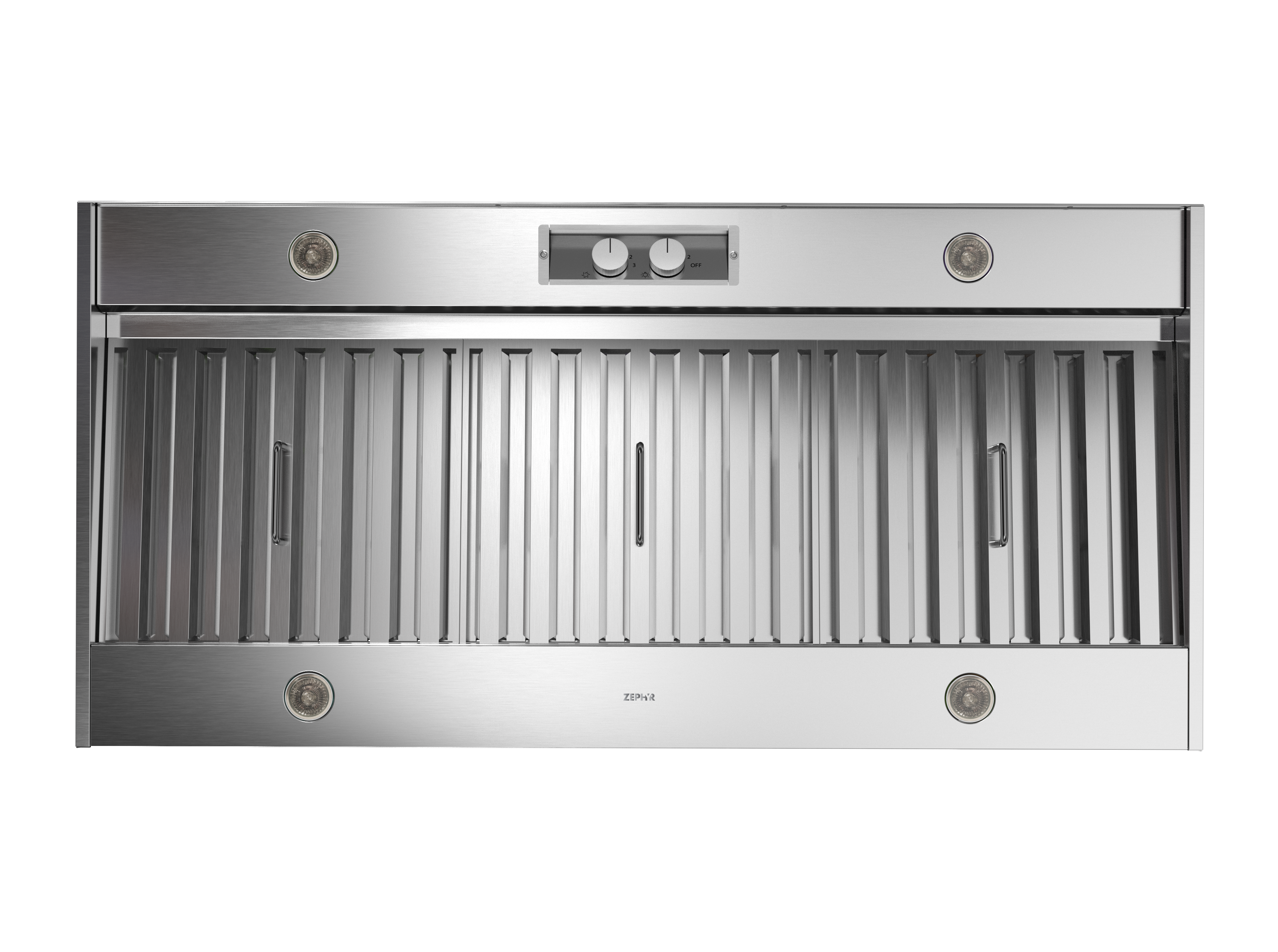

Spruce Insert Outdoor

  • The Spruce outdoor insert is a one piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Featuring three-speed metallic knob controls and directional halogen lighting with pro baffle filters that enhance airflow.
Size
Color/Finish
For Outdoor Use
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK9846BS
    Model #AK9846AS
    MSRP ($)$1899
    Short DescriptionSpruce Outdoor Insert, 46in, SS, 1200 CFM
    CollectionPro Collection
    UPC646328006548
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseYes
    Controls TypeControl Knob
    Lighting TypeHalogen
    Lights Quantity4
    Maximum Amperage6.5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsNone
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210031
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
    Duct TypeVertical
    Mounting Height Above Cooktop; IN30 - 36
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
  • Net Height; IN12
    Net Width; IN46.375
    Nominal Width; IN48
    Net Depth; IN22.5
    Weight; LBS71
    Cutout Depth in.22.625
    Cutout Width in.46.5
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1High Quality 304S Stainless Steel
    Feature 1 DefinitionBuilt with durable high-grade stainless steel.
    Feature 2Outdoor Rated
    Feature 2 DefinitionZephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
    Feature 3Professional Baffle Filters
    Feature 3 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 43 Speed Metallic Knob Dial
    Feature 5Directional Halogen Lighting
    Feature 6Powerful 1200-CFM Blowers
    Feature 6 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 7Vertical 10 in. Round Ducting
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM1200
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN28.75
    Shipping Length; IN50
    Shipping Width; IN17
    Shipping Weight; LBS78.7
