AK9858BS
Head On IsoDownload

Range Hood

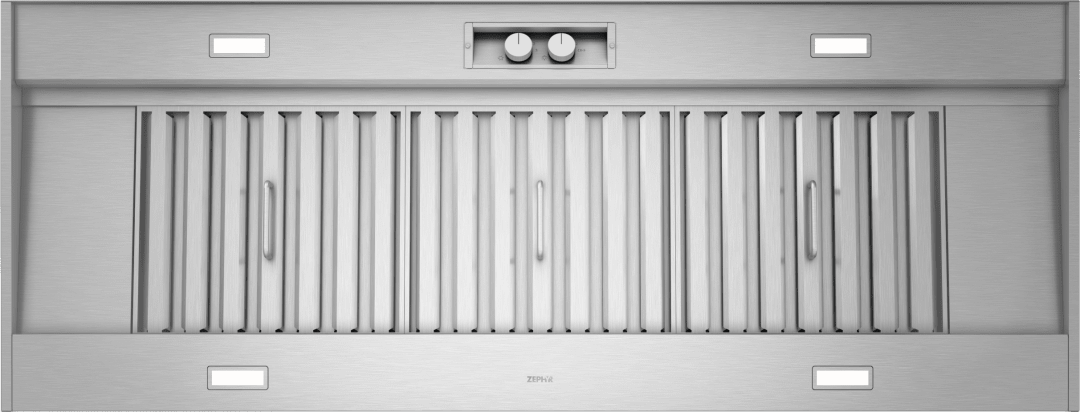

AK9858BS

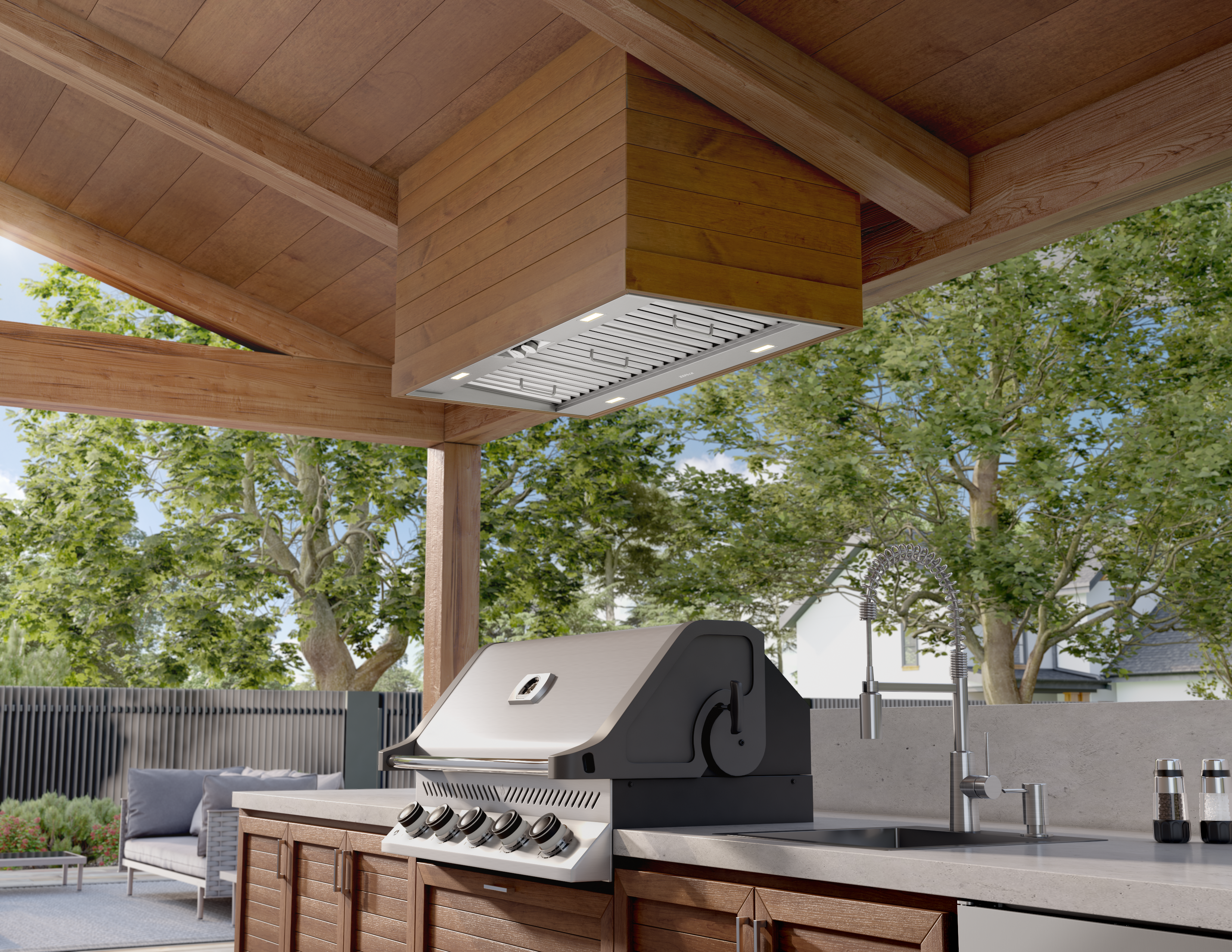

Spruce Insert Outdoor

  • The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, LumiLight LED lighting, and pro baffle filters to enhance airflow.
Size
Color/Finish
For Outdoor Use
  • Product StatusActive
    BrandZephyr
    Model #AK9858BS
    MSRP ($)$2699
    Short DescriptionSpruce Outdoor Insert, 60in, LED, SS
    CollectionPro Collection
    UPC646328010651
    CategoryRange Hood
    Installation TypeInsert
    For Outdoor UseYes
    Controls TypeControl Knob
    Lighting TypeLED
    Lights Quantity4
    Voltage120
    Maximum Amperage8
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN32-42
    Compatible ModelsNone
    Country of OriginTaiwan
    Grease Filter TypePro baffle
    Compatible Mesh or Baffle Filter Part Number50210031
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
  • Net Height; IN12
    Net Width; IN58.375
    Nominal Width; IN60
    Net Depth; IN22.5
    Weight; LBS79
    Cutout Depth in.22.625
    Cutout Width in.59
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 2High Quality 304S Stainless Steel
    Feature 2 DefinitionBuilt with durable high-grade stainless steel.
    Feature 3Outdoor Rated
    Feature 3 DefinitionZephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
    Feature 4Professional Baffle Filters
    Feature 4 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 53-Speed Metallic Knob Controls
    Feature 5 DefinitionMetallic knob controls are tested for use in outdoor environments and are built with corrosion-resistant, 304-grade stainless steel to withstand extreme heat and moisture.
    Feature 6Powerful 1200-CFM Blowers
    Feature 6 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 7Vertical 10 in. Round Ducting
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM1200
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN28.82
    Shipping Length; IN17.1
    Shipping Width; IN62.9
    Shipping Weight; LBS84.4
