ALU-E63BWX
Head On IsoDownload

Range Hood

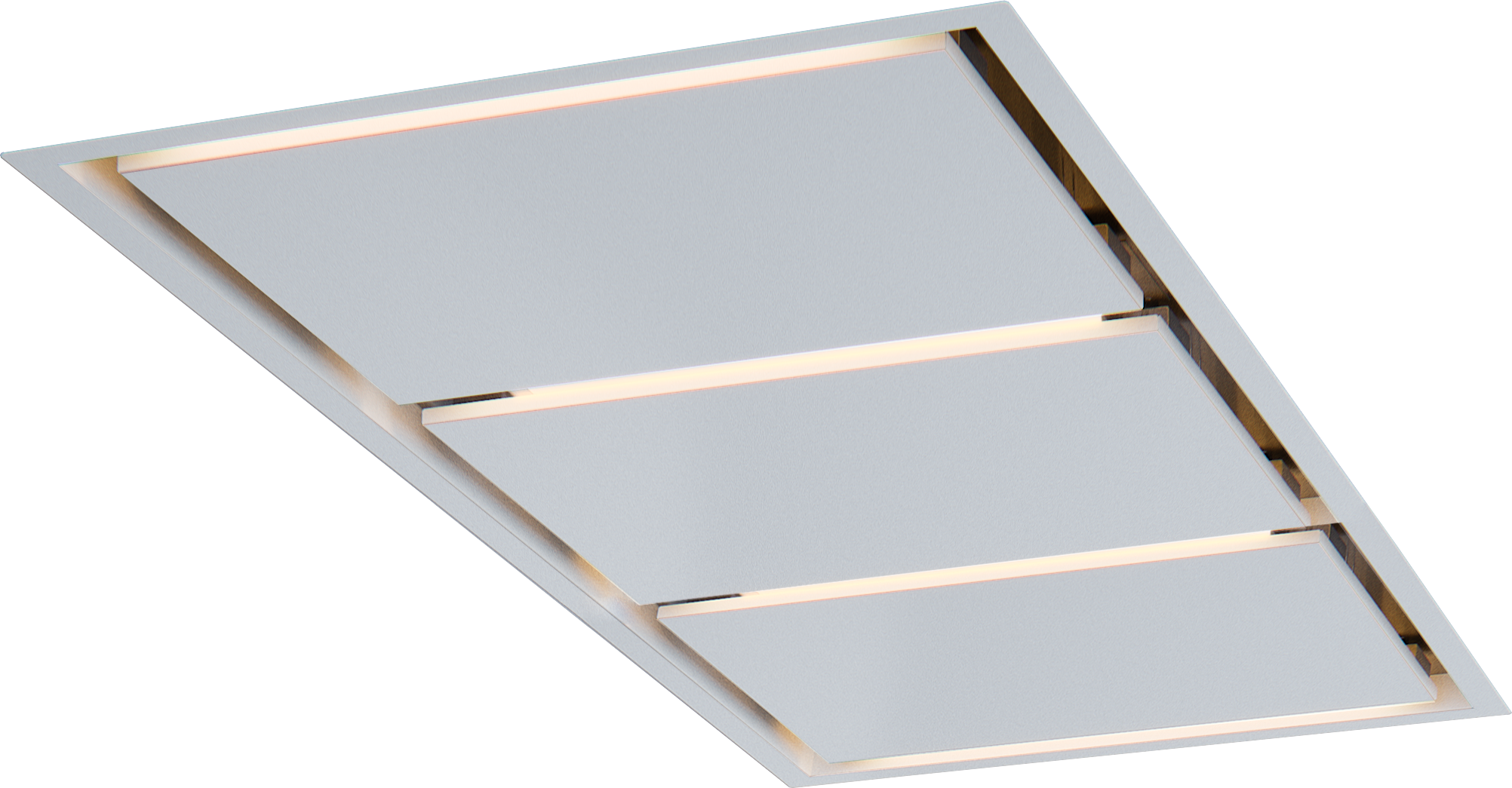

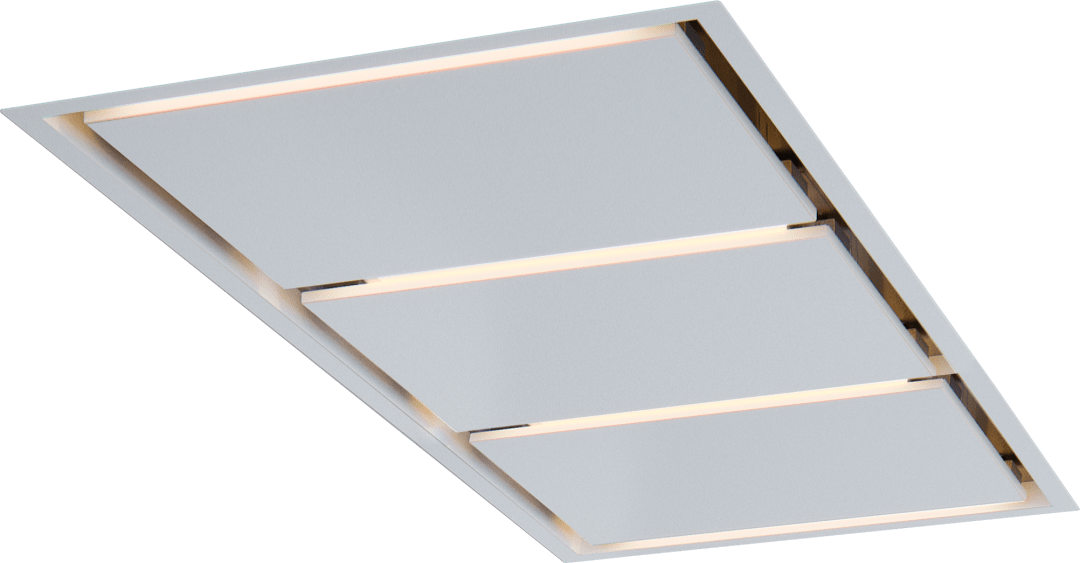

ALU-E63BWX

Lux Island

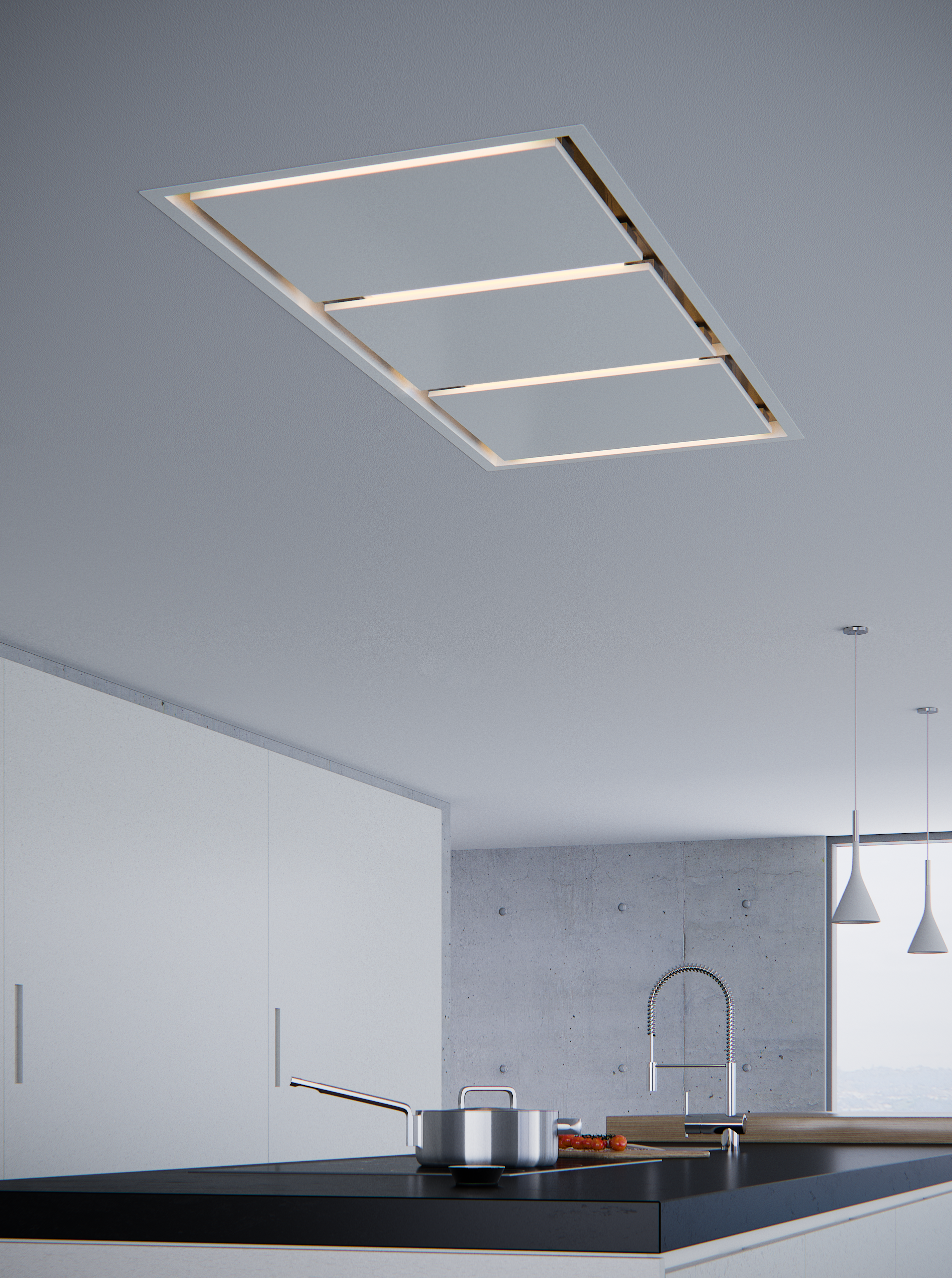

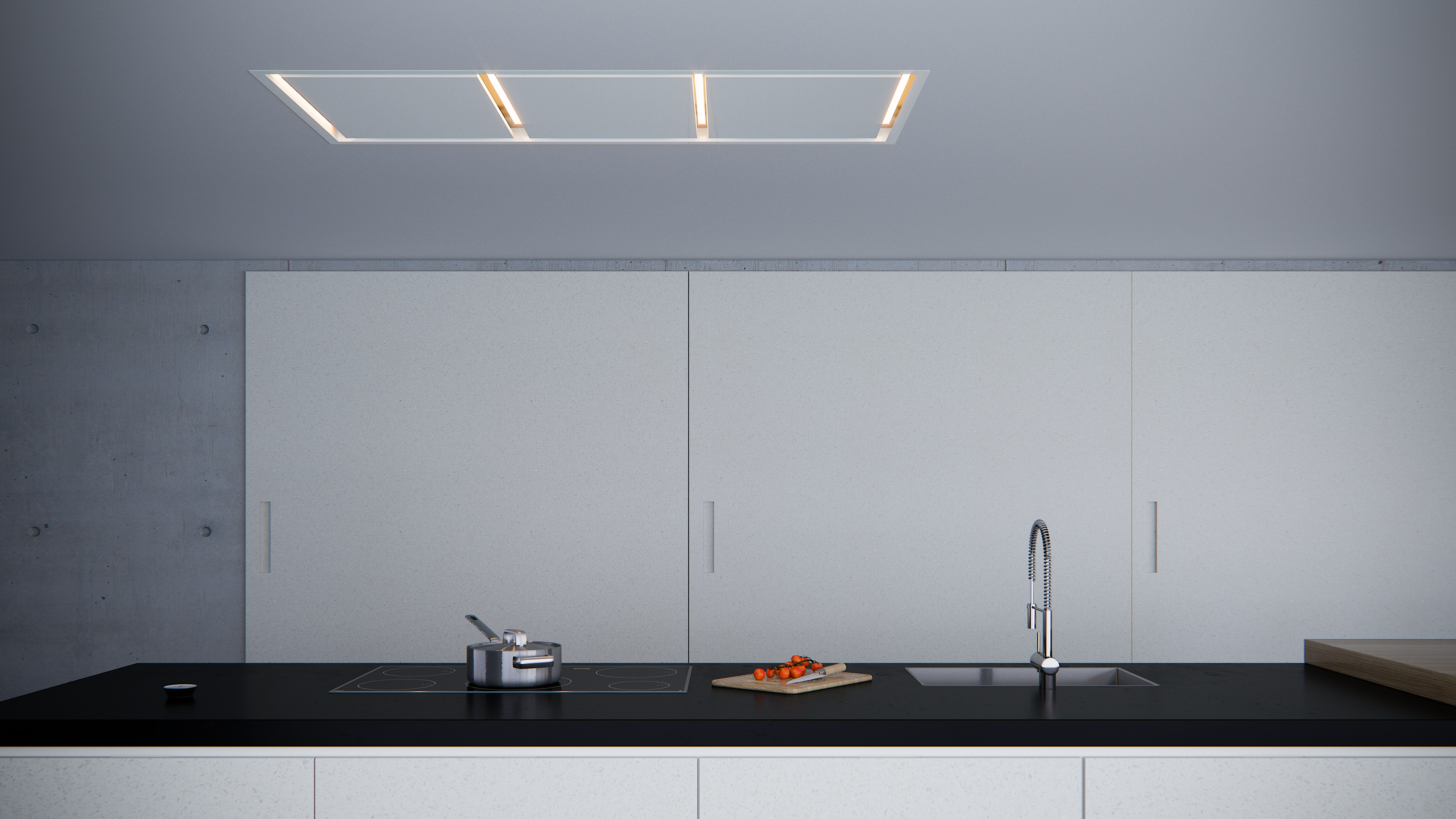

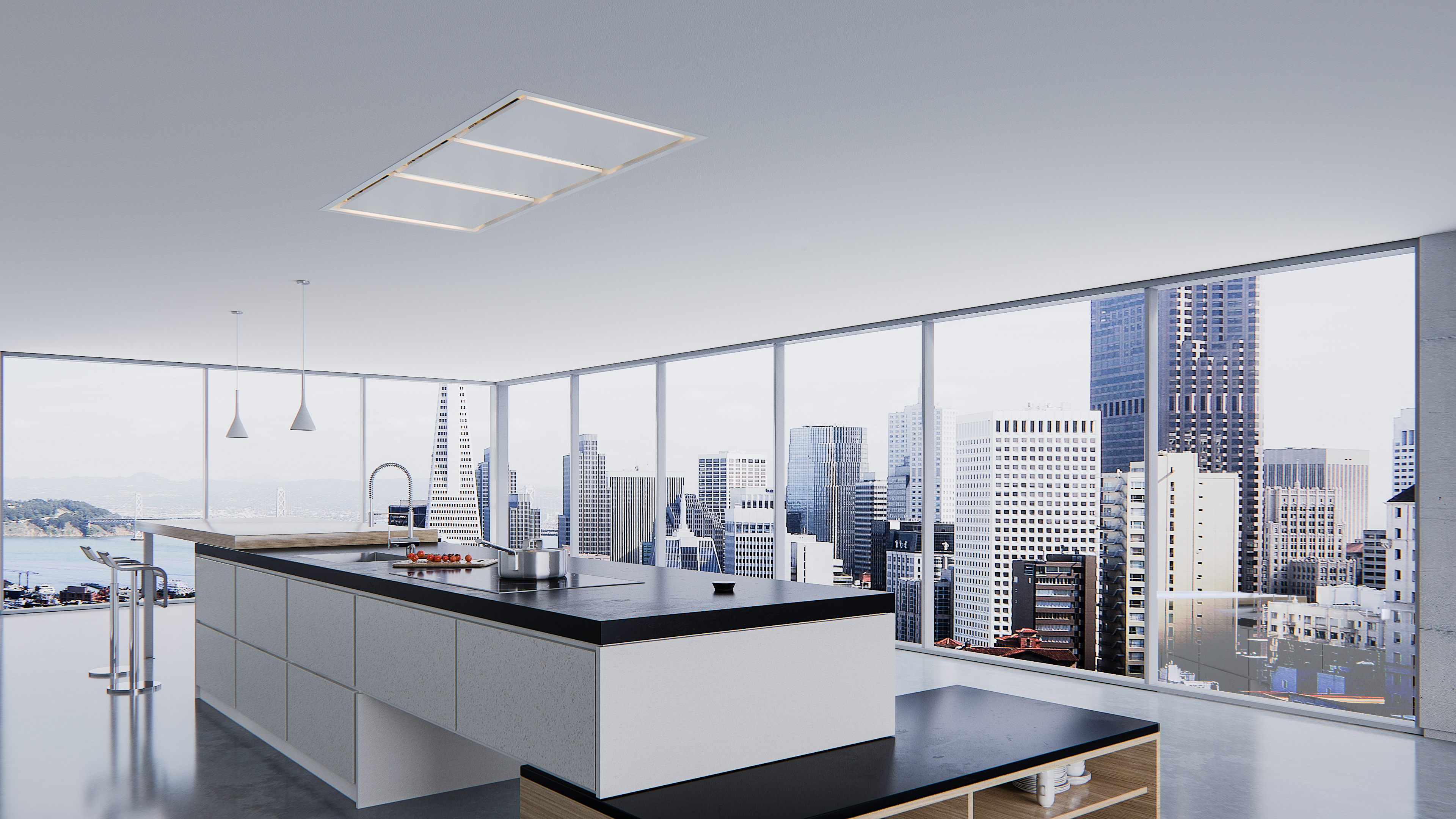

  • Enjoy unobstructed views of your kitchen with the modern, minimalist lines of the Lux. This sleek hood includes a wireless remote control, and it discreetly mounts into the ceiling above your range or cooktop for power and good looks combined. Your kitchen will stay clean and smoke free with the Lux’s Perimeter Aspiration and multiple blower options, and the tri-level LED light strip ensures a good-looking glow. Available in White and Stainless Steel.
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelALU-E63CWX
    Model #ALU-E63BWX
    MSRP ($)$3049
    Short DescriptionLux, Island, 63", Wht, BODY ONLY
    CollectionDesigner Collection
    UPC646328007316
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage6.55
    ColorWhite
    Lights Levels3
    Compatible ModelsZRC-01LX, MUA006A, MUA008A, Z0F-C002, 14000005
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • ALU-E63CWX
  • Required Accessory: Blower 1CBI-290A
    Required Accessory: Blower 2CBI-600A
    Required Accessory: Blower 3PBI-1100A
    Required Accessory: Blower 4PBN-1000A
    Required Accessory: Blower 5CBE-1000
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50200046
    Duct DischargeHorizontal
    Duct Size; Horizontal; IN6, 10
    Duct Size; Vertical; IN6, 10
    Duct TypeHorizontal
    Mounting Height Above Cooktop; IN30 - 72
    Remote IncludedYes
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeHorizontal
    Duct Size; Horizontal; IN6, 10
    Duct Size; Vertical; IN6, 10
  • Net Height; IN14.375 - 23.875
    Net Width; IN63.5
    Nominal Width; IN63
    Net Depth; IN27.5
    Weight; LBS92
    Ceiling Height Maximum9 ft.
    Ceiling Height Minimum6 ft.
  • Feature 1Includes Wireless Remote Control
    Feature 1 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 2LED Light Strip
    Feature 3Perimeter Aspiration System
    Feature 3 DefinitionThis form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
    Feature 4Multiple Blower Options
    Feature 4 DefinitionMultiple blower options are available to fit your application.
    Feature 5CleanAir Function
    Feature 5 DefinitionThe CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
    Feature 6Tri-Level Lighting
    Feature 6 DefinitionThe tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones3
    Internal Blower 2 CFM600
    Internal Blower 2 Max Sones6
    Internal Blower 3 CFM1100
    Internal Blower 3 Max Sones8
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor1 / 1
  • Shipping Height; IN16.2
    Shipping Length; IN65.6
    Shipping Width; IN30.3
    Shipping Weight; LBS114.9
  • Optional Accessory 1ZRC-01LX
    Optional Accessory 2MUA006A
    Optional Accessory 3Z0F-C002
