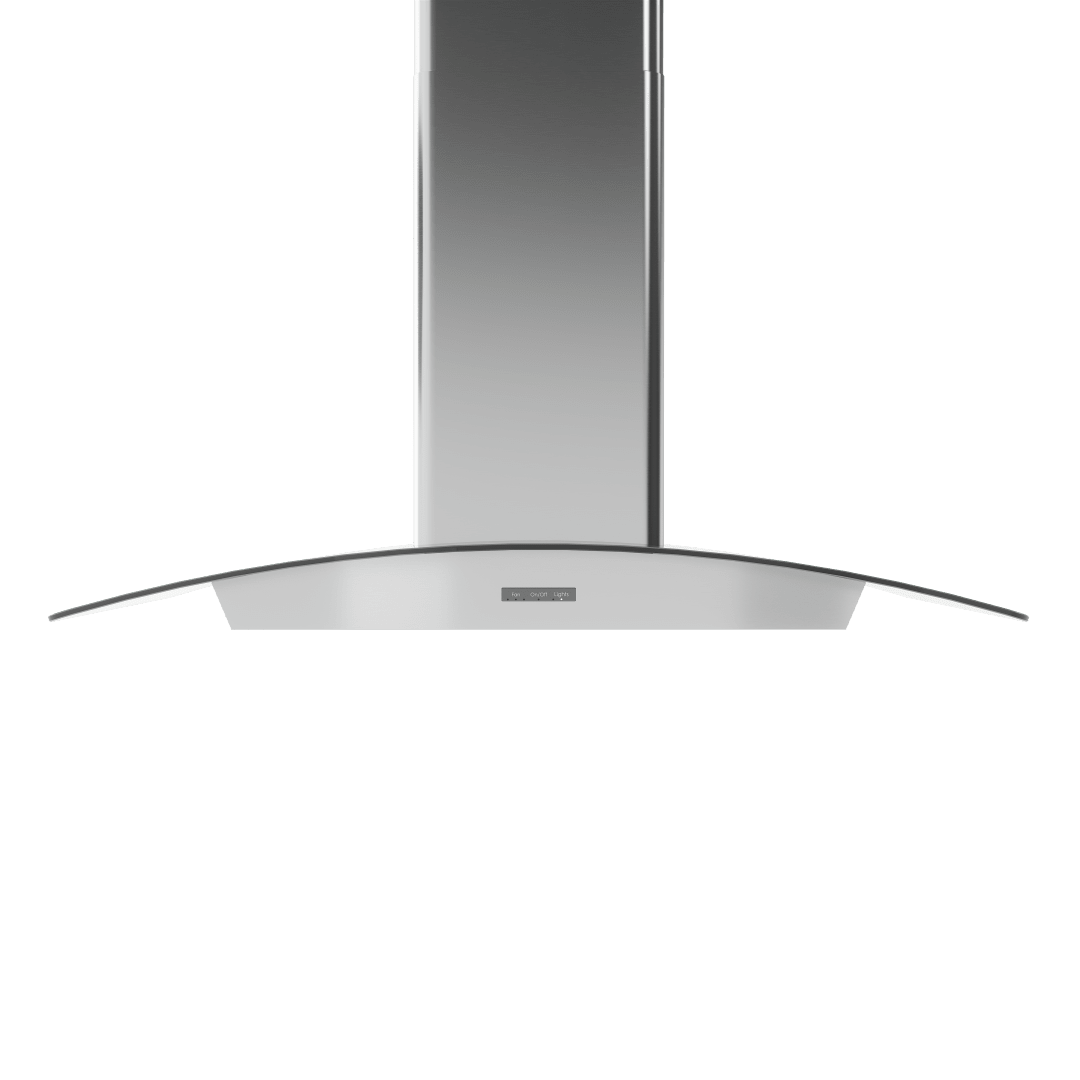

BMI-E36CG
Head On IsoDownload

Range Hood

BMI-E36CG

Brisas BMI Wall

  • Be a classic! Modeled after the classic European design range hoods, Brisas BMI also performs like one. Its 600-CFM motor is at home over induction or gas ranges, and its supersized 5-ply aluminum mesh filter can handle even the greasiest dish. Crowned with a clear, curved-glass canopy, Brisas BMI is always in style.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandBrisas by Zephyr
    Replacement ModelBMI-E36DG
    Model #BMI-E36CG
    MSRP ($)$879
    Short DescriptionBrisas Curved Glass Chim. Wall, 36" G, 600 CFM, ACT, LED
    CollectionBrisas
    UPC646328007385
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeLED
    Lights Quantity1
    Voltage120
    Maximum Amperage2.6
    ColorStainless Steel + Glass
    Blower Speeds3
    Watts Per Bulb5
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 34
    Compatible ModelsBRC-0006, B1C-00MI
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200044
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • BMI-E36DG
  • Duct DischargeVertical
    Duct Size; Vertical; IN6
  • Net Height; IN23 - 42
    Net Width; IN35.1875
    Nominal Width; IN36
    Net Depth; IN19.75
    Weight; LBS53
  • Feature 1Capacitive Touch Controls
    Feature 1 DefinitionCapacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
    Feature 2Airflow Control Technology™ (ACT™)
    Feature 2 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 3LED light strip
    Feature 3 DefinitionThis multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
    Feature 4Dishwasher Safe Aluminum Mesh Filters
    Feature 4 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 5Dual-Level Lighting
    Feature 5 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor1 / 1
  • Shipping Height; IN25.5
    Shipping Length; IN38.7
    Shipping Width; IN21.9
    Shipping Weight; LBS59.4
  • Optional Accessory 1BRC-0006
    Optional Accessory 2B1C-00MI
