BML-E36CG
Head On IsoDownload

Range Hood

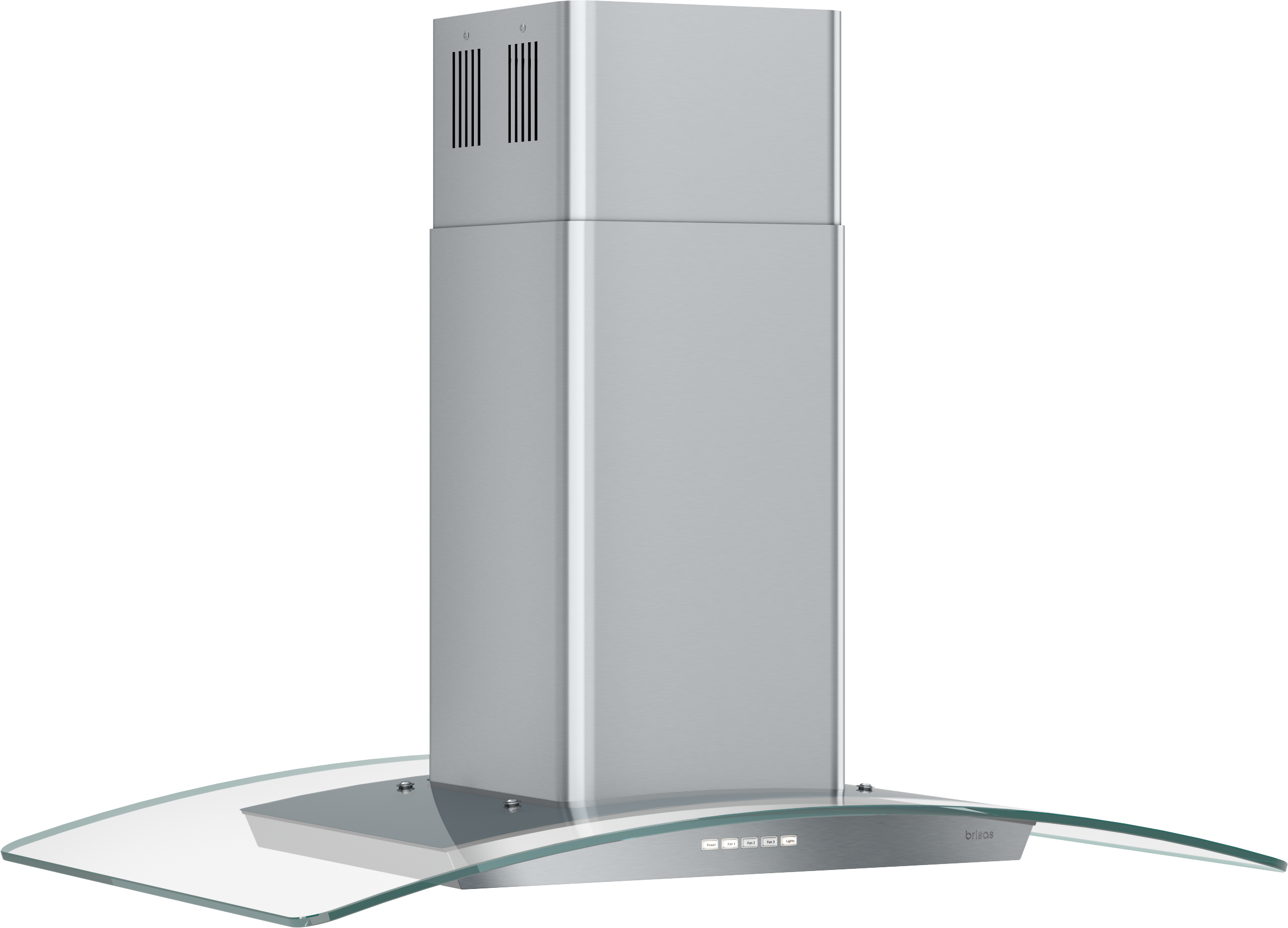

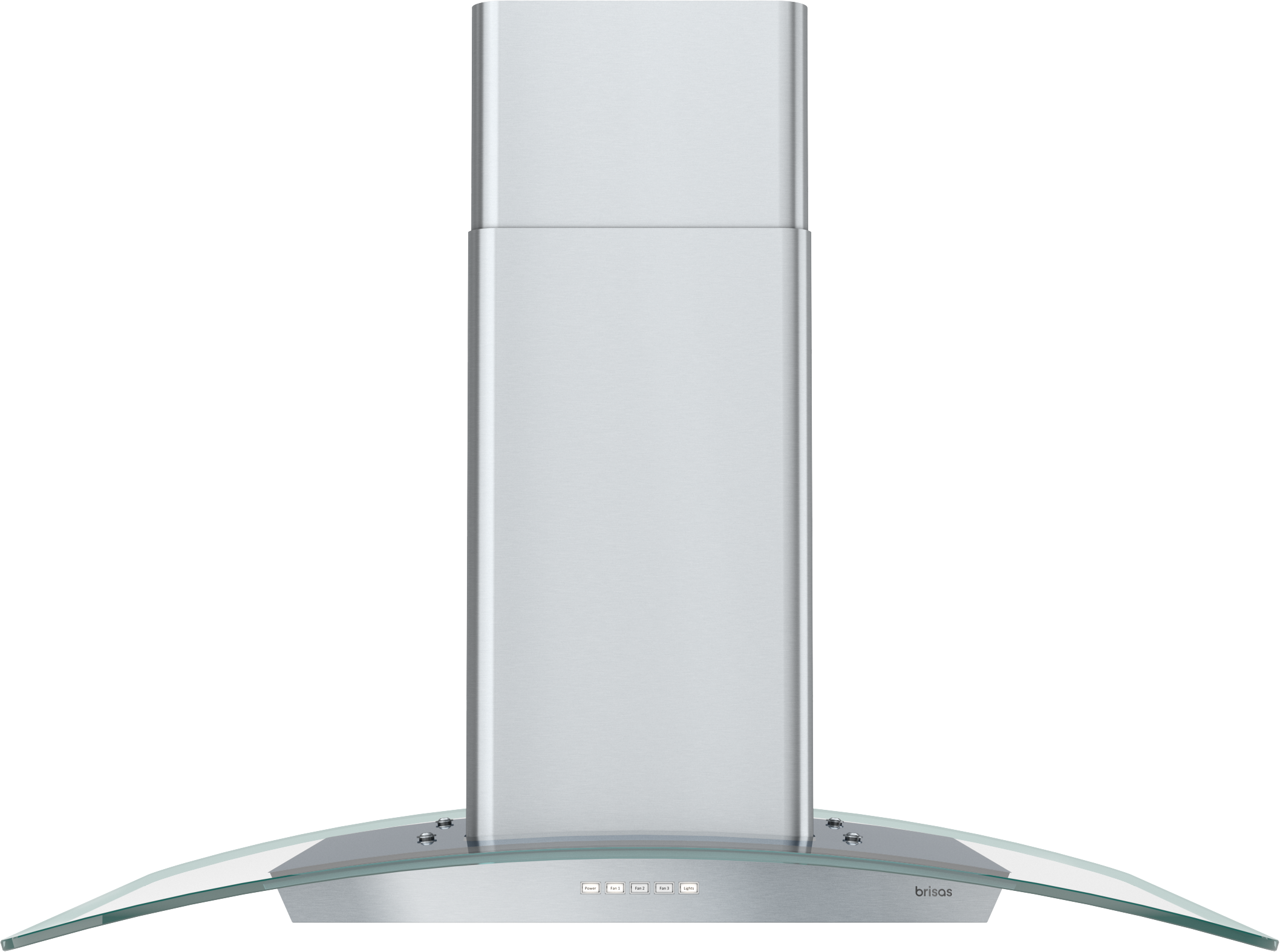

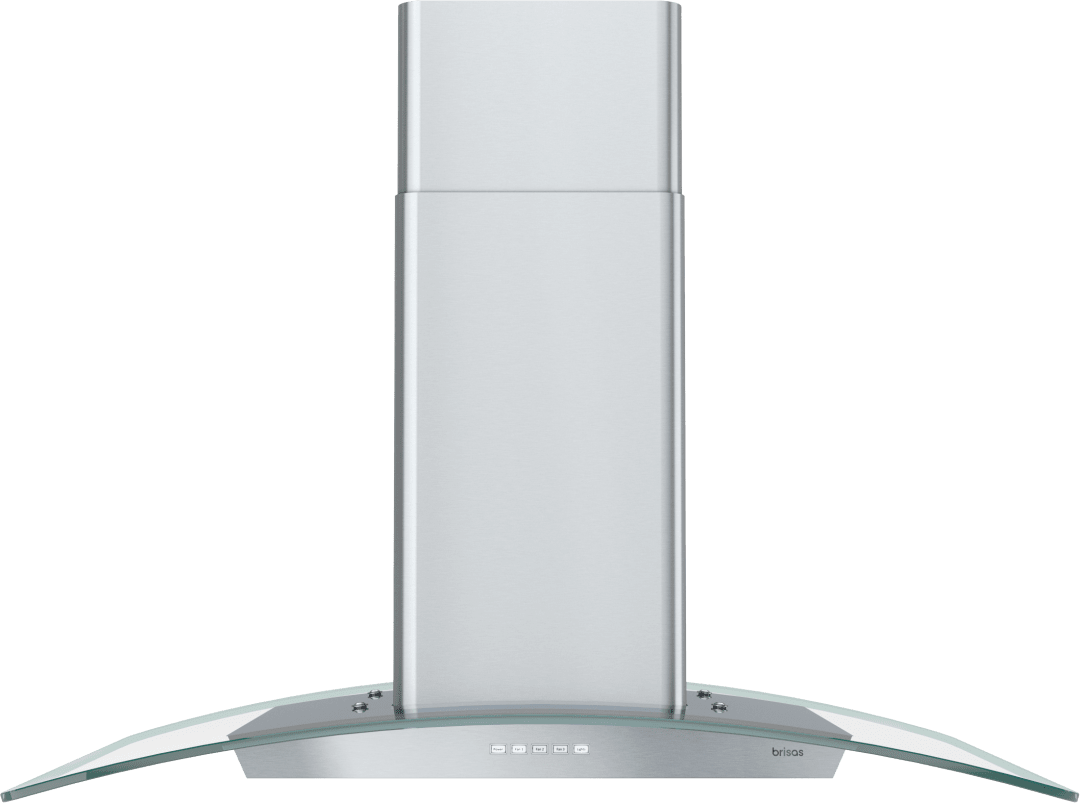

BML-E36CG

Brisas BML Island

  • Brisas BML can be installed in as little as 20 minutes. Designed with our unique 3-step installation system, Brisas BML breaks the arduous task of installing the entire range hood into a few easy steps. We’ve even added an installation template to help you align your ceiling marks without the guesswork and upgraded the unit with LumiLight LED lighting and electronic touch controls. One look at the classic European design and gentle clear-glass curved canopy will have you sold. Love at first site? Yes. It’s possible.
Size
Color/Finish
  • Product StatusActive
    BrandBrisas by Zephyr
    Model #BML-E36CG
    MSRP ($)$1199
    Short DescriptionBrisas Curved Glass Island, 36" G, ACT, LED
    CollectionBrisas
    UPC646328012587
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity2
    Voltage120
    Maximum Amperage2.7
    ColorStainless Steel + Glass
    Blower Speeds3
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 34
    Compatible ModelsBRC-0107, B1C-00ML
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200071
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical
    Duct Size; Vertical; IN6
  • Net Height; IN28 - 37
    Net Width; IN35.1875
    Nominal Width; IN36
    Net Depth; IN25.5625
    Weight; LBS73

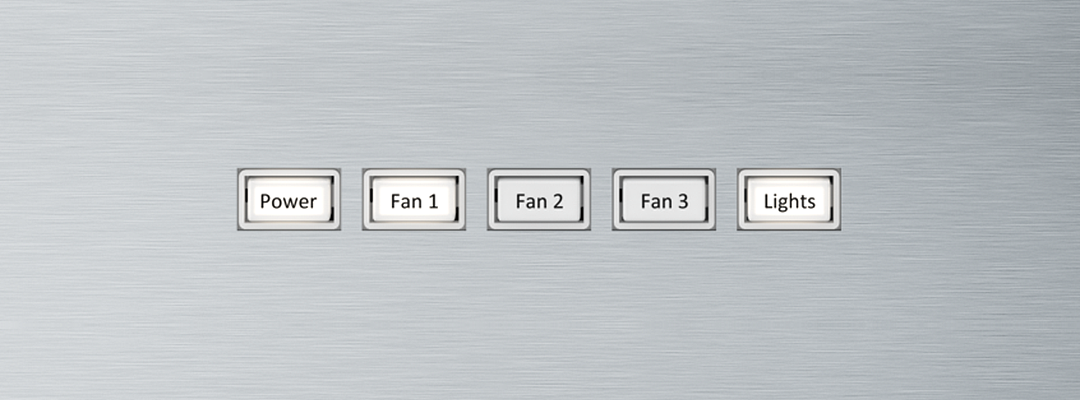

  • Feature 1Electronic Touch Controls
    Feature 1 DefinitionElectronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
    Feature 2Airflow Control Technology™ (ACT™)
    Feature 2 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 3LumiLight LED Lighting
    Feature 3 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 4Dishwasher Safe Aluminum Mesh Filters
    Feature 4 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 5Quick-Lock Installation System
    Feature 5 DefinitionZephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required. While most island range hood installations require at least three people, Zephyrs Quick-Lock Installation can be completed by one or two people.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor1 / 1
  • Shipping Height; IN35
    Shipping Length; IN48
    Shipping Width; IN45
    Shipping Weight; LBS124
  • Optional Accessory 1BRC-0107
    Optional Accessory 2B1C-00ML
