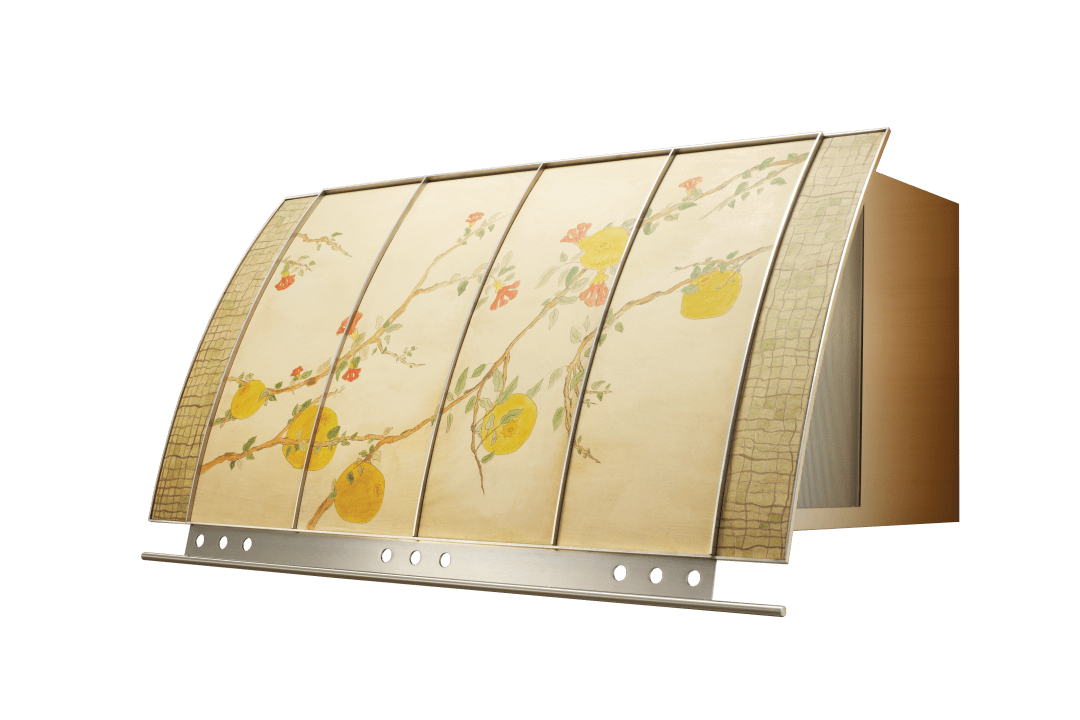

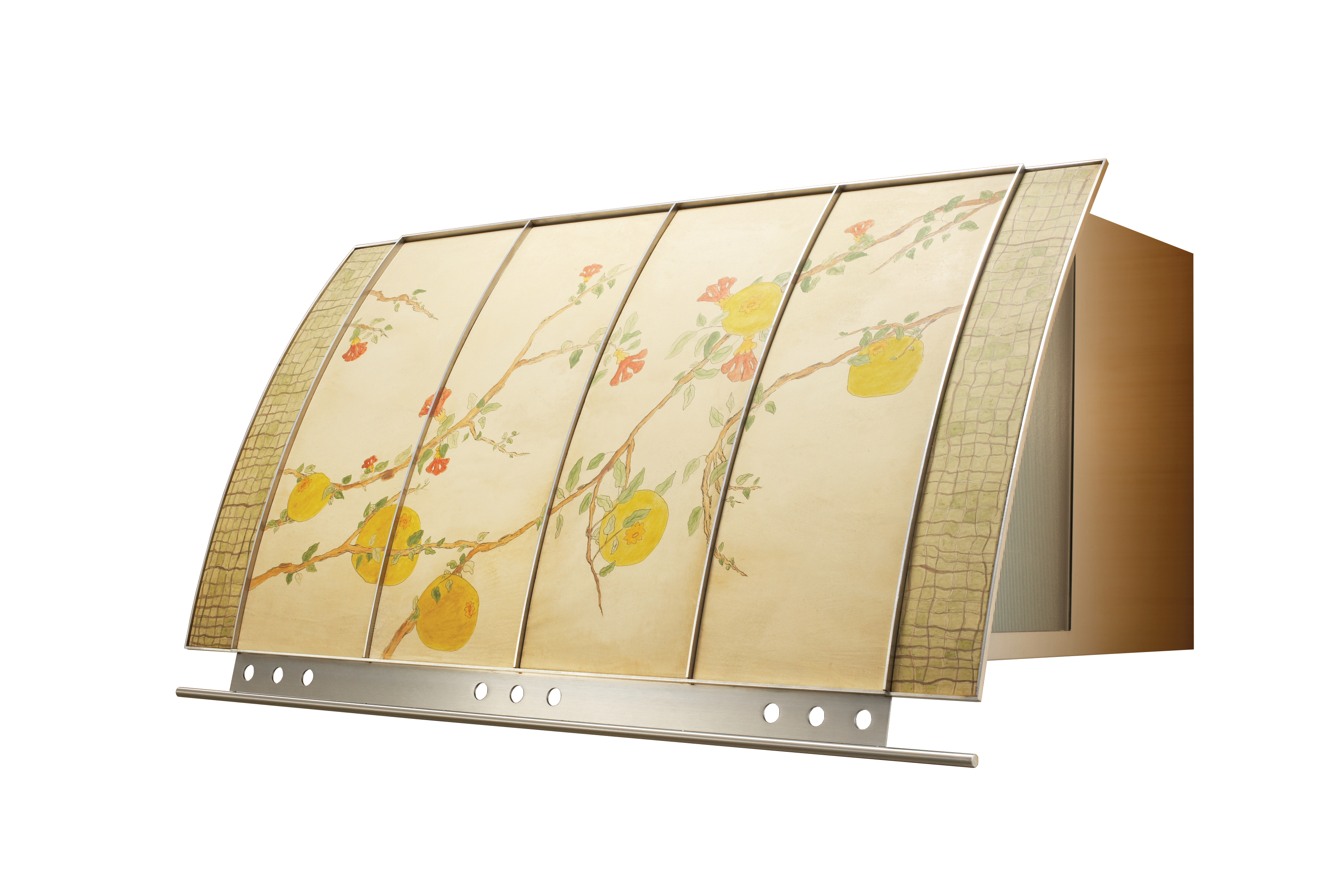

CPA-E48ASX
Head On IsoDownload

Range Hood

CPA-E48ASX

Padova Wall

  • Inspired by Italy’s timeless architectural aesthetic, the Padova invites your originality and vision. This new concept from Cheng is designed to be customized with the materials of your choice. So whether you prefer mosaic tile, ribbed glass, or the many possibilities of Italian Marmorino plaster, you will have a hand in making Padova a signature addition to your home.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #CPA-E48ASX
    Short DescriptionPadova, Wall, 48", SS, BODY ONLY
    CollectionDesigner Collection
    UPC646328444838
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage6.5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsMUA006A, MUA008A, Z0B0040
    Country of OriginItaly
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Required Accessory: Blower 1EBI-600B
    Required Accessory: Blower 2CBE-1000
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210005
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN28 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8, 3.25 x 10
    Duct Size; Vertical; IN8
  • Net Height; IN28.5 - 35
    Net Width; IN48
    Nominal Width; IN48
    Net Depth; IN24.5
    Weight; LBS83.77
    Ceiling Height Maximum8.5 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Multiple blower options
    Feature 2Professional Baffle Filters
    Feature 2 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 3Multiple color options
    Feature 3 DefinitionMultiple colors available to match your kitchen decor.
    Feature 4Vertical or horizontal ducting
    Feature 4 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
    External Blower CFM1000
  • Warranty Parts / Labor2 / 1
  • Shipping Height; IN23.82
    Shipping Length; IN28.54
    Shipping Width; IN49.21
    Shipping Weight; LBS89.29
  • Optional Accessory 1MUA006A
    Optional Accessory 3Z0B0040
