CTP-E54CSX
Head On IsoDownload

Range Hood

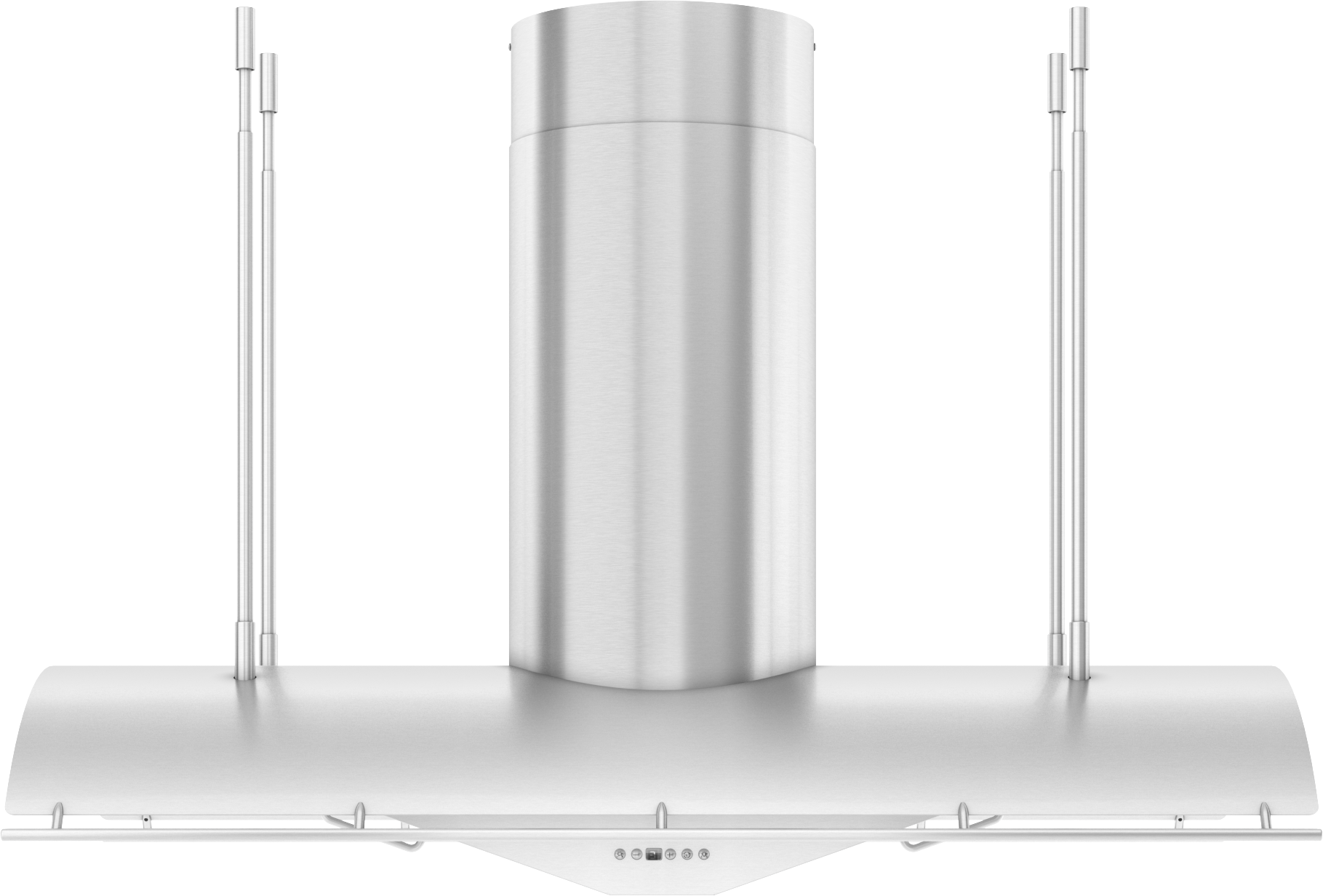

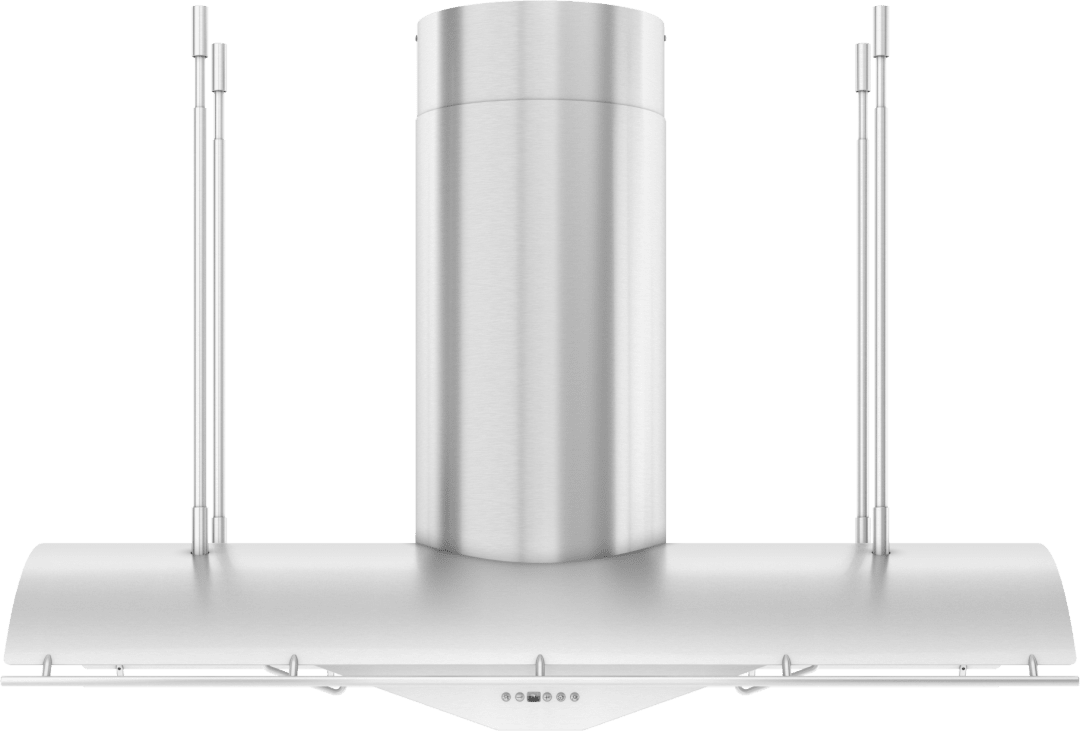

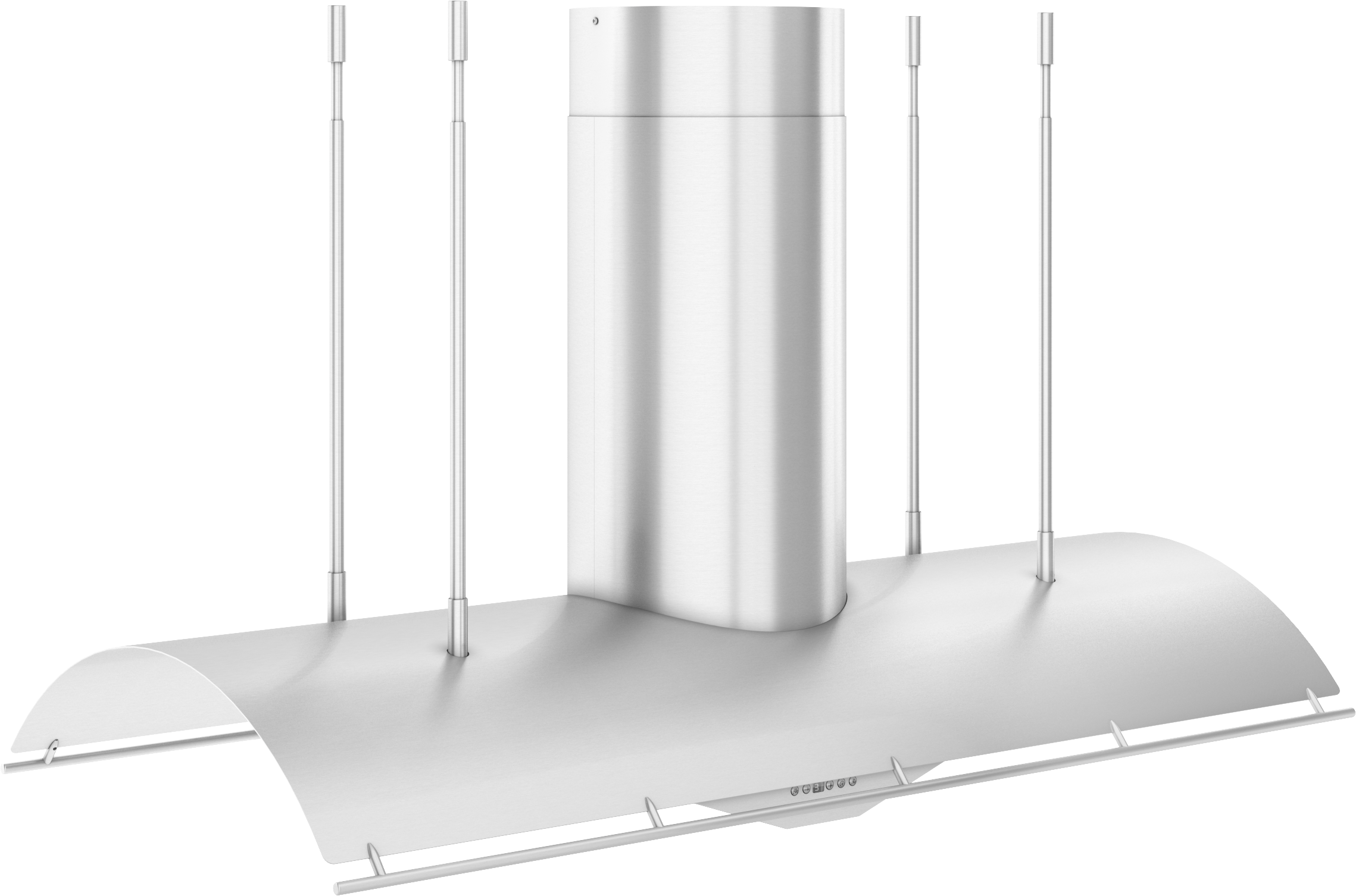

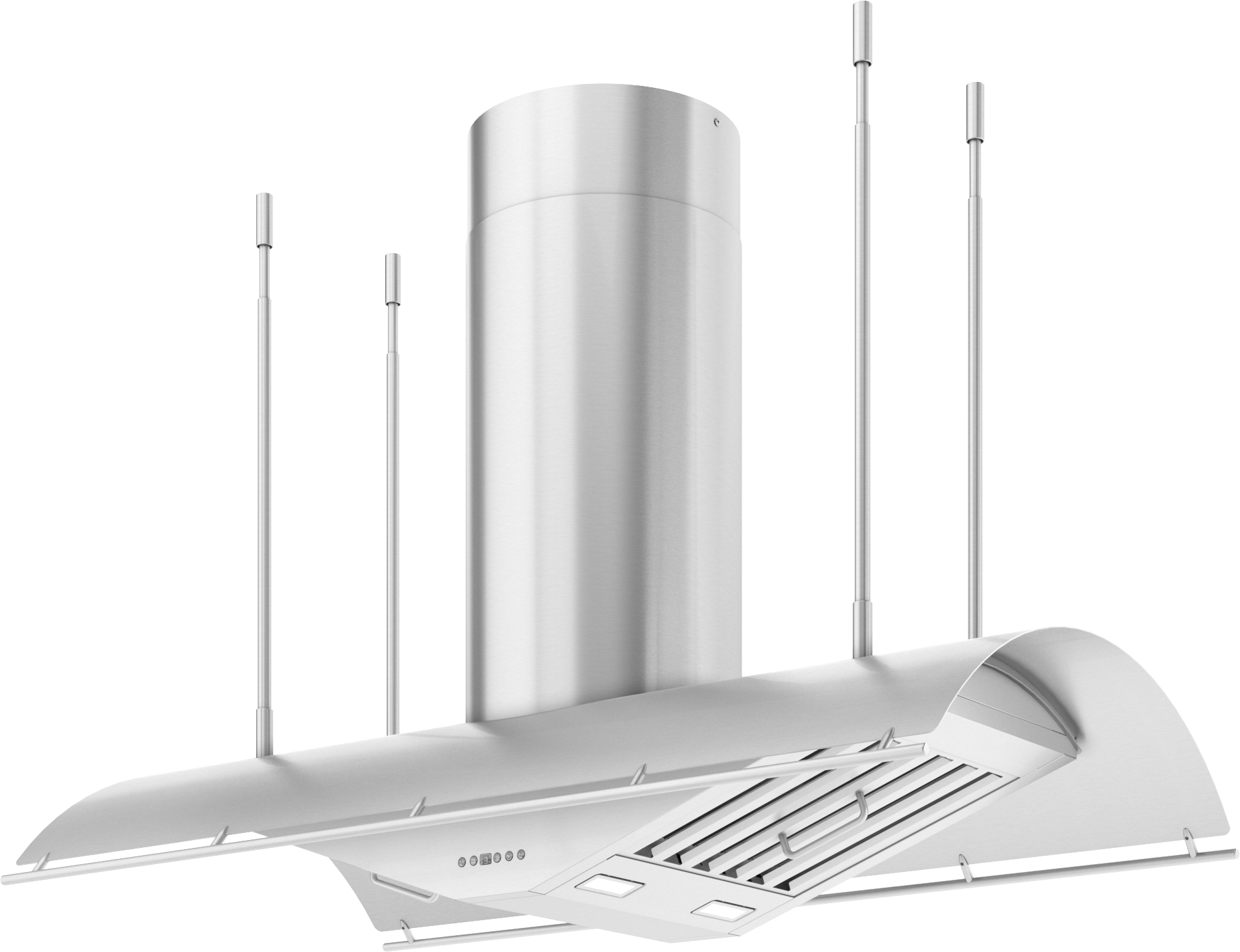

CTP-E54CSX

Trapeze Island

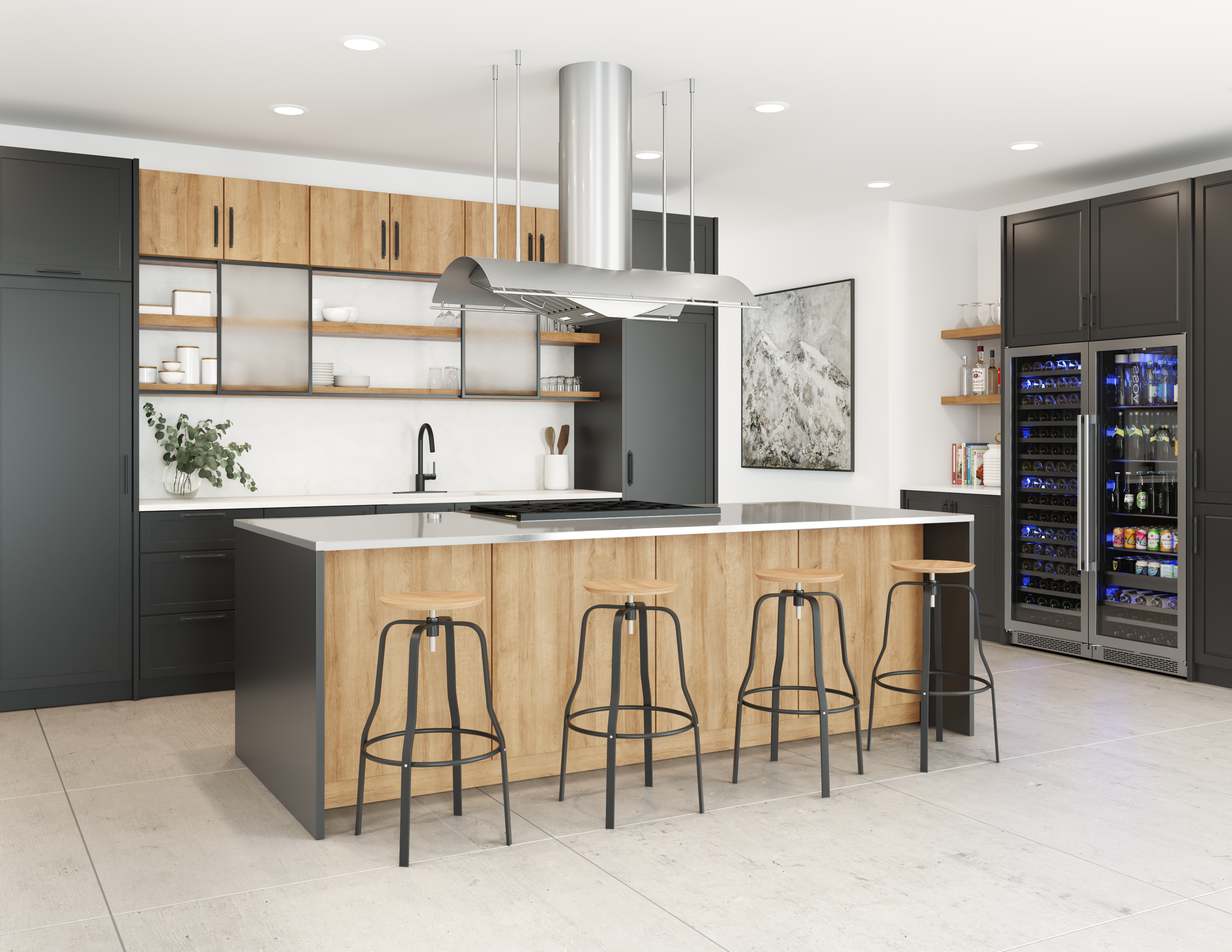

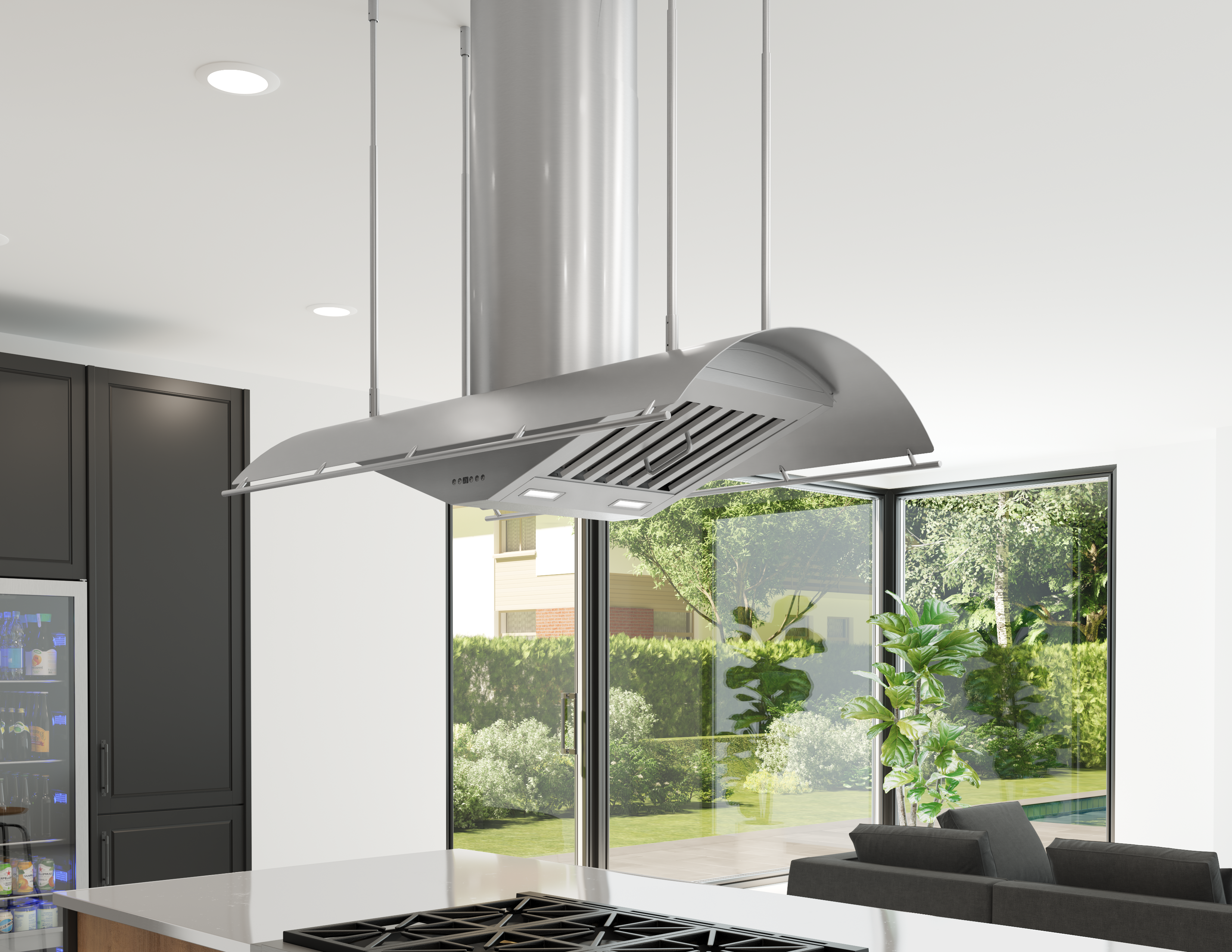

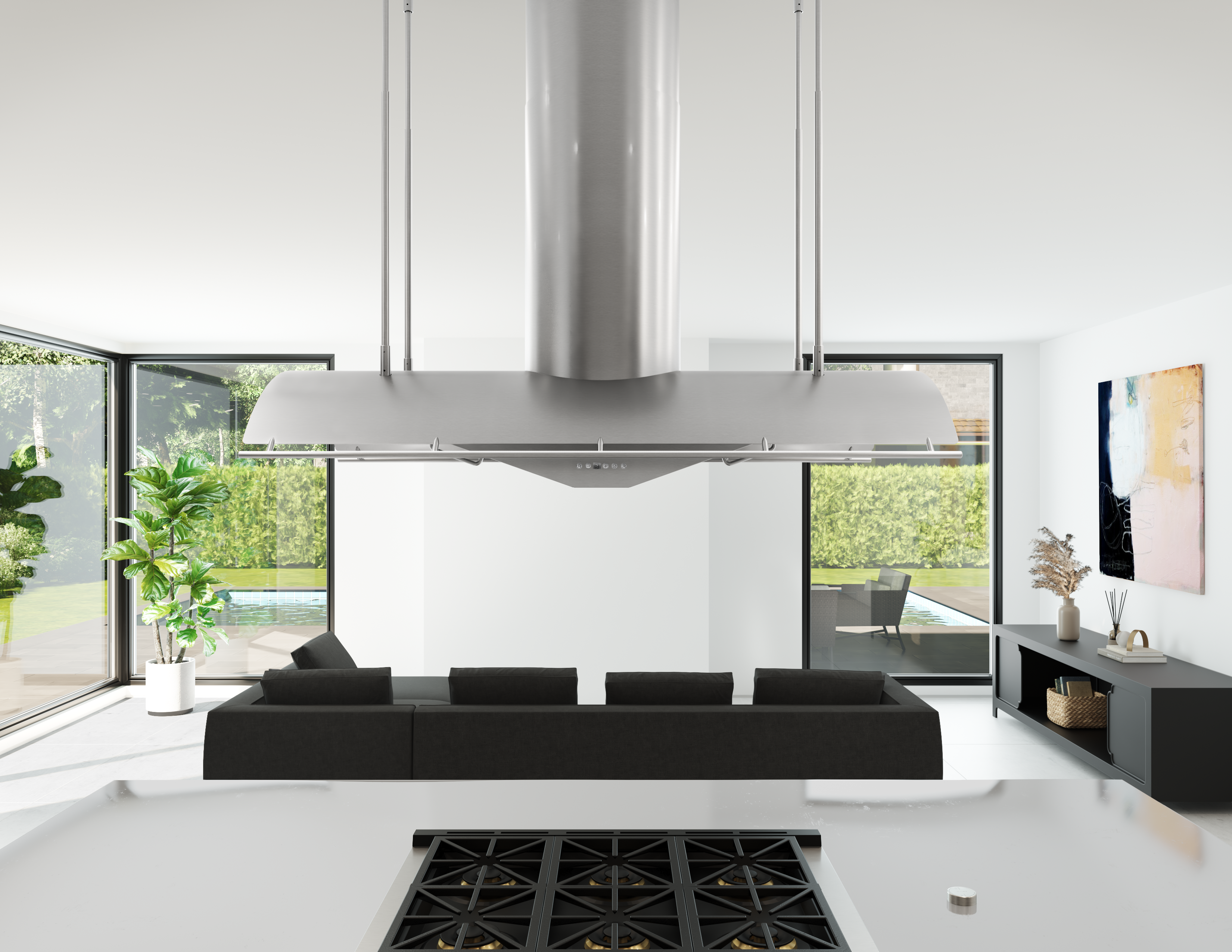

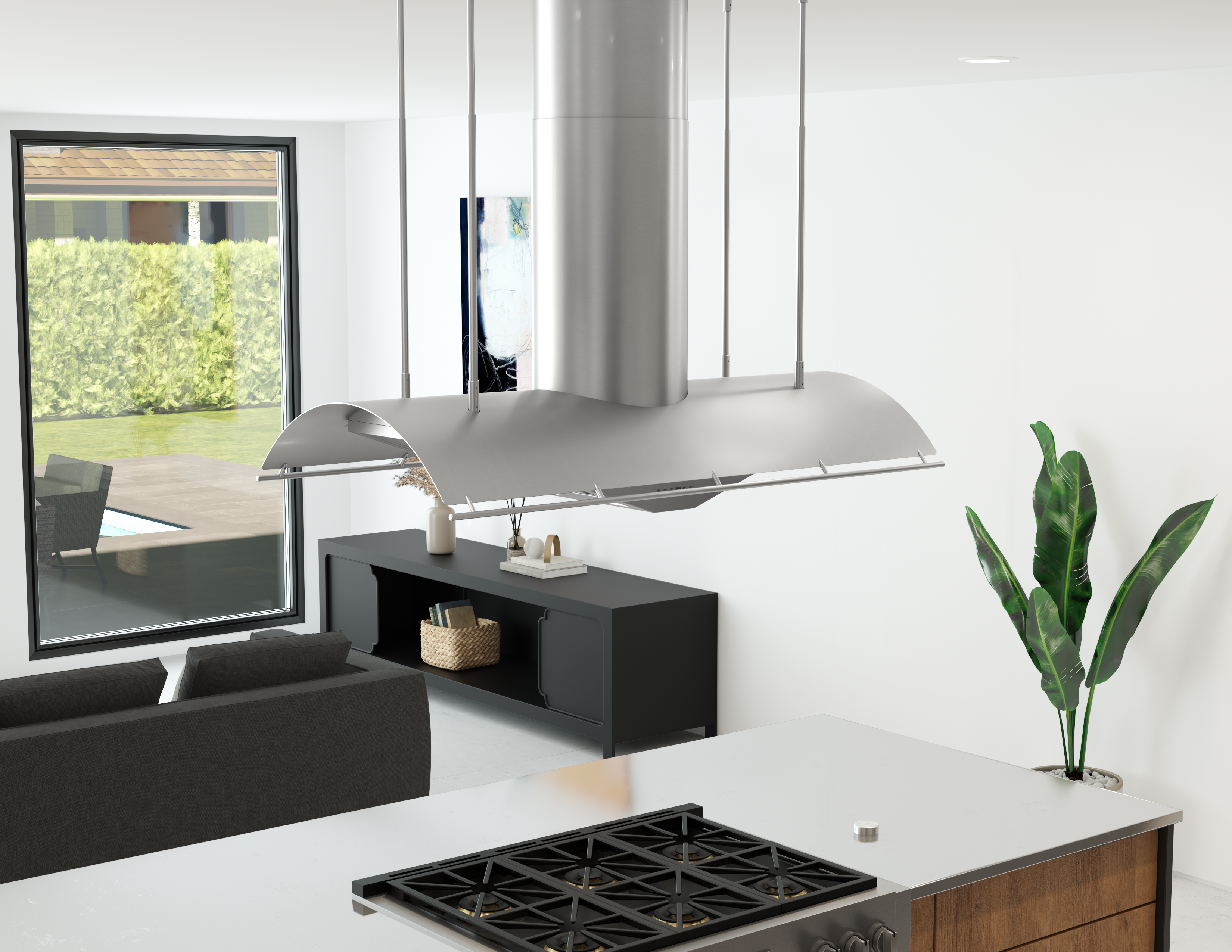

  • Light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a sleek suspension structure, the Trapeze seems to float in midair. Featuring directional LumiLight LED lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point — it’s a statement.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #CTP-E54CSX
    MSRP ($)$5899
    Short DescriptionTrapeze, 54in, SS, LED, BODY ONLY
    CollectionDesigner Collection
    UPC646328010439
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage6.5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsCBI-290C, CBI-600A, PBN-1000A, CBE-1000, CBI-390A, Z1C-00TP, 14000005, MUA006A, MUA008A
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Required Accessory: Blower 1CBI-290C
    Required Accessory: Blower 2CBI-390A
    Required Accessory: Blower 3CBI-600A
    Required Accessory: Blower 4PBN-1000A
    Required Accessory: Blower 5CBE-1000
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210039
    Duct DischargeVertical
    Duct Size; Vertical; IN8
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Vertical; IN8
  • Net Height; IN34 - 52
    Net Width; IN54
    Nominal Width; IN54
    Net Depth; IN26.625
    Weight; LBS88
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Multiple Blower Options
    Feature 1 DefinitionMultiple blower options are available to fit your application.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Directional lighting
    Feature 3 DefinitionThe light bulbs can be adjusted to direct light over cooking surface where it is needed the most.
    Feature 4Professional Baffle Filters
    Feature 4 DefinitionHigh-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
    Feature 5Electronic Touch Controls
    Feature 5 DefinitionElectronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
    Feature 6Optional Wireless Remote Control (14000005)
    Feature 6 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones3
    Internal Blower 2 CFM600
    Internal Blower 2 Max Sones6
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.63
    Shipping Length; IN57.95
    Shipping Width; IN29.25
    Shipping Weight; LBS111.6
  • Optional Accessory 1Z1C-00TP
    Optional Accessory 2MUA006A
    Optional Accessory 3MUA008A
    Optional Accessory 414000005
