DAP-M90AMWX
Head On IsoDownload

Range Hood

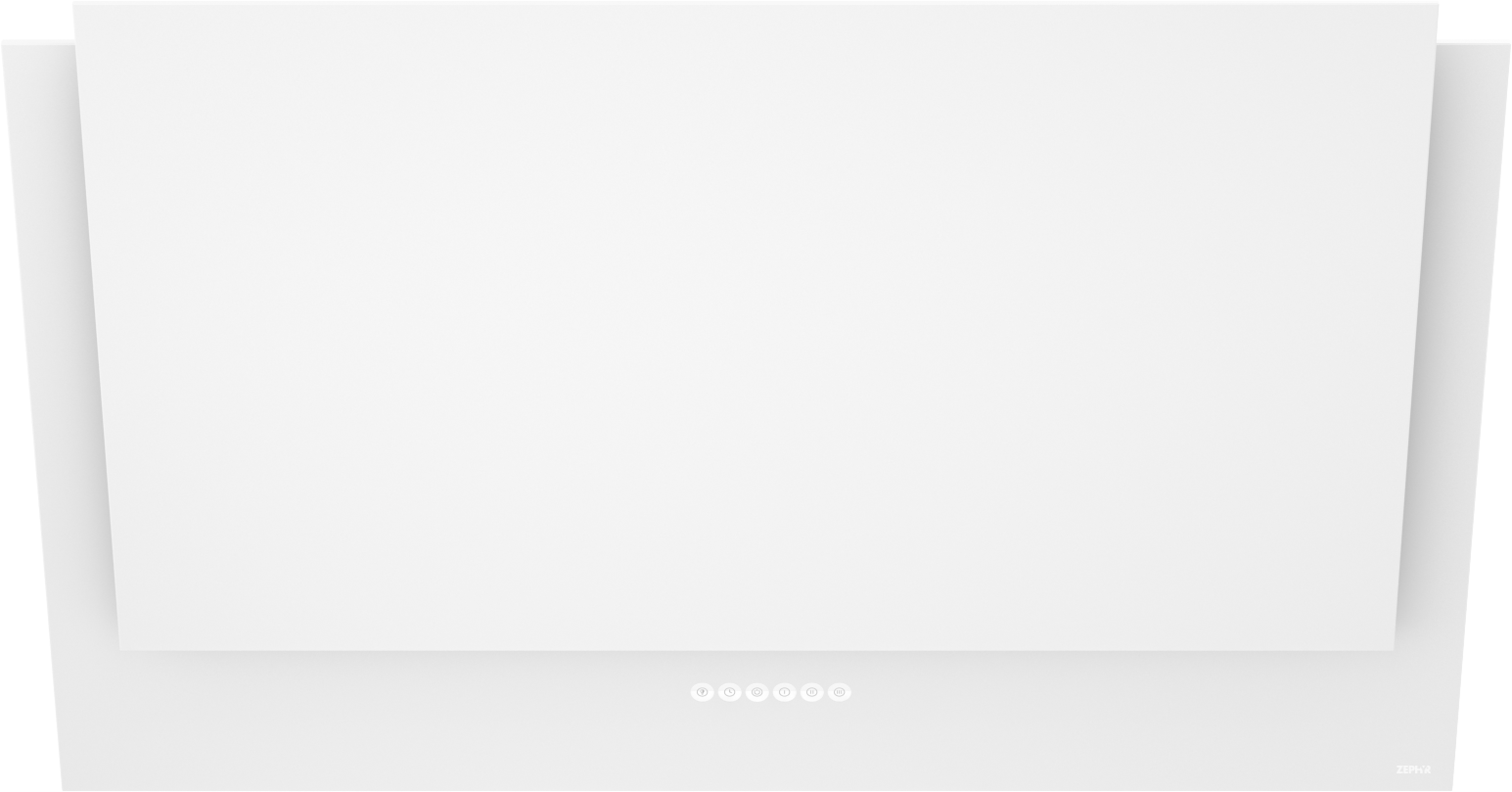

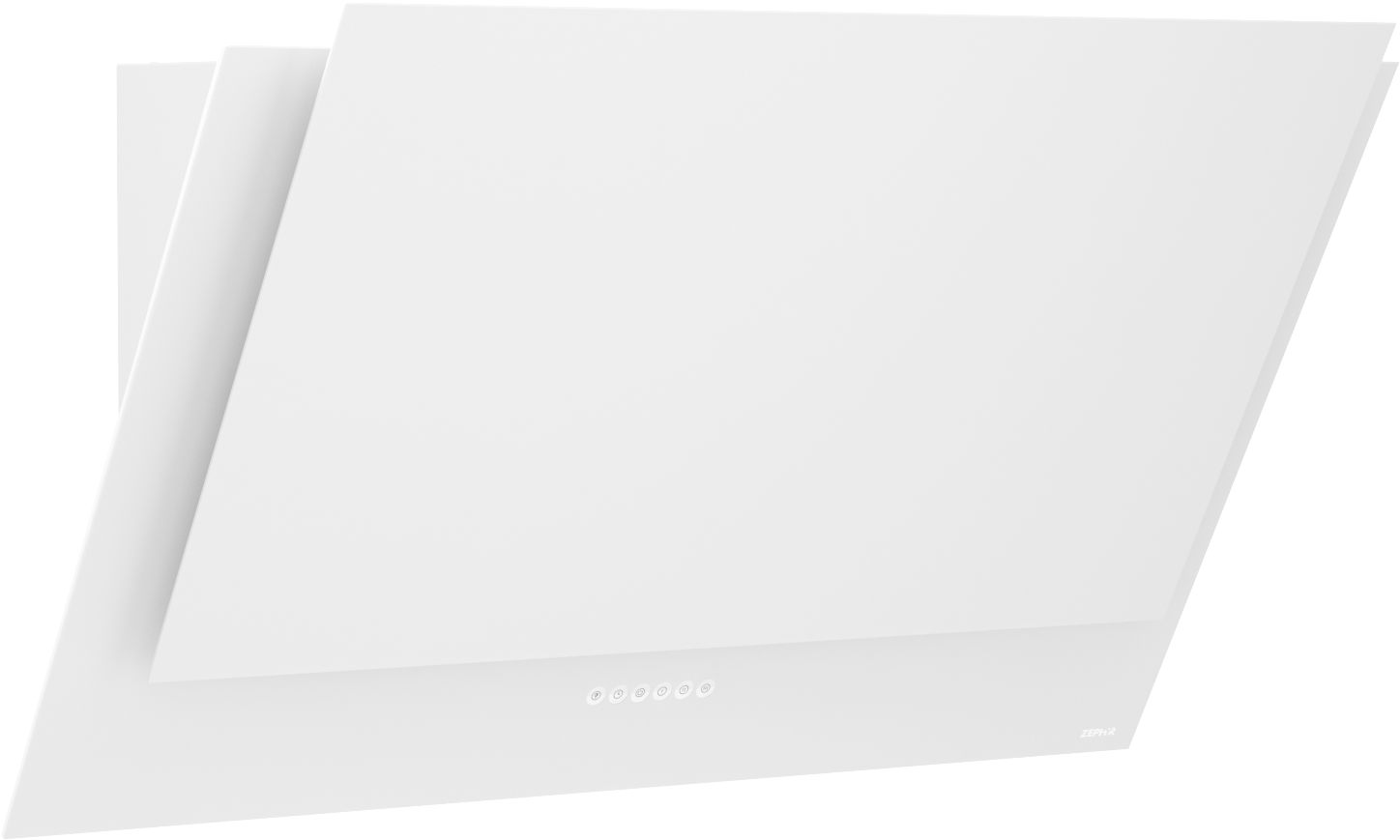

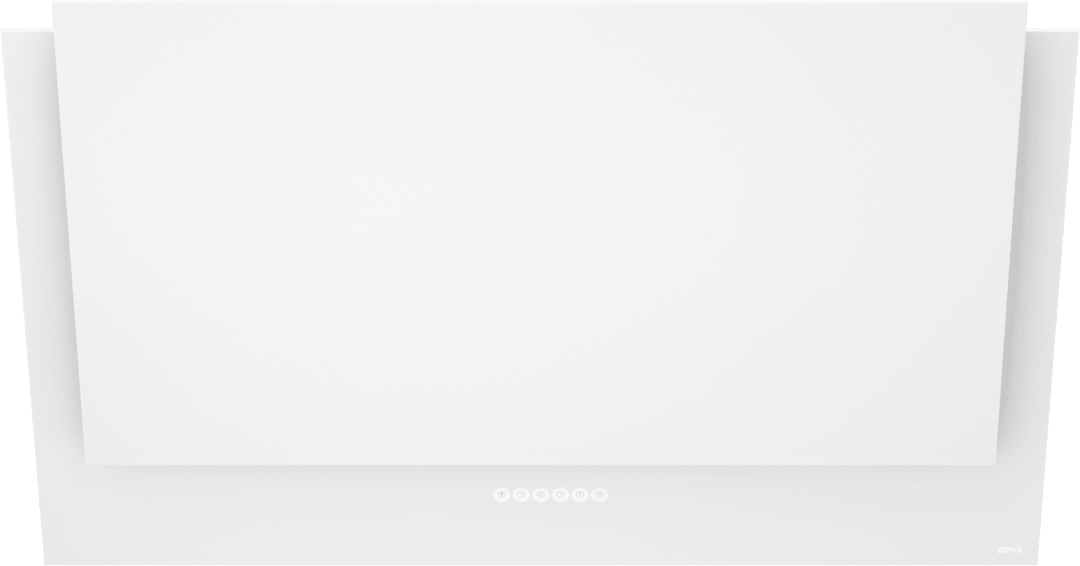

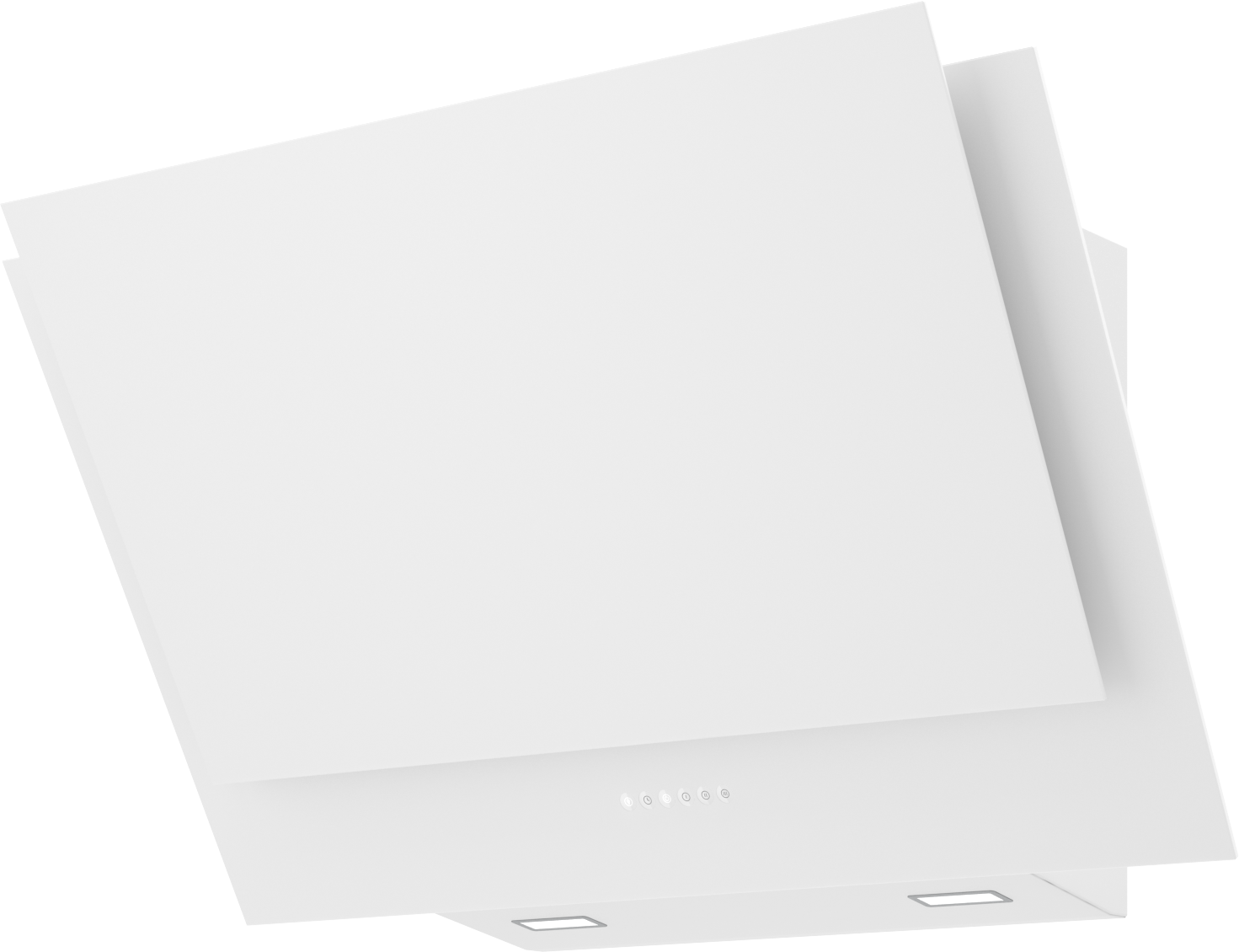

DAP-M90AMWX

Apex Wall

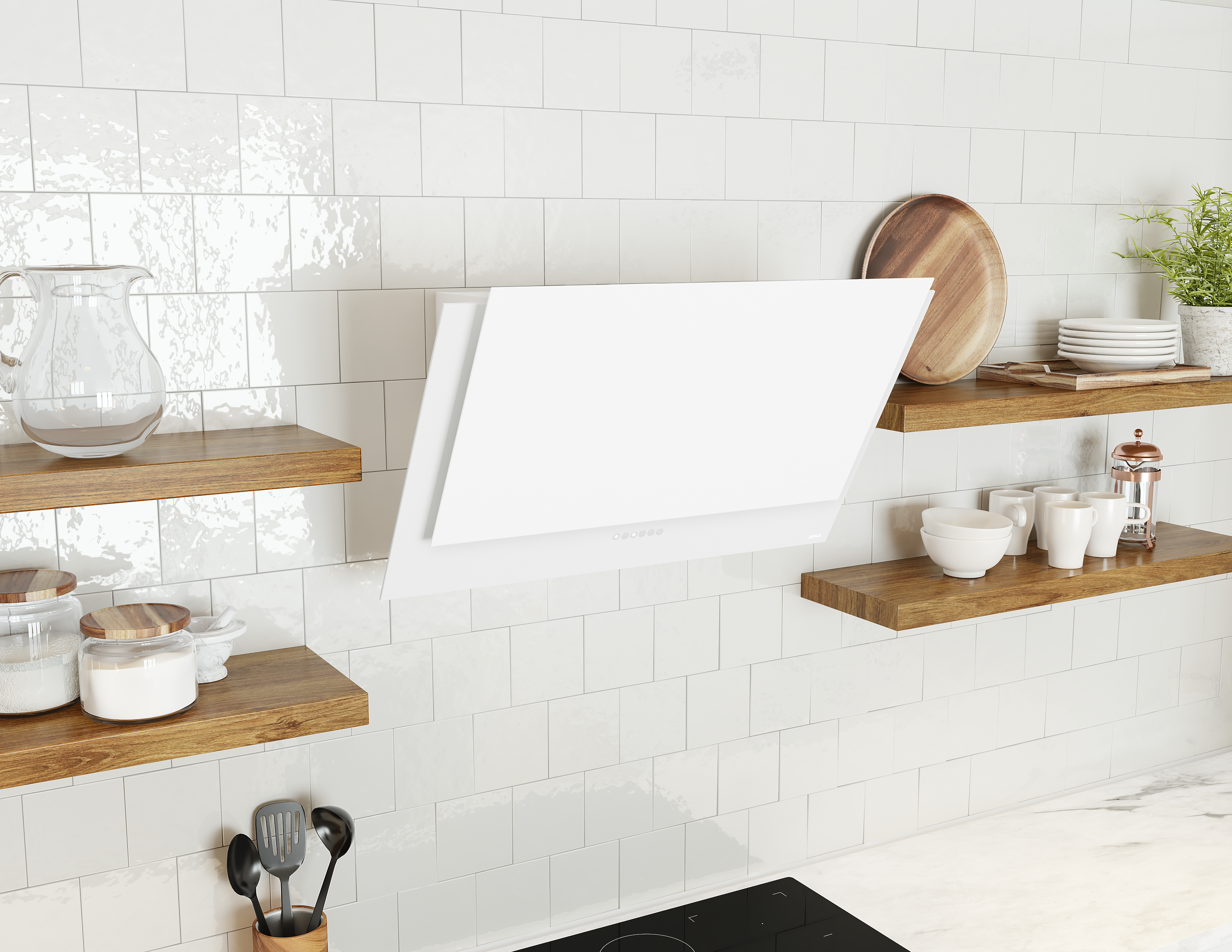

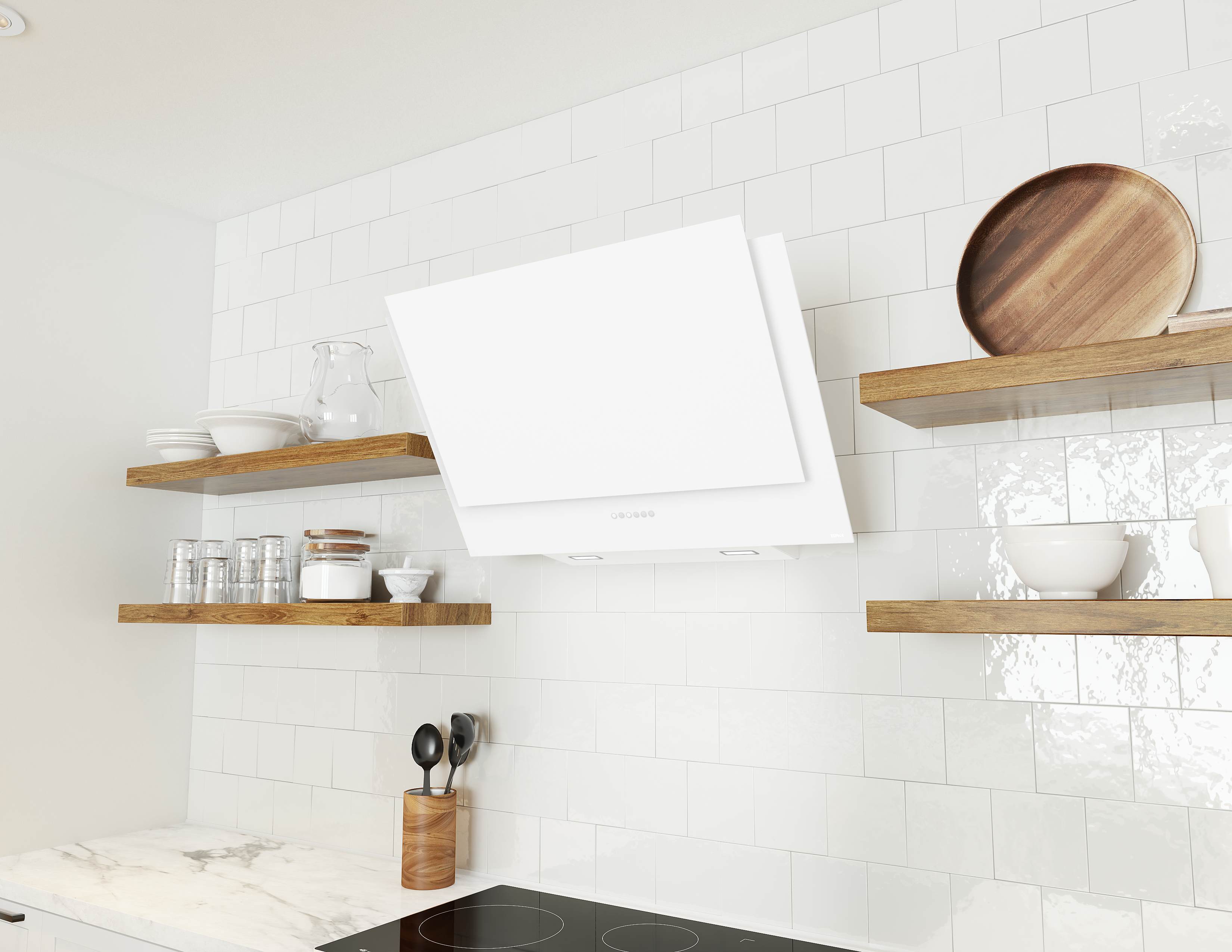

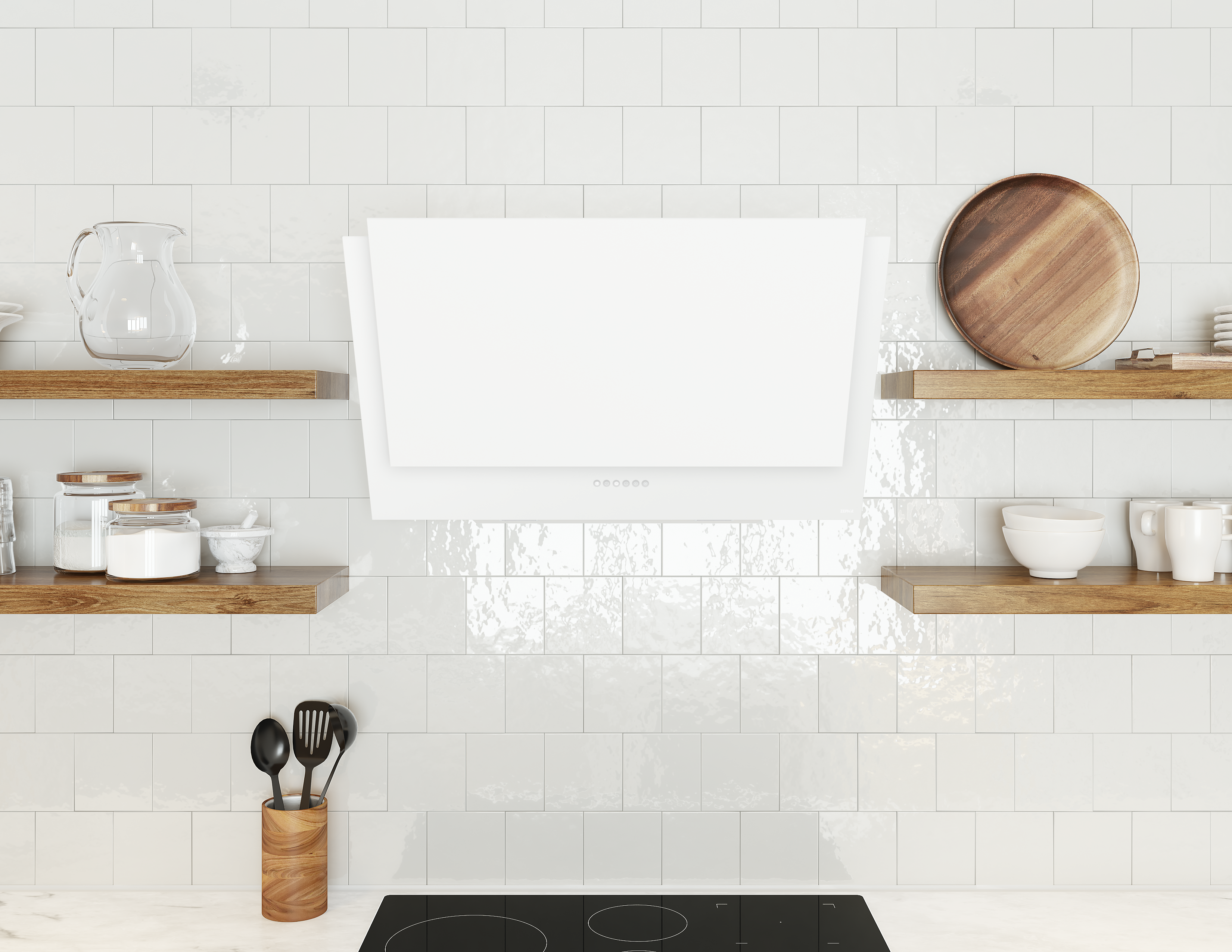

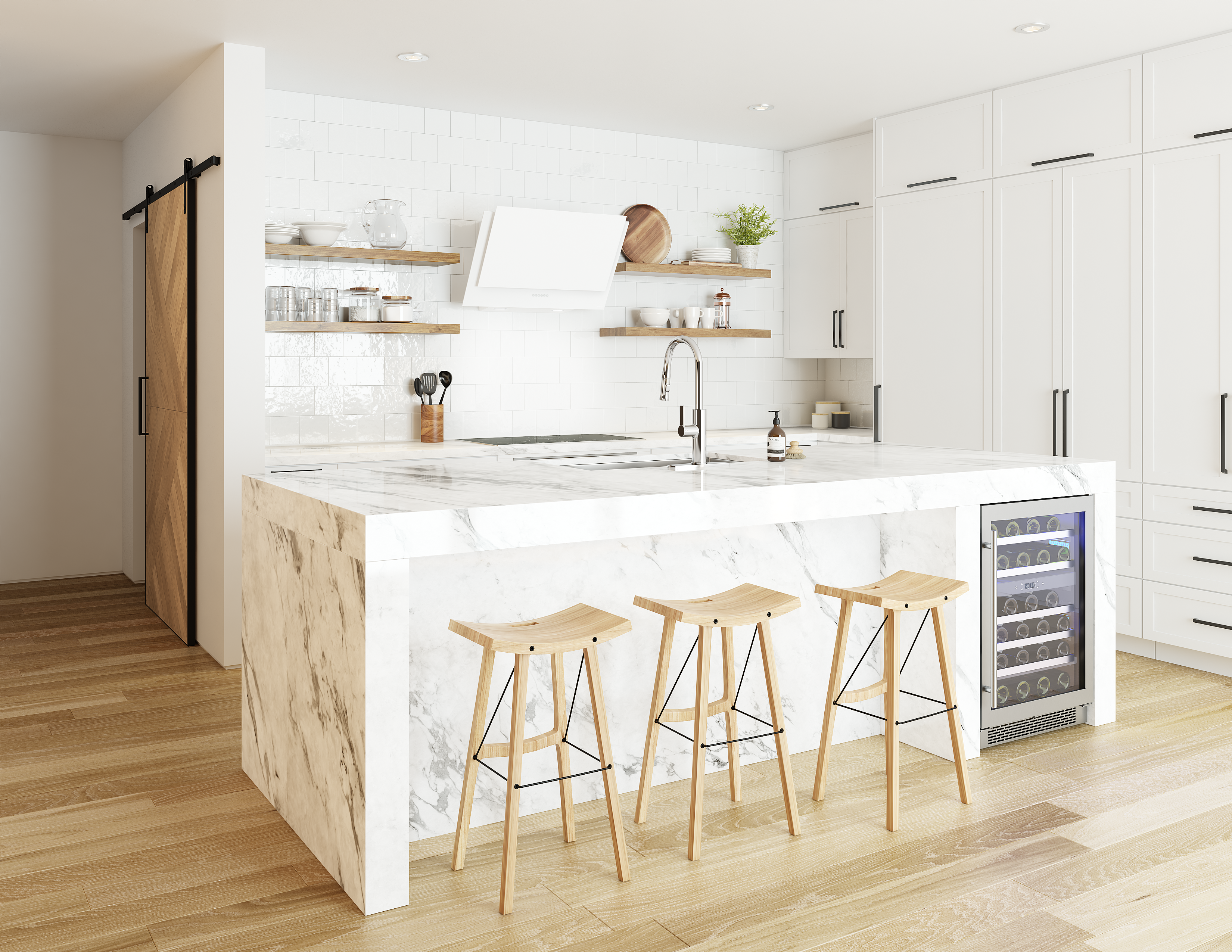

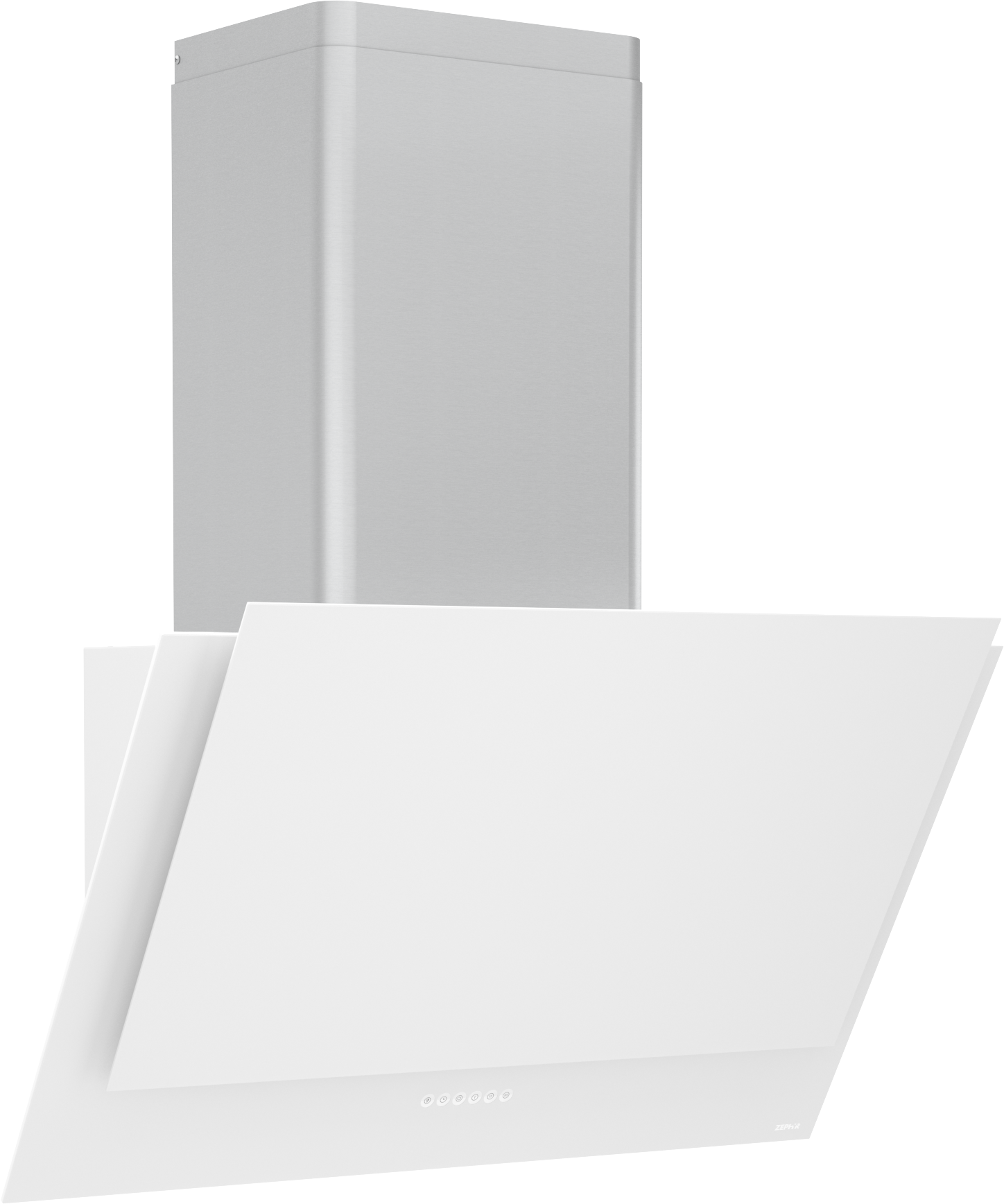

  • Exceptional style, plus the power and performance you’d expect from Zephyr. Featuring white or black glass with matte finish, our Perimeter Aspiration System, easy Capacitive Touch Controls and a recirculating option, the Apex Wall is a hood for today, tomorrow, and beyond. Also includes optional duct cover and remote control.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #DAP-M90AMWX
    MSRP ($)$1899
    Short DescriptionApex, 90cm, Matte White, BODY ONLY
    CollectionDesigner Collection
    UPC646328008894
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage6.42
    ColorMatte White
    Lights Levels3
    Compatible ModelsCBI-390A, CBI-290C, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, Z0F-C010, Z1C-00MESS, ZRC-00AP, MUA006A, MUA008A, RC-0003
    Country of OriginItaly
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Required Accessory: Blower 1CBI-290C
    Required Accessory: Blower 2CBI-390A
    Required Accessory: Blower 3CBI-600A
    Required Accessory: Blower 4PBN-1000A
    Required Accessory: Blower 5CBE-1000
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200064
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8
    Duct Size; Vertical; IN6, 8
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8
    Duct Size; Vertical; IN6, 8
  • Net Height; IN19.75
    Net Width; IN35.375
    Nominal Width; IN36
    Net Depth; IN19.8125
    Weight; LBS55
    Ceiling Height Maximum11 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Multiple Blower Options
    Feature 1 DefinitionMultiple blower options are available to fit your application.
    Feature 2Capacitive Touch Controls
    Feature 2 DefinitionCapacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
    Feature 3Tri-Level Lighting
    Feature 3 DefinitionThe tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 4Perimeter Aspiration System
    Feature 4 DefinitionThis form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
    Feature 5Optional Wireless Remote Control (RC-0003)
    Feature 5 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Feature 6Optional Duct Cover Kit

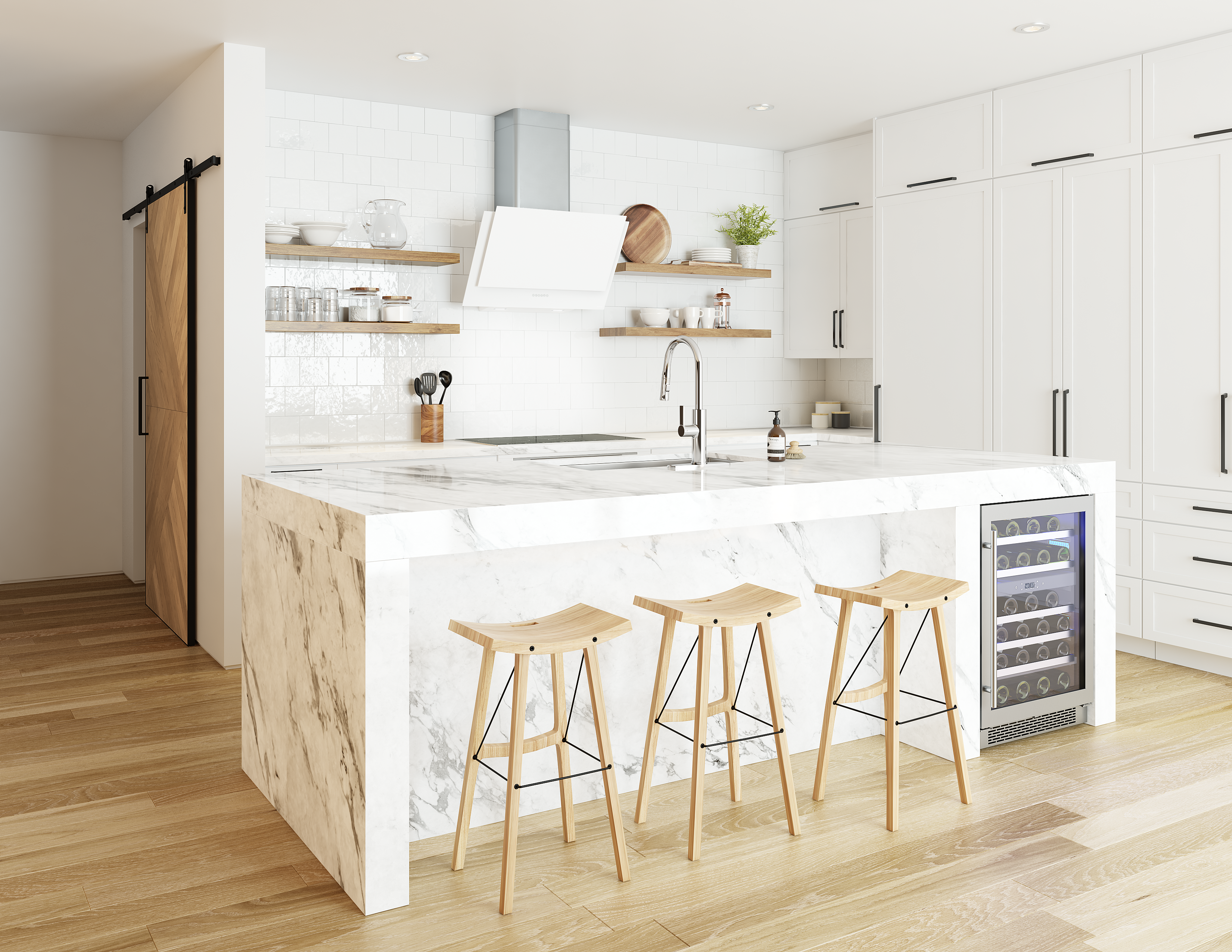

    Feature 6 DefinitionThis duct cover extends the range hood height and encloses the space from the top of your hood to the ceiling or soffit, and also provides a clean, finished look. Please check your Zephyr range hood specification sheet to ensure compatibility.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones6
    Internal Blower 2 CFM290
    Internal Blower 2 Max Sones3
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor2 / 1
  • Shipping Height; IN25.6
    Shipping Length; IN37.8
    Shipping Width; IN22.5
    Shipping Weight; LBS39.7
  • Optional Accessory 1ZRC-00AP
    Optional Accessory 2Z1C-00MESS
    Optional Accessory 3Z0F-C010
    Optional Accessory 4RC-0003
    Optional Accessory 5MUA006A
    Optional Accessory 6MUA008A
