Head On Iso
Range Hood

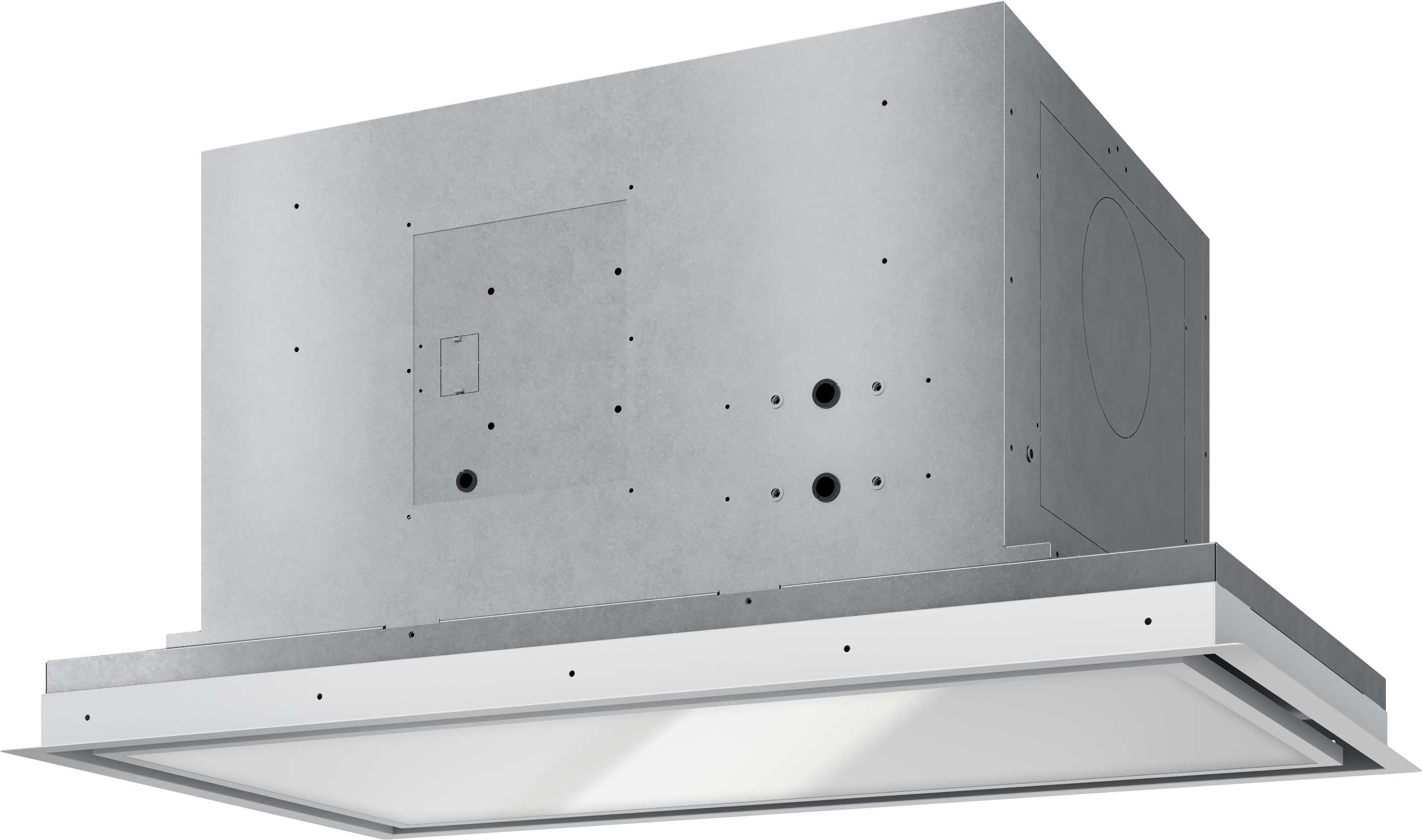

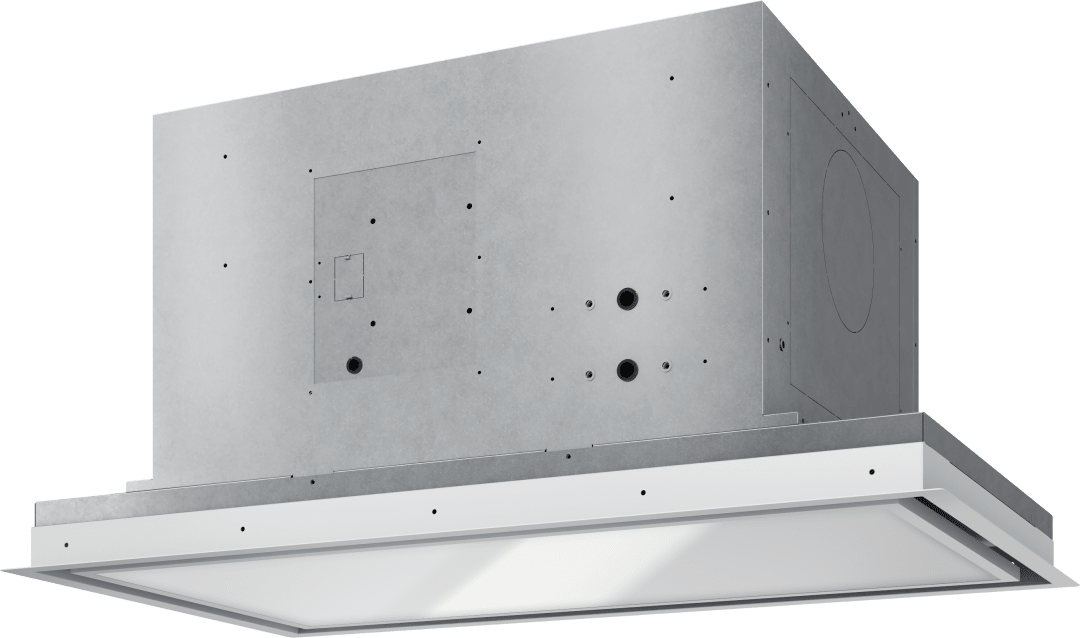

DLG-E36AWX
Lux Glo Island
- Our customer favorite in-ceiling island hood just got a glow up — along with our iconic Perimeter Aspiration System, its entire light panel now glows with an inviting, customizable TruHue™ light. Zephyr Connect app compatible, this hood provides real-time reminders for filter cleaning and delayed turnoff. Now, that’s an upgrade.
Product Status Active Brand Zephyr Model # DLG-E36AWX MSRP ($) $2499 Short Description Lux Glo, 36in, White, BODY ONLY Collection Designer Collection UPC 646328013058 Category Range Hood Installation Type Island For Outdoor Use No Controls Type Capacitive Touch Lighting Type LED Lights Quantity 1 Voltage 120 Color White Blower Speeds 3 Lights Levels 3 Mounting Height Above Cooktop; IN 26 - 72 Compatible Models CBI-290C, CBI-390A, CBI-600A, PBI-1100B, CBE-1000, PBN-1000A, ZRC-01LX, MUA006A, MUA008A, MUA010A, Z0F-C002 Country of Origin Taiwan Grease Filter Type Mesh Compatible Mesh or Baffle Filter Part Number 50200081 CEC Title 20 Compliant Yes ADA Compliant Yes Required Accessory: Blower 1 CBI-290C Required Accessory: Blower 2 CBI-390A Required Accessory: Blower 3 CBI-600A Required Accessory: Blower 4 PBI-1100B Required Accessory: Blower 5 PBN-1000A Required Accessory: Blower 6 CBE-1000 Duct Discharge Vertical or Horizontal Duct Size; Horizontal; IN 6, 10 Duct Size; Vertical; IN 6, 10 Net Height; IN 16.5 Net Width; IN 36 Nominal Width; IN 36 Net Depth; IN 21 Weight; LBS 62 Cutout Depth in. 19.5 Cutout Width in. 34.625 Feature 1 Compatible with Zephyr Connect App Feature 1 Definition The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device. Feature 2 Includes Wireless Remote Control Feature 2 Definition Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. Feature 3 Glo™ LED PAS Light Panel with TruHue™ Feature 3 Definition The Glo LED PAS Light Panel with TruHue features a built-in Perimeter Aspiration System to increase air velocity and improves the capture of cooking contaminates, plus adjustable LED lighting with TruHue technology to enable you to match your hood lights to your primary lighting anywhere from 2700K to 5000K. Feature 4 Perimeter Aspiration System Feature 4 Definition This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates. Feature 5 Tri-Level Lighting Feature 5 Definition The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 6 CleanAir Function Feature 6 Definition The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area. Feature 7 Multiple Blower Options Feature 7 Definition Multiple blower options are available to fit your application. Feature 8 Optional Ductless Recirculating Kit Feature 8 Definition Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. Energy Star Certified No Blower Included No Internal Blower 1 CFM 290 Internal Blower 1 Min. Sones 1.4 Internal Blower 1 Max Sones 3 Internal Blower 2 CFM 600 Internal Blower 2 Max Sones 6 Internal Blower 3 CFM 1100 Internal Blower 3 Max Sones 8 In-Line Blower CFM 1000 External Blower CFM 1000 Warranty Parts / Labor 3 / 1 Shipping Height; IN 18.7 Shipping Length; IN 40.9 Shipping Width; IN 25.2 Shipping Weight; LBS 81.1 Optional Accessory 1 ZRC-01LX Optional Accessory 2 MUA006A Optional Accessory 3 MUA008A Optional Accessory 4 Z0F-C002
