DME-M90ASSX
Head On IsoDownload

Range Hood

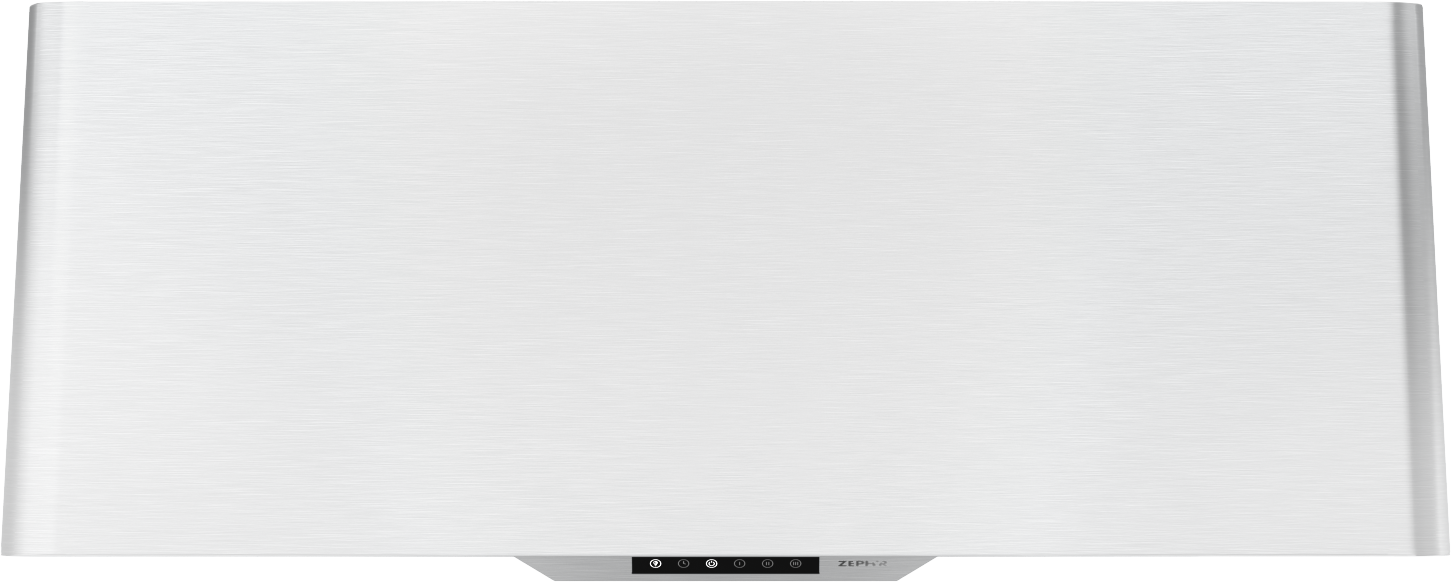

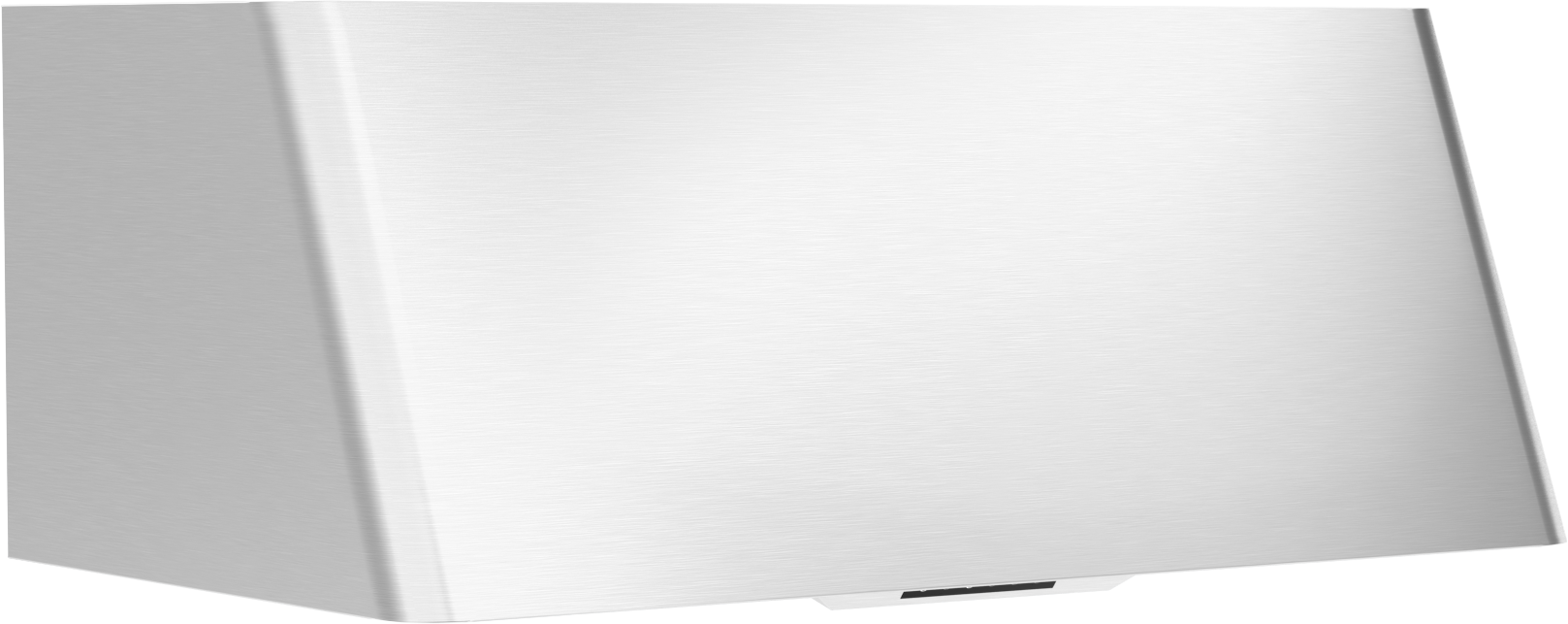

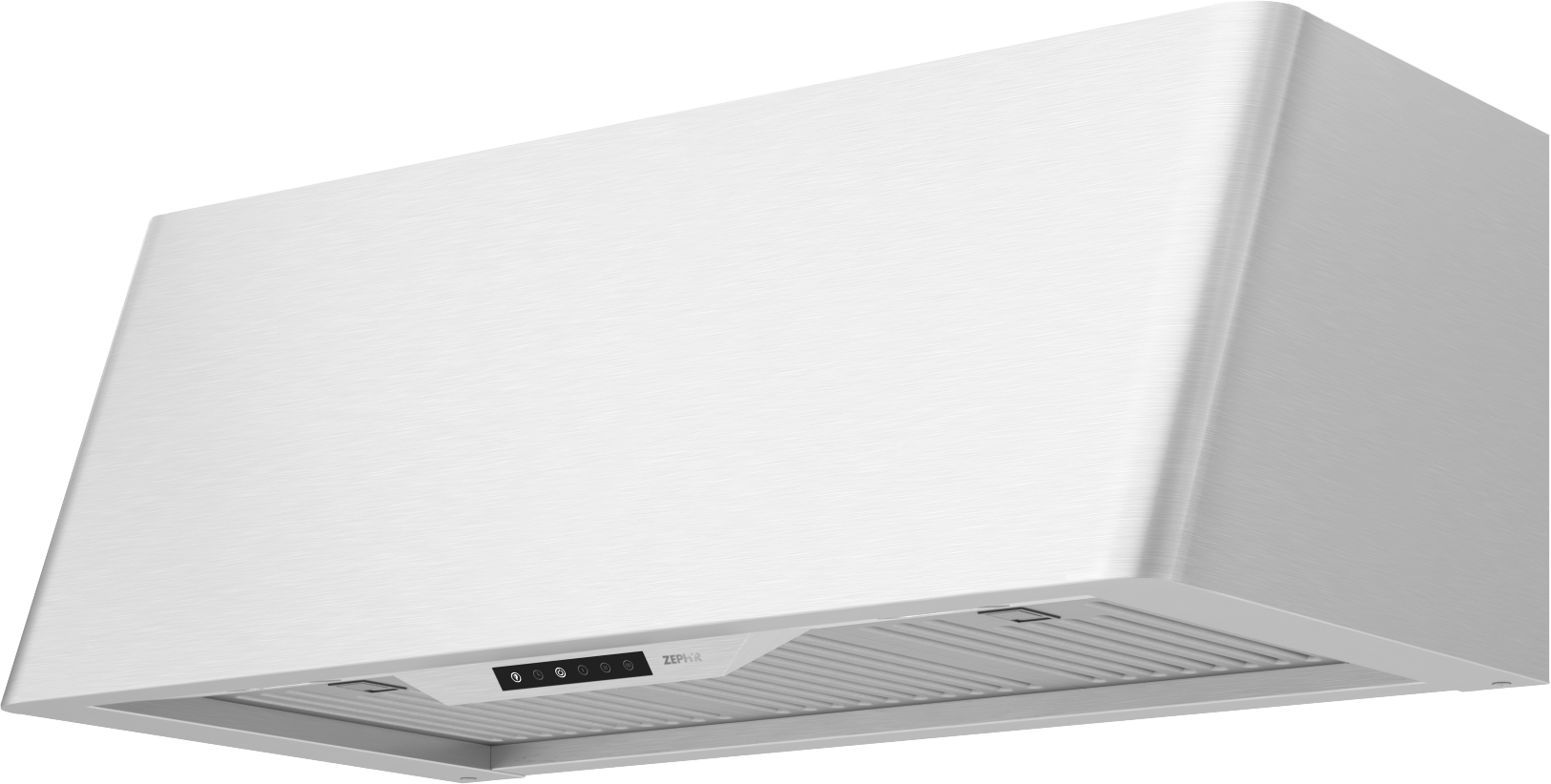

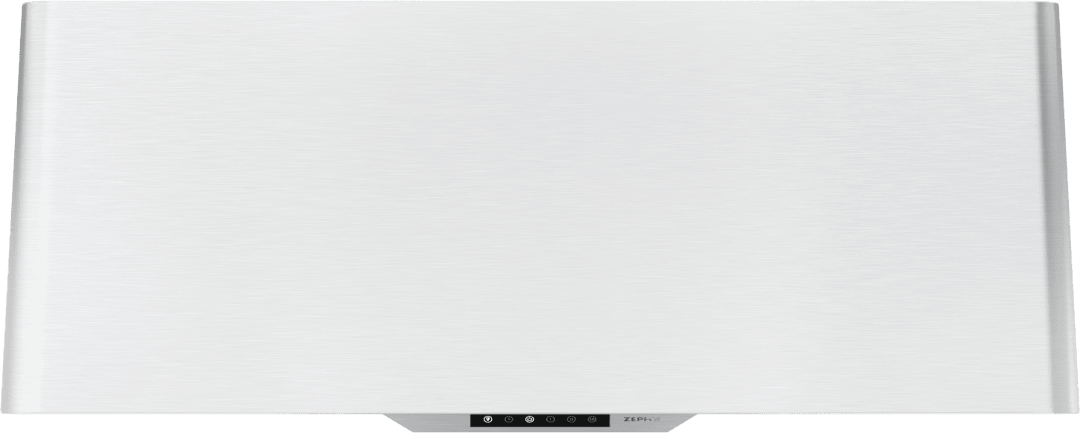

DME-M90ASSX

Mesa Wall

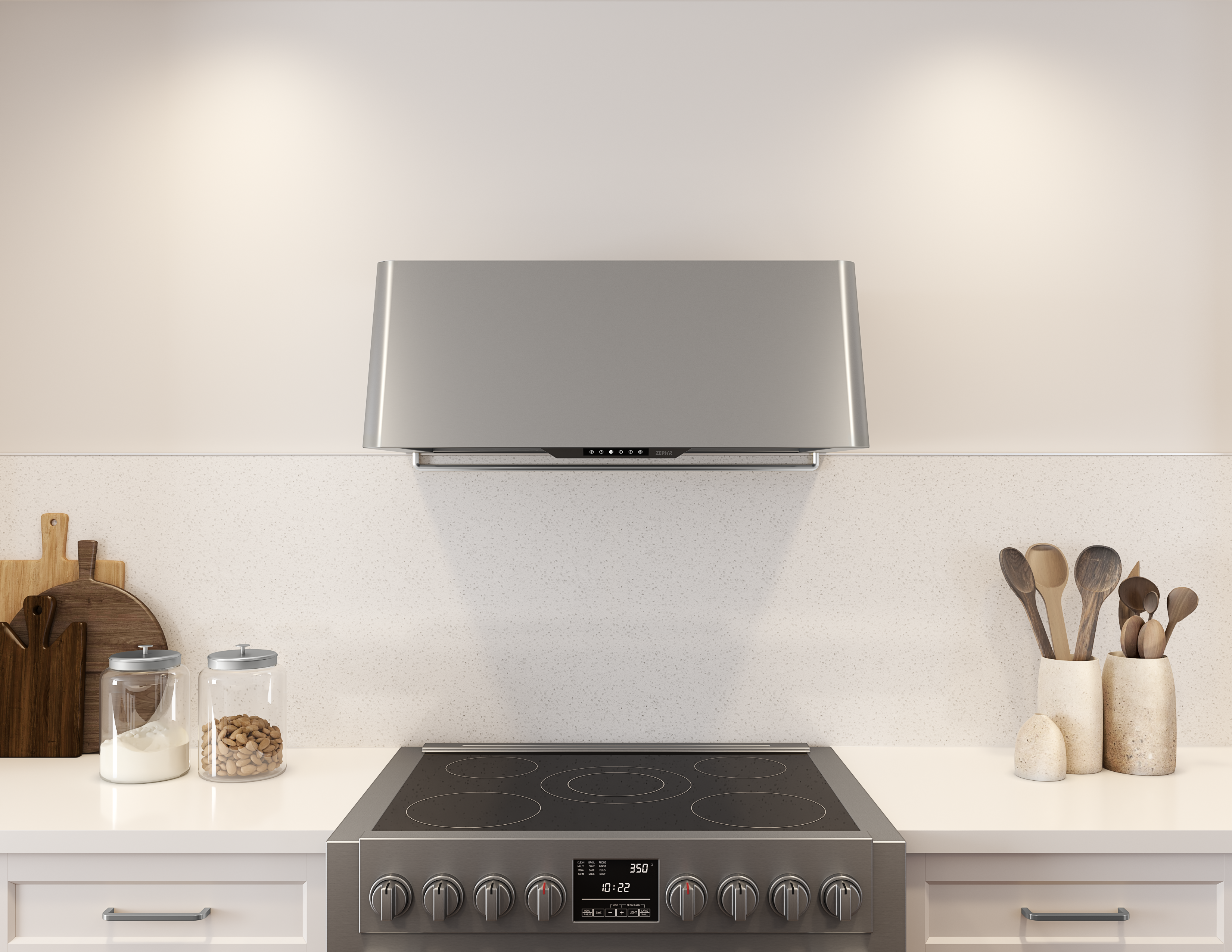

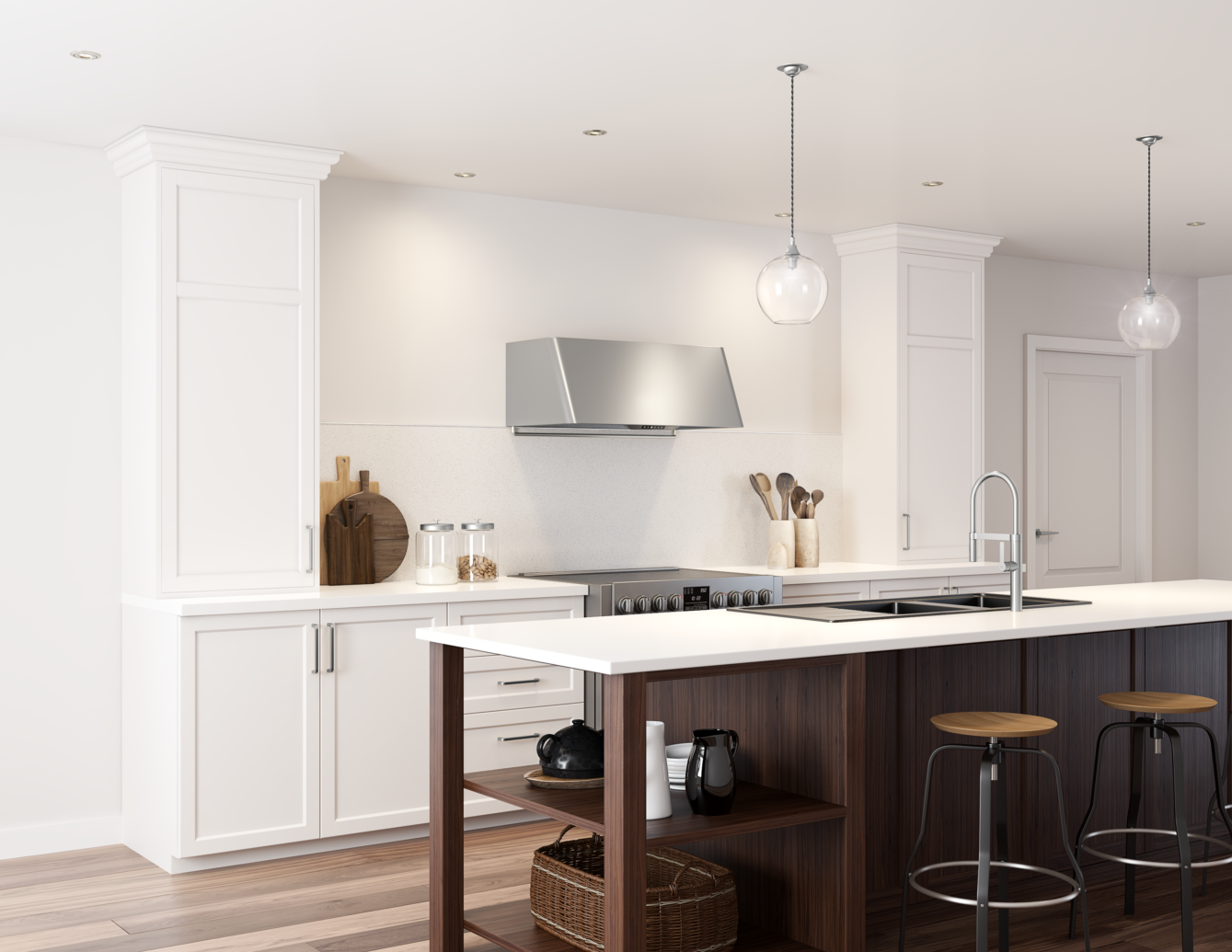

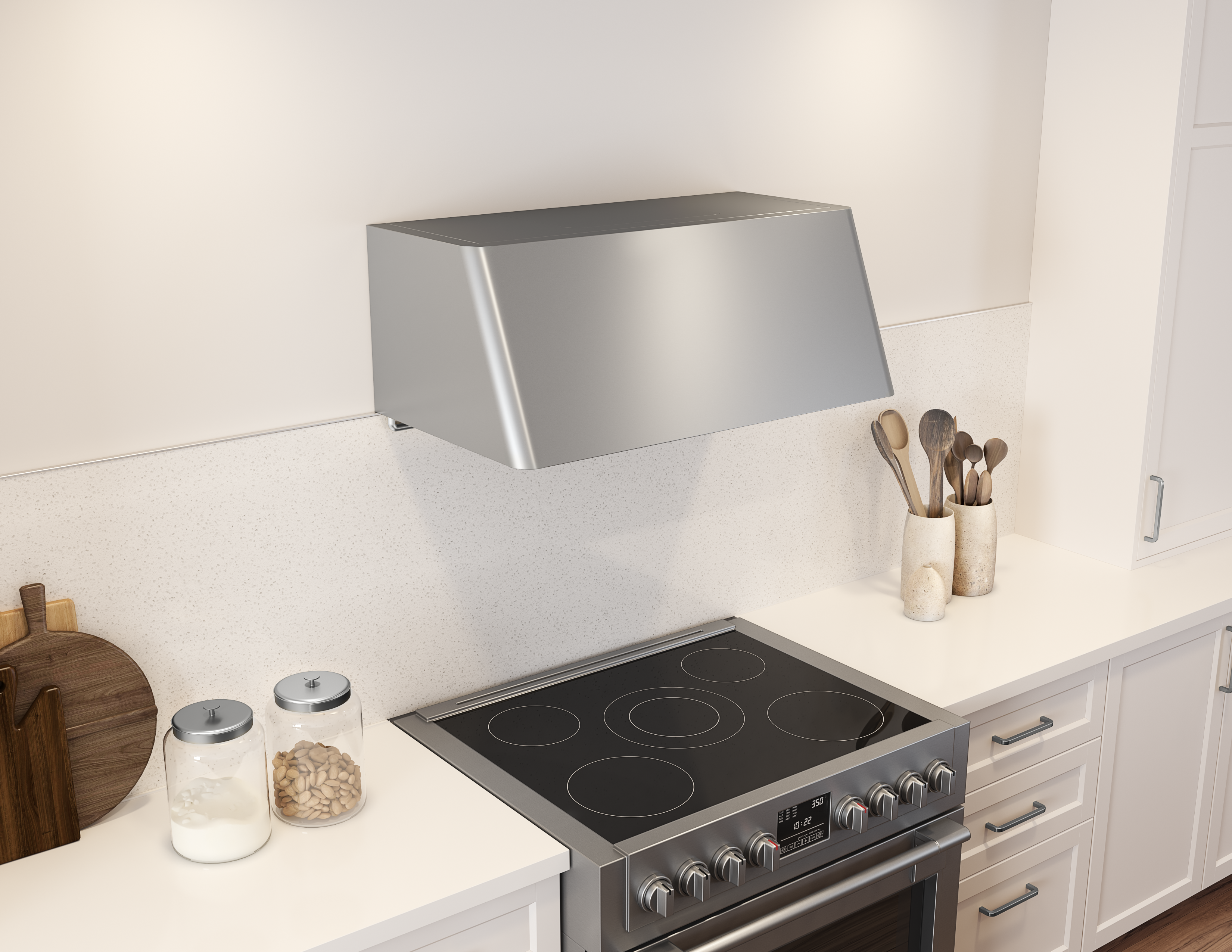

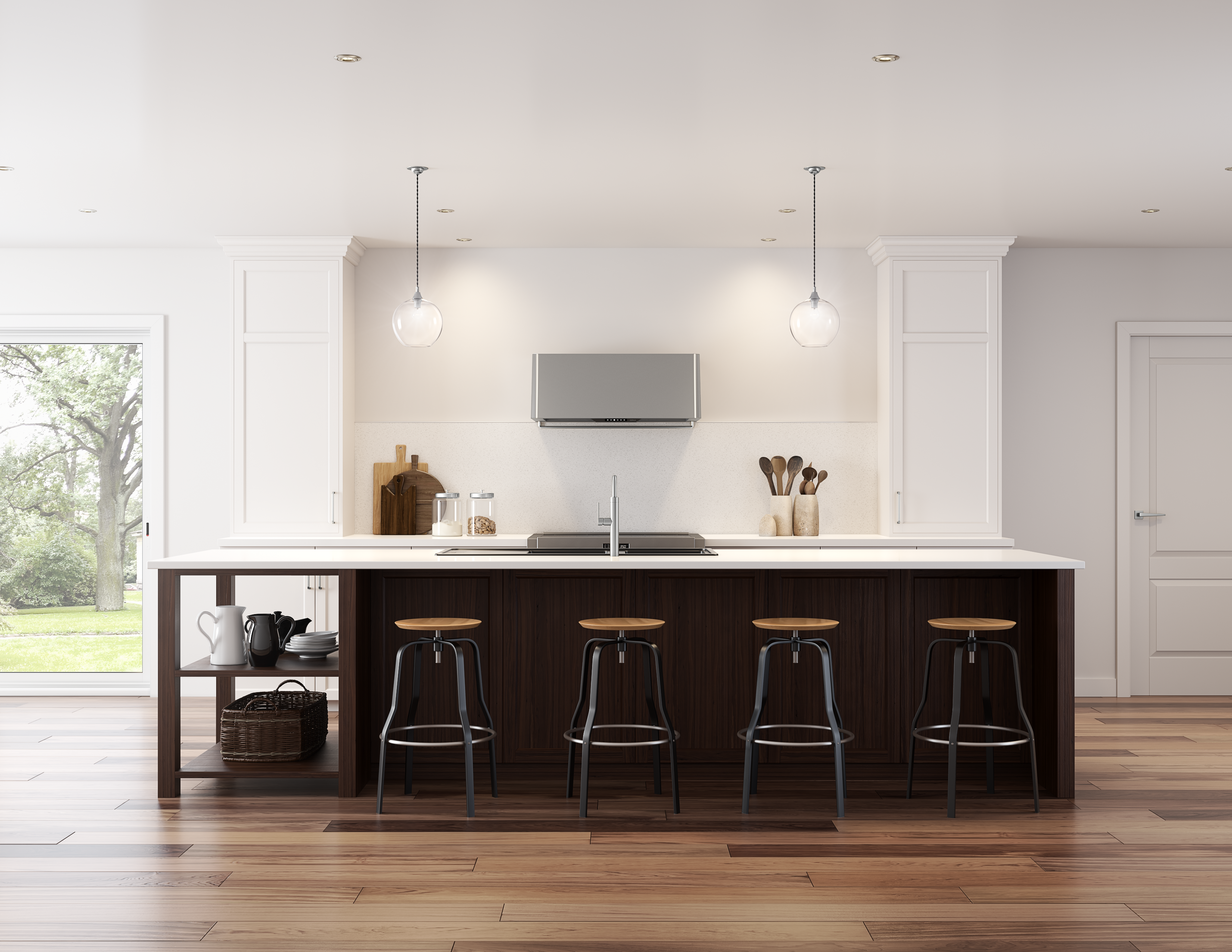

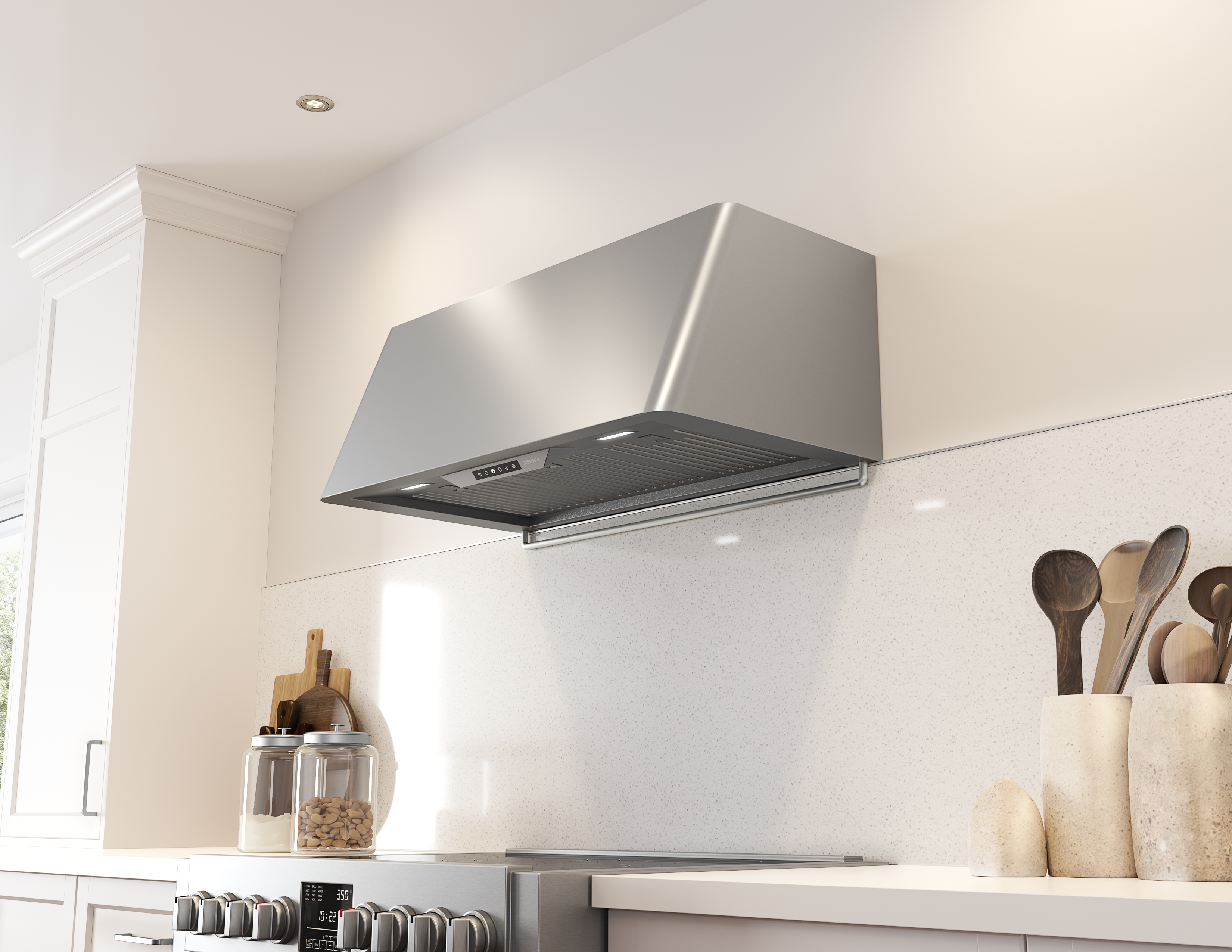

  • Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black, and stainless steel, for the very latest in kitchen design trends. With Invisible Touch Controls, hybrid baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Optional accessories include an accent rail and duct cover in satin gold, matte black, or stainless steel, and a wireless remote control.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #DME-M90ASSX
    MSRP ($)$2199
    Short DescriptionMesa 90cm, SS, BODY ONLY
    CollectionDesigner Collection
    UPC646328008856
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeInvisible Touch
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage6.53
    ColorStainless Steel
    Lights Levels3
    Compatible ModelsCBI-390A, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, CBI-290C, PBI-1000B-DME, Z0F-C010, Z1C-00MESS, ZRC-01ME, MERAIL-00SG, MERAIL-00SS, MERAIL-00MB, MUA006A, MUA008A, RC-0003
    Country of OriginItaly
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Required Accessory: Blower 1CBI-290C
    Required Accessory: Blower 2CBI-390A
    Required Accessory: Blower 3CBI-600A
    Required Accessory: Blower 4PBN-1000A
    Required Accessory: Blower 5CBE-1000
    Required Accessory: Blower 6PBI-1100B-DME
  • Blower Speeds3
    Blower IncludedNo
    Clean Air FunctionYes
    Compatible Mesh or Baffle Filter Part Number50210045
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8
    Duct Size; Vertical; IN6, 8
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 36
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN8
    Duct Size; Vertical; IN6, 8
  • Net Height; IN13.8125
    Net Width; IN35.3125
    Nominal Width; IN36
    Net Depth; IN19.6875
    Weight; LBS70
    Ceiling Height Maximum10.5 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Multiple Blower Options
    Feature 1 DefinitionMultiple blower options are available to fit your application.
    Feature 2Invisible Touch Controls
    Feature 2 DefinitionInvisible touch controls appear when activated and stay hidden when the range hood is not in use.
    Feature 3Tri-Level Lighting
    Feature 3 DefinitionThe tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 4Optional Accent Rail Kit
    Feature 4 DefinitionElevate your kitchen ambiance with our accent rail optional accessory in matte black, satin gold or stainless steel a striking design element that seamlessly pairs your Zephyr Mesa Wall range hood and also serves a practical purpose.
    Feature 5Optional Wireless Remote Control (RC-0003)
    Feature 5 DefinitionADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
    Feature 6Optional Duct Cover Kit

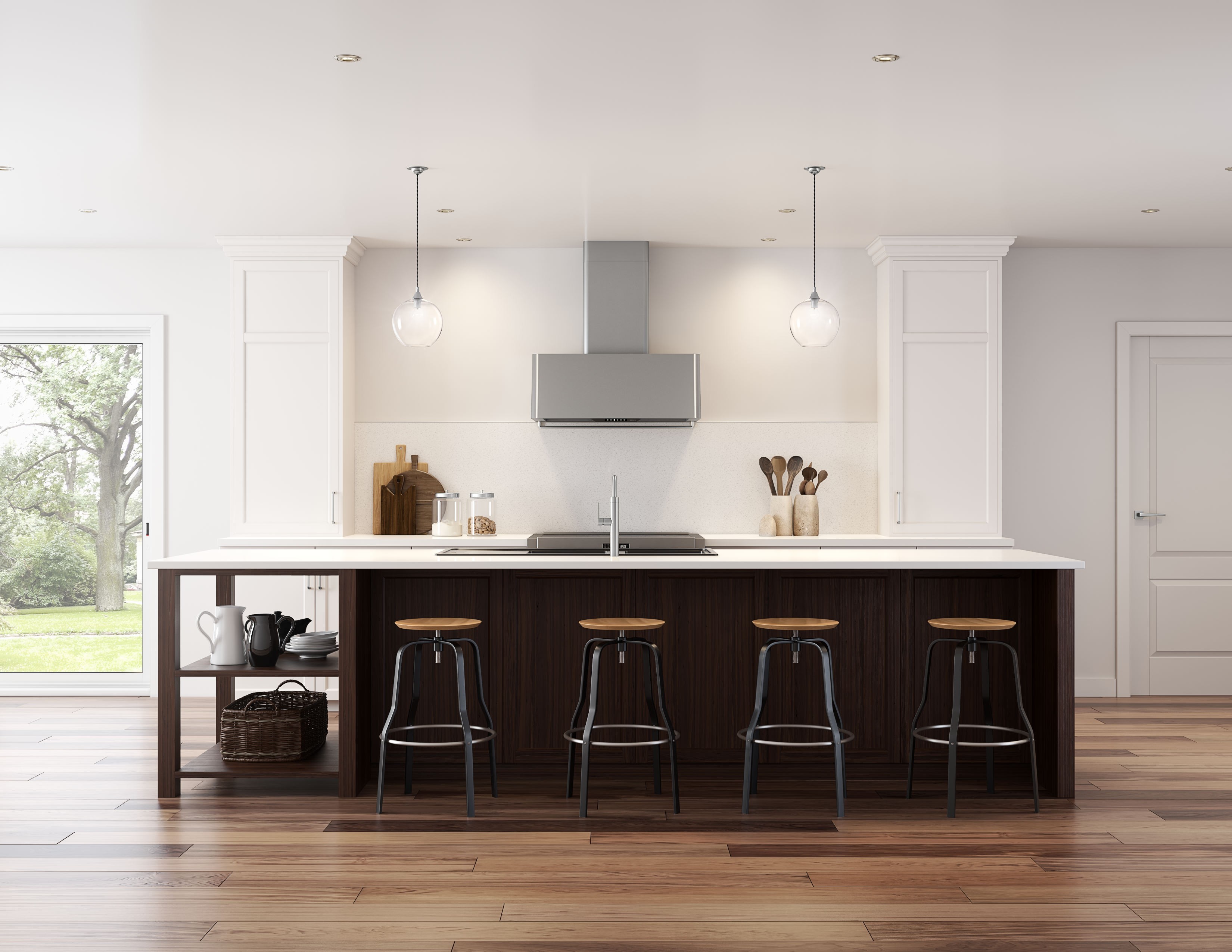

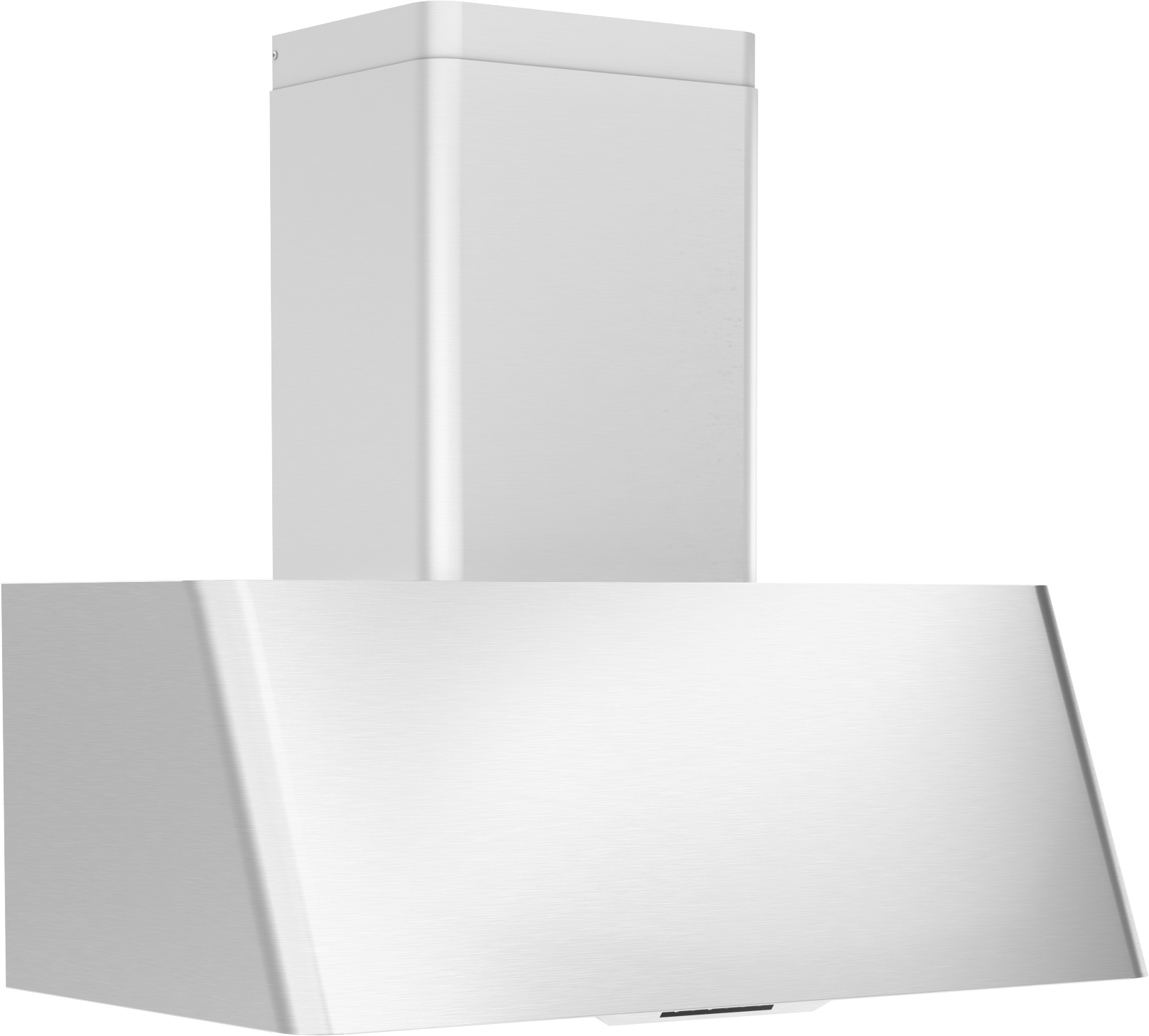

    Feature 6 DefinitionThis duct cover extends the range hood height and encloses the space from the top of your hood to the ceiling or soffit, and also provides a clean, finished look. Please check your Zephyr range hood specification sheet to ensure compatibility.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedNo
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1.4
    Internal Blower 1 Max Sones6
    Internal Blower 2 CFM290
    Internal Blower 2 Max Sones3
    In-Line Blower CFM1000
    External Blower CFM1000
  • Warranty Parts / Labor2 / 1
  • Shipping Height; IN26.7
    Shipping Length; IN38.2
    Shipping Width; IN23.3
    Shipping Weight; LBS72.7
  • Optional Accessory 1ZRC-01ME
    Optional Accessory 2RC-0003
    Optional Accessory 3Z1C-00MESS
    Optional Accessory 4MERAIL-00SS
    Optional Accessory 5MERAIL-00SG
    Optional Accessory 6MERAIL-00MB
    Optional Accessory 7MUA006A
    Optional Accessory 8MUA008A
    Optional Accessory 9Z0F-C010
