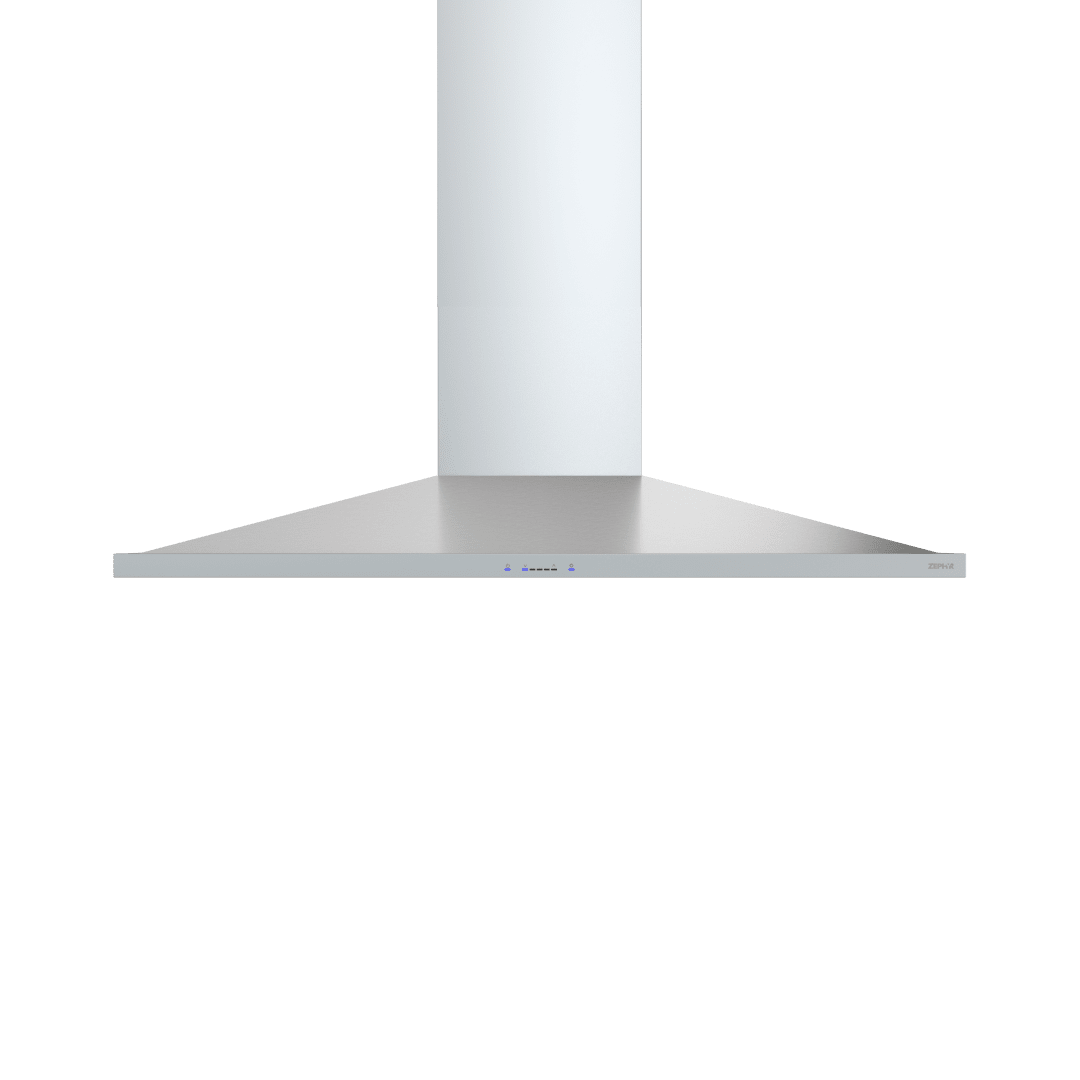

ZAZ-M90CS
Head On IsoDownload

Range Hood

ZAZ-M90CS

Anzio Island

  • With its low-profile, bell-shaped design, Anzio adds style to any kitchen project. Its 600-CFM motor, ICON Touch® controls, and new BriteStrip™ LED lighting move it ahead of the competition. Add the Quick-Lock installation system with magnetic duct covers and Anzio stands alone in terms of performance, design and value.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZAZ-M90DS
    Model #ZAZ-M90CS
    MSRP ($)$1749
    Short DescriptionAnzio, Island, 90cm, SS, 600 CFM, ACT, LED
    CollectionCore Collection
    UPC646328005756
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-02AZ, Z1C-00AZ, Z0F-B002, MUA006A, Z0F-C091
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • ZAZ-M90DS
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200059
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN31.5 - 50
    Net Width; IN41.9375
    Nominal Width; IN36
    Net Depth; IN25.5625
    Weight; LBS61.1
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2ICON Touch® Controls
    Feature 2 DefinitionICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
    Feature 3Low-profile body
    Feature 3 DefinitionLow-profile body for a minimalist appearance.
    Feature 4BriteStrip™ LED Lighting
    Feature 4 DefinitionThe future just got brighter. BriteStrip LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
    Feature 5Dual-Level Lighting
    Feature 5 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN32.09
    Shipping Length; IN39.84
    Shipping Width; IN21.65
    Shipping Weight; LBS85.1
  • Optional Accessory 1ZRC-02AZ
    Optional Accessory 2Z1C-00AZ
    Optional Accessory 3Z0F-B002
    Optional Accessory 4MUA006A
    Optional Accessory 5Z0F-C091
