ZGE-E30AS
Head On IsoDownload

Range Hood

ZGE-E30AS

Genova Under-Cabinet

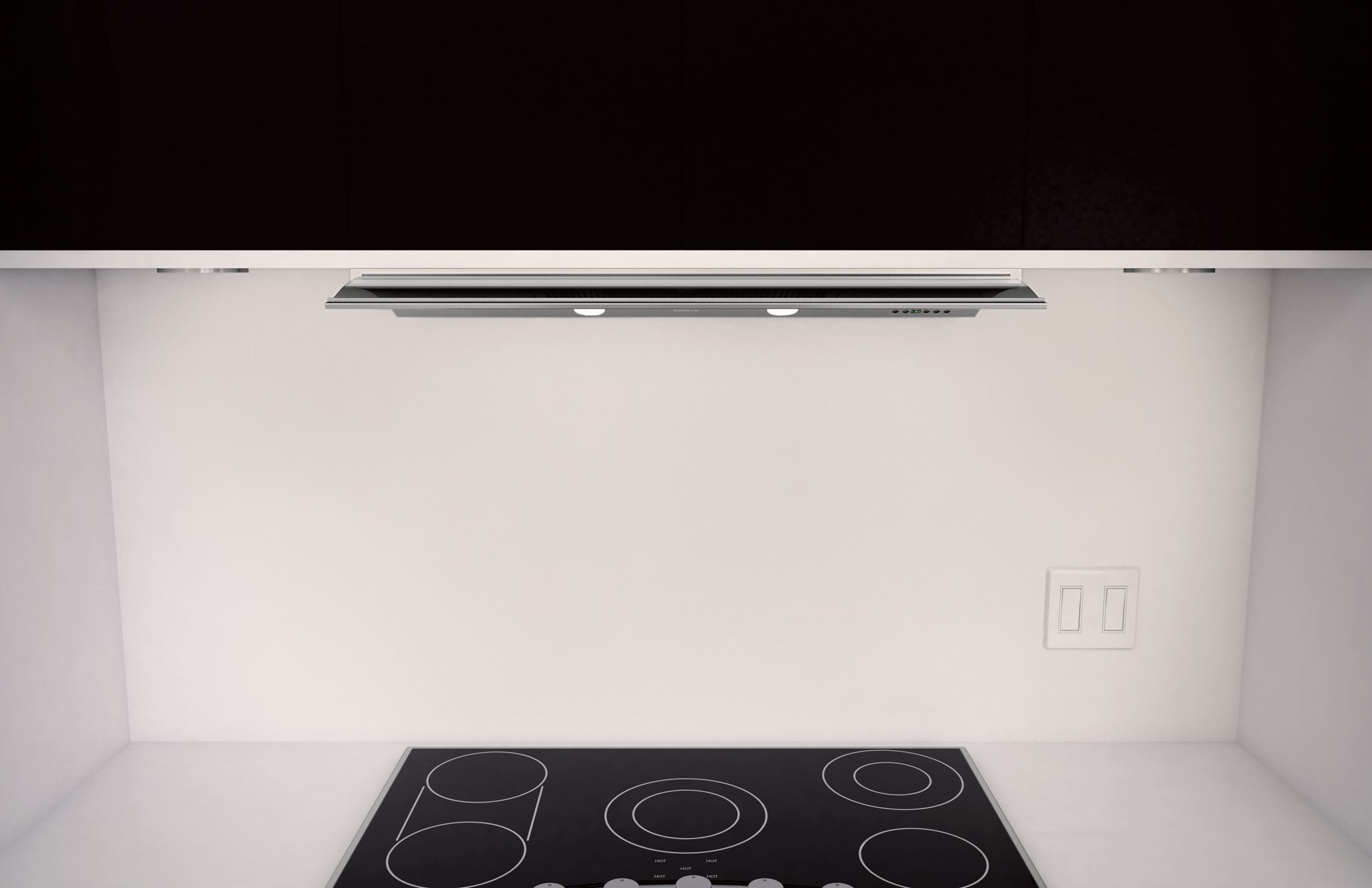

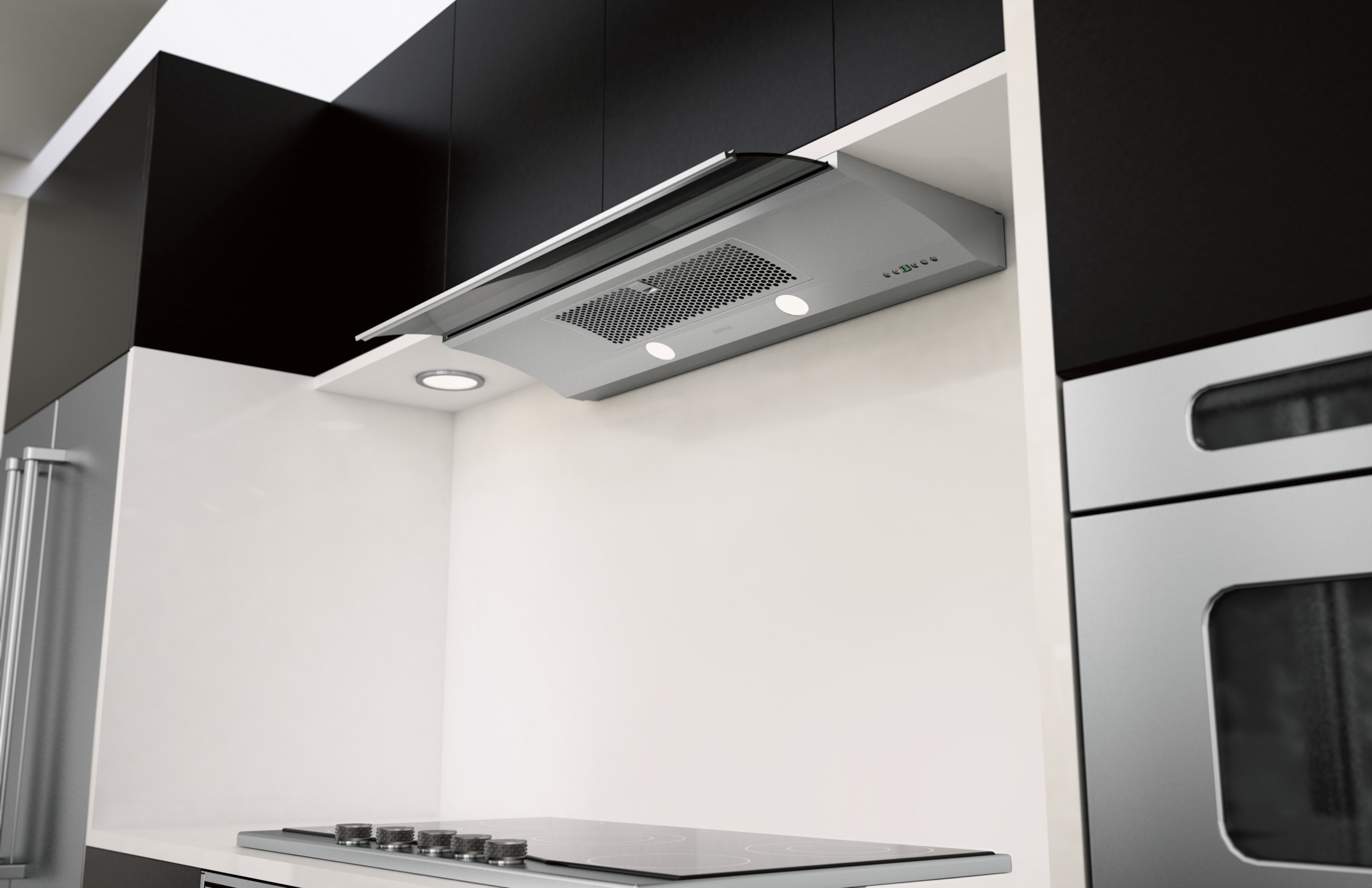

  • Tucked neatly beneath your bridge cabinet, Genova quietly works out of sight. With a retractable Smoke-Gray glass visor that controls the hood’s 500-CFM blower and lights, the Genova’s crescent-like body delivers stunning design and quality performance. Available with an optional wireless remote.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #ZGE-E30AS
    MSRP ($)$939
    Short DescriptionGenova, UC, 30", SS, 500 CFM
    CollectionCore Collection
    UPC646328000836
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeElectronic
    Lighting TypeHalogen
    Lights Quantity2
    Voltage120
    Maximum Amperage3.5
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb50
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 32
    Compatible ModelsZRC-00GE, 14000005, MUA006A, Z0B0040, Z0F-C0GE
    Country of OriginTaiwan
    Grease Filter TypeDecorative Mesh
    Compatible Mesh or Baffle Filter Part Number50200036
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN3
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN11.25 - 17.25
    Weight; LBS32.5
  • Feature 1Low-profile body
    Feature 1 DefinitionLow-profile body for a minimalist appearance.
    Feature 23 Speed Electronic Controls
    Feature 3Dual Level Halogen Lighting
    Feature 4Retractable Glass Canopy
    Feature 5Optional wireless remote control
    Feature 5 DefinitionOur wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Make-Up Air Kit
    Feature 7 DefinitionA make-up air kit is a system installed to introduce fresh, outside air to compensate for the air removed by the range hood. This helps maintain balanced indoor air pressure and ensures the efficient operation of the range hood. Check your local codes for more information.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM500
    Internal Blower 1 Min. Sones1.7
    Internal Blower 1 Max Sones5.3
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN17.28
    Shipping Length; IN34.65
    Shipping Width; IN19.88
    Shipping Weight; LBS42.5
  • Optional Accessory 1ZRC-00GE
    Optional Accessory 214000005
    Optional Accessory 3MUA006A
    Optional Accessory 4Z0B0040
    Optional Accessory 5Z0F-C0GE
