ZLC-M90AS
Head On IsoDownload

Range Hood

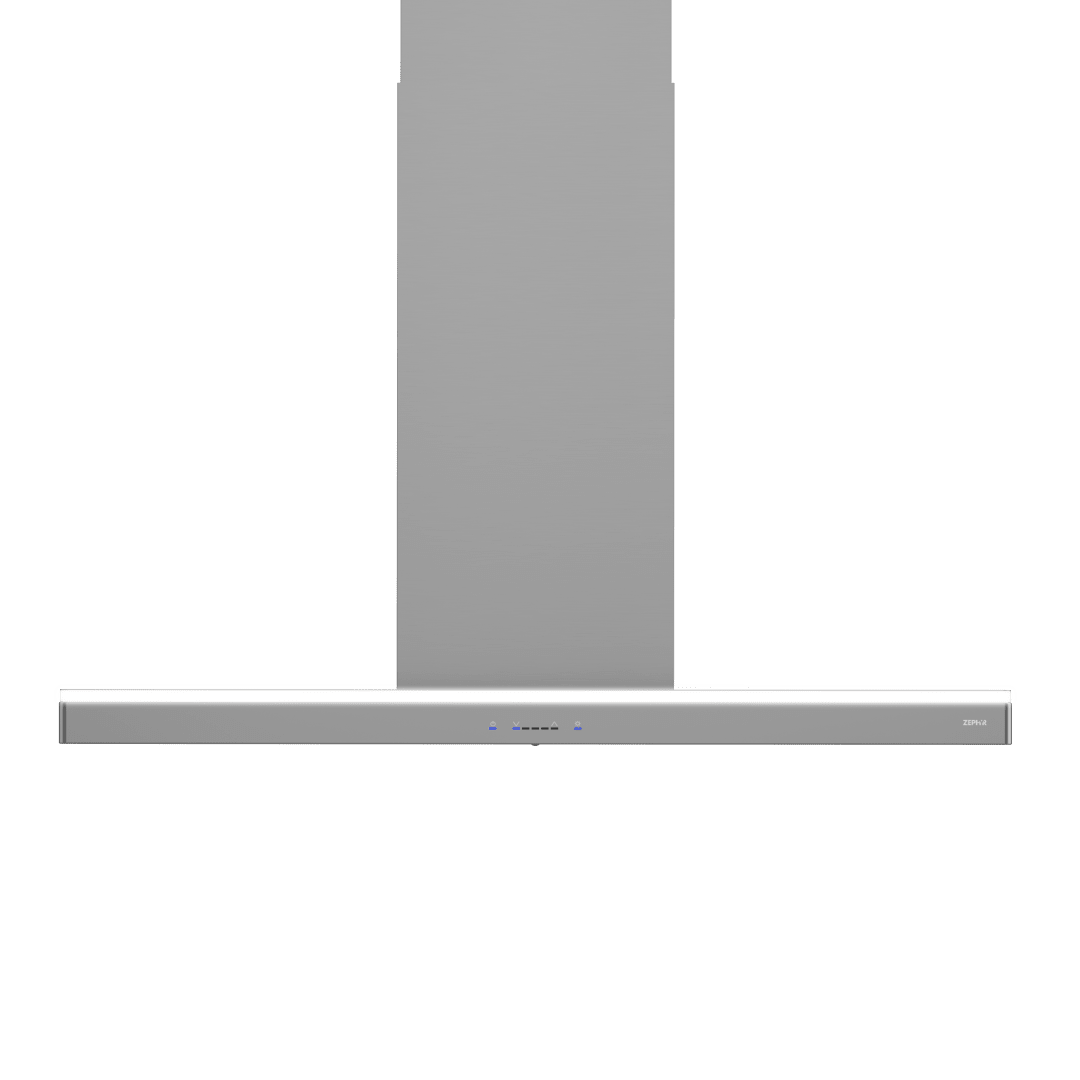

ZLC-M90AS

Luce Island

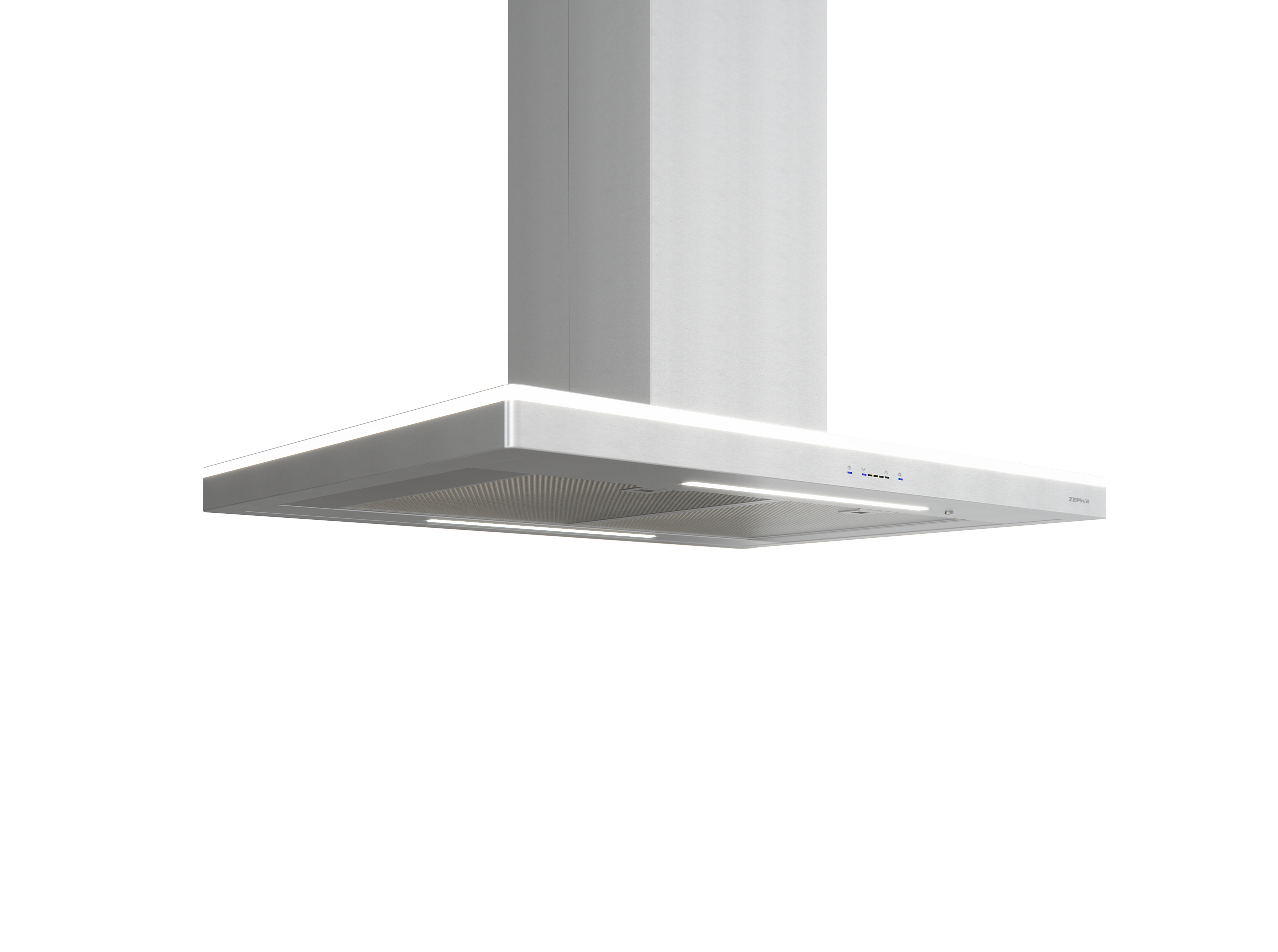

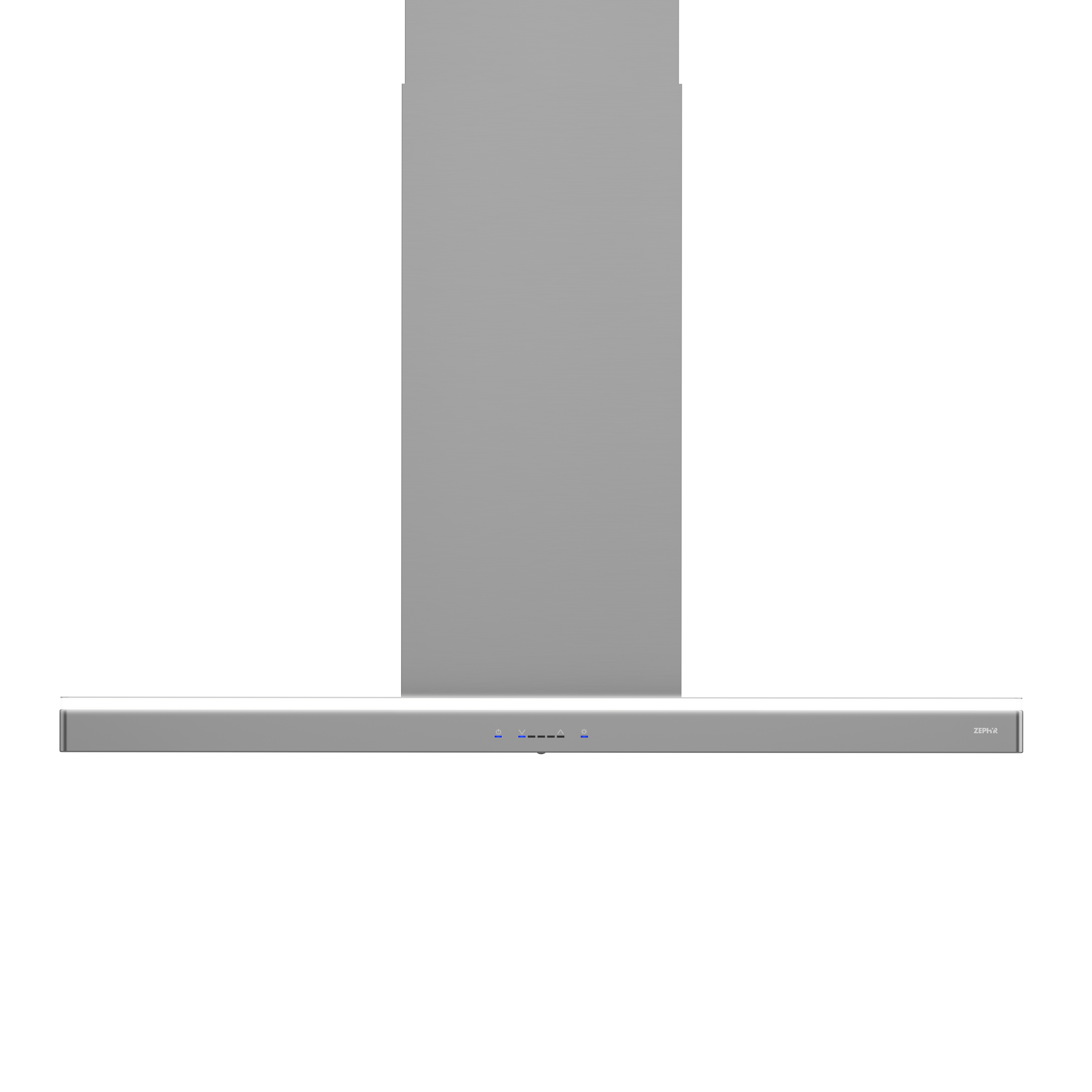

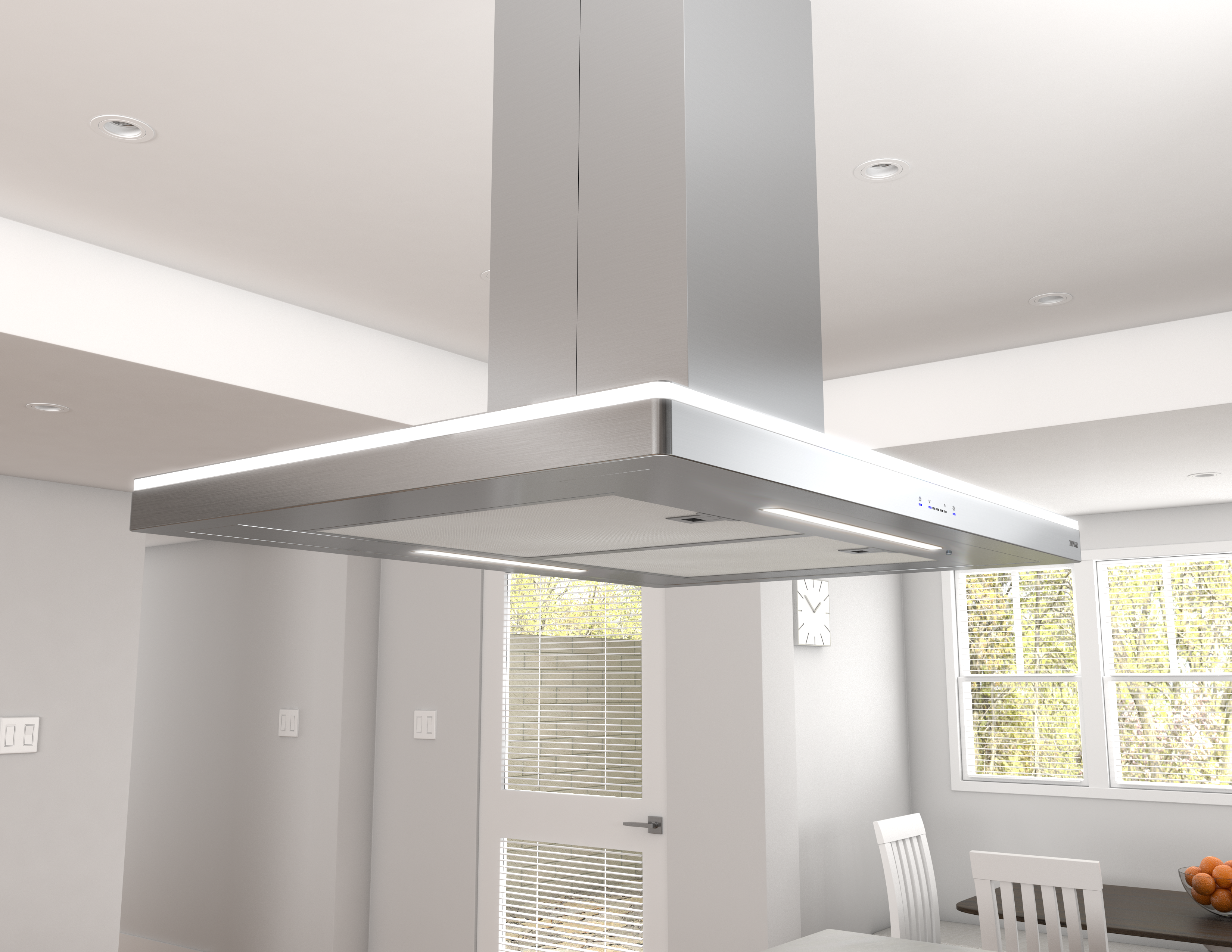

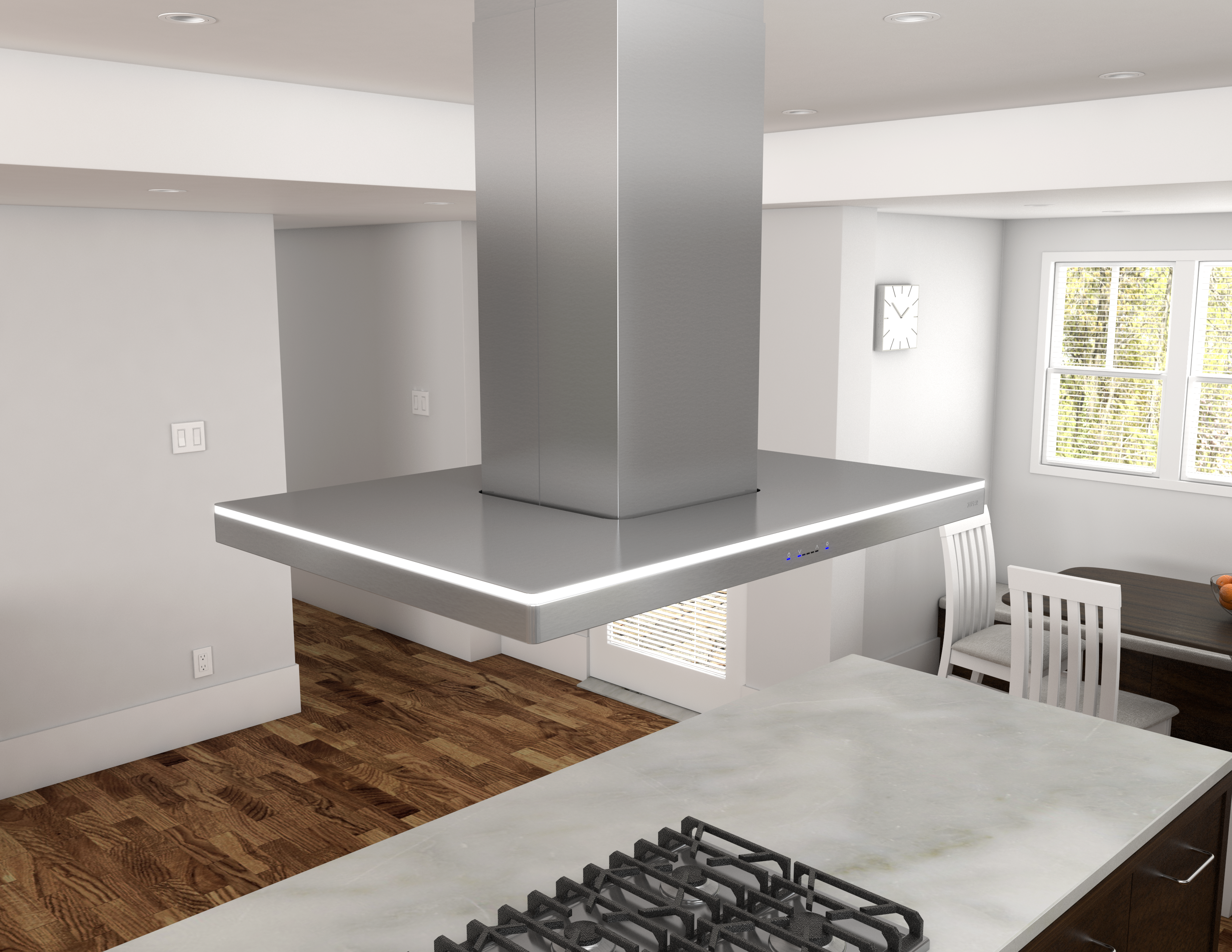

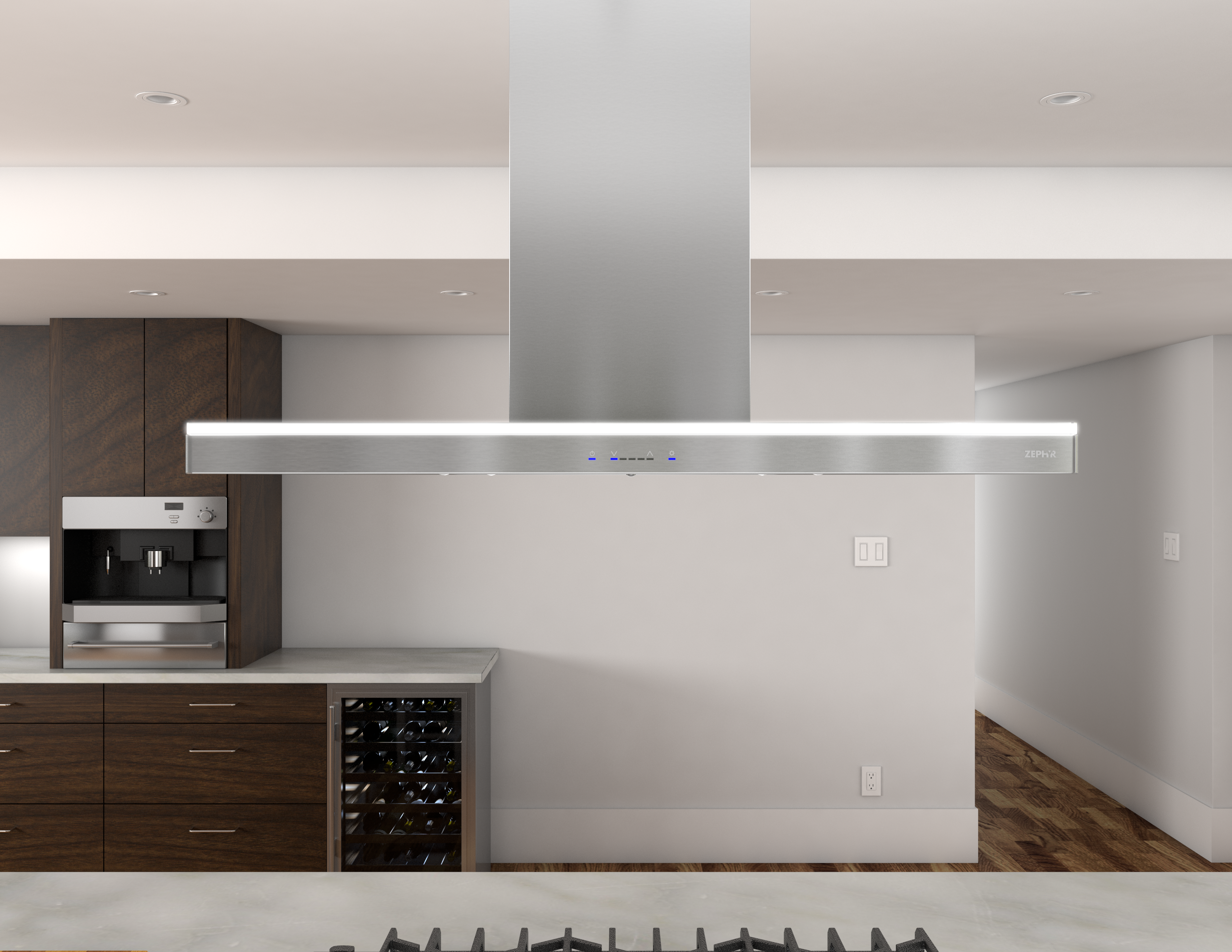

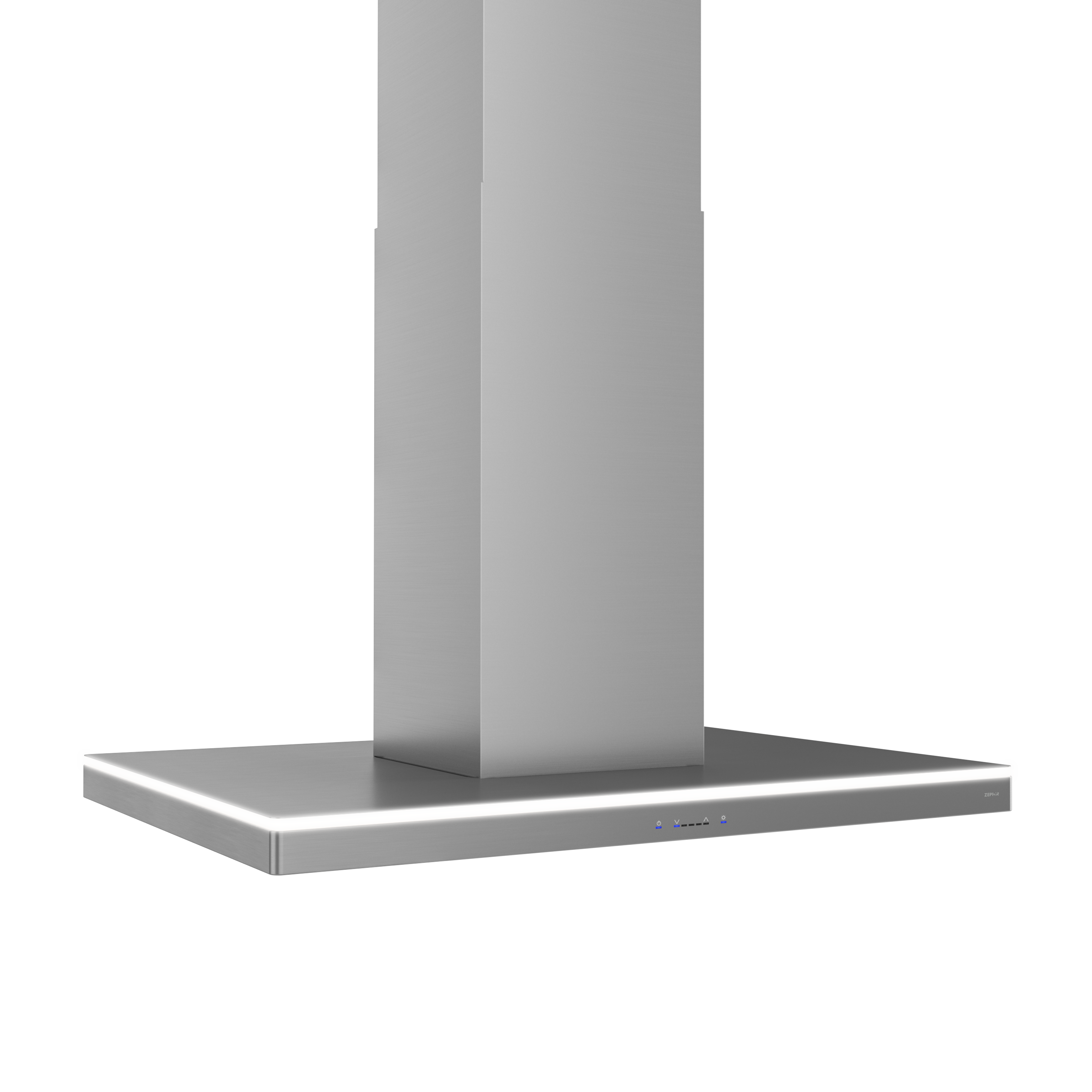

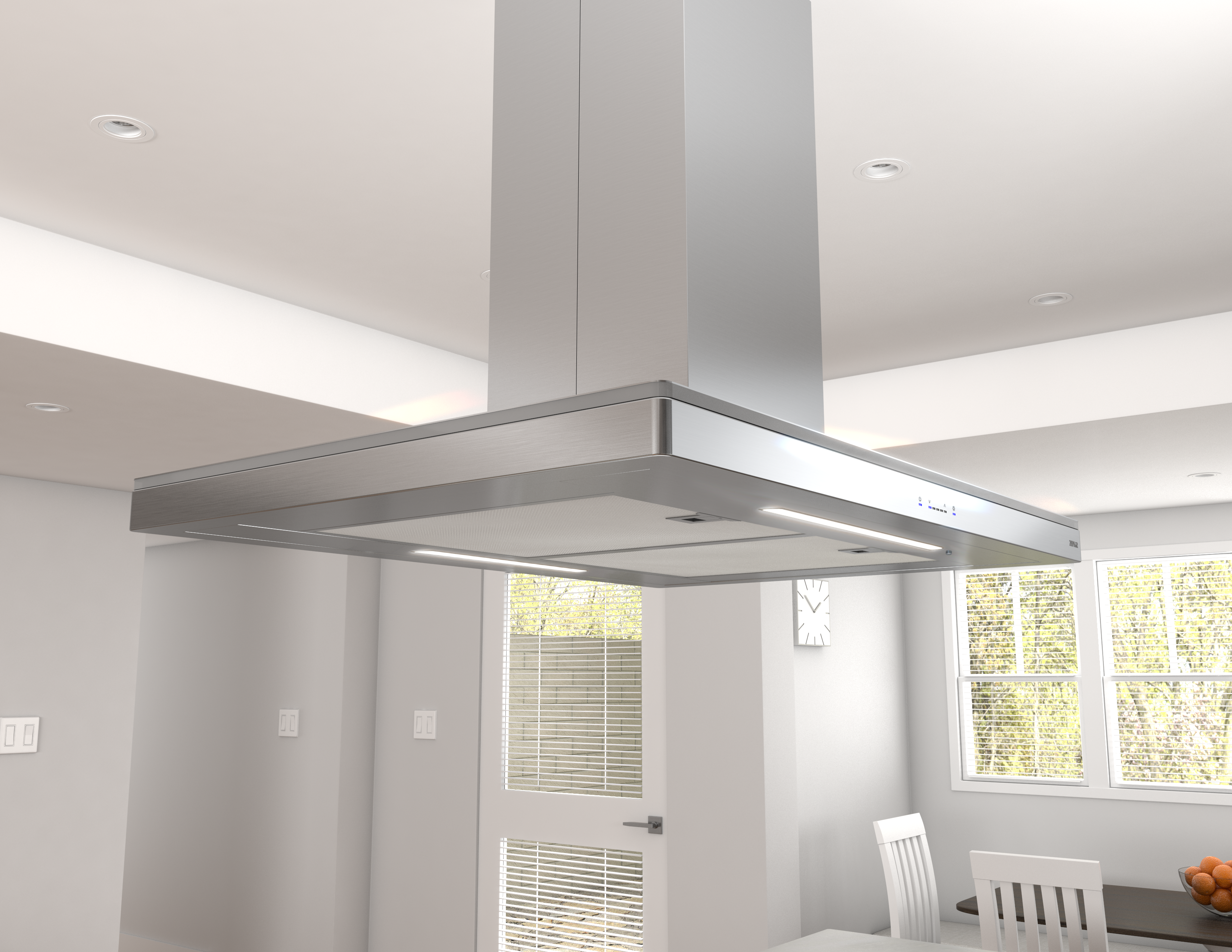

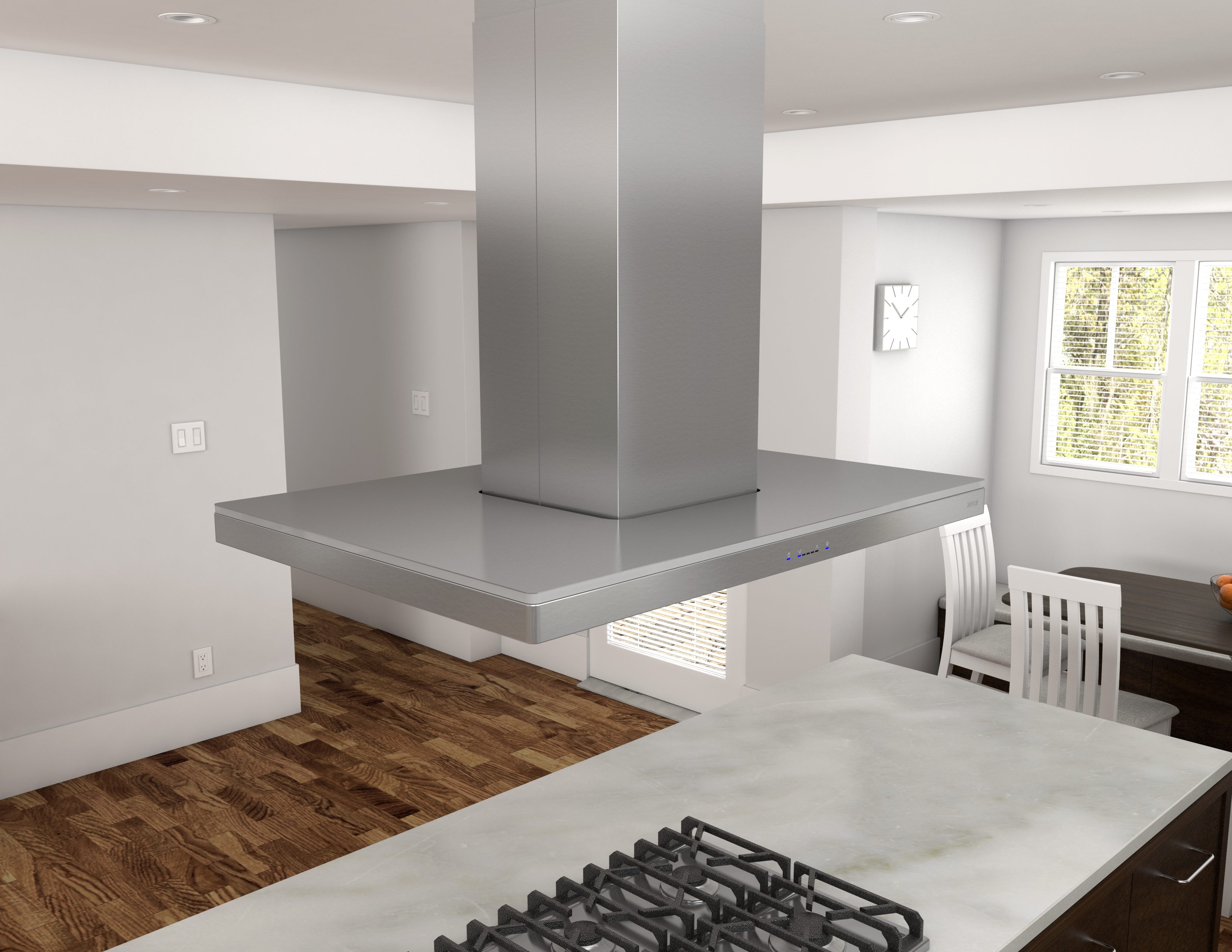

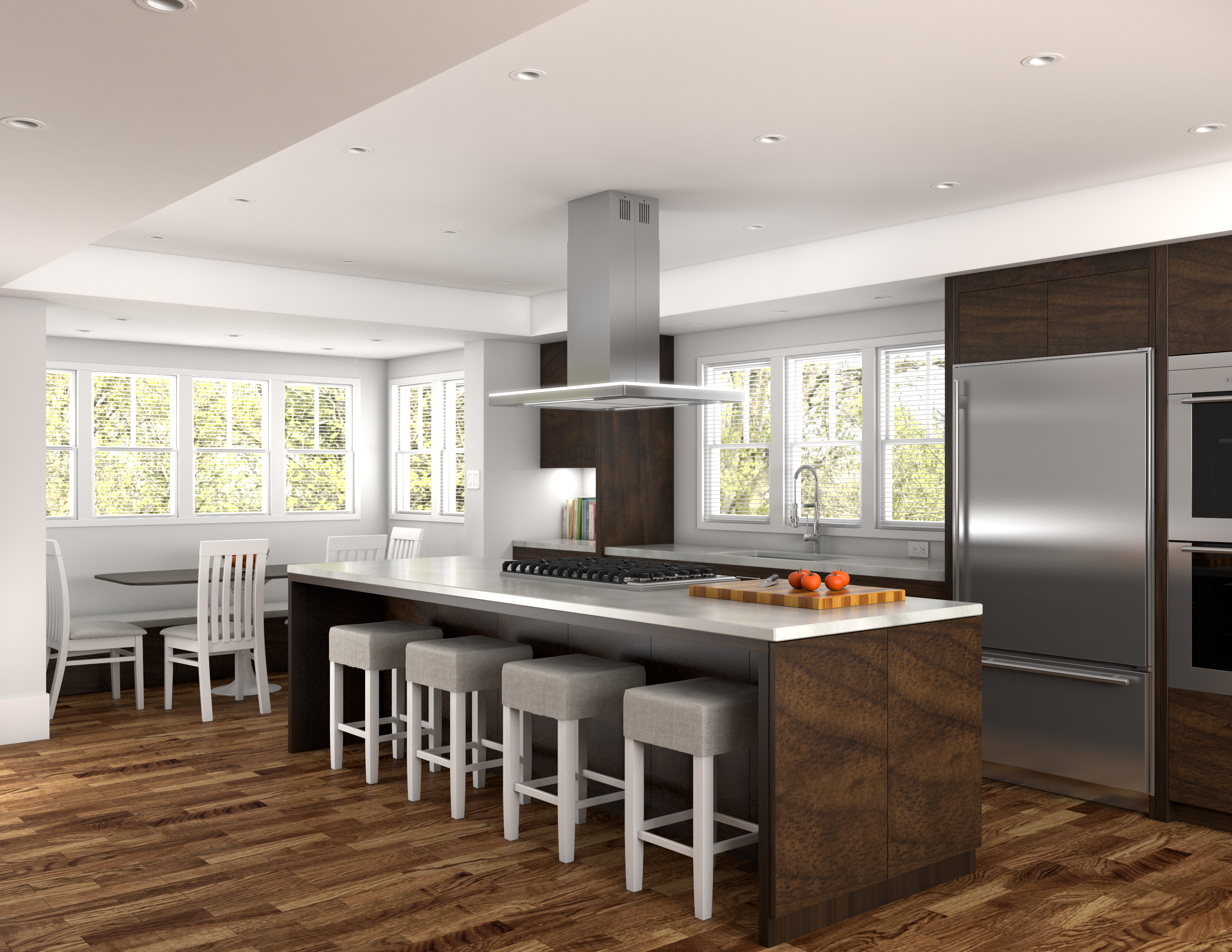

  • Boasting an elegant slice of sleek stainless steel married with the subtle glamor of ambient lighting in Cloud White, Deep Blue and Amber, the Lucé is the (gorgeous) future of range hoods, here today. Featuring ACT™ technology, BriteStrip™ LED lighting, ICON Touch® Controls and a versatile Recirculating Option. Includes an enhanced Quick-Lock installation system with magnetic duct covers.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZLC-M90BS
    Model #ZLC-M90AS
    Short DescriptionLuce Island, 90cm, SS, 600 CFM, ACT
    CollectionCore Collection
    UPC646328004902
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeLED
    Lights Quantity4
    Maximum Amperage3
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-00LC, Z1C-00LC, MUA006A, Z0F-C092
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelZLC-M90CS
    ZLC-M90BS
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200053
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN28 - 46.5
    Net Width; IN35.4375
    Nominal Width; IN36
    Net Depth; IN25.5625
    Weight; LBS78
    Ceiling Height Maximum9.5 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Bloom™ HD LED light bulbs
    Feature 2 DefinitionWith a lifetime of 25,000 hours and warm white light, Bloom HD LED light bulbs are an industry breakthrough and are unmatched in performance, light emission and value. These dimmable LEDs also have a patented lens that evenly distributes warm white light over the cooking surface.
    Feature 3LED accent lighting

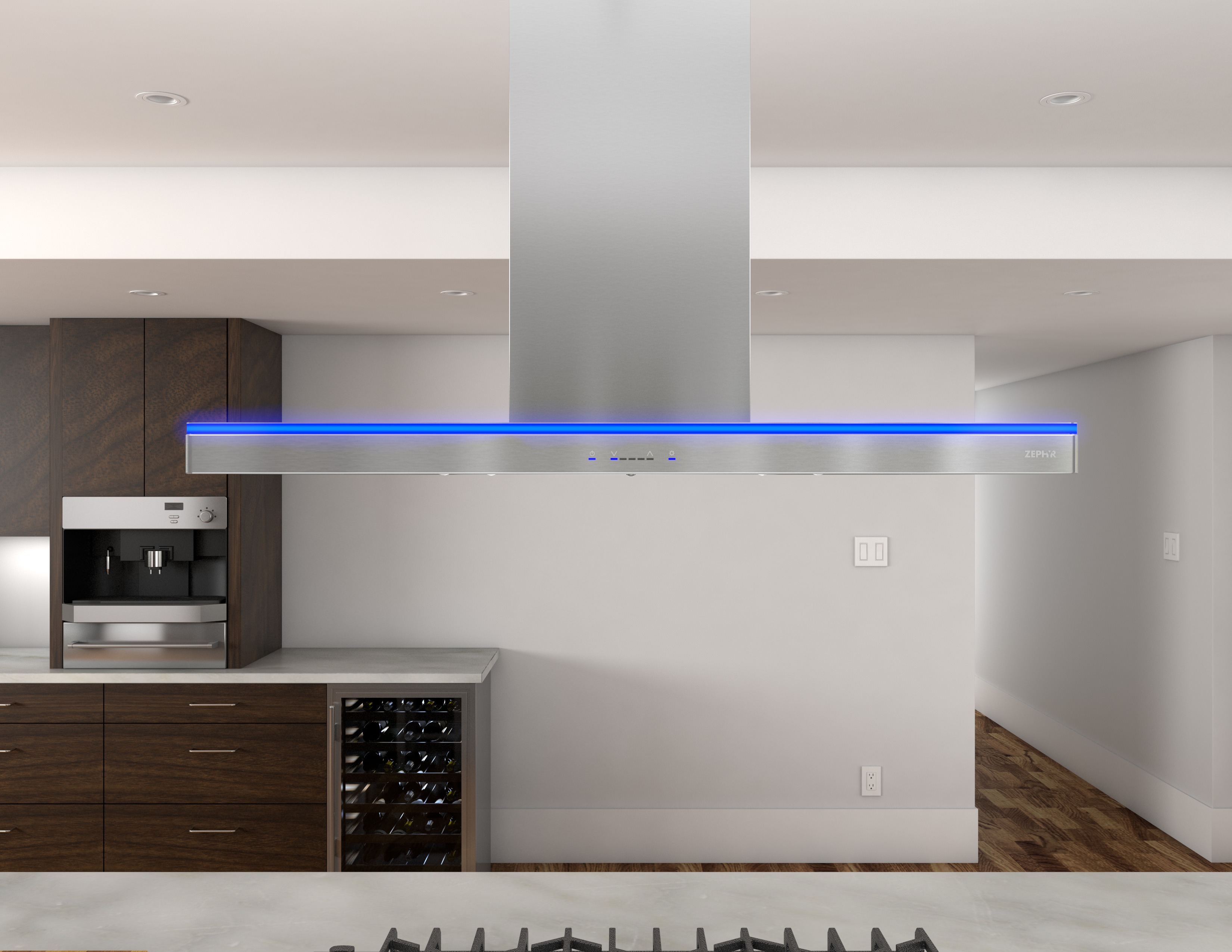

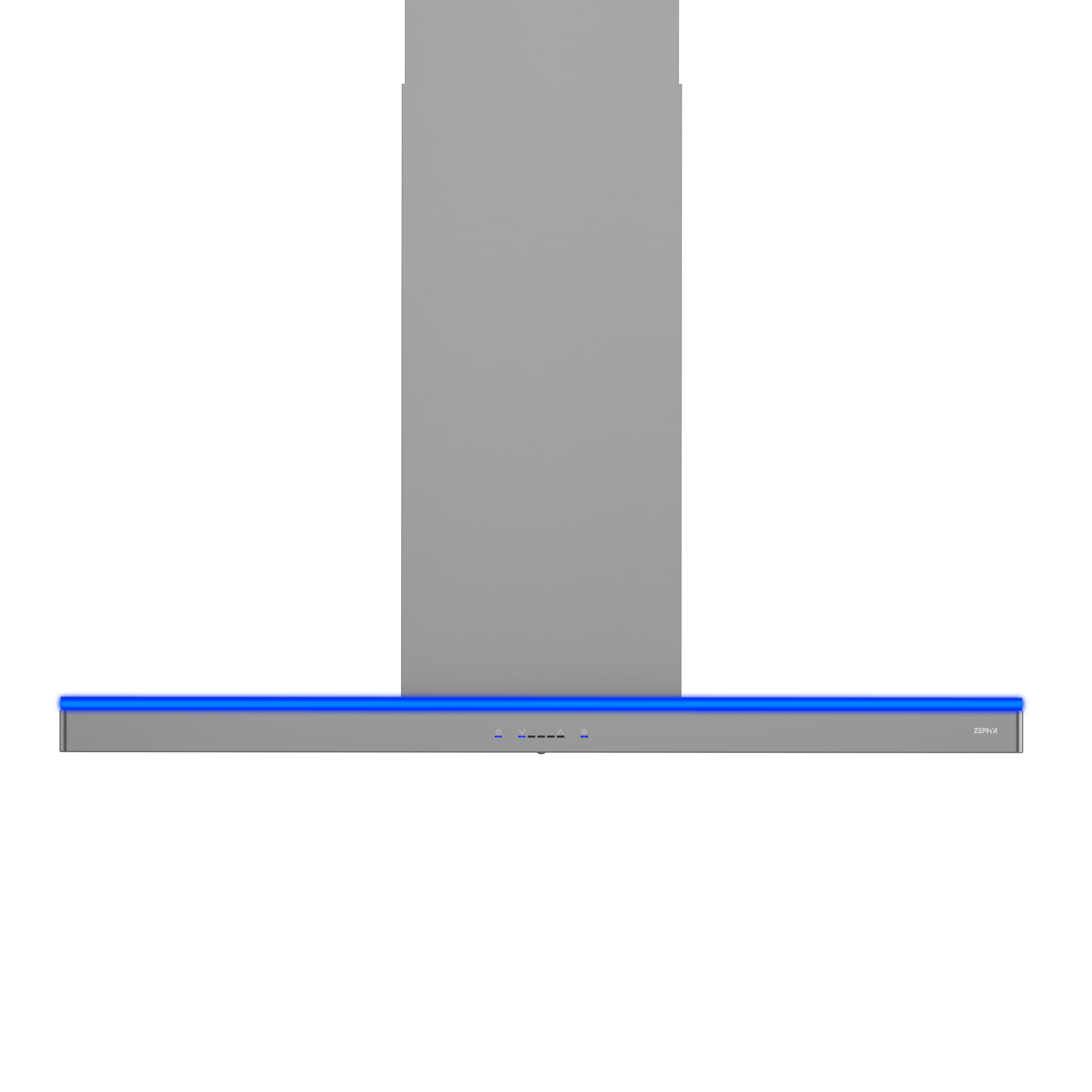

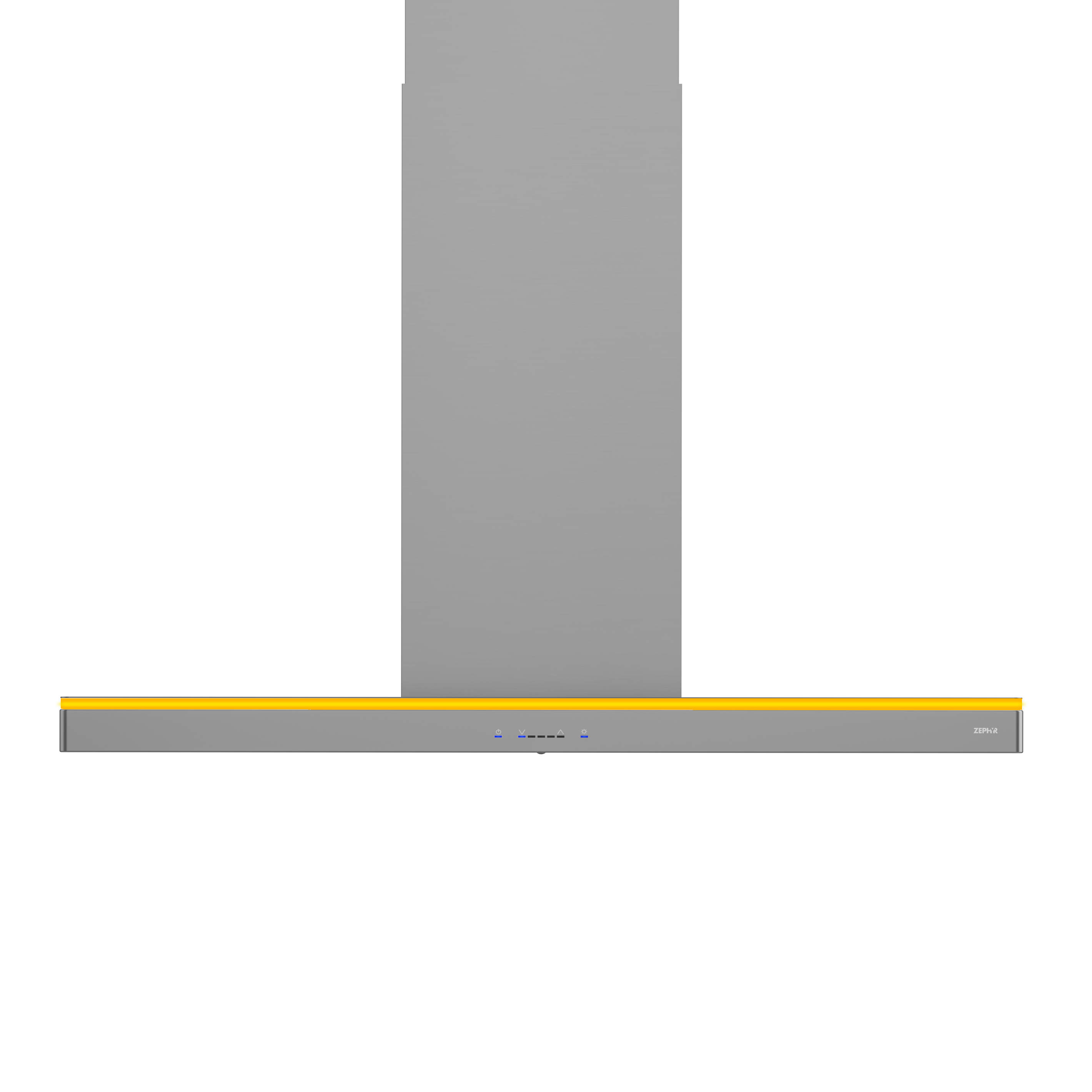

    Feature 3 DefinitionEnjoy the subtle glamor of accent lighting in Cloud White, Deep Blue, or Amber to best match your dcor; or choose the Demo mode that displays all three settings in 10-second intervals.
    Feature 4ICON Touch® controls
    Feature 5Optional Ductless Recirculating Kit
    Feature 5 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 6Optional extension duct cover kit
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN32.28
    Shipping Length; IN19.06
    Shipping Width; IN40.59
    Shipping Weight; LBS101.2
  • Optional Accessory 1ZRC-00LC
    Optional Accessory 2Z1C-00LC
    Optional Accessory 3MUA006A
    Optional Accessory 4Z0F-C092
