Head On Iso
Range Hood

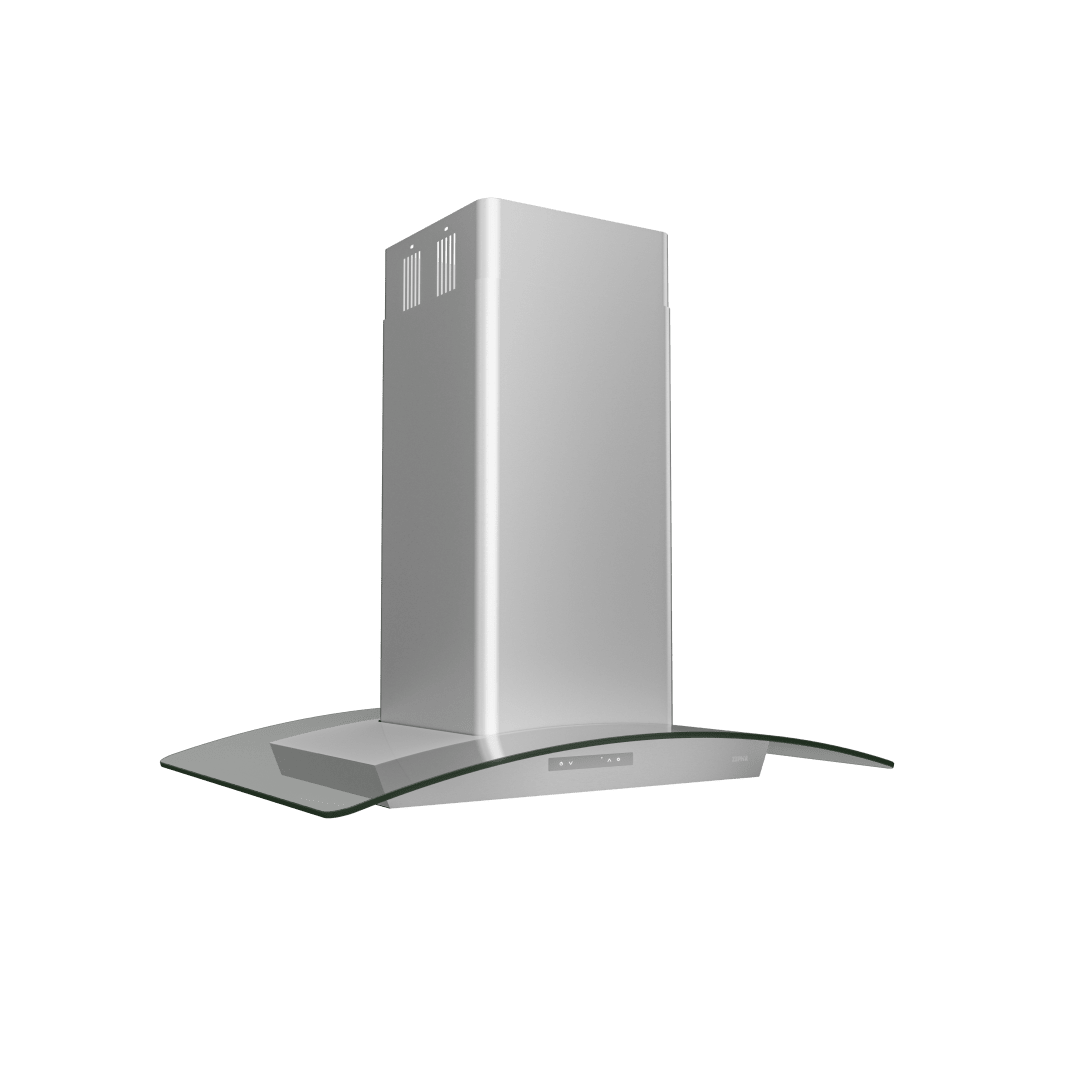

ZML-M90CG

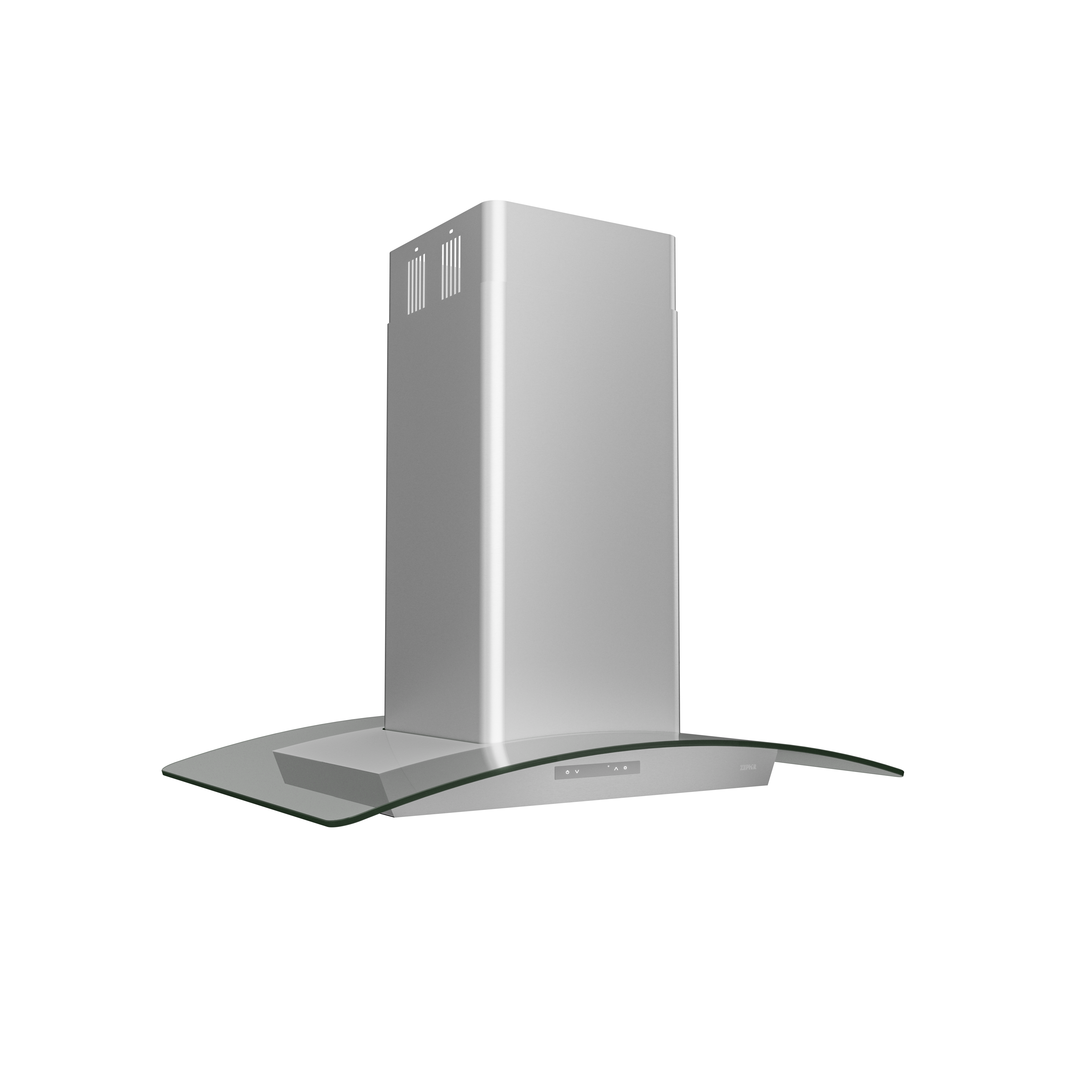

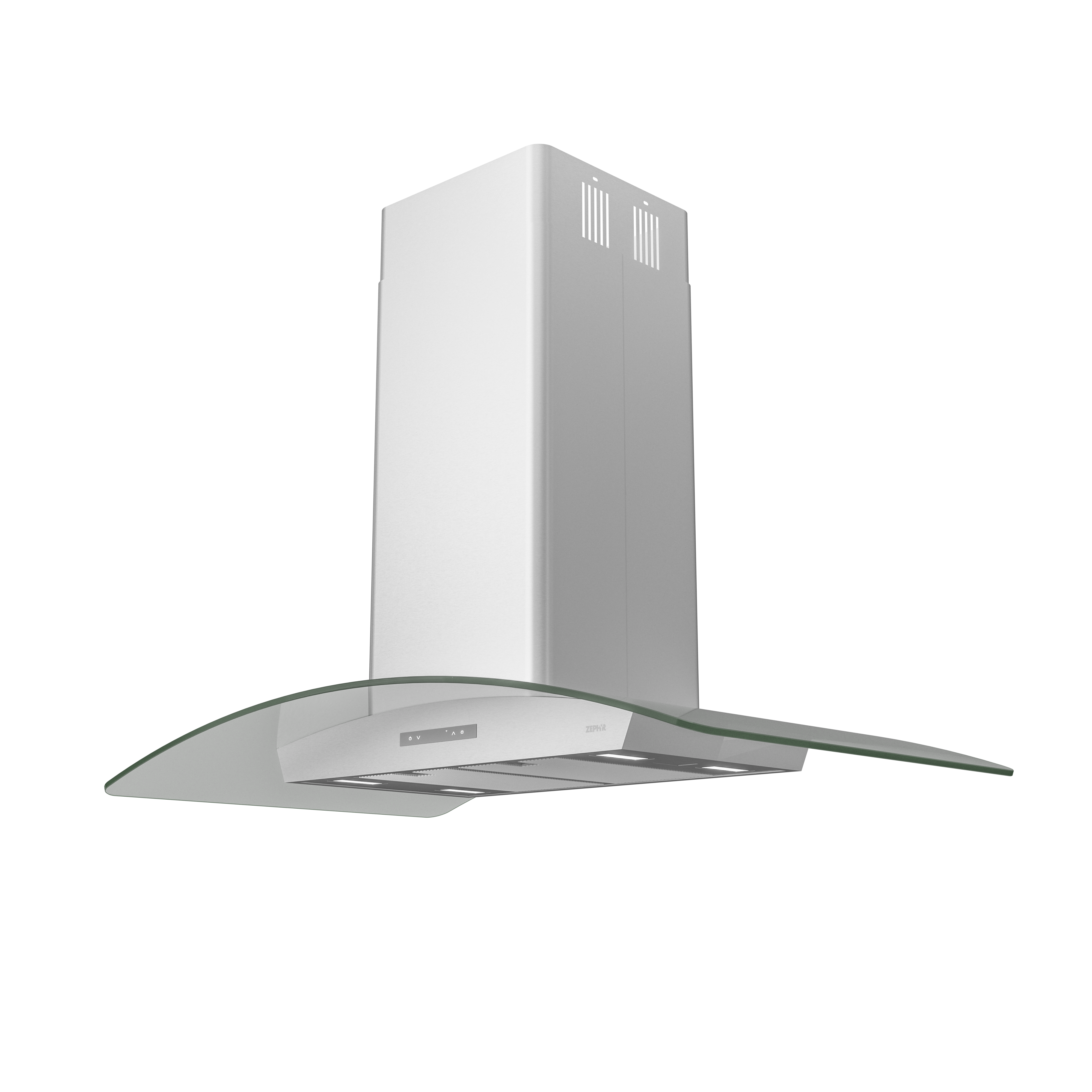

Milano Island
- A bold technological breakthrough, the Milano Island now boasts a 700-CFM PowerWave™ blower and Zephyr Connect technology — making it a more powerful and energy efficient range hood without losing its uniquely quiet quality. Milano features Airflow Control Technology™ (ACT™) and the exclusive Quick-Lock Installation System with magnetic duct covers. Available with glass and stainless steel canopy options and an optional wireless remote control.
Product Status Active Brand Zephyr Model # ZML-M90CG MSRP ($) $2249 Short Description Milano Connect Island, 90cm, SS+Glass, LED, ACT Collection Core Collection UPC 646328008436 Category Range Hood Installation Type Island For Outdoor Use No Controls Type Proximity Touch Lighting Type LED Lights Quantity 4 Voltage 120 Maximum Amperage 5 Color Stainless Steel Blower Speeds 6 Watts Per Bulb 6 Lights Levels 3 Mounting Height Above Cooktop; IN 24 - 36 Compatible Models 14000005, ZRC-00ML, Z1C-03ML, MUA008A, Z0F-C002 Country of Origin Taiwan Grease Filter Type Mesh Compatible Mesh or Baffle Filter Part Number 50200043 CEC Title 20 Compliant Yes ADA Compliant Yes, with optional remote Duct Discharge Vertical Duct Size; Vertical; IN 8 Net Height; IN 28.5 - 50 Net Width; IN 35.2 Nominal Width; IN 36 Net Depth; IN 25.56 Weight; LBS 94.000 Feature 1 LumiLight LED Lighting Feature 1 Definition LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. Feature 2 Airflow Control Technology™ (ACT™) Feature 2 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 3 Compatible with Zephyr Connect App Feature 3 Definition The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device. Feature 4 CleanAir Function Feature 4 Definition The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area. Feature 5 Optional Ductless Recirculating Kit Feature 5 Definition Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. Feature 6 Optional Extension Duct Cover Kit Feature 6 Definition Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details. Feature 7 Optional Wireless Remote Control (14000005) Feature 7 Definition ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 590, 390, 290 Internal Blower 1 CFM 700 Internal Blower 1 Min. Sones 0.8 Internal Blower 1 Max Sones 6 Warranty Parts / Labor 3 / 1 Shipping Height; IN 24.21 Shipping Length; IN 43.11 Shipping Width; IN 31.18 Shipping Weight; LBS 104.9 Optional Accessory 1 14000005 Optional Accessory 2 ZRC-00ML Optional Accessory 3 Z1C-03ML Optional Accessory 4 MUA008A Optional Accessory 5 Z0F-C002
