Head On Iso
Range Hood

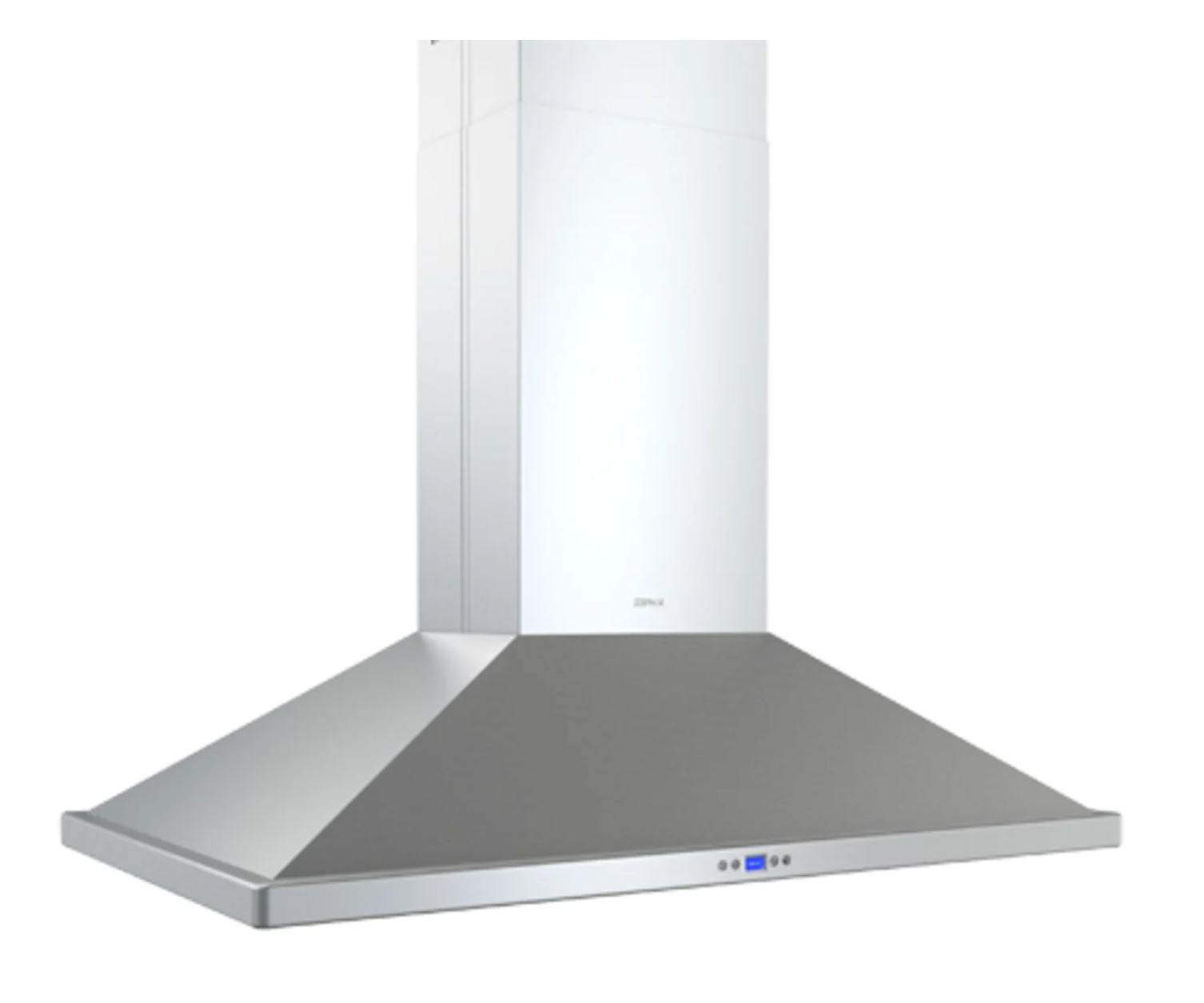

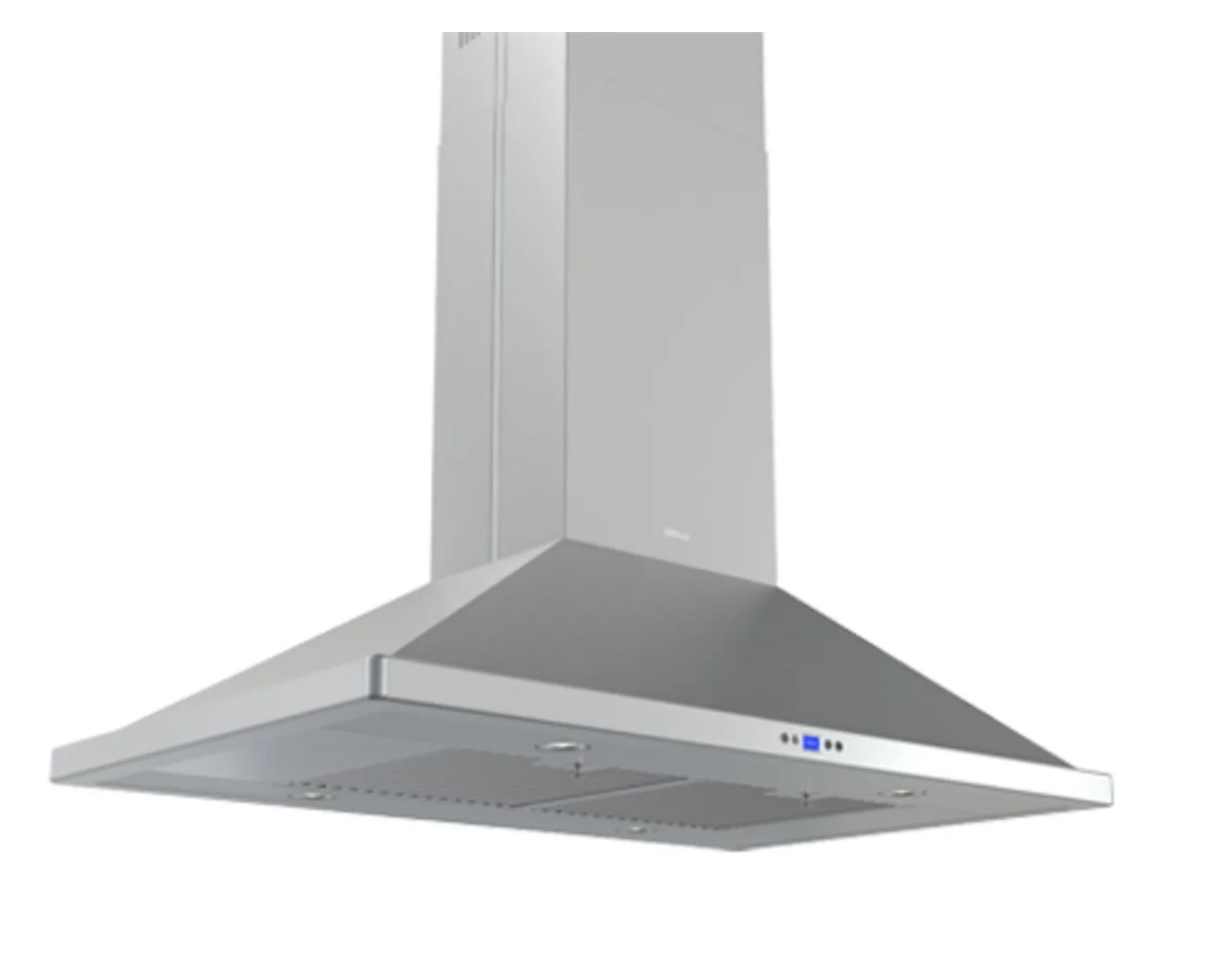

ZNA-M90CS

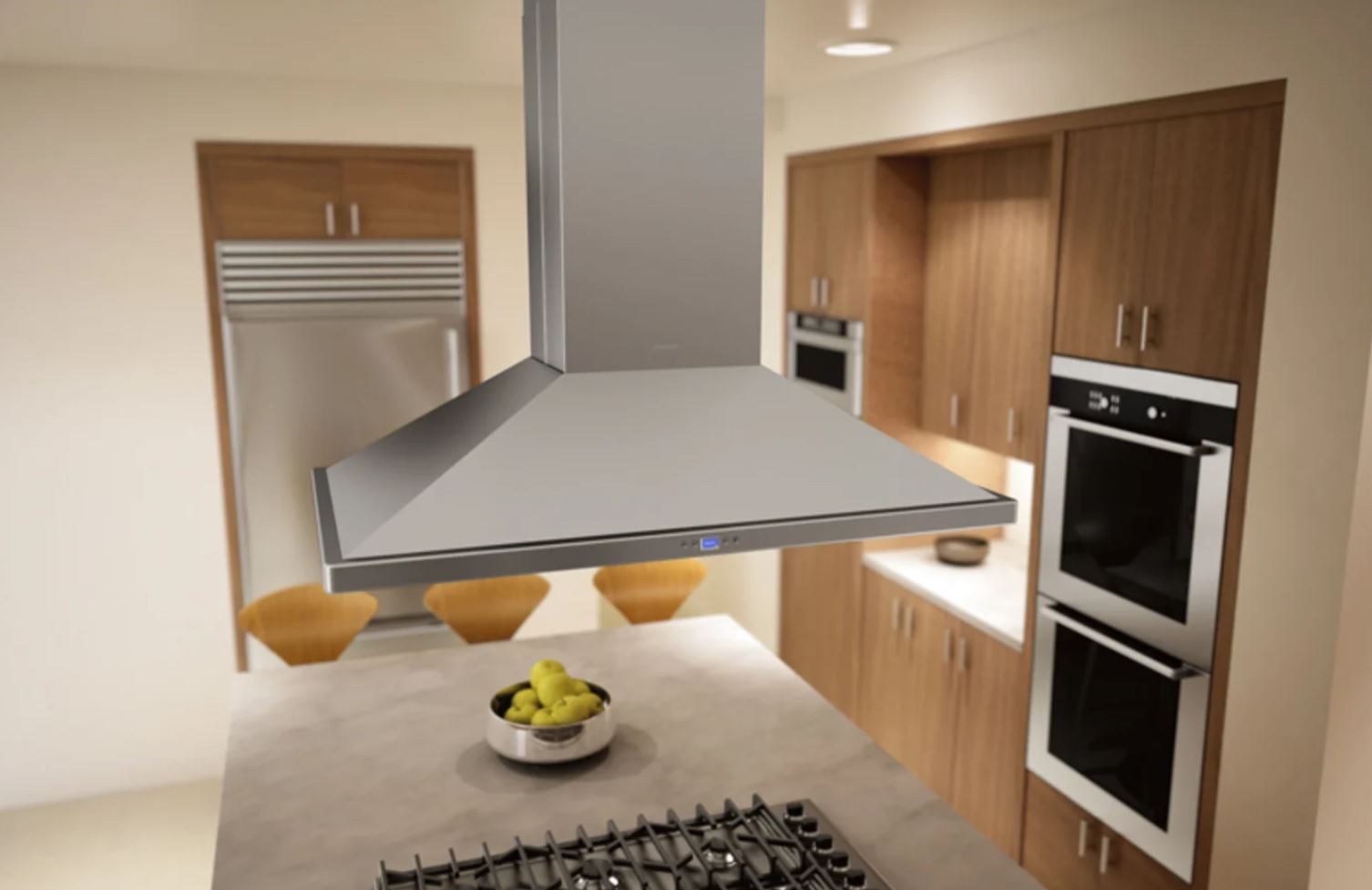

Napoli Island
- Strong and sophisticated with upwardly-angled walls, Napoli makes an impression in any kitchen. Upgraded with Zephyr’s DCBL Suppression System® and Bloom™ HD LED light bulbs, Napoli is a technological achievement and a cut above the rest. Now including an enhanced Quick-Lock installation system with magnetic duct covers, Napoli is as easy to install as it is to enjoy. Now available with an optional wireless remote control.
Product Status Discontinued Brand Zephyr Replacement Model ZNA-M90DS Model # ZNA-M90CS MSRP ($) $2149 Short Description Napoli, Island, 90cm, SS, 715 CFM, DCBL, ACT, Baffles Collection Core Collection UPC 646328004087 Category Range Hood Installation Type Island For Outdoor Use No Controls Type Electronic LCD Lighting Type LED Lights Quantity 4 Voltage 120 Maximum Amperage 4 Color Stainless Steel Blower Speeds 6 Watts Per Bulb 3 Lights Levels 2 Mounting Height Above Cooktop; IN 26 - 34 Compatible Models ZRC-02NA, Z1C-02NA, RC-0001, MUA008A, Z0F-C002 Country of Origin Taiwan Grease Filter Type Baffle Compatible Mesh or Baffle Filter Part Number 50210023 CEC Title 20 Compliant Yes ADA Compliant Yes, with optional remote Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 8 Net Height; IN 32 - 50 Net Width; IN 35.4375 Nominal Width; IN 36 Net Depth; IN 25.5625 Weight; LBS 62.7 Feature 1 DCBL Suppression System® Feature 1 Definition Zephyrs DCBL Suppression System delivers the most silent, energy efficient and performance-driven range hoods available today. DCBL consists of a Direct Current Brushless Motor technology that uses energy more efficiently and generates less friction resulting in less wear and tear on the hoods motor. Increased torque also allows the blower to move more air at lower RPMs resulting in quieter operation. Feature 2 Bloom™ HD LED light bulbs Feature 2 Definition With a lifetime of 25,000 hours and warm white light, Bloom HD LED light bulbs are an industry breakthrough and are unmatched in performance, light emission and value. These dimmable LEDs also have a patented lens that evenly distributes warm white light over the cooking surface. Feature 3 Airflow Control Technology™ (ACT™) Feature 3 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 4 Ultra-Quiet Performance Feature 4 Definition Our range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby. Feature 5 Optional Ductless Recirculating Kit Feature 5 Definition Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. Feature 6 Optional extension duct cover kit Energy Star Certified No Blower Included Yes Blower CFM w/ACT 590, 390, 290 Internal Blower 1 CFM 715 Internal Blower 1 Min. Sones 0.8 Internal Blower 1 Max Sones 5.8 Warranty Parts / Labor 3 / 1 Shipping Height; IN 32.05 Shipping Length; IN 23.23 Shipping Width; IN 39.96 Shipping Weight; LBS 83.2 Optional Accessory 1 ZRC-02NA Optional Accessory 2 Z1C-02NA Optional Accessory 3 RC-0001 Optional Accessory 4 Z0F-C002
