ZOM-E30ABS
Head On IsoDownload

Range Hood

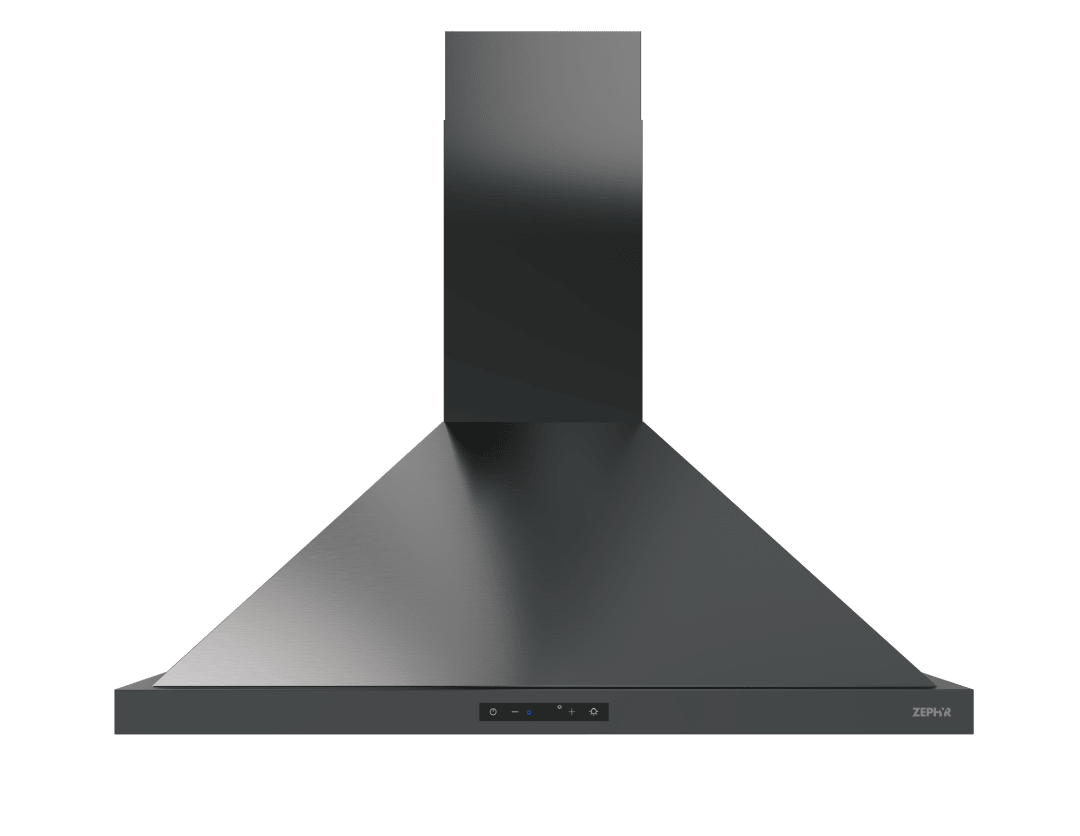

ZOM-E30ABS

Ombra Wall

  • Ombra is the perfect combination of form and function with its capacitive touch controls and optional hybrid baffle filters. Ombra features a powerful 600 CFM blower with our exclusive Airflow Control Technology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZOM-E30BBS
    Model #ZOM-E30ABS
    MSRP ($)$749
    Short DescriptionOmbra, Wall, 30", Blk SS, 600 CFM, ACT
    CollectionCore Collection
    UPC646328006388
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage3.5
    ColorBlack Stainless Steel
    Lights Levels2
    Compatible ModelsZRC-01OM, Z1C-01OMBS, Z0F-B002, MUA006A, Z0B0040, Z0F-C091
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelZOM-E30CBS
    ZOM-E30BBS
  • Blower Speeds4
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part NumberZ0F-B002
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN27.5 - 42.5
    Net Width; IN29.875
    Nominal Width; IN30
    Net Depth; IN19.75
    Weight; LBS25.5
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2Capacitive Touch Controls
    Feature 2 DefinitionCapacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
    Feature 3Optional Ductless Recirculating Kit
    Feature 3 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 4Optional extension duct cover kit
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.6
    Shipping Length; IN16.34
    Shipping Width; IN34.84
    Shipping Weight; LBS30.4
  • Optional Accessory 1ZRC-01OM
    Optional Accessory 2Z1C-01OMBS
    Optional Accessory 3Z0F-B002
    Optional Accessory 4MUA006A
    Optional Accessory 5Z0B0040
    Optional Accessory 6Z0F-C091
