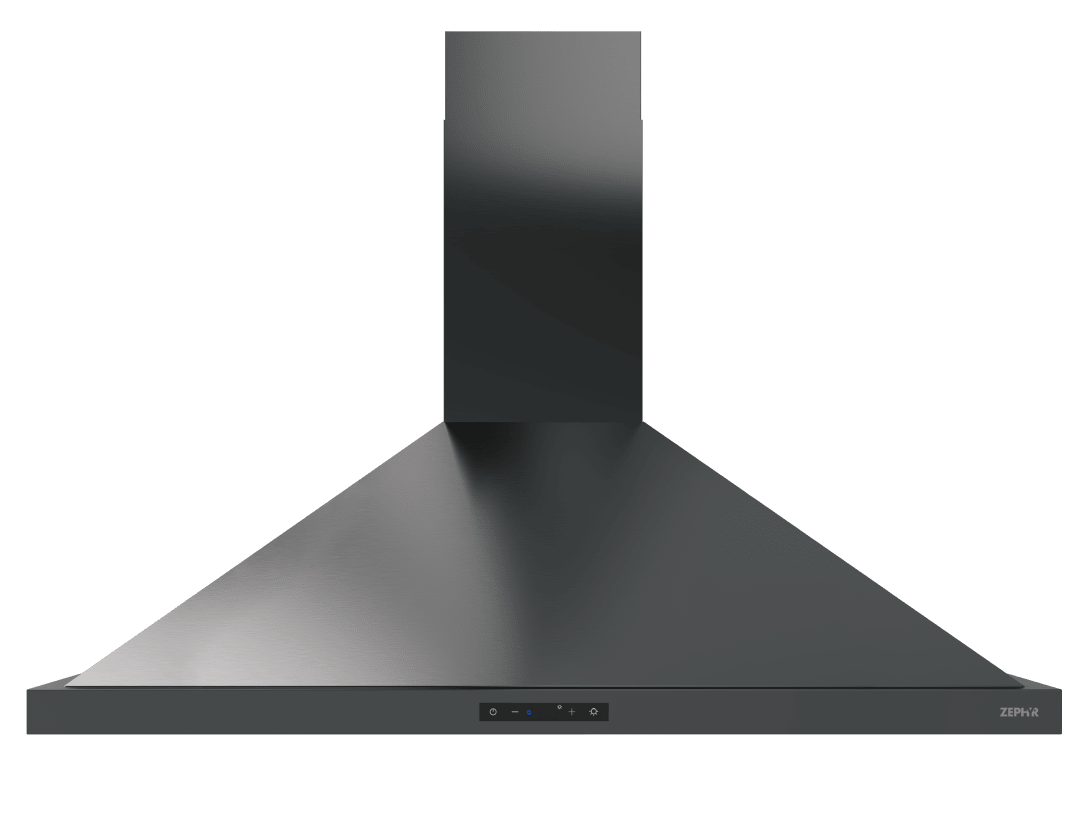

ZOM-E36BBS
Head On IsoDownload

Range Hood

ZOM-E36BBS

Ombra Wall

  • Ombra is the perfect combination of form and function with its LumiLight LED Lighting, capacitive touch controls, and optional hybrid baffle filters. Ombra features a powerful 600-CFM blower with our exclusive Airflow Control Technology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.
  • Product StatusActive
    BrandZephyr
    Replacement ModelZOM-E36CBS
    Model #ZOM-E36BBS
    MSRP ($)$1149
    Short DescriptionOmbra, Wall, 36", Black SS, 600 CFM
    CollectionCore Collection
    UPC646328009600
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeCapacitive Touch
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage4
    ColorBlack Stainless Steel
    Lights Levels2
    Compatible ModelsZRC-01OM, Z1C-01OMBS, Z0F-B002, MUA006A, Z0F-C091, AK1710
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds4
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200059
    Duct DischargeVertical
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Vertical; IN6
  • Net Height; IN30
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN19.75
    Weight; LBS28
    Ceiling Height Maximum10 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Dual-Level Lighting
    Feature 3 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 4Dishwasher Safe Aluminum Mesh Filters
    Feature 4 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 5Capacitive Touch Controls
    Feature 5 DefinitionCapacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.6
    Shipping Length; IN40.15
    Shipping Width; IN16.34
    Shipping Weight; LBS33.5
  • Optional Accessory 1ZRC-01OM
    Optional Accessory 2Z1C-01OMBS
    Optional Accessory 3Z0F-B002
    Optional Accessory 4MUA006A
    Optional Accessory 5Z0F-C091
    Optional Accessory 6AK1710
