ZPI-E24AG290
Head On IsoDownload

Range Hood

ZPI-E24AG290

Pisa Under-Cabinet

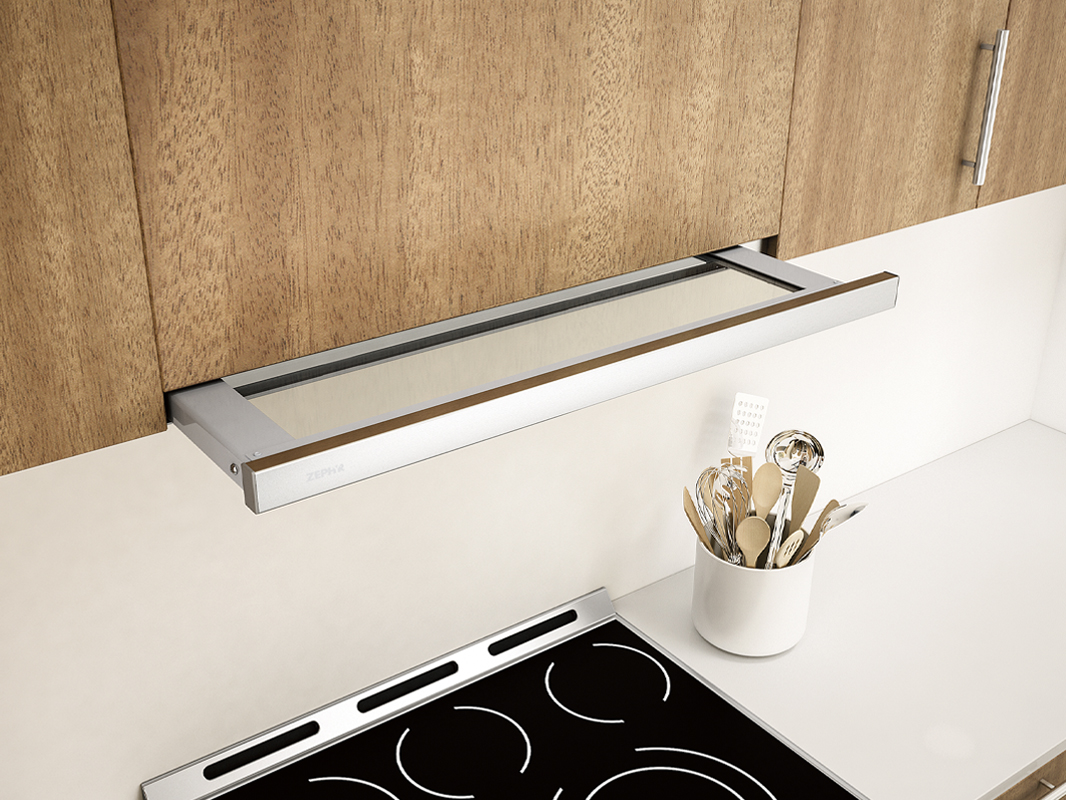

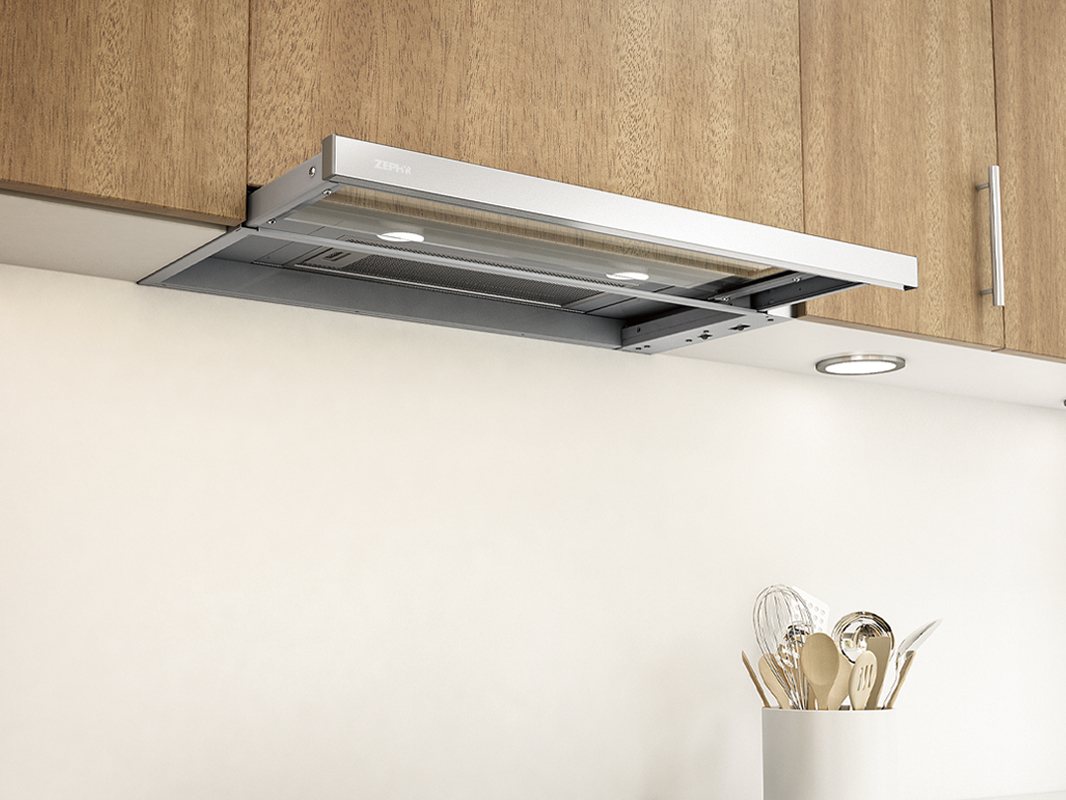

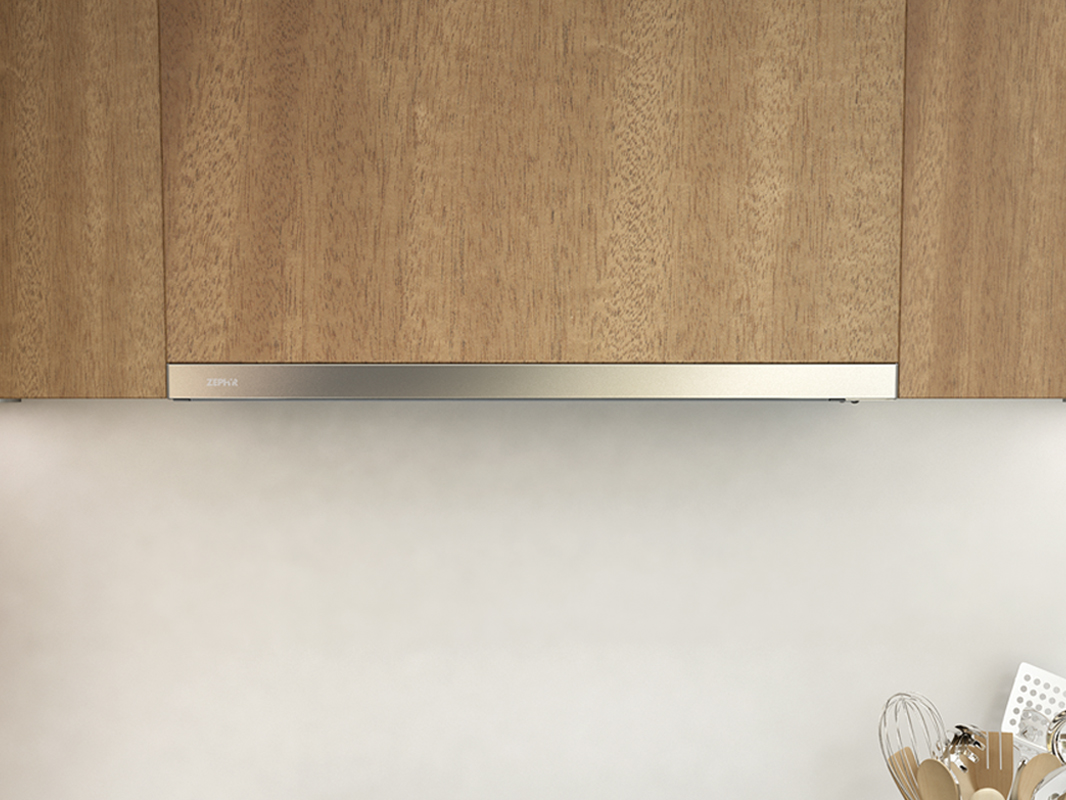

  • Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZPI-E24BG290
    Model #ZPI-E24AG290
    MSRP ($)$599
    Short DescriptionPisa, UC, 24", SS+Glass, 290 CFM
    CollectionCore Collection
    UPC646328006456
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage1.55
    ColorStainless Steel + Glass
    Lights Levels2
    Compatible ModelsZRC-00PI, Z0B0040, Z0F-C0PI
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • ZPI-E24BG290
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200054
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN1.5
    Net Width; IN24.9375
    Nominal Width; IN24
    Net Depth; IN11.9375 - 18.75
    Weight; LBS26.2
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Low-profile body
    Feature 1 DefinitionLow-profile body for a minimalist appearance.
    Feature 2Optional Ductless Recirculating Kit
    Feature 2 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 3Vertical or horizontal ducting
    Feature 3 DefinitionThis hood has the ability to vent either out the top or out the back.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.3
    Internal Blower 1 Max Sones3.2
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN17
    Shipping Length; IN16
    Shipping Width; IN29
    Shipping Weight; LBS34
  • Optional Accessory 1ZRC-00PI
    Optional Accessory 2Z0B0040
    Optional Accessory 3Z0F-C0PI
